5.8GHz FPV Kit System Cyclops Goggles Foxeer HD Camera 800mW Video Transmitter

This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The Cyclops goggles feature a wide viewable display, auto-scan function and more. The camera is a Foxeer Predator Mini V5 1000TVL CCD HD model, designed with the needs of drone pilots and RC enthusiasts in mind, with a powerful reliable transmitter for a perfect match.

Cyclops 5.8GHz FPV Goggles Specifications:

• Operating Voltage: 7.4 -12.6v
• Receiver: -90 dBm ISM 5.8GHz 40ch
• Antenna connections: SMA
• Operating Current: 600mA
• Dimensions: 187(L) x 179(W) x 107(H)mm
• Weight: 390g

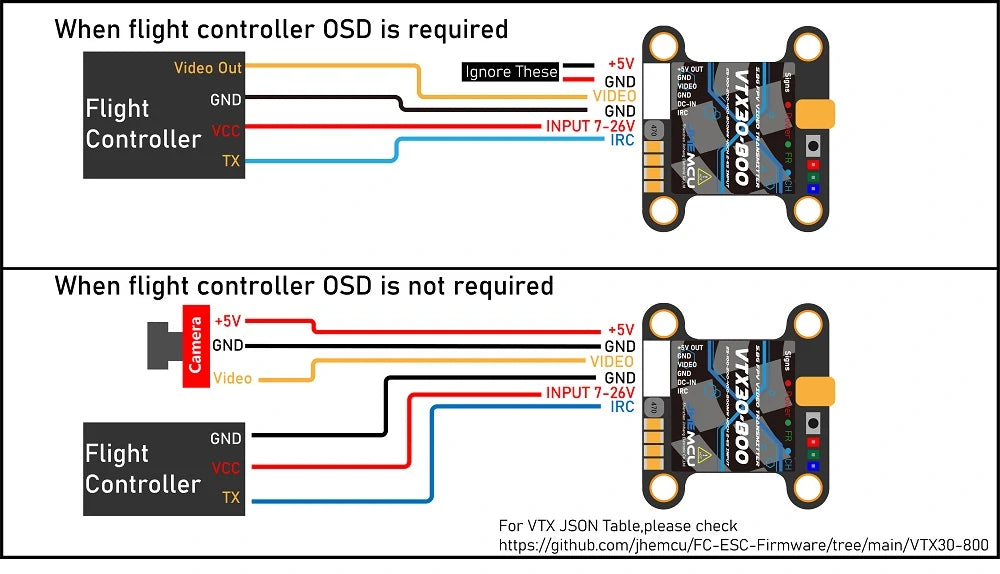

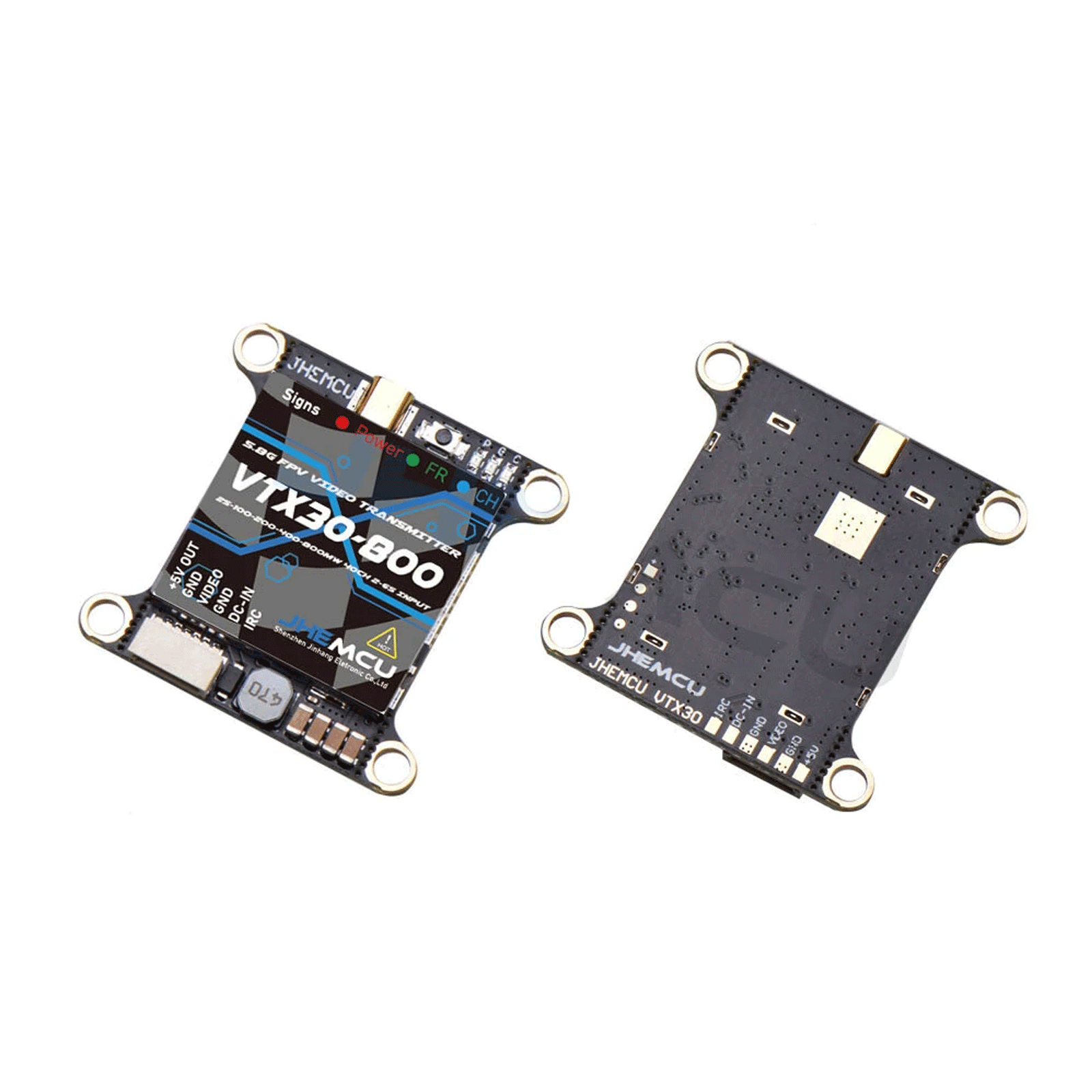

Video Transmitter Specifications:

• Model: VTX30-800
• Input voltage: 7-26V(2-6S)
• BEC: 5V
• Number of channels: 40CH
• Transmitting power: PIT/25/100/200/400/800mW

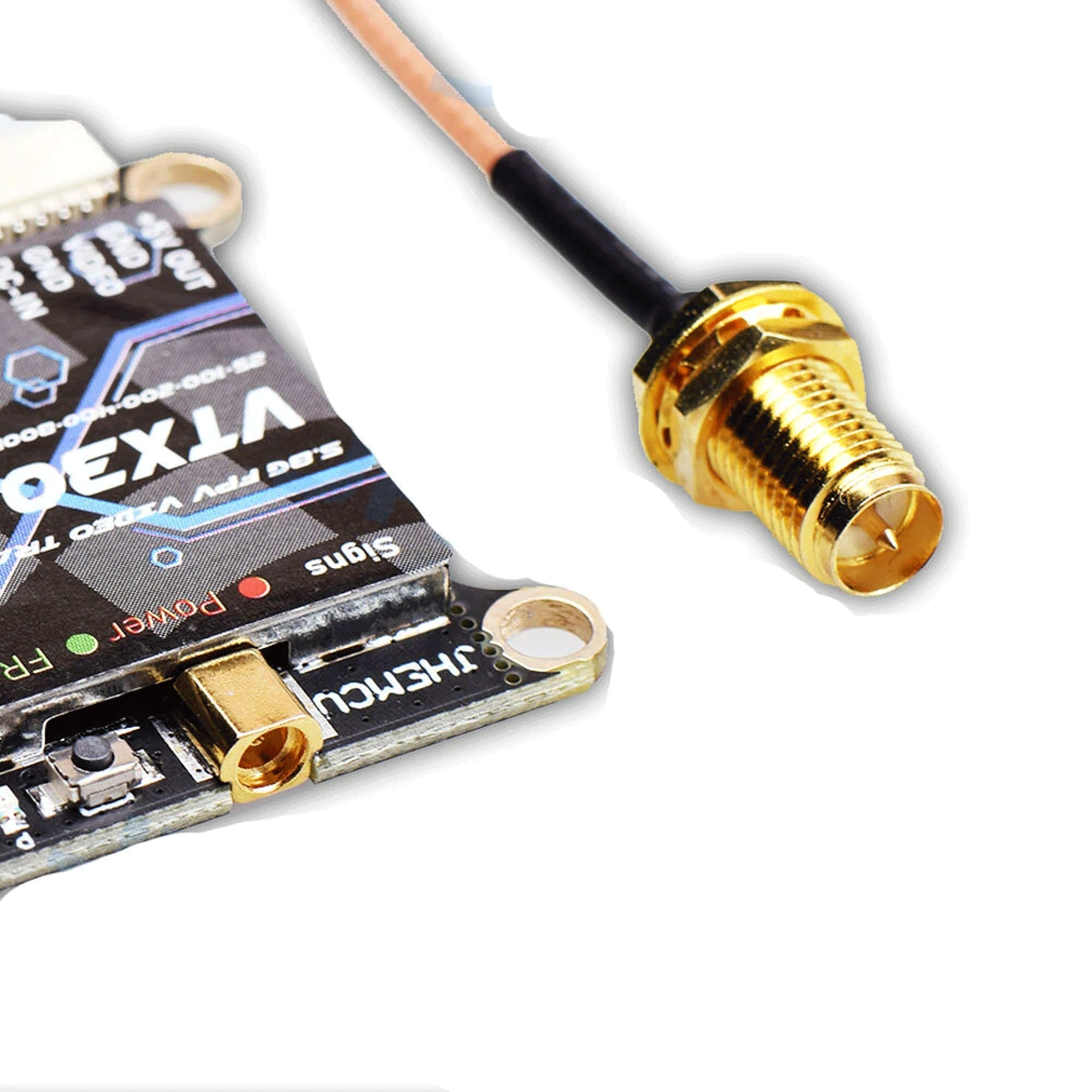

• Interface: MMCX
• Size: 36x36mm
• Installation hole distance: 30.5*30.5mm M3
• Weight: 6.8g
• Support IRC power and channel adjustment

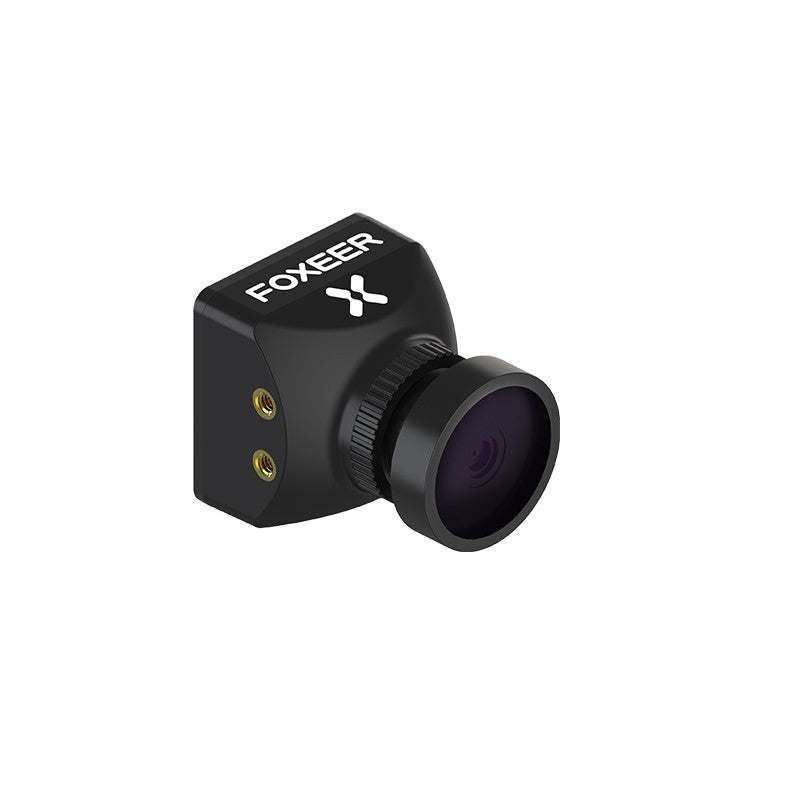

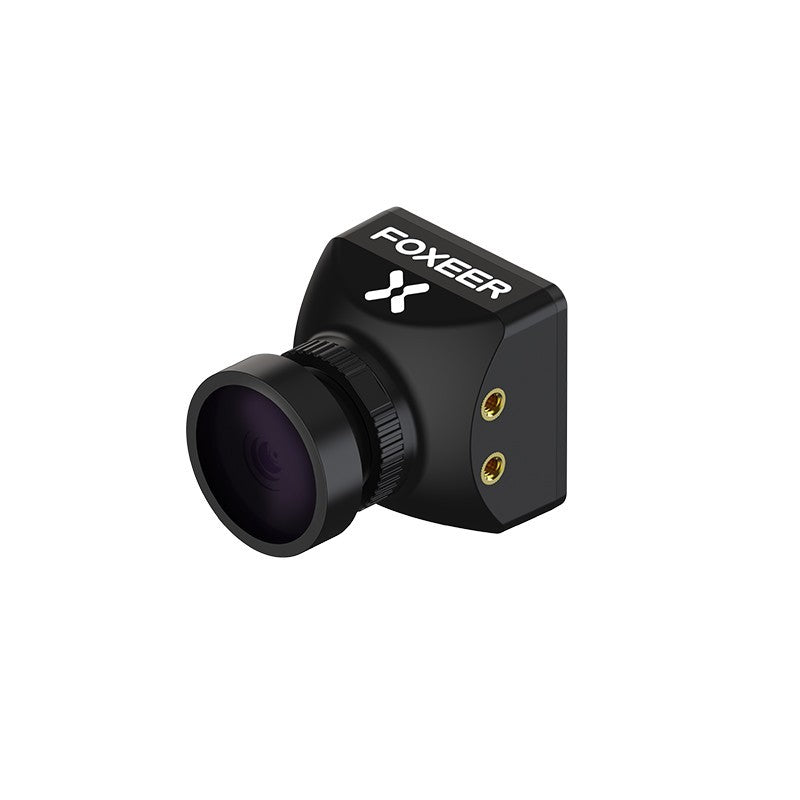

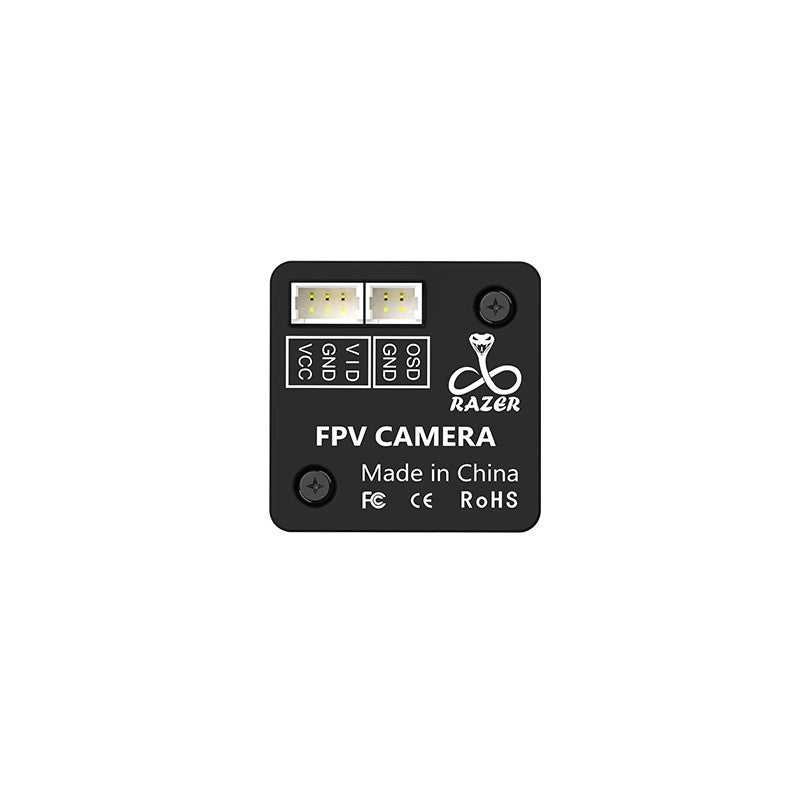

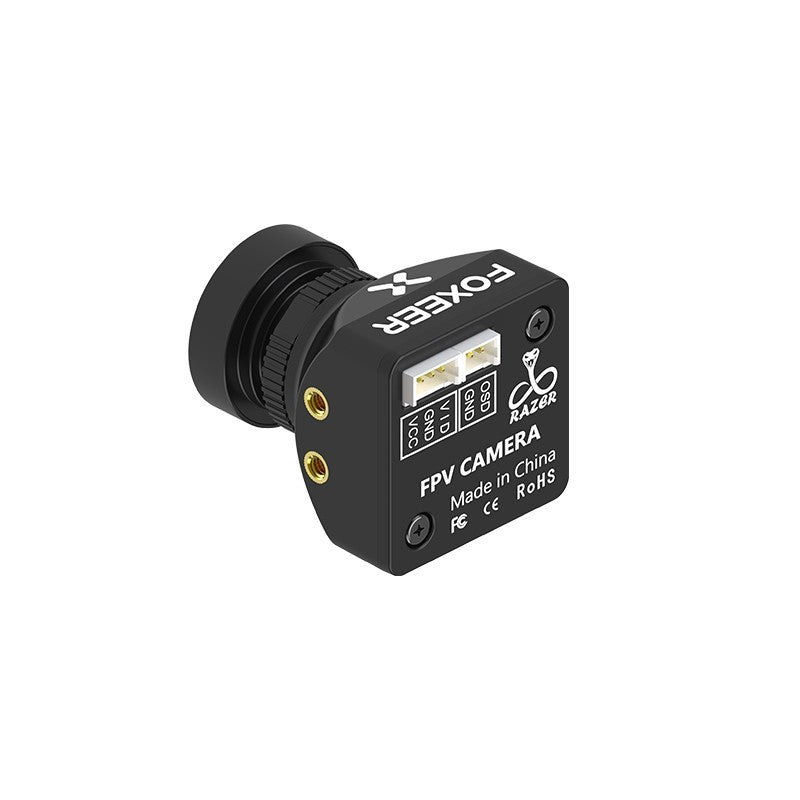

Foxeer Razer Mini V3 Camera Specifications:

• Sensor Type Sony 1/3" CMOS Sensor
• Scale 4:3
• Tv System PAL
• Resolution 1200TVL
• Shutter Speed PAL 1/25~1/10000 sec
• Video Output CVBS Analog Signal
• FOV: -H:98°
• Shutter Speed Auto
• Minimum Illumination 0.01Lux
• White Balance Auto
• DNR 3DNR
• WDR 90dB
• DAY/NIGHT EXT/Auto/Color/B&W
• Flight OSD No
• Input Voltage 5V~25V
• ITALIANO / PORTUGUES / 日本语 / 한국어 / EAAHNIKA
• Working Temperature -10°~50°C RH90% MAX
• Working Humidity 20~80%
• Storage Temperature -20°~70°C
• Dimension 22*22mm
• Consumption 140mA@5V / 64mA@12V
• Weight 12g(Exclude cable)
• Package Includes 1 x Camera; 1 x Silicon Cable; M2*4mm screws

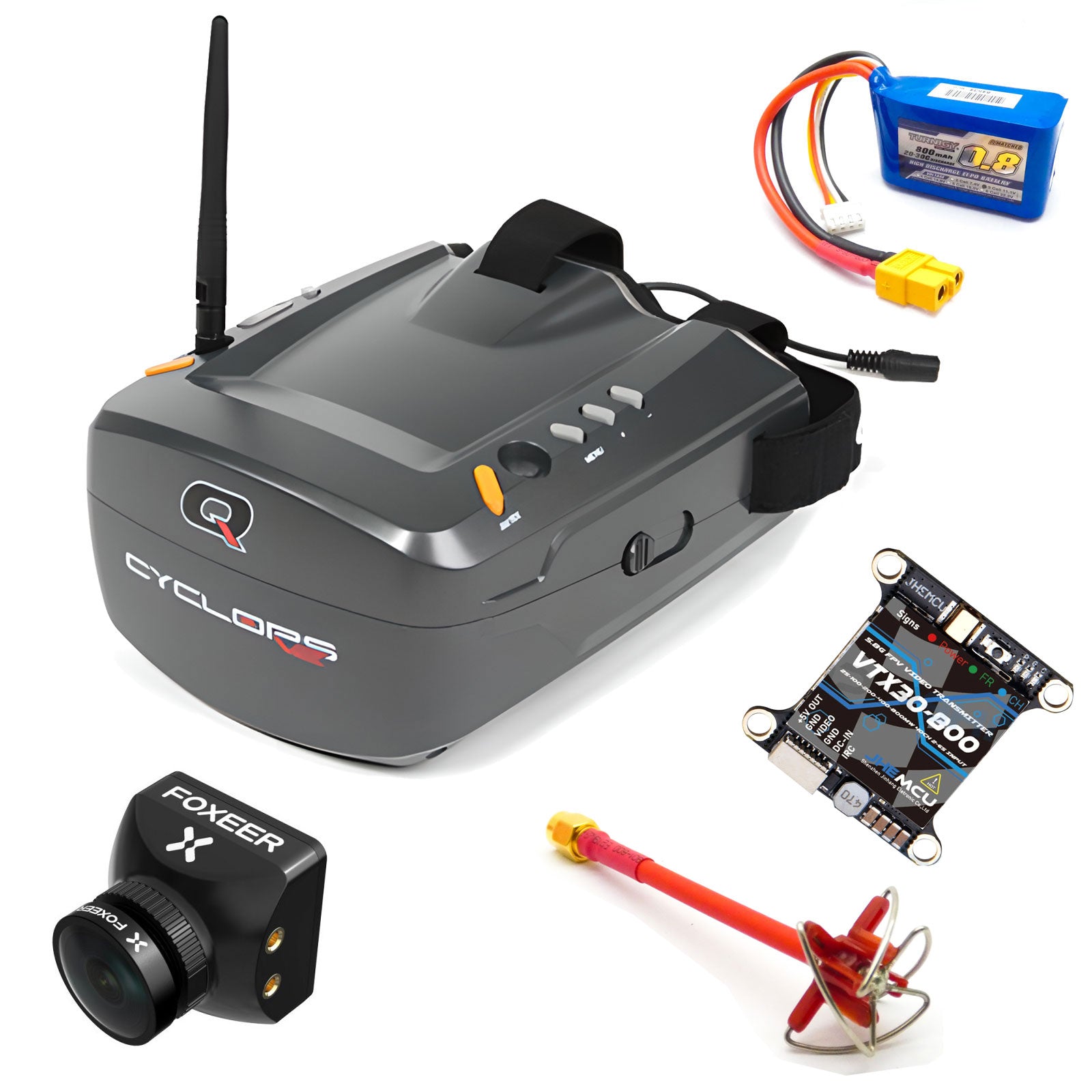

Package Contents:

• 1x 5.8GHz Cyclops FPV Goggles + Battery

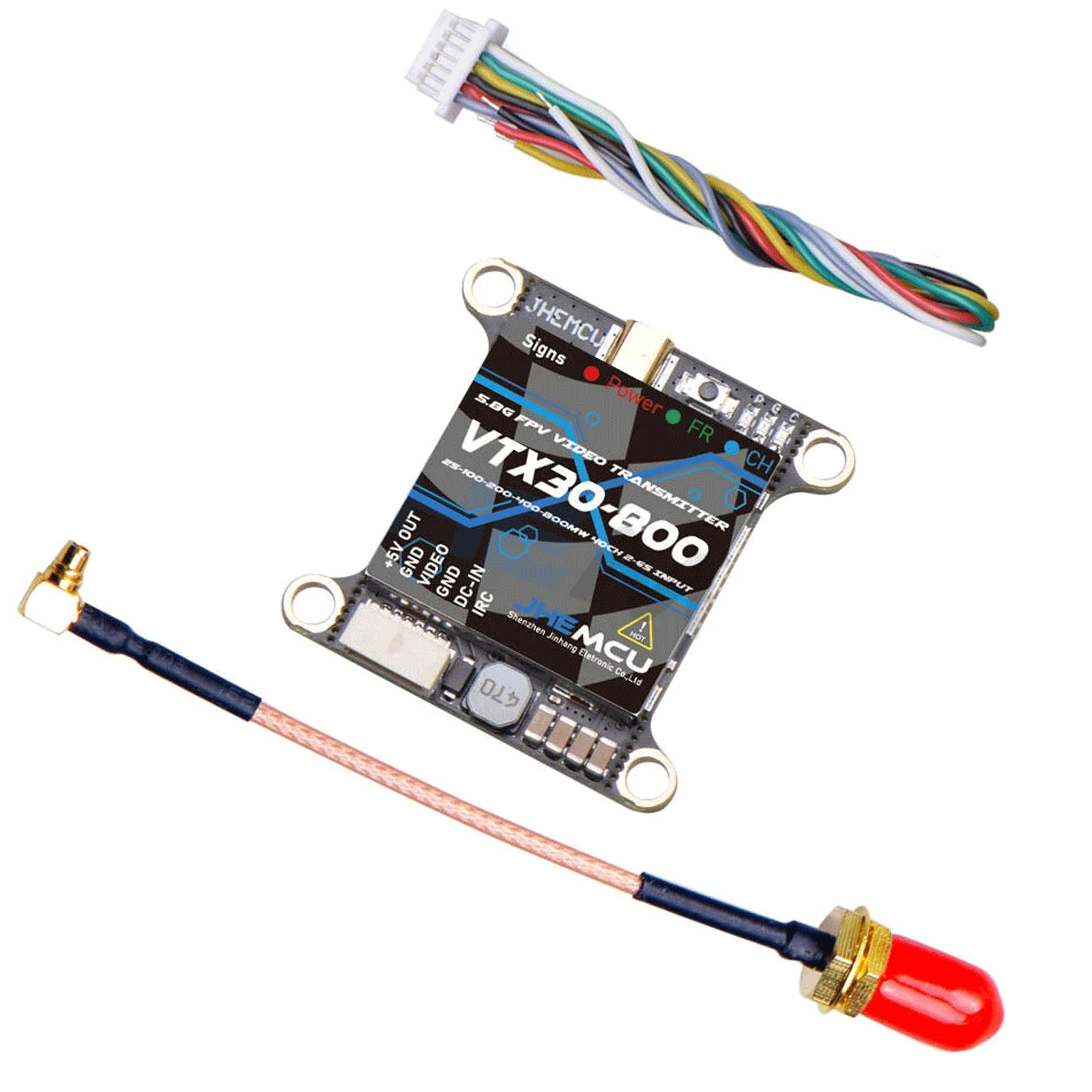

• 1x 5.8GHz 800mW Video Transmitter
• 1x Transmitting Antenna
• 1x Foxeer Razer V3 Mini CCD 1000TVL Camera
