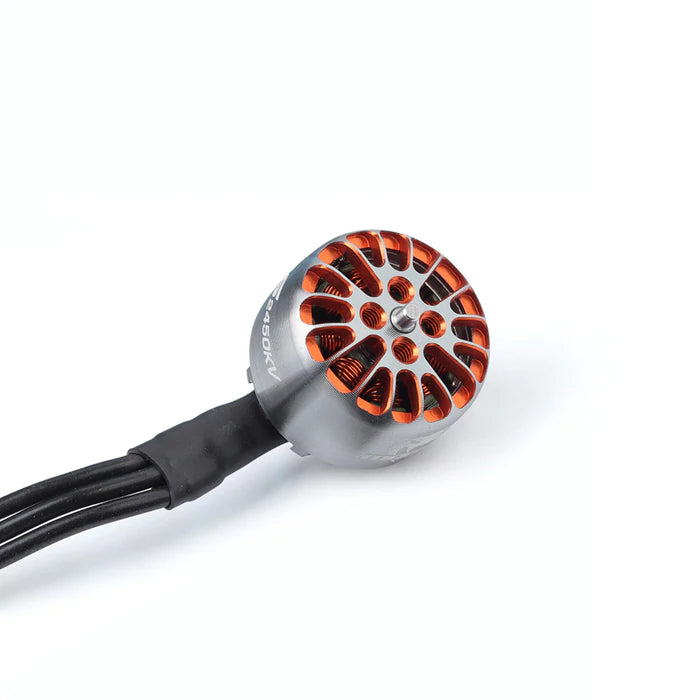

  • Diatone Mamba Toka 1206 2450KV 4-6S Brushless Racing Motor
Diatone Mamba Toka 1206 2450KV 4-6S Brushless Racing Motor

Added to Cart

Product Type: Unknown Type
Brand: Diatone
KV Rating: 2450KV
Motor Size: 1206

Specifications:
  • MAMBA TOKA 1206 2450KV Racing motor
  • Overall Dimension:Φ17×13.4mm
  • prop mounting shaft diameter:1.5mm
  • Installation hole position: 9×9mm，M2
  • Prop: 2inch~3inch
  • Bearing：5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size：24AWG×150mm
  • Configuration:9N12P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter：12mm
  • Stator Height:6mm
  • Rated Voltage:4~6S (16.8V~25.2V)
  • Peak Current: 5.8A
  • ldle Current：6V/0.4A
  • Maximum Power: 160W
  • Internal Resistance：456mΩ

 Package Contents:
  • 1x Mamba Toka 1206 2450KV Motor
