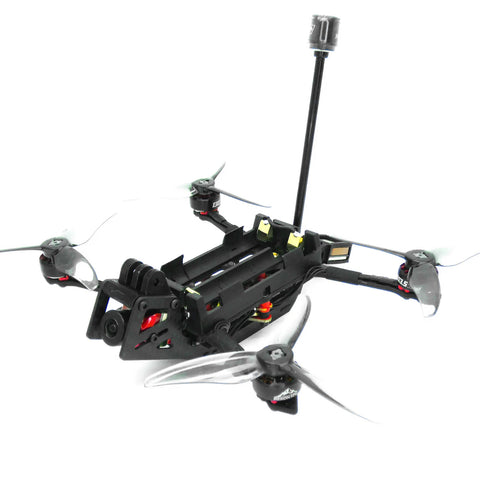

- Rekon35 Nano Long Range 18650 Battery FPV Drone with Camera/VTx/AIO (P
The Rekon 3.5 is what I always wanted the original #MicroLongRage to be; Sub 250g and powered by a 2S Li-Ion!
Two years ago, the components to make such a concept work properly just weren’t available: Electronics was not running reliably when the power supply dropped below 5V, efficient motor-prop combos with the right size weren’t available, and building DIY 2S Li-Ion packs was laborious. But the FPV industry has made a stunning amount of progress and today, with the support of HGLRC the Rekon 3.5 is finally making it happen. You can simply use cheap off-the-shelf 18650 batteries and the electronics are so reliable that in an emergency you can empty the Li-Ion batteries way below the recommended voltage without any impact on the FPV video feed and radio control link.
WARNING: - Our experiences with the Rekon 3 have shown that the type of 18650 batteries used can affect the performance of the quad and might lead to malfunctions. Please be careful to slowly test out the flight time limits of the specific batteries you are using
F411 Flight Controller Specifications:
- FC Firmware: ZEUSF4EVO
- CPU: STM32F411
- MPU: MPU6000
- BEC:5 V/2A
- UARTS: 3
- OSD: Support
- BlackBox: 8M
- Built-in Current Sensor
10A BL_S 4in1 ESC Specifications:
- ESC Firmware: P_H_10
- Constant Current:10A
- Peak Current:15A(5 Sec)
- Support Protocols: DShot600/300/150/Oneshot125/42, MultiShot
Features:
- Efficient and quiet sub 250g 3.5” platform with 15+ min flight time
- 1303.5 5500kV motors ensure a decent flight performance
- Works with any high-discharge 18650
- Integrated Reliable power supply for the DJI vista unit
- Capable of carrying a Naked GoPro or Insta 360 go-type camera
- Fully long-range capable GPS and return-to-home functions
Specifications:
- Name: Rekon35 Nano Long Range FPV Drone - Analog Version
- Weight: 117g (Weight without receiver)
- Rekon35 LR Frame
- Type: 3.5-inches Frame
- Wheelbase: 160mm
- Propeller support: 3.5 Inches
Zeus10 AIO 2-6S flight controller Specifications:
- Input voltage:2-6S
- Flight control firmware: BF ZEUSF4EVO
- ESC firmware:BL_S/P_H_10
- Size:32.5x32.5mm
Zeus nano VTX 350mW video Specifications:
- Output power: PIT/25/100/200/350mW
- Input voltage: DC 5V
Caddx Ratel 2 FPV Camera Specifications:
- Input Power: DC 5-40V
- Dimensions:19mm*19mm*20mm
Rekon 1303.5 KV5500 brushless motor Specifications:
- Input voltage:7.4V (2S)
- Recommended blade:3 inches
M80 GPS Specifications:
- Power Supply:5V
- Size:18.5mm x 18.5mm x 7.1mm
GEMFAN 3520 3.5 inch 3-blades propeller Specifications:
- Quantity:4 CW & 4 CCW
Package Contents:
- 1x Rekon3.5 Long Range Frame
- 1x Zeus10 AIO flight controller
- 1x Zeus nano VTX 350mW
- 1x Caddx Ratel 2 FPV Camera
- 4x Rekon 1303.5 KV5500 brushless motor
- 1x M80 GPS
- 8x GEMFAN 3520 3.5-inch 3-blades propeller
- 1x IPEX Hammer mini Antenna
- Receiver NOT Included
