Mini Micro 6mm Audio Microphone (DC 9-12V)

Features:

• Audio Microphone
• Contains high fidelity integrated processing chip
• With low noise performance enhancement
• Contains dedicated AGC circuit
• Integrated dual-stage preamplifier, which is resistant to power supply noise and environmental noise.
• Utilizes gold-plated high-fidelity large-diaphragm condenser microphone imported from Japan.
• The sound reproduction is crisp, clear and thorough, and the tone is medium and high fidelity, avoiding the effect of instantaneous high-decibel sound on the subsequent equipment.
• 9-12VDC wide voltage power supply can be synchronized with the camera.
• Suitable for audio input of hard disk video recorder, submersible DVR, network audio and video server and other equipment

Specifications:

• Microphone for CCTV Camera with DC and AV cable
• Color: Black

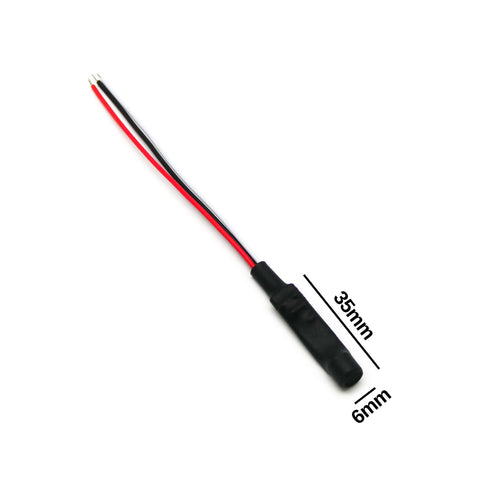

• Dimensions: 6x35mm (Not including cable)
• Work Temperature: -20 DegreesC to 50 DegreesC
• Range: 5-40 Square metres
• Output Level: 0-6V
• Output Impdeance: 600 ohm
• Work Current: 12mA
• Work Voltage: 9-12V
• Frequency Range: 200-10000Hz
• Frequency Response: 2.5dB
