380mm FPV Drone Kit 2212 Motors Noxe F722 Flight Controller Bidirectional 20A ESC 3-4S

JHEMCU F722 NOXE Flight Controller Specifications:

• Model: F722 NOXE
• Main Control: STM32F722RE (216MHZ)
• Gyroscope: ICM-42688-P
• Barometer: DPS310
• OSD Chip: AT7456E
• Black Box: 16MB
• LED Programming: supported
• BB Sound: supported
• Input Voltage: 3-6S
• I2C Interface: supported
• BEC: 5V/2.5A
• BEC: 10V/2.0A
• Camera Input: supported
• USART: UART1, UART2, UART3, UART4, UART5, UART6
• Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
• GPS: YES
• Compass: YES
• HD O3: YES
• ESC Signal: Dshot150,Dshot300,Dshot600
• USB: TYPE-C
• Current Port: YES
• Voltage Sensor : YES
• DFU Button: YES
• Weight: 5g
• Flight Control Firmware: Betaflight_ 4.4.2_ JHEF7DUAL. HEX
• Installation Hole Spacing: 20MM * 20MM * 4MM
• Maximum Overall Size: 29MM * 29MM

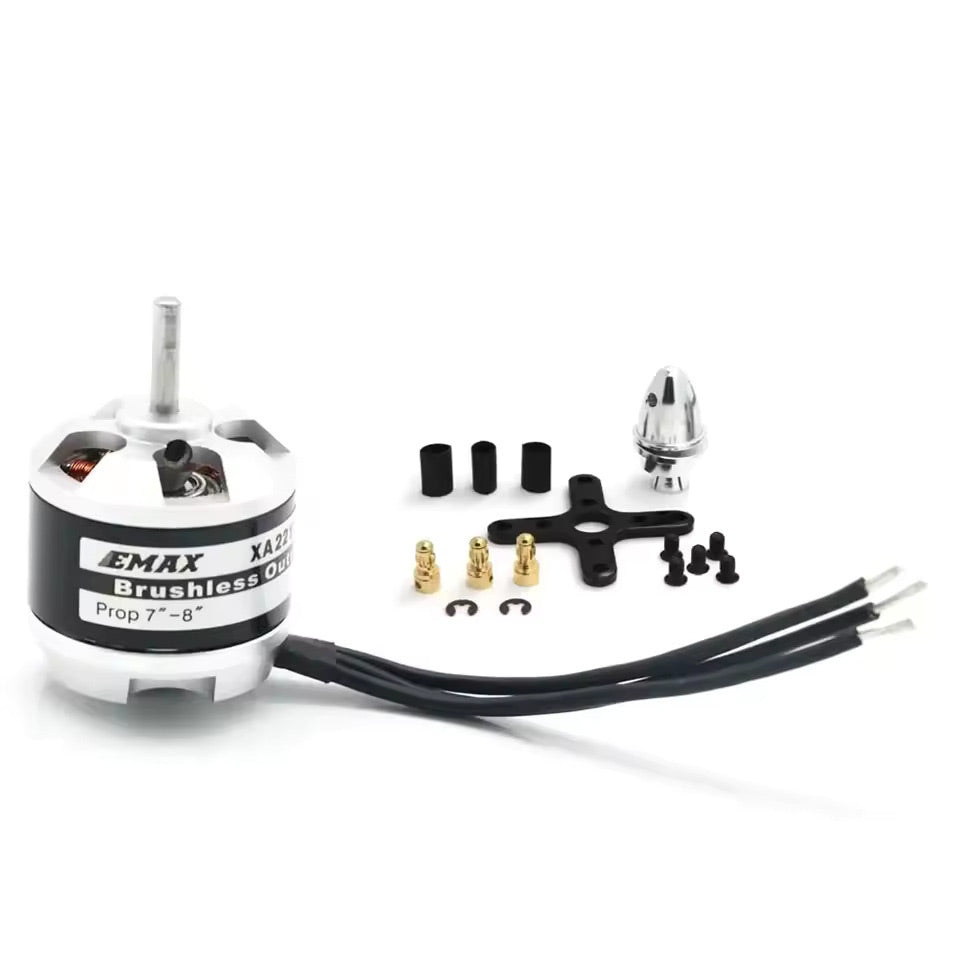

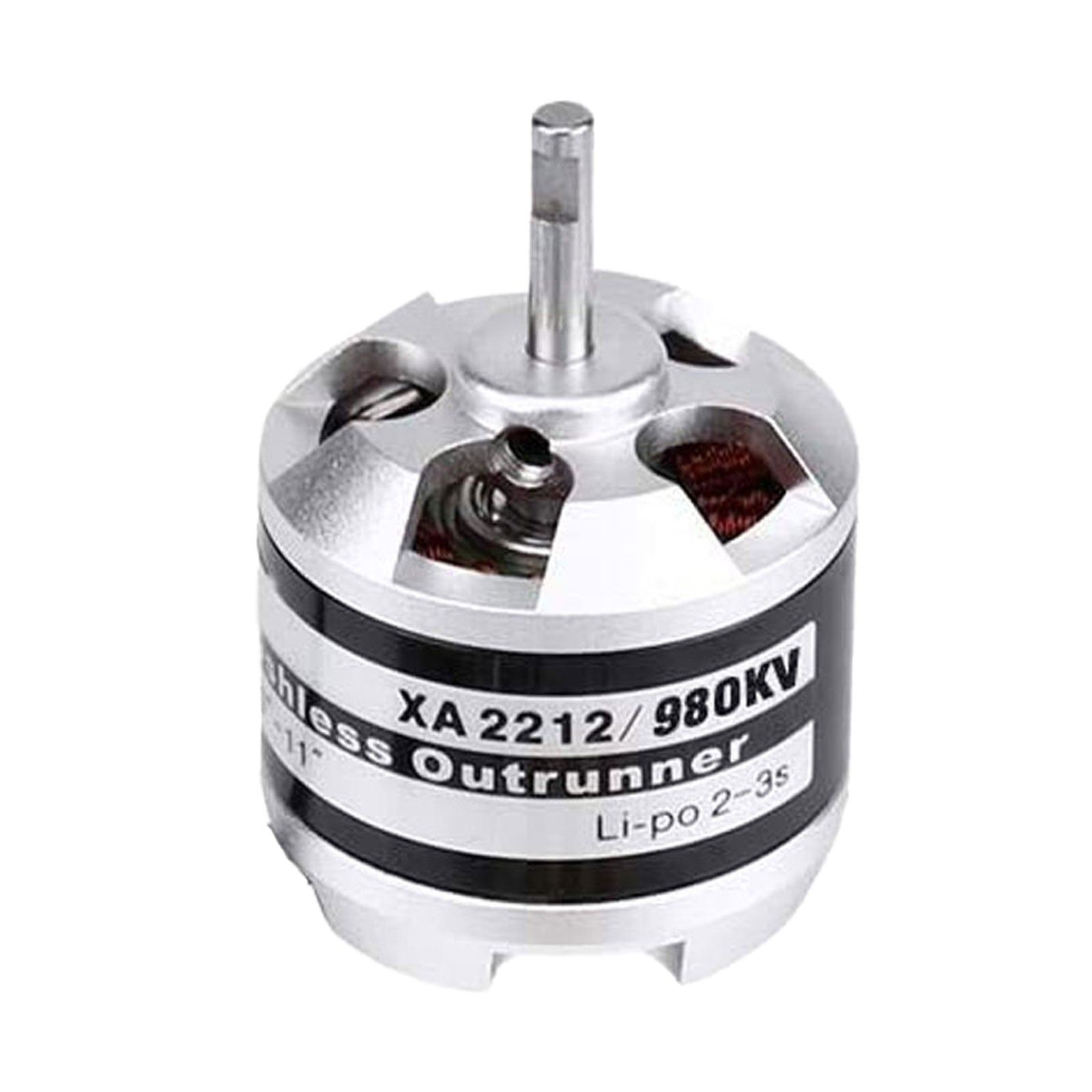

Emax XA2212 Motor Specifications:

• KV Rating: 820KV / 980KV / 1400KV
• Structure: 12N14P
• Rotor Size: 22 x22 x 12mm / 0.87 x 0.87 x 0.47inch
• Motor Size: 27.9 x 27.9 x 43.16mm / 1.10 x 1.10 x 1.70inch
• Supporting Voltage: 2-3S
• Maximum Load Capacity Per Motor: 940g
• Nut: M5

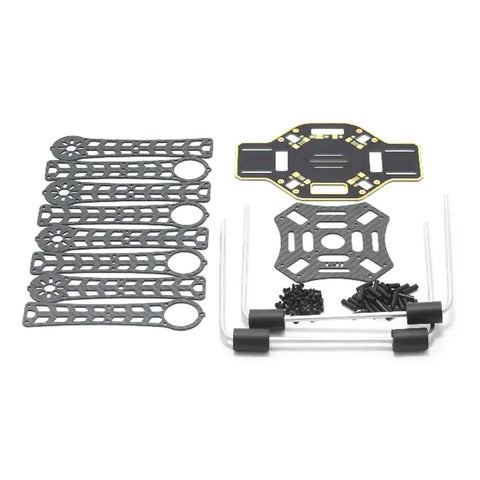

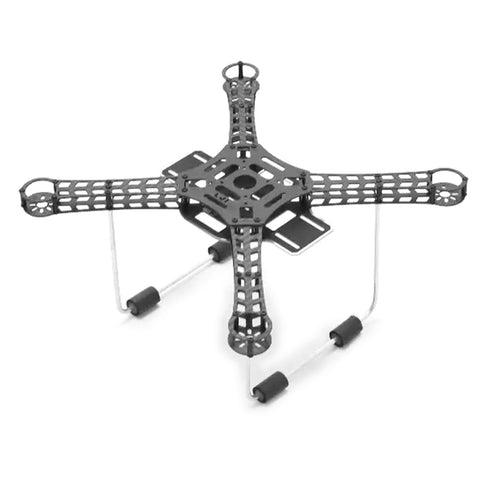

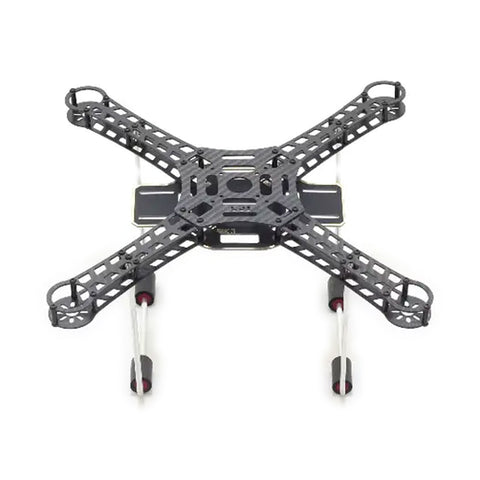

Frame Specifications:

• Material: Carbon fiber
• Length: 310mm
• Wheelbase: 380mm
• Supports up to 10-inch propellers.
• Aluminum landing gear heigth:145mm
• With F450 PCB board as the lower board,1.5mm pure carbon fiber as the upper board,
• 1.5mm pure carbon fiber arms, aluminum pillars

ESC Specifications:

• Bidirectional 1:1 power output with direct reverse and no brake
• Fast throttle response and precise handling
• Integrated UBEC for 5V receiver and electronics power
• UBEC output: 5V

• Current ratings: 20A

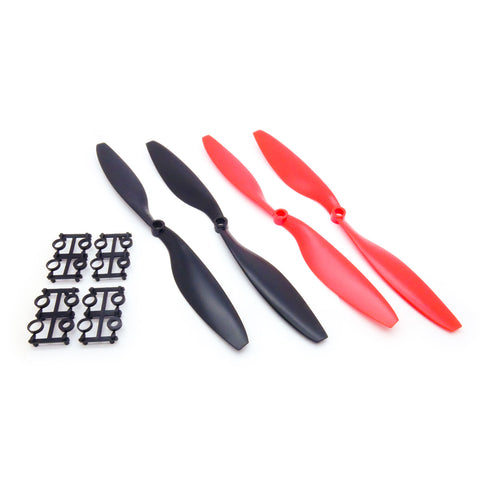

Propeller Specifications:

• Size: 10x4.5 inches
• Quantity: 4 pieces (2x CW, 2x CCW)
• Material: Nylon
• Color: Red / Black Combo
• Sizing Rings: Included
• Recommended Motors: 2212

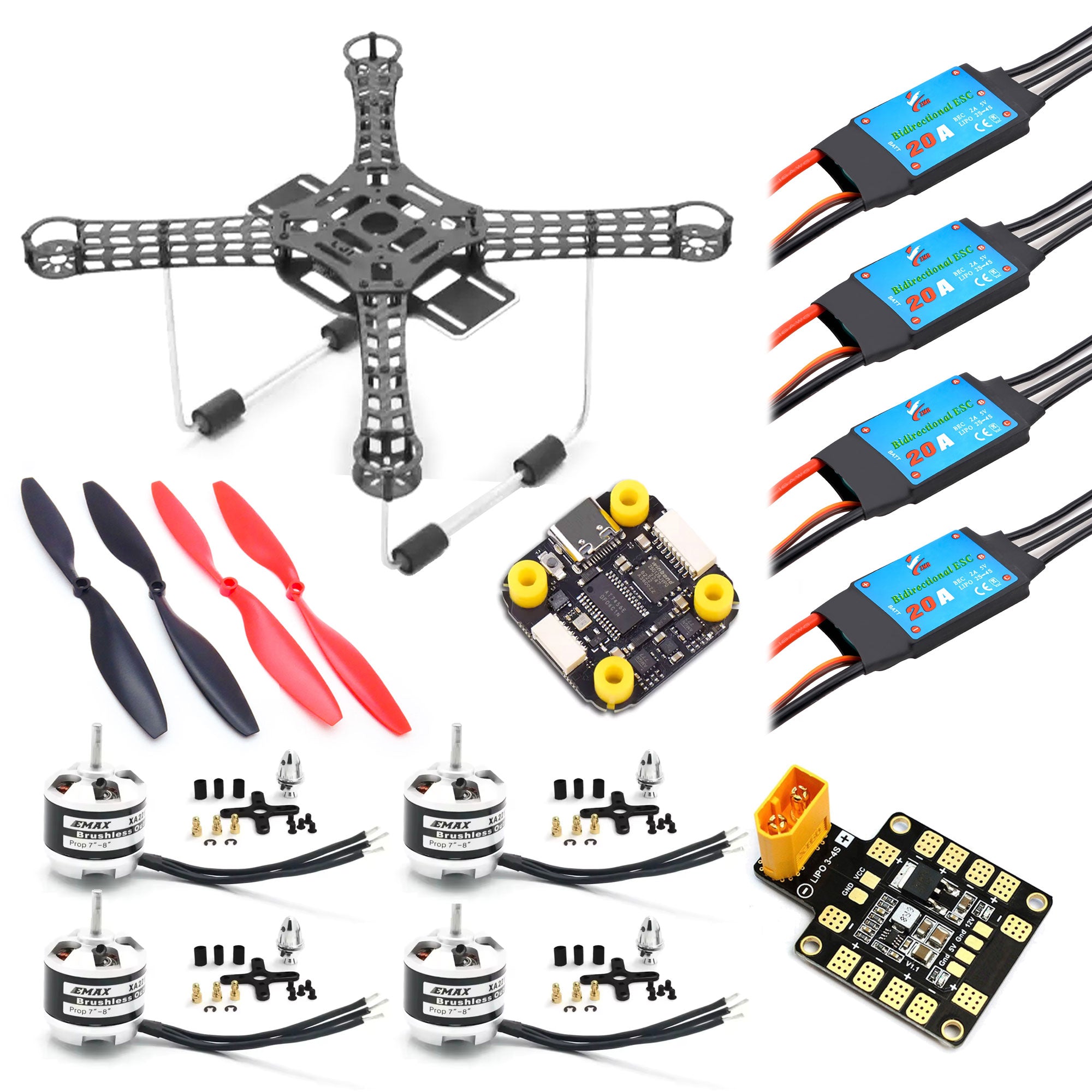

Package Contents:

• 1x 380mm Carbon Fiber Frame Kit
• 1x F722 Noxe Flight Controller

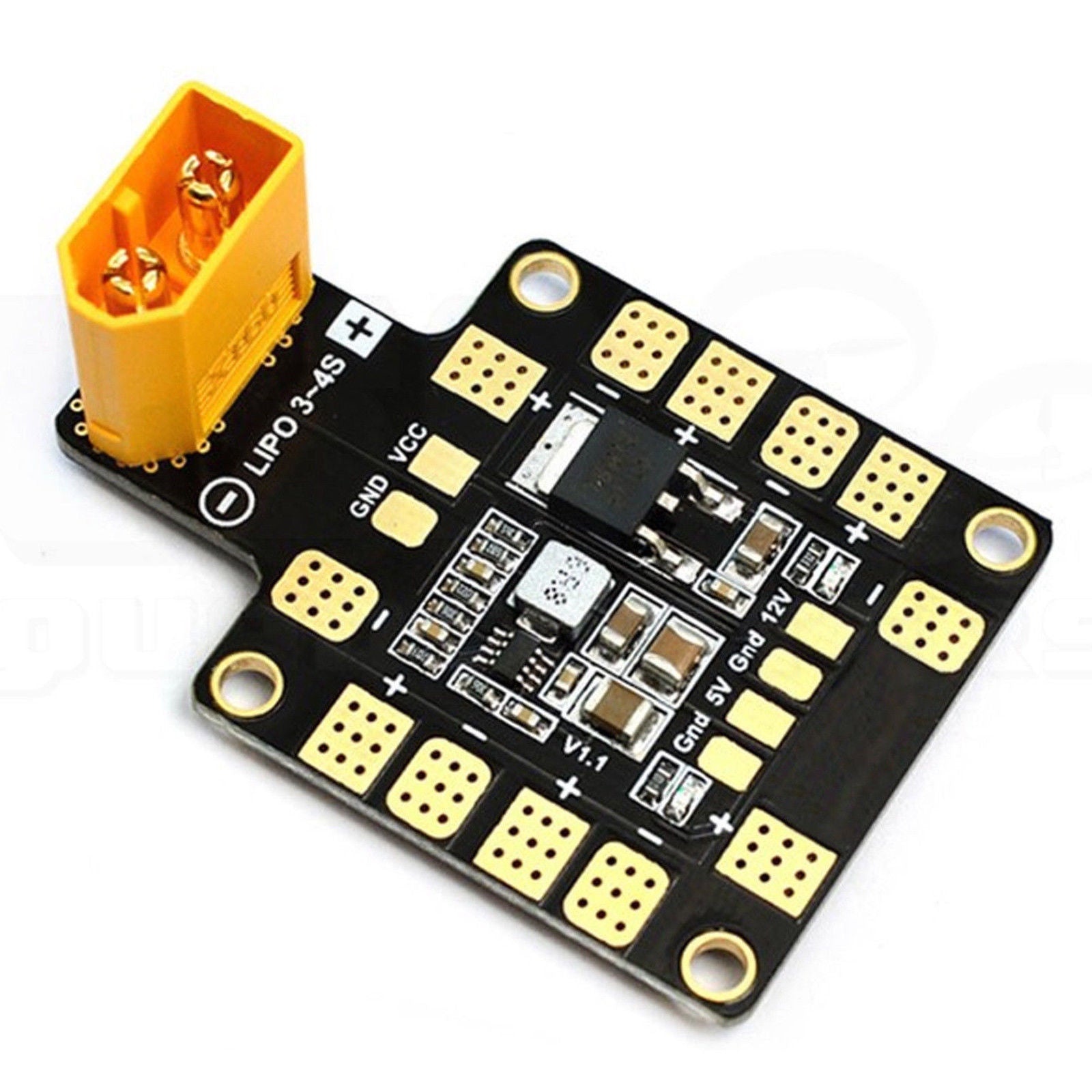

• 1x 5v 12v Power Distribution Board
• 1x Flight Controller Adapter Kit
• 2x 2212 CW Motors
• 2x 2212 CCW Motors
• 4x Readytosky Bidirectional 20A ESCs
• 4x 10x4.5 Propeller (CW)
• 4x 10x4.5 Propeller (CCW)
