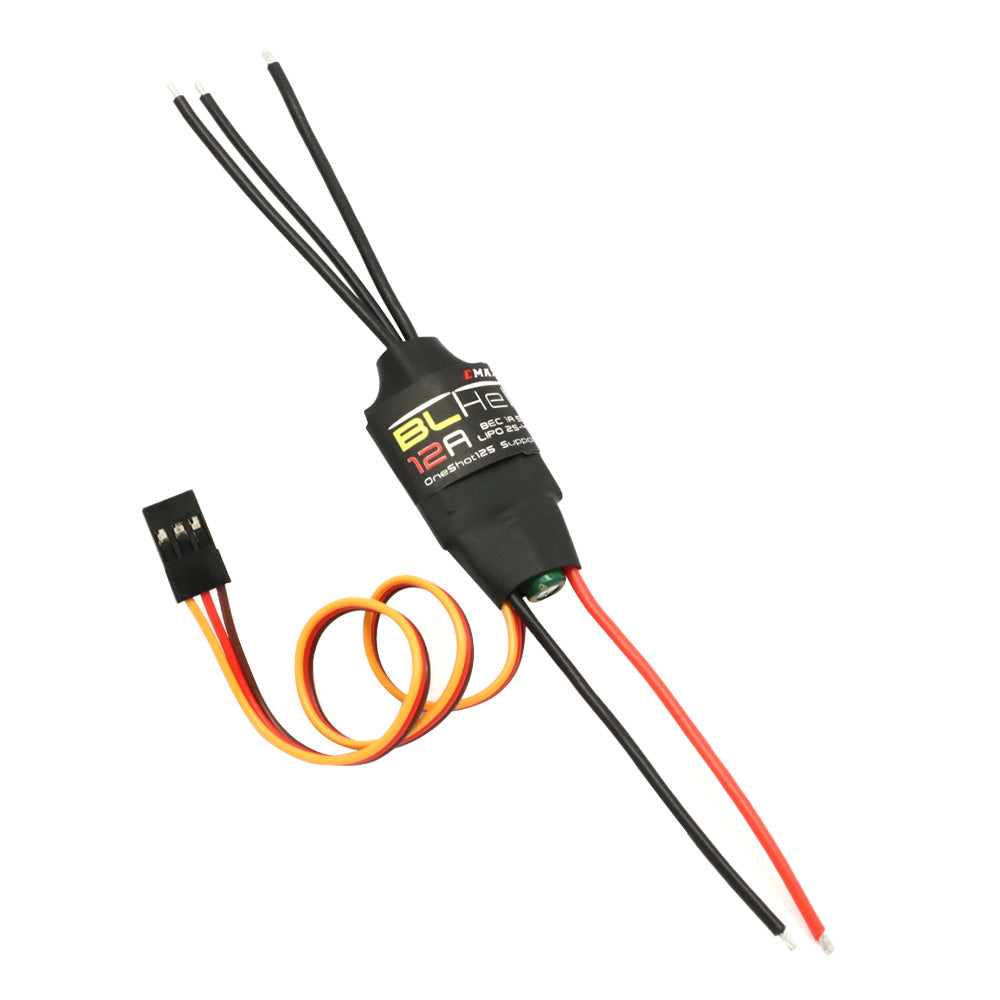

Emax 12A Brushless ESC BLHeli 2-4S w/ 1A BEC

Experience superior performance with the Emax BLHeli Series ESC, designed to optimize drive performance and deliver exceptional control for your drone. Engineered with advanced BLHeli firmware, this ESC features a range of protective measures including low-voltage, over-heat, and throttle signal loss protection, ensuring reliable operation in diverse conditions. With separate power supplies for MCU and BEC, this ESC effectively eliminates magnetic interference for enhanced performance.

Features:

• Advanced Firmware: Based on BLHeli firmware, further optimized for perfect drive performance.
• Comprehensive Protection: Includes low-voltage protection, over-heat protection, and throttle signal loss protection for enhanced safety.
• Dual Power Supply: Utilizes separate power supplies for MCU and BEC, reducing magnetic interference.
• Programmable Parameters: ESC parameters can be easily set via program card or transmitter for customized performance.
• Throttle Compatibility: Throttle range can be configured to be compatible with different receivers, ensuring precise response.
• Built-in BEC: Equipped with built-in linear BEC or switch BEC for efficient power distribution.
• High-Speed Performance: Capable of achieving maximum speeds of 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, and 35,000 rpm for 12-pole motors.
• Programmable Rotation Direction: Motor rotation direction can be programmed as normal, reverse, or bidirectional.
• Easy Configuration: All parameters can be programmed via program card or transmitter, including default settings.
• Multiple Protection Features: Includes low voltage cut-off protection, over-heat protection, and throttle signal loss protection.
• Alarm Function: ESC emits an alarm to help locate devices by keeping the throttle on FULL ON position for a while.
• Throttle Range Configuration: Throttle range can be configured for smooth, linear, and precise throttle response.

Specifications:

• Continuous Current: 12A
• Burst Current: 15A (10S)
• Battery: 2-4S
• BEC Output: 1A 5V
• Size: 45 x 18mm (Excluded cable)
• Color: Black

Package Contents:

• 1x EMAX 12A BLHeli ESC
