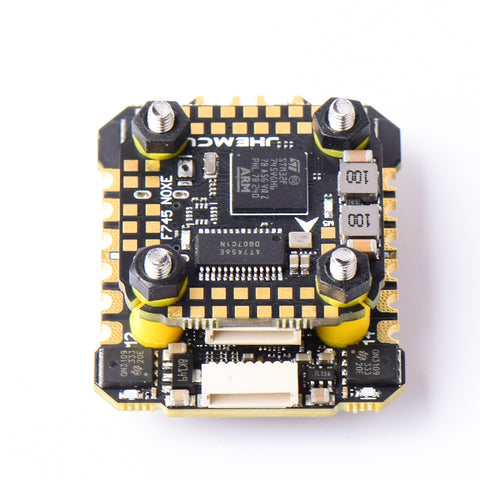

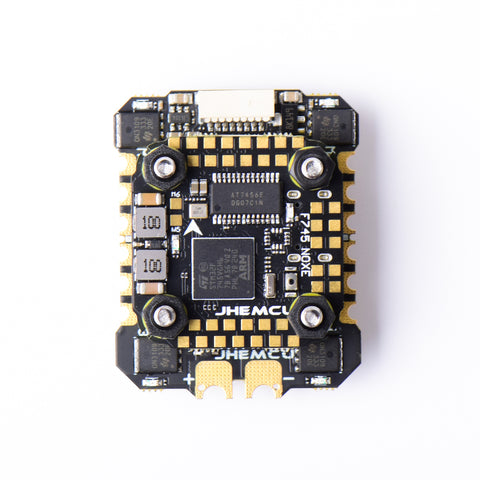

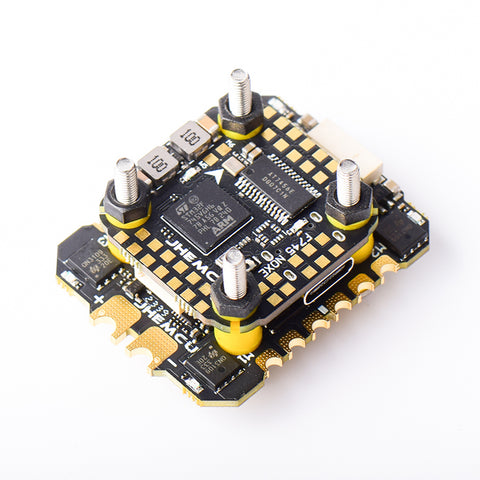

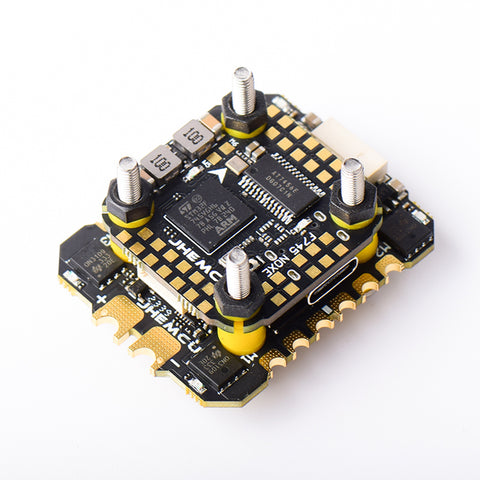

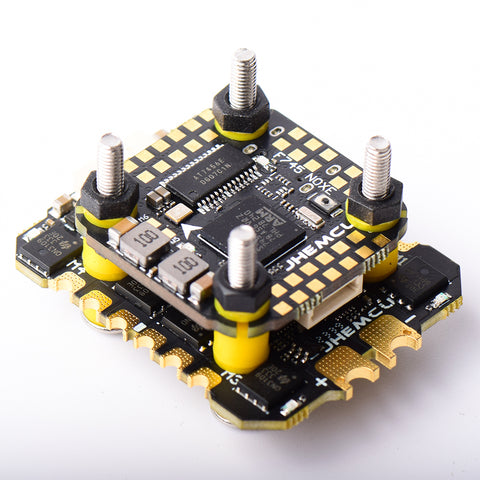

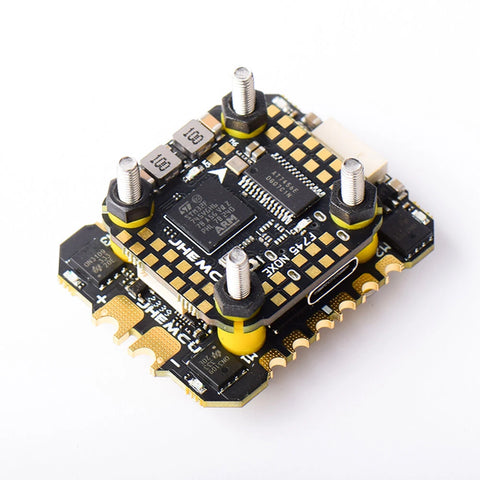

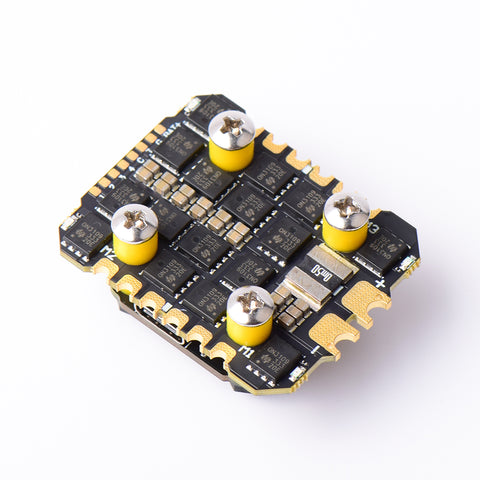

JHEMCU F745 NOXE BL32A60 Mini Stack 3-6S Flight Controller w/ 60A 4-in-1 ESC

Upgrade your DIY freestyle RC FPV racing drone with the 20x20mm JHEMCU F745 NOXE Mini Flight Controller MPU6000 45A 60A BL_32 3-6S 4in1 ESC Stack. This compact and powerful stack is designed to enhance your drone's performance and reliability.

Features:

• Flight Controller: Equipped with the F745 NOXE Flight Controller featuring an STM32F745 master, MPU6000 gyroscope, DPS310 barometer, and AT7456E OSD chip.
• Versatile Connectivity: Supports various receivers including ELRS, TBS, SBUS, IBUS, DSM2, and DSMX, along with GPS and compass compatibility.
• Robust Construction: The 45A or 60A ESC options provide continuous current for smooth operation, along with ammeter support and BLHELI_32 firmware.
• Easy Installation: Compact design with mounting hole spacing of 20x20mm and includes shock-absorbing balls, screws, and XT60 connector for hassle-free setup.
• Quality Assurance: Backed by DOA Guarantee, Missing/Wrong Items Guarantee, Quality Guarantee, and No Reason Returns for peace of mind.

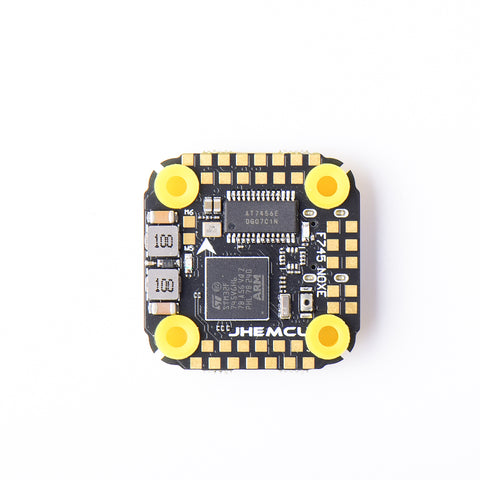

F745 Noxe Flight Controller Specifications:

• Model: F745 NOXE
• Master: STM32F745
• Gyroscope: MPU6000
• Barometer: DPS310
• OSD chip: AT7456E
• Black Box: 16MB
• LED Programming: Support
• Buzzer: Support
• Input Voltage: 3-6S
• 2C Interface: Support
• BEC:5V/2.5A
• BEC: 10V/2.0A
• Camera Input: Support
• USART: UART1,UART2,UART3,UART4,UART5,UART6
• Receiver: ELRS(CRSF), TBS(CRSF),SBUS,IBUS,DSM2,DSMX
• GPS: YES
• Compass: YES
• HD O3: YES
• ESC signal: Dshot150, Dshot300, Dshot600
• USB: TYPE-C
• Current port: YES
• Voltage sensor: YES
• DFU button: YES
• Firmware: Betaflight_4.4.2_JHEF745.HEX
• Mounting hole spacing: 20*20mm*4mm
• Maximum external size: 29mm*29mm
• Weight: 4.8 grams

F745 Noxe Flight Controller Specifications:

• Model: F745 NOXE
• Master: STM32F745
• Gyroscope: MPU6000
• Barometer: DPS310
• OSD chip: AT7456E
• Black Box: 16MB
• LED Programming: Support
• Buzzer: Support
• Input Voltage: 3-6S
• 2C Interface: Support
• BEC:5V/2.5A
• BEC: 10V/2.0A
• Camera Input: Support
• USART: UART1,UART2,UART3,UART4,UART5,UART6
• Receiver: ELRS(CRSF), TBS(CRSF),SBUS,IBUS,DSM2,DSMX
• GPS: YES
• Compass: YES
• HD O3: YES
• ESC signal: Dshot150, Dshot300, Dshot600
• USB: TYPE-C
• Current port: YES
• Voltage sensor: YES
• DFU button: YES
• Firmware: Betaflight_4.4.2_JHEF745.HEX
• Mounting hole spacing: 20*20mm*4mm
• Maximum external size: 29mm*29mm
• Weight: 4.8 grams

4-in-1 ESC Specifications:

• Input voltage: 3-6S (11-27V)
• Continuous current: 60A x 4 Channels
• BEC: No
• Ammeter: Yes
• Mounting hole pitch: 20mm/M4
• Overall Dimension: 42.8mm*34mm
• Firmware: BLHELI_32 JHEMCU_ESC32_Multiti_32_9.HEX
• Weight: 11 grams

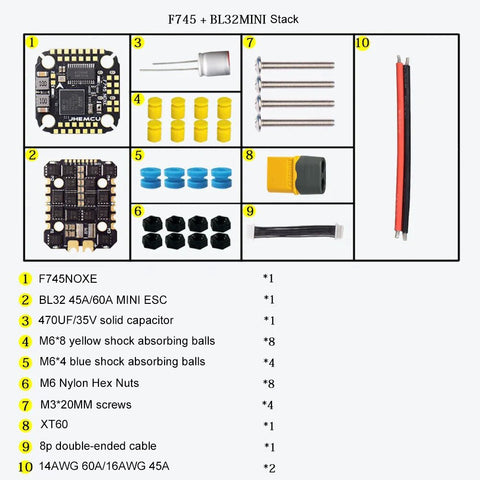

Package Contents:

• 1x JHEMCU F745 NOXE Flight Controller
• 1x JHEMCU 60A ESC
• 1x 470UF/35V solid capacitor
• 8x M6*8 yellow shock absorbing balls
• 4x M6*4 blue shock absorbing balls
• 8x M6 Nylon Hex Nuts
• 4x M3*20MM screws
• 1x XT60
• 1x 8p double-ended cable
• 2x 14AWG 60A/16AWG 45A
