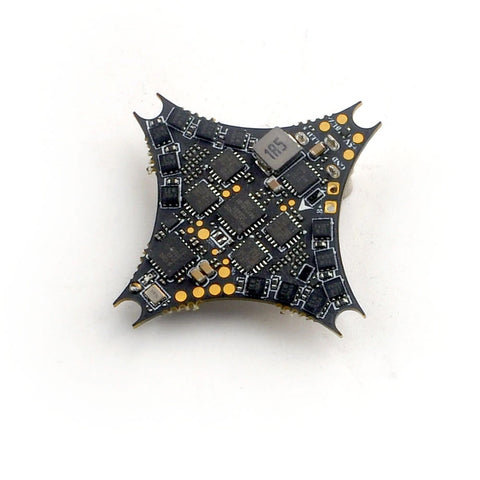

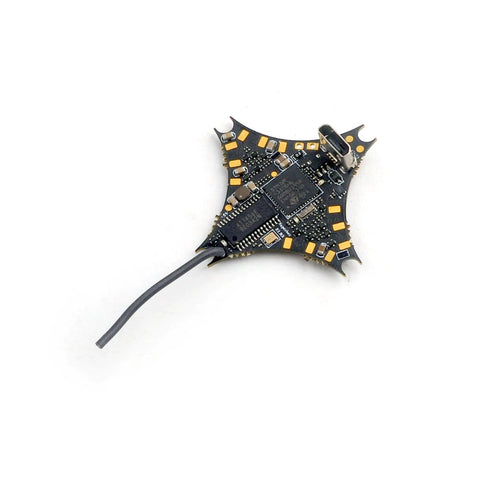

Happymodel Superbee F4 Lite AIO Flight Controller ESC and Receiver (FRSKY or ELRS Protocol)
Product Type: Flight Controller
Brand: Happymodel
Amps: 5A
BEC: Yes
Brand: Happymodel
Configuration: All-In-One
CPU: F4
Mounting: 35x35
OSD: Yes
Brand: Happymodel
Amps: 5A
BEC: Yes
Brand: Happymodel
Configuration: All-In-One
CPU: F4
Mounting: 35x35
OSD: Yes
FRSKY - In Stock
ELRS/FRSKY Flight Controller Specifications:
- SPI ELRS version Firmware target: CrazybeeF4SX1280
- SPI FRSKY version Firmware target: CrazybeeF4FR
- MCU:STM32F411CEU6 (100MHz, 512K FLASH)
- Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
- Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
- Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
- Built-in Betaflight OSD(SPI Control)
- Built-in SPI Frsky/ExpressLRS receiver
- Built-in 5V 1A BEC
- Built-in voltage detection
Integrated ESC Specifications:
- MCU upgraded to EFM8BB21
- Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
- Currents: 5A continuous peak 6A (5 seconds)
- Support BLHeliSuite programmable
- Factory firmware: S_H_50_REV16_8.HEX
- Default protocol: DSHOT150/DSHOT300/DSHOT600
Onboard FRSKY Protocol Receiver Specifications:
- SPI BUS receiver Frsky D8/D16 compatible
- Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)Channels: 8ch or 16ch
- Failsafe support
- No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
- Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol
Package Contents:

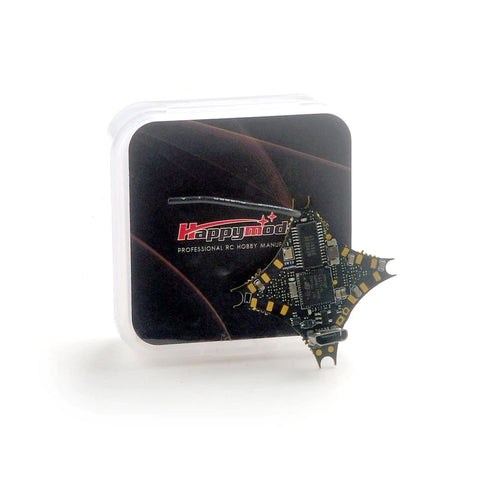

- 1x Happymodel Superbee F4 Lite AIO Flight Controller
- 1x Hardware Mounting Set
- 1x Power Cable
