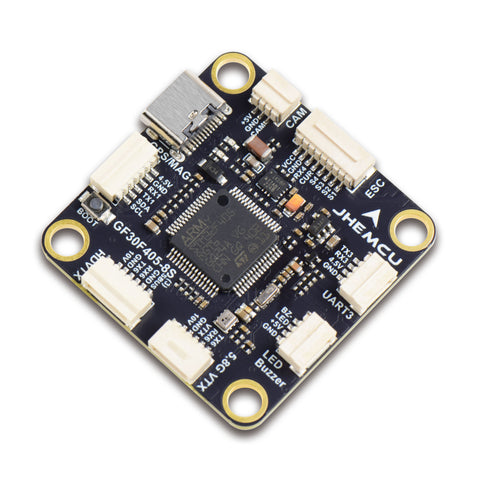

JHEMCU GF30F405-8S 3-8S Flight Controller with ICM42688P Gyro

The JHEMCU GF30F405-8S is a feature-rich flight controller designed for demanding FPV drone builds. Powered by an STM32F405 MCU and equipped with the high-performance ICM42688P gyro, it offers precise flight performance and advanced configurability. This FC comes with Type-C USB, IIC, electronic compass support, and WS2812 programmable LED compatibility, making it a versatile brain for freestyle, racing, or long-range quads.

With 4 UARTs, a robust 5V/3A and 10V/2A BEC, and wide receiver support including SBUS, IBUS, DSM2/X, TBS (CRSF), and ELRS (CRSF), this controller gives you the flexibility to match any setup. Note that Betaflight firmware defaults to CRSF protocol, but you can update firmware if you need other protocols.

Features:

• STM32F405 MCU with ICM42688P gyro for accurate, smooth control
• Type-C USB port for easy firmware updates and configuration
• Supports GPS, electronic compass, and WS2812 programmable LEDs
• Built-in voltage sensor and current detection port
• Buzzer support and wide receiver protocol compatibility

Specifications:

• USB: Type-C
• Voltage: 3-8S (11V - 35V)
• IIC: Supported
• GPS: Supported
• Electronic compass: Supported
• UARTs: 4 (UART1, UART3, UART4, UART6)
• BEC: 5V/3A and 10V/2A
• Supported receivers: SBUS, IBUS, DSM2/X, TBS (CRSF), ELRS (CRSF)
• Firmware: Betaflight (CRSF default, user-upgradable for other protocols)
• Weight: 9.1g

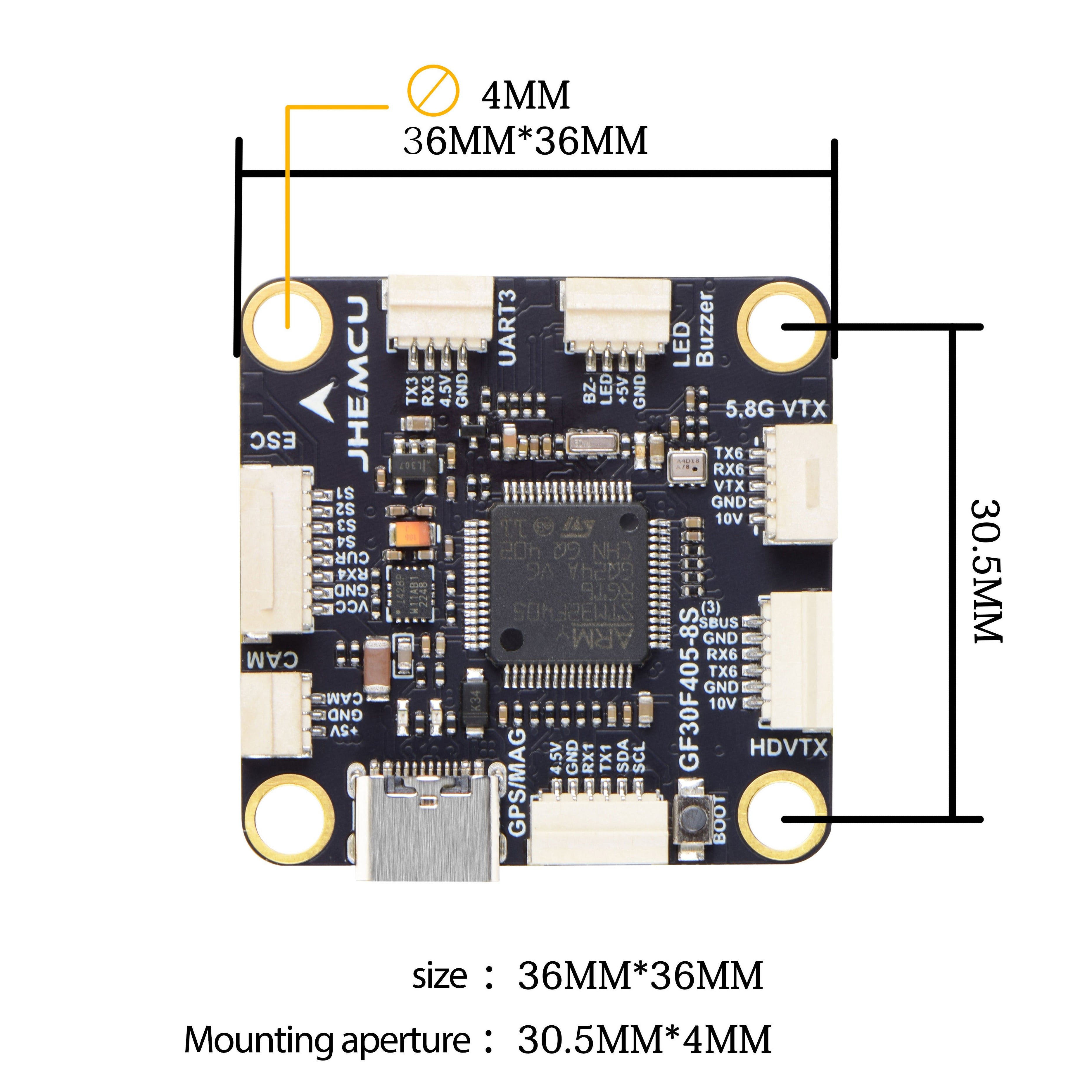

• Mounting:30.5x30.55mm, M3 holes

Package Contents:

• 1x JHEMCU GF30F405-8S Flight Controller
• 1x 8P Plug Cord (with locking clip)
• 2x 4P Plug Cords
• 1x 3P Plug Cord
• 1x 5P to 6P Wire
• 4x M3 Shock Balls
