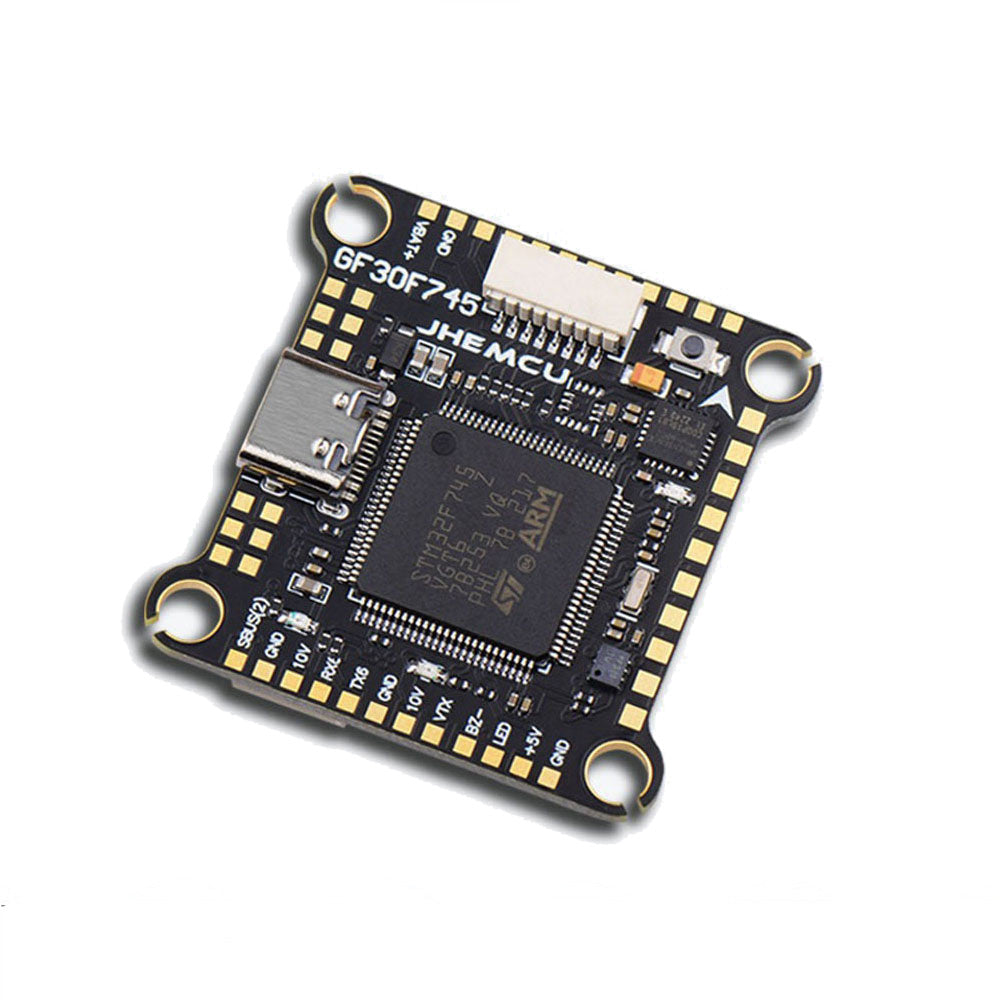

JHEMCU GF30F745-ICM Flight Controller with ICM-42688 Gyro

The JHEMCU GF30F745-ICM is a premium flight controller designed for FPV pilots who demand precision, power, and advanced features. Running on the STM32F745 216MHz processor and equipped with the ultra-precise ICM-42688-P gyro, this board is ready for racing, freestyle, or cinematic drones. It supports Betaflight 4.5.0 firmware and is packed with key functions like a barometer, blackbox, GPS and compass support, and HD O3 system compatibility.

With 7 UARTs, ELRS, TBS, SBUS, IBUS, DSM2/DSMX receiver support, and dual BEC outputs (5V/2.5A and 10V/2A), the GF30F745-ICM gives you ultimate flexibility. Its robust 30.5x30.5mm mounting and Type-C USB connection make integration smooth for any pro-level build.

Features:

• STM32F745 216MHz processor with ICM-42688-P gyro for high-speed, stable control
• Full Betaflight support with 16MB blackbox, barometer, GPS, compass, and HD O3 compatibility
• Dual BEC outputs: 5V/2.5A and 10V/2A for powering peripherals
• Supports ELRS, TBS, SBUS, IBUS, DSM2, DSMX receiver protocols
• Type-C USB, 7 UARTs, LED programming, current and voltage sensors, and DFU button

Specifications:

• Master: STM32F745VG (216MHz)
• Gyroscope: ICM-42688-P
• Barometer: SPL06
• OSD chip: AT7456E
• Blackbox: 16MB
• Input voltage: 3–6S
• BEC outputs: 5V/2.5A, 10V/2A
• UARTs: UART1–UART7
• Receiver support: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX
• ESC signal: DSHOT150, DSHOT300, DSHOT600
• GPS: Yes
• Compass: Yes
• HD O3: Yes
• I2C interface: Yes
• LED programming: Yes
• Buzzer support: Yes
• USB: Type-C
• Current port: Yes
• Voltage sensor: Yes
• DFU button: Yes
• Weight: 7.5g

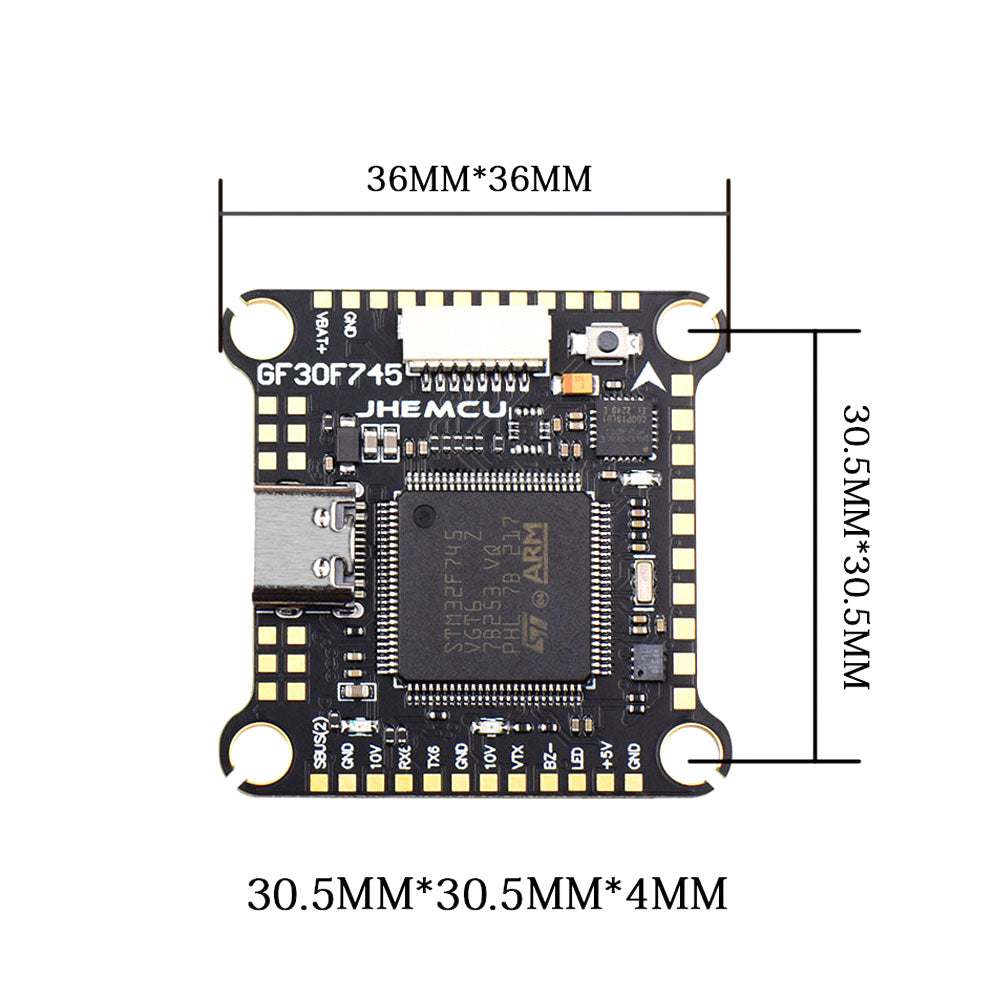

• Dimensions: 36mm x 36mm
• Mounting holes: 30.5mm x 30.5mm, 4mm
• Firmware: Betaflight_4.5.0_JHEF745-ICM.HEX

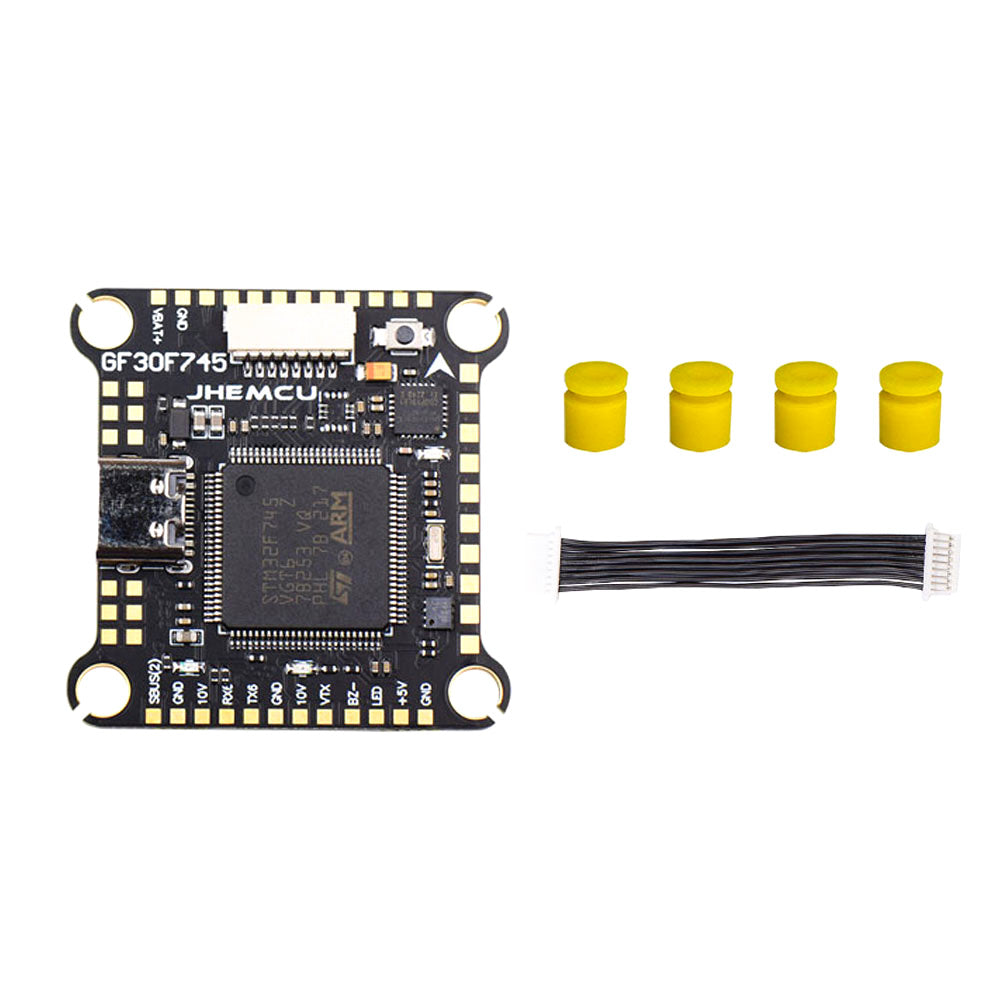

Package Contents:

• 1x JHEMCU GF30F745-ICM Flight Controller
