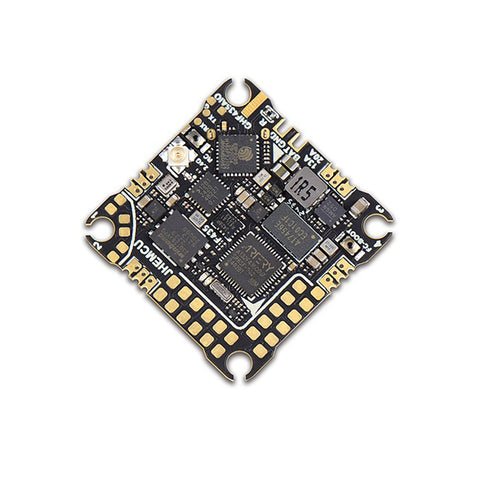

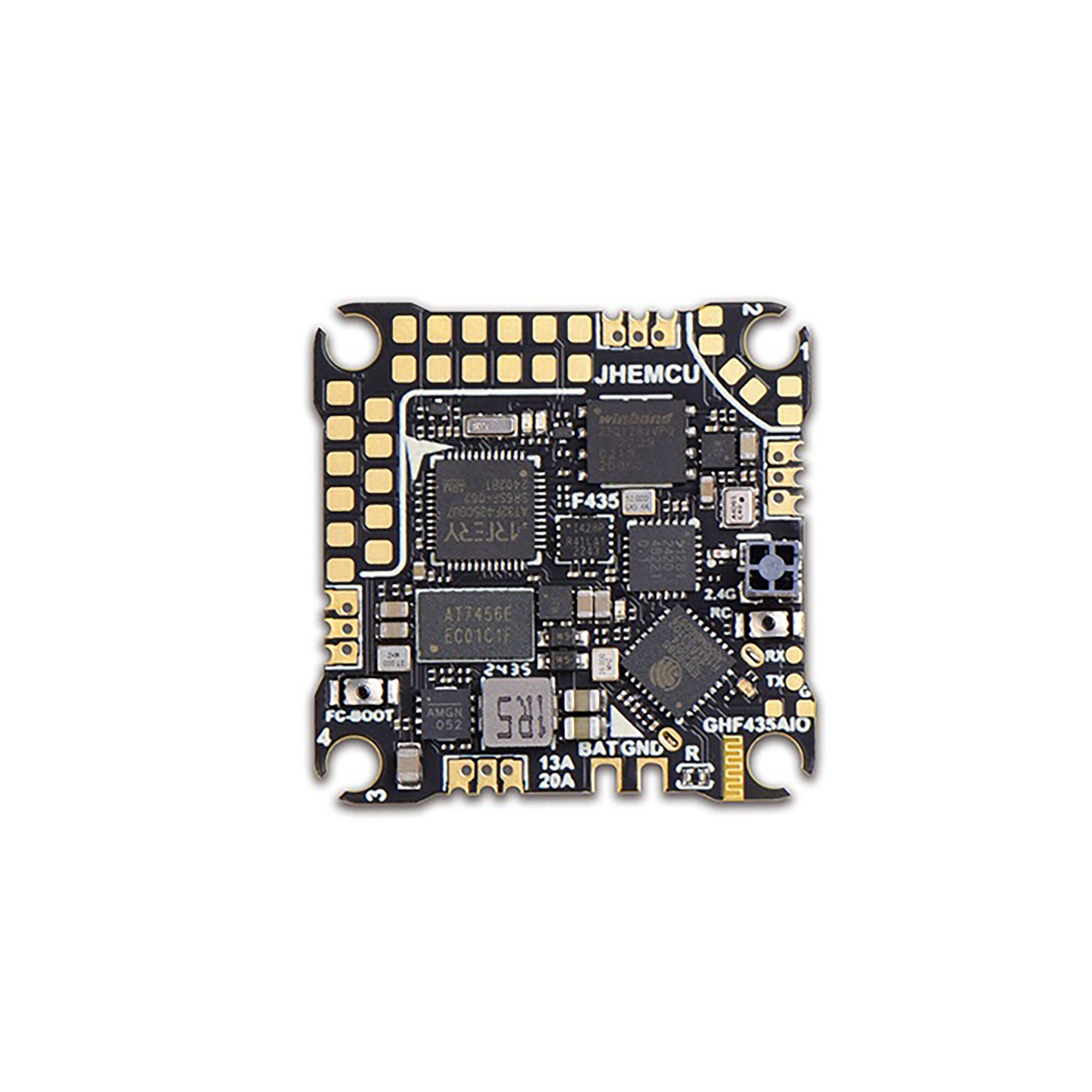

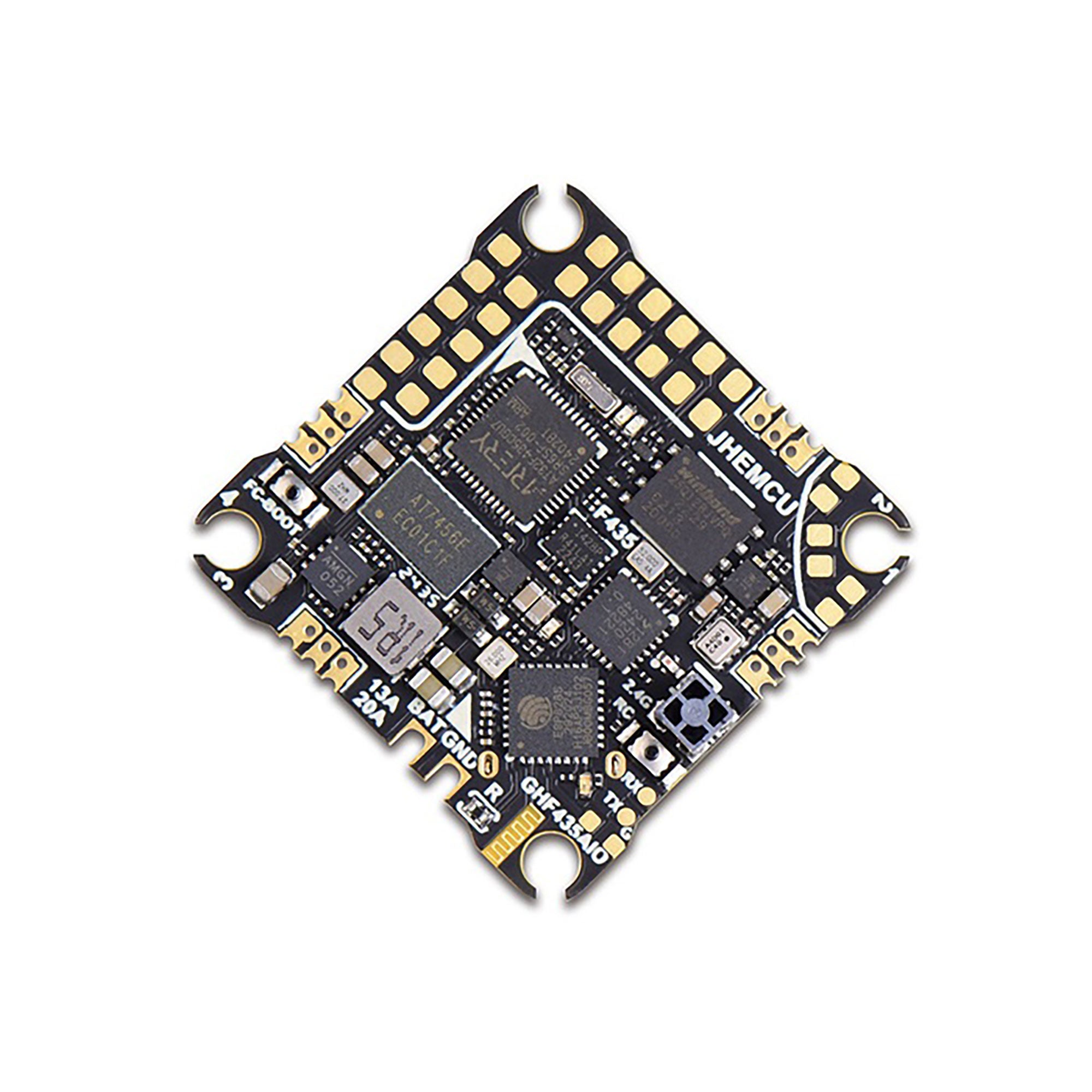

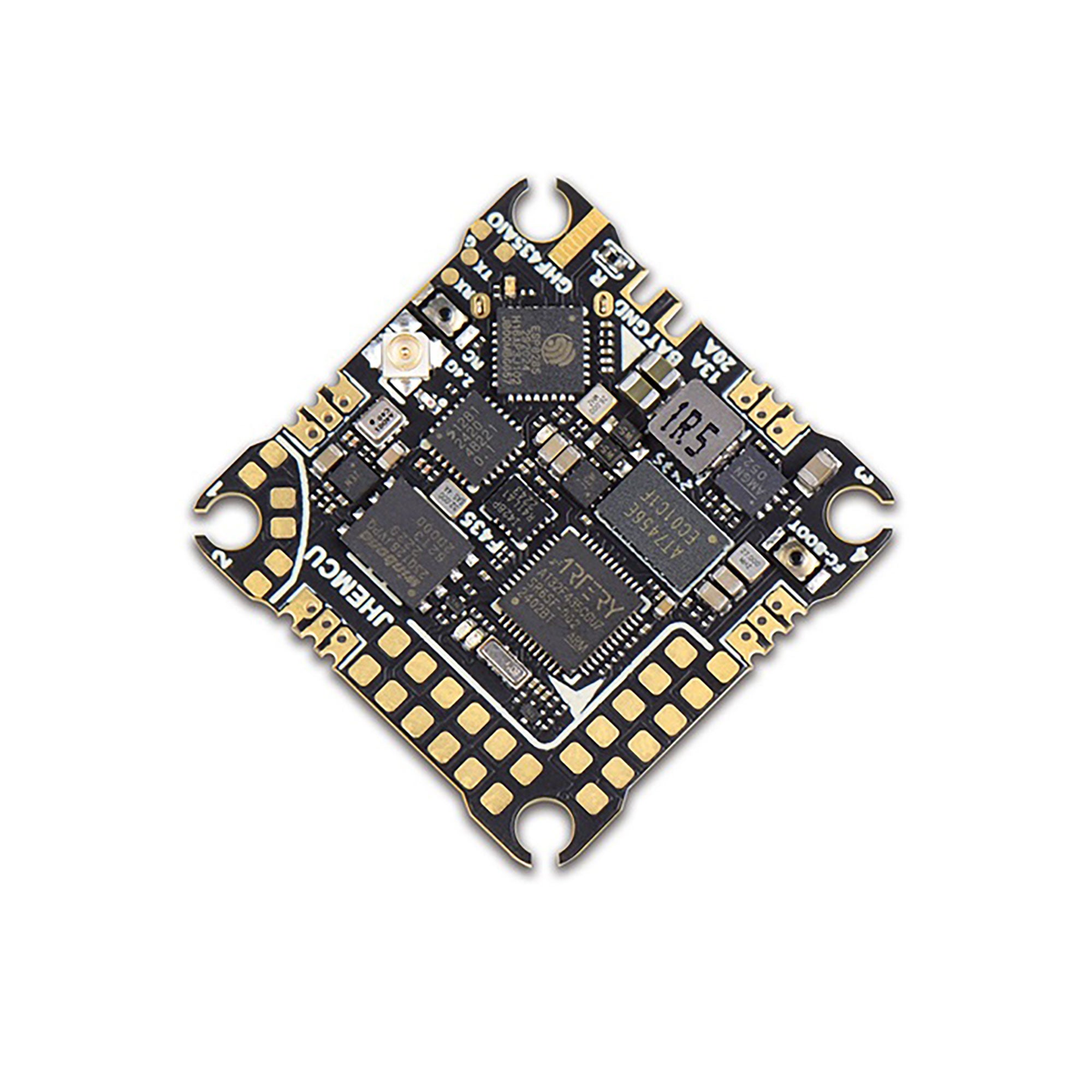

JHEMCU F4 GHF435 SMD AIO Flight Controller 20A ESC Integrated ELRS Receiver

JHEMCU F4 GHF435 SMD AIO Flight Controller 20A ESC Integrated ELRS Receiver

Sold Out

Product Type: Flight Controller
Brand: JHEMCU
BEC: Yes
Configuration: Standalone
CPU: F4
Flight Controller Type: F4
Mounting: 25.5x25.5mm
OSD: Yes


Specifications:

  • Current port: YES
  • Voltage sensor: YES
  • DFU button: YES
  • FC Firmware: Betaflight JHEF435
  • Size: 30x30MM
  • Mounting Hole: 25.5x25.5x3MM
  • Weight: 5g
  • ESC Current: 20A
  • ESC MCU: AT32F421
  • ESC TYPE: AM32
  • ESC Firmware: AT32DEV_F421
  • ESC Protocol: Dshot150, Dshot300, Dshot600
  • Receiver Type: ELRS
  • Receiver Frequency: 2.4GHz
  • Receiver Signal Protocol: CRSF
  • Receiver Firmware: betafpv.rx_2400.lite
  • WIFI Firmware Update: YES
  • Independent Receiver: YES

Package Contents:

  • 1x JHEMCU GHF435 NOXE Flight Controller



>
