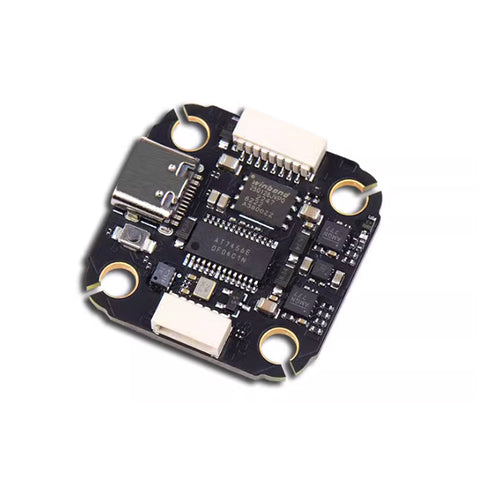

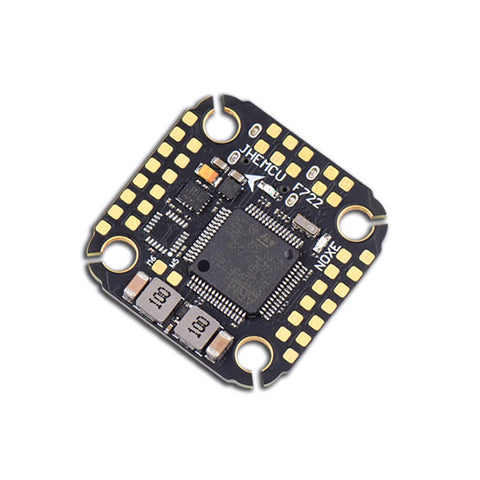

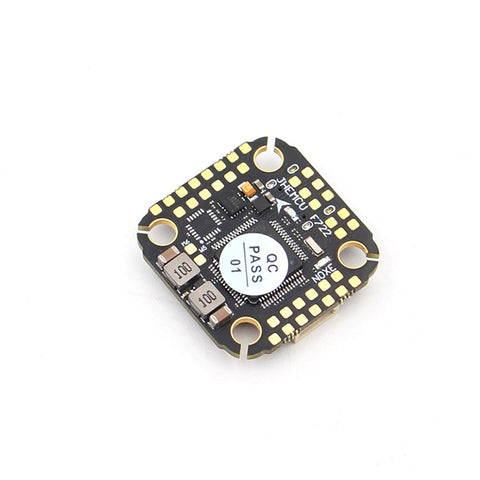

JHEMCU Noxe F722 Flight Controller OSD BEC Compass Barometer Blackbox

Specifications:

• Model: F722 NOXE
• Main Control: STM32F722RE (216MHZ)
• Gyroscope: ICM-42688-P
• Barometer: DPS310
• OSD Chip: AT7456E
• Black Box: 16MB
• LED Programming: supported
• BB Sound: supported
• Input Voltage: 3-6S
• I2C Interface: supported
• BEC: 5V/2.5A
• BEC: 10V/2.0A
• Camera Input: supported
• USART: UART1, UART2, UART3, UART4, UART5, UART6
• Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
• GPS Support: YES
• Compass: YES
• HD O3: YES
• ESC Signal: Dshot150,Dshot300,Dshot600
• USB: TYPE-C
• Current Port: YES
• Voltage Sensor : YES
• DFU Button: YES
• Weight: 5g
• Flight Control Firmware: Betaflight_ 4.4.2_ JHEF7DUAL. HEX
• Installation Hole Spacing: 20MM * 20MM * 4MM
• Maximum Overall Size: 29MM * 29MM

Package Contents:

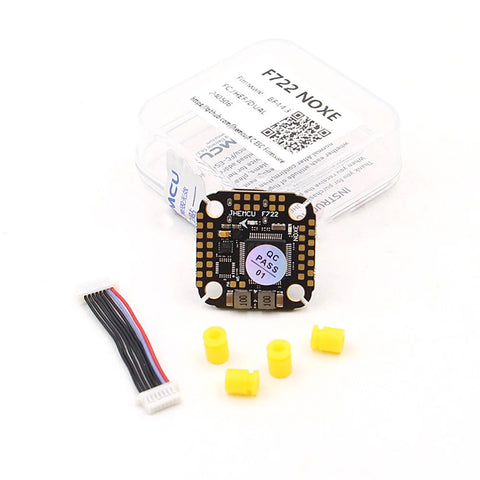

• 1x JHEMCU F722 NOXE Flight Controller
