3pcs SMA Female to U.FL (IPEX) 5cm Pigtail Cable for FPV WiFi RC and IoT
3pcs SMA Female to U.FL (IPEX) 5cm Pigtail Cable for FPV WiFi RC and IoT

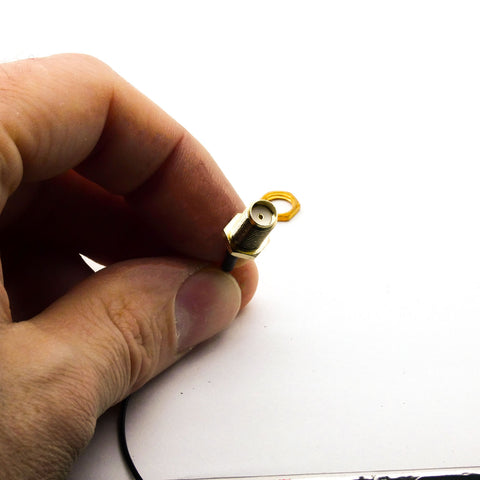

This 3-pack of SMA Female to U.FL (IPEX) Pigtail Cables is perfect for connecting external antennas to FPV transmitters, WiFi modules, GPS units, or IoT devices. Each cable features a high-quality gold-plated SMA female bulkhead connector and a U.FL (IPEX) plug on the other end, joined by low-loss 1.13mm coaxial cable. The included washers and nuts make panel mounting simple and secure. Whether you're upgrading your drone, extending a WiFi module, or integrating an RF solution into your project, these cables provide a reliable and professional connection.
Features:
SMA Female (bulkhead) to U.FL (IPEX) connector
Flexible 1.13mm coaxial cable for compact builds
Gold-plated connectors for optimal signal integrity
Includes mounting hardware: washer, lock washer, and nut
Specifications:
Cable Length: Approx. 10cm (3.9")
Connector A: SMA Female (Panel Mount)
Connector B: U.FL (IPEX/IPX)
Cable Type: 1.13mm Coax
Frequency Range: DC ~ 6GHz
Package Contents:

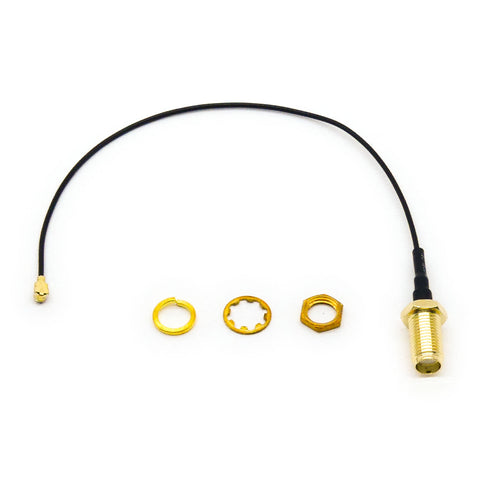

3x SMA Female to U.FL (IPEX) Pigtail Cables
3x Sets of mounting hardware (nut + lock washer + washer)
