5.8GHz FPV Goggle Camera Transmitter System 5.8G 3" 480x320 Display DIY Quick Install

This kit comes with all necessary items to get setup with a live video feed for your drone or RC model. The FPV monitor featuring bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a modern micro AIO model, designed with the needs of drone pilots and RC enthusiasts in mind.

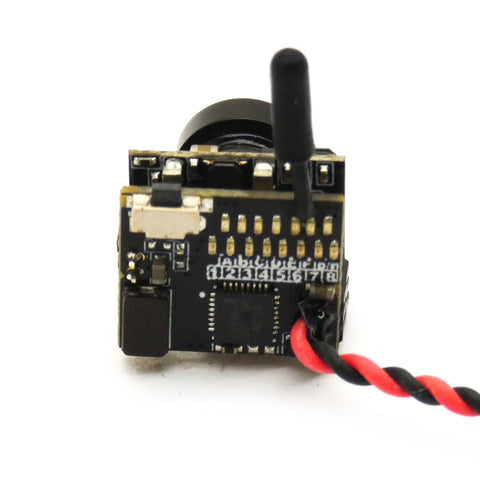

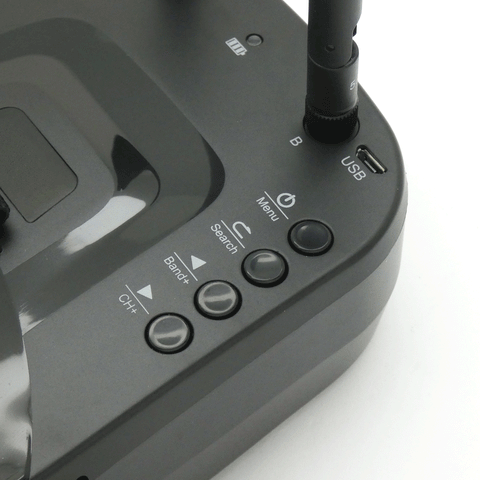

Channel Selection - Short press (~1 sec): Change channels 1-8
Band Selection - Medium press (~1.5sec): Change bands
System Mode - Long press (>3sec): Change NTSC (blue LED on) or PAL (blue LED off) system

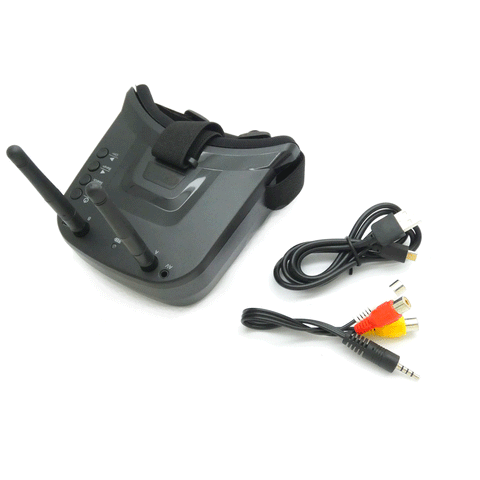

Mini Goggle Features:

• Small size and lightweight
• Low power consumption at 360-400mA
• Double antenna reception
• Supports RaceBand 40-channels with autosearch
• High brightness LCD screen
• Built-in 3.7V 1200mAh battery
• USB charging interface
• Supports external video signal input
• Supports AV signal output for using a DVR

• Dimensions: 13.5x13.2cm
• Resolution: 480x320
• Display Ratio: 16:9
• Antenna: 2x RP-SMA Male
• Power Adapter: DC5V/1A USB charging

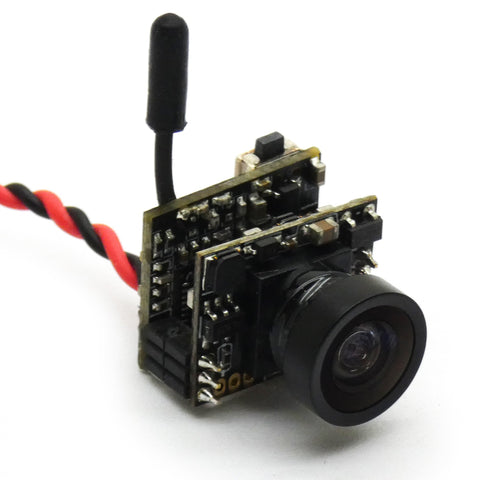

• Sensor: 1/4 "CMOS
• Lens: M8 800TVL Lens
• Angle: 150 Degrees FOV horizontal viewing angle of 170 Degrees DFOV diagonal perspective
• Format: NTSC / PAL (switchable)
• Power consumption: 380mA @ 3 · 7V
• Power: 3.6-5.5V
• Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

• 1 X LST-S2 AIO FPV Camera
• 1 X wiring harness
• 1 X User Manual
• 1 x Mini 5.8gHz Goggles with Internal Battery
• 1 x AV Adapter Cable
• 1 x USB Charging Cable
