5.8GHz FPV Kit DVR Diversity Monitor Foxeer Mini Camera 800mW Video Transmitter

Sold Out

Product Type: FPV System
Brand: SpeedyFPV
Resolution: 1500TVL
Sensor: CMOS
Transmitter Output: Adjustable
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output: 800mW

This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring MicroSD DVR recording, bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a Foxeer Predator Mini V5 1500TVL HD model, designed with the needs of drone pilots and RC enthusiasts in mind, with a powerful reliable transmitter for a perfect match.

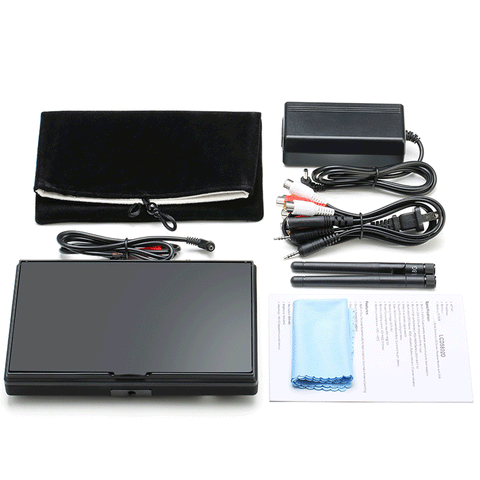

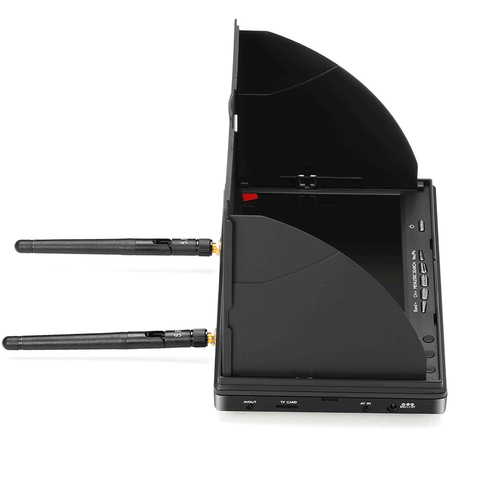

5.8GHz Diversity FPV Monitor Specifications:

Screen : 7 Inch TFT Screen
Frequency : 5.8G
Channel : 40CH
Sensitivity : -95dBm
Interface : AVIN/AVOUT/DCIN/USB
Build in 2000mAh 2S LiPo
Language : English
Ratio : 16:9
Power Consumption: ‰¤5W
Size : 178x118x58mm

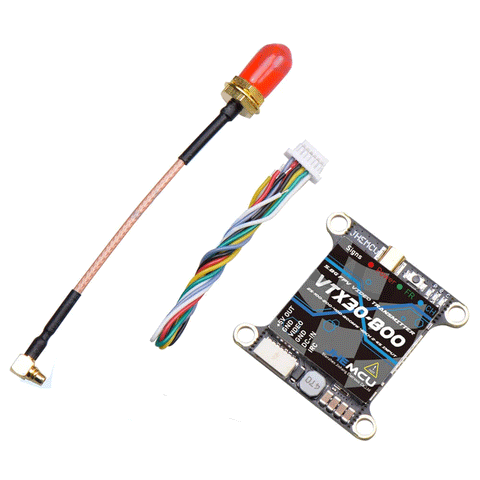

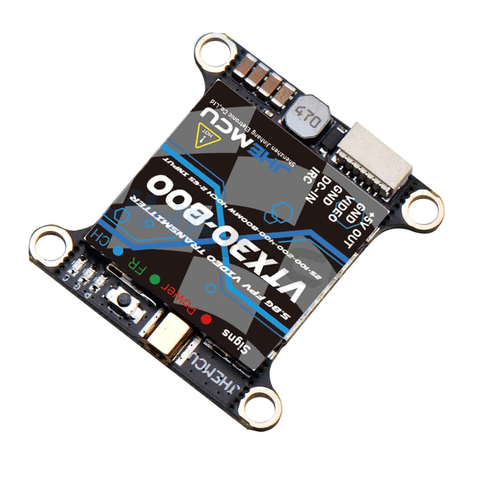

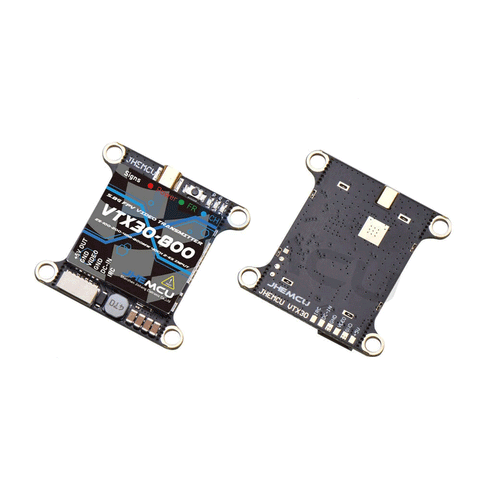

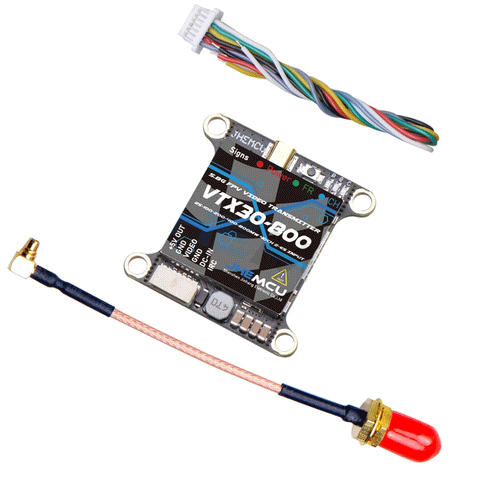

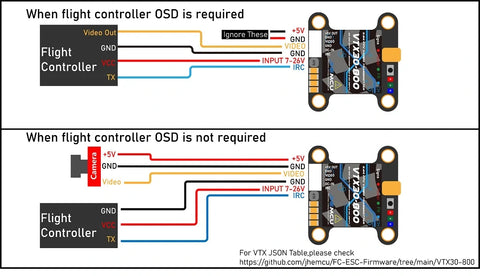

JHEMCU VTX30-800 5.8GHz Video Transmitter Specifications:

Model: VTX30-800
Input voltage: 7-26V(2-6S)
BEC: 5V
Number of channels: 40CH
Transmitting power: PIT/25/100/200/400/800mW

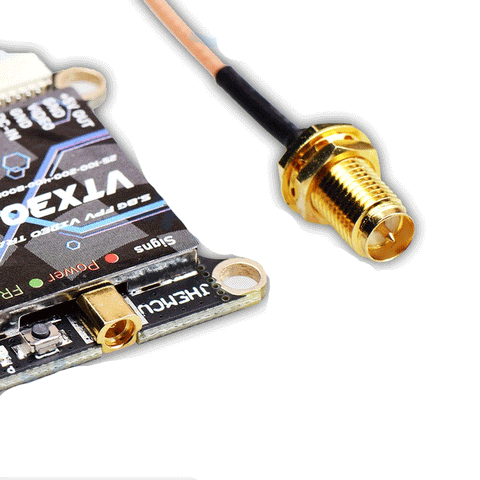

Interface: MMCX
Size: 36x36mm
Installation hole distance: 30.5*30.5mm M3
Weight: 6.8g
Support IRC power and channel adjustment

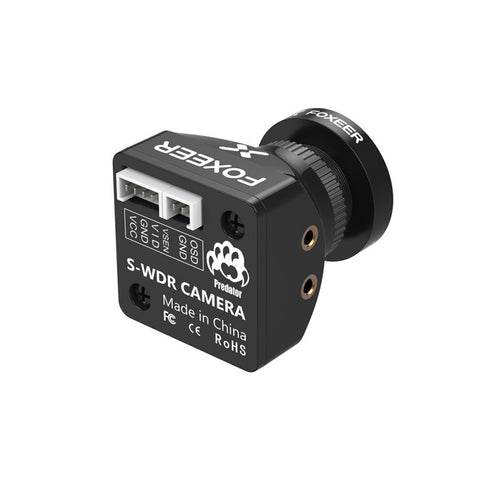

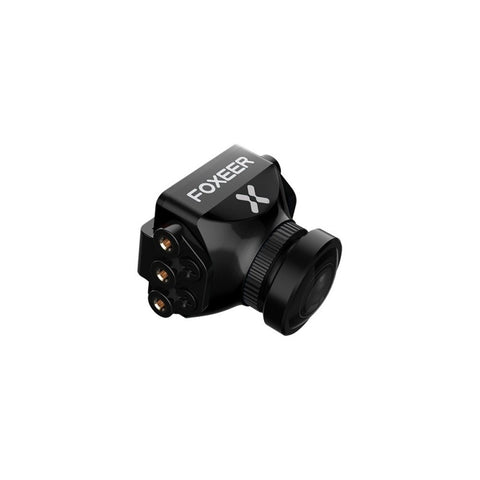

Foxeer T-Rex Mini 1500TVL Camera Specifications:

Sensor Type: Sony 1/3"" CMOS Sensor
Scale: 4:3 (default)/16:9 Switchable
TV System: PAL (default)/NTSC Switchable
Resolution: 1000TVL
Shutter Speed: PAL 1/251/10000 sec; NTSC 1/301/10000 sec
Video Output: CVBS Analog Signal
FOV:
1.8mm Lens: FOV-H:115 Degrees, FOV-D: 150 Degrees
2.5mm Lens: FOV-H:105 Degrees, FOV-D: 130 Degrees
Minimum Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR/2DNR
WDR: Super WDR
DAY/NIGHT: Auto/Color/B&W
Flight OSD: Voltage/Cam Title/Time/Cross Hair
Flip: Supported
Mode: DAY/CLOUDY/Night/LED
Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
Input Voltage: 4.5V~20V
Working Temperature: -10 Degrees~50 DegreesC RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20 Degrees~70 DegreesC
Consumption: 50mA±15% @ DC12V; 115mA±15% @ DC5V
Dimension: 2222mm; 2822mm (Add Bracket)
Weight: 12g (Exclude cable)

Package Contents:

1x 5.8GHz Diversity FPV Monitor w/ Internal Battery
Foxeer Predator V5 Mini Full Case 1000TVL
1x JHEMCU VTX30-800 5.8GHz Video Transmitter PIT-800mW 7-26V
1x Transmitting Antenna
2x Receiving Antenna
