5.8GHz FPV Kit System Diversity Monitor 1000TVL Camera 800mW Video Transmitter

This Complete FPV Kit for Drones and RC Models:
This kit provides everything you need to add a live, recorded video feed to your drone or RC model, offering an immersive FPV experience with high-quality video transmission and recording.

FPV Monitor with DVR:
The included 5.8GHz Diversity FPV Monitor features a bright, sunlight-viewable 4.3-inch display for outdoor use. It also comes equipped with a built-in MicroSD DVR for recording your flights, a rechargeable 1200mAh battery for up to 3 hours of usage, and an auto-scan function for easy setup.

High-Performance Camera:
This kit includes the Micro 1000TVL FPV Camera with a 1/4" CMOS sensor, 2.8mm lens, and a 90 Degrees field of view, delivering sharp, ultra-high-definition footage. Paired with the JHEMCU VTX20-600 5.8GHz Video Transmitter, this system provides clear, reliable video transmission with adjustable power from 25mW to 600mW.

5.8GHz Diversity FPV Monitor Specifications:

• Receiver Frequency: 5.8 GHz
• Dual Antenna Configuration: Diversity Receiver Antennas Supported
• Battery Capacity: Built-in 1200mAh Battery
• Battery Life: Approximately 3 Hours of Continuous Usage
• Voltage Compatibility: Supports Wide Voltage Charging (5-23V)
• Backup Power Sources: Compatible with 5V Mobile Power, 2S (7.4V), and 3S (11.1V) Batteries
• DVR Functionality: Record Video Content On-The-Go
• Display Size: 4.3 Inches
• Display Resolution: 800 x 480
• Aspect Ratio: 16:9 Widescreen
• Screen Type: IPS (In-Plane Switching) Screen
• Anti-Glare Design: Delicate Picture Quality with Reduced Outdoor Reflection
• Automatic Search: One-Click Automatic Frequency Search
• User-Friendly Design: Intuitive Interface for Enjoyable Flying Experience

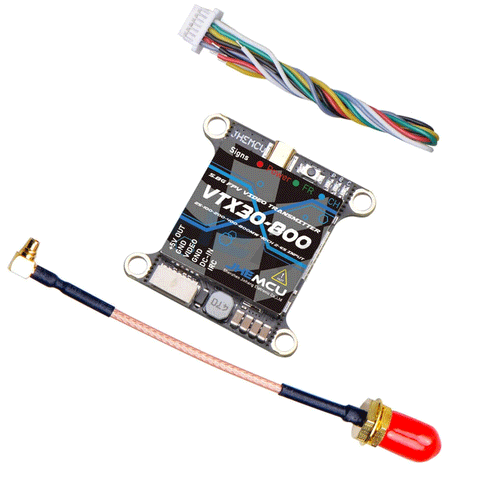

VTX30-8600 5.8GHz Video Transmitter Specifications:

• Model: VTX30-800
• Input voltage: 7-26V(2-6S)
• BEC: 5V
• Number of channels: 40CH
• Transmitting power: PIT/25/100/200/400/800mW
• Interface: MMCX
• Size: 36x36mm
• Installation hole distance: 30.5*30.5mm M3
• Weight: 6.8g
• Support IRC power and channel adjustment

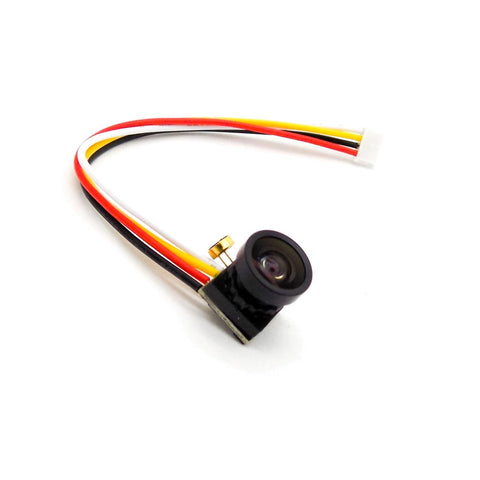

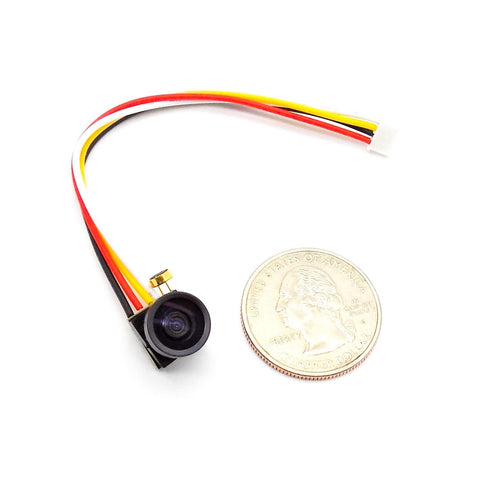

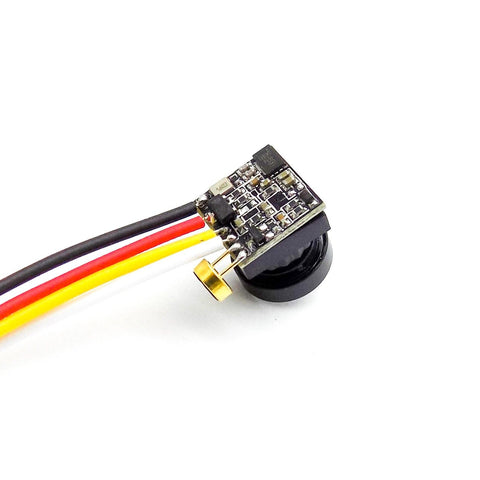

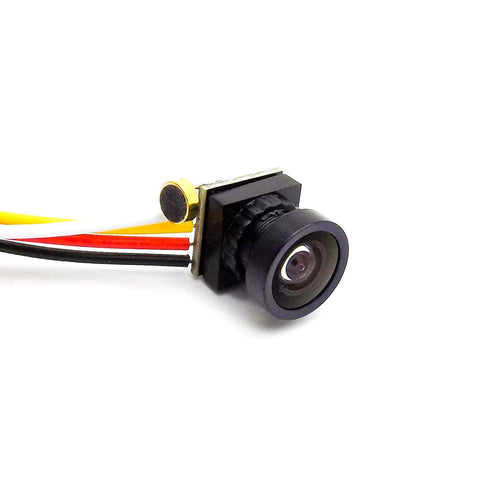

Micro 1000TVL Camera Specifications:

• Input Voltage: 3.3-5V
• Power Consumption: 80mA@ 5v
• Lux: 0.008Lux
• Lens: 2.8mm
• FOV: 90 Degrees
• Sensor: 1/4"CMOS
• Format:PAL / NTSC ( Version Optional)
• Resolution: Ultra High Definition 1000TVL 1280x960
• SNR: 48db
• Gamma: 0.45
• White Balance: Auto
• Audio: Yes
• Weight: 1g (without cable)

Package Contents:

• 1x 5.8GHz FPV Diversity DVR Monitor w/ Internal Battery
• 1x 5.8GHz Adjustable 800mW Video Transmitter

• 1x Micro 1000TVL Camera

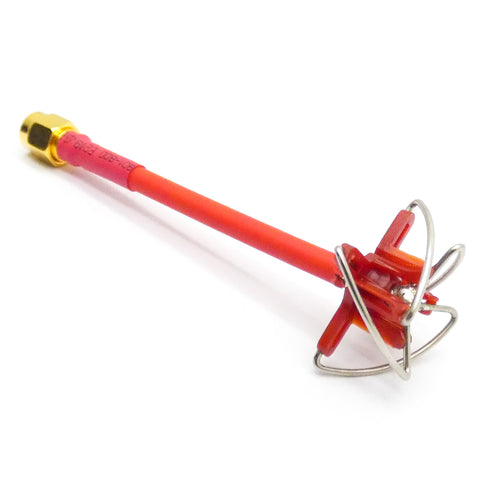

• 1x Transmitting Antenna
• 2x Receiving Antenna
