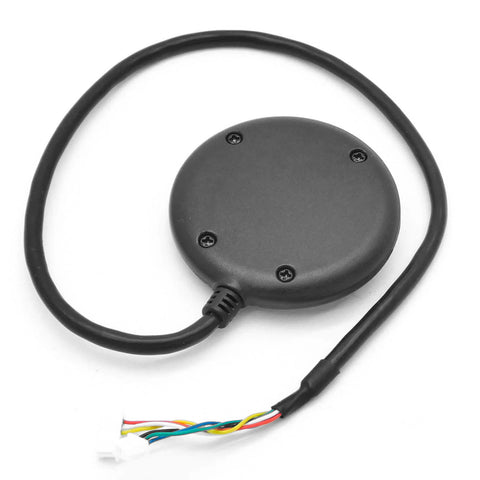

Readytosky NEO-M8N GPS Compass Receiver Module Pix 6P Connector

Readytosky NEO-M8N GPS Compass Receiver Module Pix 6P Connector

Added to Cart

Product Type: GPS Receiver
Brand: Readytosky
Sensor or Module: GPS Receiver

High-Precision GPS and Compass: The Readytosky NEO-M8N GPS Compass Receiver Module is equipped with the NEO-M8N chipset, providing reliable and accurate GPS positioning and compass data, essential for precise navigation and orientation in various applications.

Plug-and-Play Compatibility: Featuring a convenient Pix 6P connector, this module is easy to integrate with popular flight controllers and autopilot systems, making setup a breeze for both beginners and experienced users.

Enhanced Performance and Reliability: With a built-in high-gain active antenna, this module ensures strong signal reception even in challenging environments, delivering consistent performance during long-range flights or complex missions.

Versatile Applications: Suitable for a wide range of aerial and ground-based projects, including drones, UAVs, RC planes, boats, and autonomous vehicles, the NEO-M8N GPS Compass Receiver Module is a versatile and reliable addition to your navigation systems.

Features:

  • Readytosky M8N GPS Compass Receiver Module with Pix-hawk Connectors
  • Supply Voltage: 1.65V-3/6V (NEO-M8M); 2.7V-3.6V (NEO-M8N/Q)
  • Power Consumption: 23mA@3.0V (continuous)
  • 5mA@3.0V Power Save Mode
  • (1Hz, GPS mode only)
  • Backup Supply: 1.4-3.6V

 Specifications:
  • Receiver Type: 72 channel U-BLOX M8 engine
  • GPS/QZSS L1, GLONASS L10F, BeiDou B1
  • SBAS L1 C/A: WAAS, EGNOS, MSAS
  • Galileo-ready E1B/C (NEO-M8N)
  • Nav. update rate1 Single GNSS: Up to 18Hz
  • Concurrent GNSS: Up to 10Hz
  • Position Accuracy: 2 2.0mm CEP
  • Acquisition Cold Starts: 26s
  • Aided Starts: 2s
  • Reacquisition: 1.5s
  • Sensitivity Tracking & Nav.: -167dBm
  • Cold Starts: -148dBm
  • Hot Starts: -156dBm
  • Assistance: AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35days)3
  • AssistNow Autonomous (up to 6days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO (NEO-M8N/Q)
  • Crystal (NEO-M8M)
  • RTC crystal built-in
  • Lowest noise figure (NEO-M8N/Q)
  • Anti-jamming Active CW detection and removal. Extra
  • Onboard SAW bandpass filter (NEO-M8N/Q)
  • Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
  • Supported antennas Active and passive
  • Odometer traveled distance
  • Data-logger for position, velocity and time (NEO-M8N)

 Package Contents:
  • 1x NEO-M8N GPS/Compass Module



>
