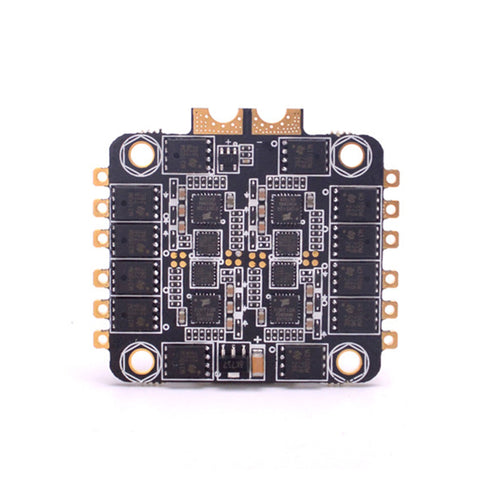

Readytosky 35A Brushless ESC 2S-5S BLHELI_S 4 in 1 (20x20mm Mounting)

Readytosky 35A Brushless ESC 2S-5S BLHELI_S 4 in 1 (20x20mm Mounting)

Added to Cart

Product Type: Unknown Type
Brand: Readytosky
Amps: 35A
BEC: No
Configuration: 4-In-1
Mounting: 25x25mm
Voltage: 2S
Voltage: 3S
Voltage: 4S
Voltage: 5S

Features:

  • BB21 MCU, 48MHz runs BLHELI_S J_H_xx firmware
  • Supports 2-6S Lipo input
  • 4 PWM input
  • Built-in current sensor
  • Compact size: 36x36mm PCB, mounting holes 30.5x30.5mm (M3)
  • No external capacitors needed
  • Dshot600 ready (default), supports PWM/ONESHOT/MULTISHOT/DSHOT

Specifications:

  • Item Name: 35A BLheli_S 3-6S 4 in 1 ESC
  • Continuous Current: 35A
  • Peak Current (10s): 40A
  • LBEC: NO
  • SBEC: NO
  • Lipo: 2-5S
  • Programming: YES
  • Weight: About 13g
  • Size (PCB): 36x36mm
  • Hole Size: 25x25mm

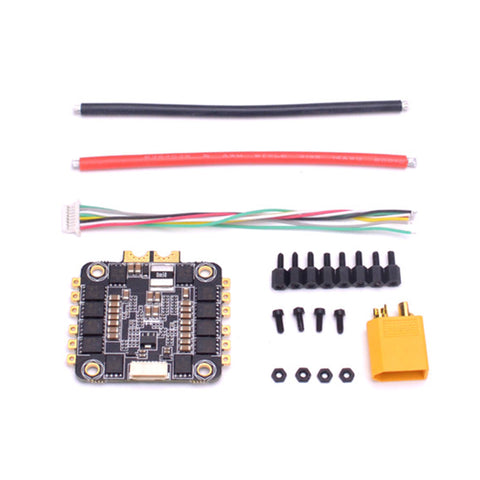

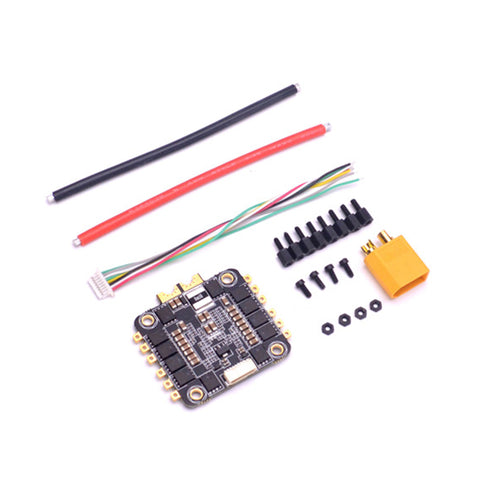

Package Contents:

  • 1x Readytosky 35A 4-in-1 ESC
  • 1x Hardware Pack
  • 1x Power Cable
  • 1x Connector Cable



>
