  • ZMR250 Racing Drone Kit Noxe F722 Flight Controller GT2205 Motors 40A

ZMR250 Racing Drone Kit Noxe F722 Flight Controller GT2205 Motors 40A 4-in-1 ESC

ZMR250 Racing Drone Kit Noxe F722 Flight Controller GT2205 Motors 40A 4-in-1 ESC

Sold Out

Product Type: Drone Kit
Brand: SpeedyFPV
ESC Output: 40A
Flight Controller: F4
Frame Size: 250mm
Motor Size: 2205

This kit from SpeedyFPV meets the demanding needs of today's FPV racing drones, featuring a 4-in-1 ESC with a powerful constant 40 amps, a power distribution system, premium GT2205 motors, and an F722 Noxe flight controller.

Everything you need to build an FPV racing drone drivetrain, this kit is great for beginners and seasoned drone pilots alike! Add FPV components and your choice of the receiver to finish the build!

The lightweight, sleek design paired with powerful ESCs and motors offers excellent performance and handling. This model is sure to excite any flyer with an exceptional thrust-to-weight ratio!

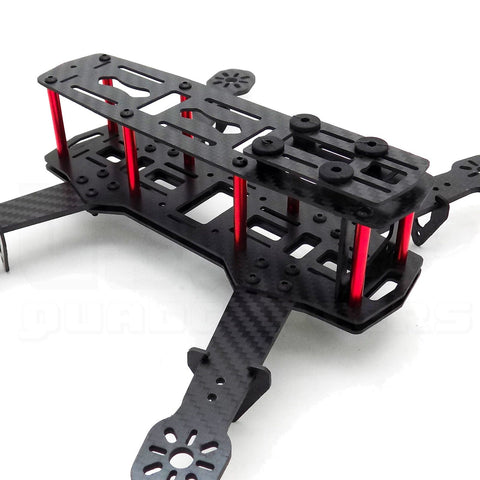

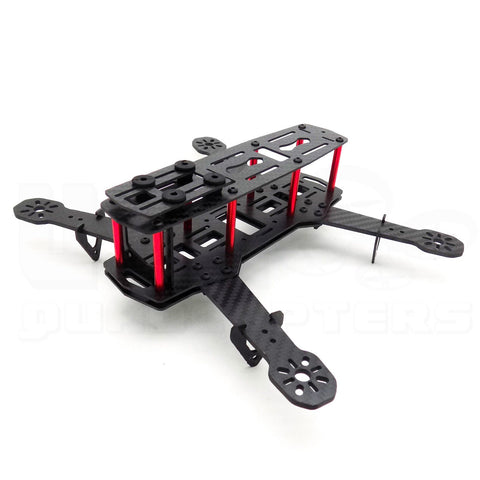

250mm Frame Specifications:

  • Item Name: ZMR250 250mm Frame Kit with 5mm Frame Arm
  • Material: Carbon Fiber
  • Wheelbase: 250mm
  • Frame Arm: 5mm
  • Weight: 164g

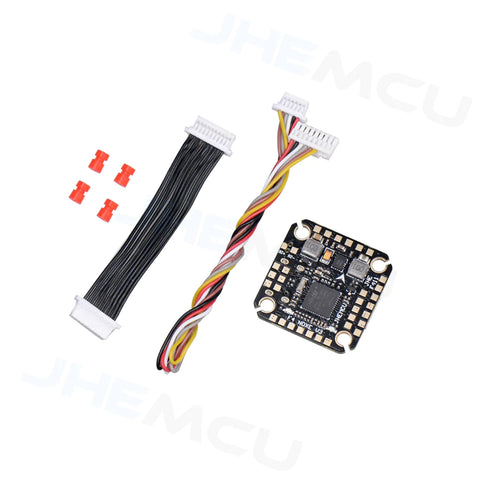

JHEMCU F722 NOXE Flight Controller Specifications:

  • Model: F722 NOXE
  • Main Control: STM32F722RE (216MHZ)
  • Gyroscope: ICM-42688-P
  • Barometer: DPS310
  • OSD Chip: AT7456E
  • Black Box: 16MB
  • LED Programming: supported
  • BB Sound: supported
  • Input Voltage: 3-6S
  • I2C Interface: supported
  • BEC: 5V/2.5A
  • BEC: 10V/2.0A
  • Camera Input: supported
  • USART: UART1, UART2, UART3, UART4, UART5, UART6
  • Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
  • GPS: YES
  • Compass: YES
  • HD O3: YES
  • ESC Signal: Dshot150,Dshot300,Dshot600
  • USB: TYPE-C
  • Current Port: YES
  • Voltage Sensor : YES
  • DFU Button: YES
  • Weight: 5g
  • Flight Control Firmware: Betaflight_ 4.4.2_ JHEF7DUAL. HEX
  • Installation Hole Spacing: 20MM * 20MM * 4MM
  • Maximum Overall Size: 29MM * 29MM

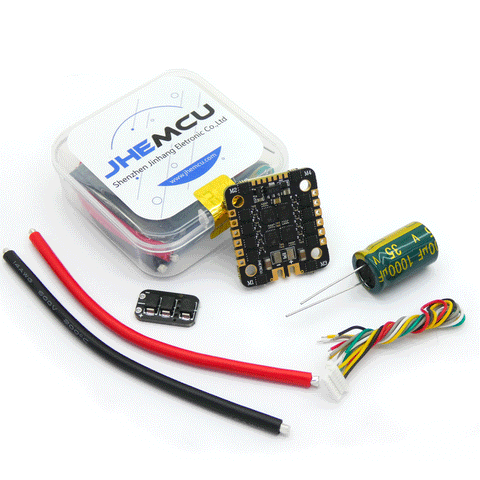

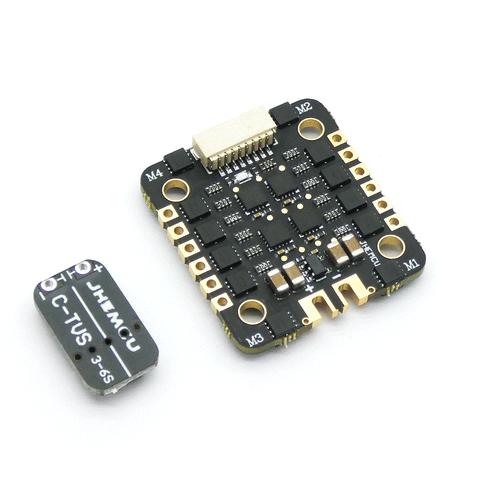

EM-40A 40A 4-in-1 Brushless ESC Specifications:

  • Input Voltage: 2-6S LiPo
  • Constant Current: 40A
  • Peak Current: 50A（10s)
  • Current Meter: Yes
  • BEC: No
  • Size: 27x29mm
  • Installing Hole: 20x20mm, M3
  • Support Protocols: BLHeli_S
  • Weight:18.3g

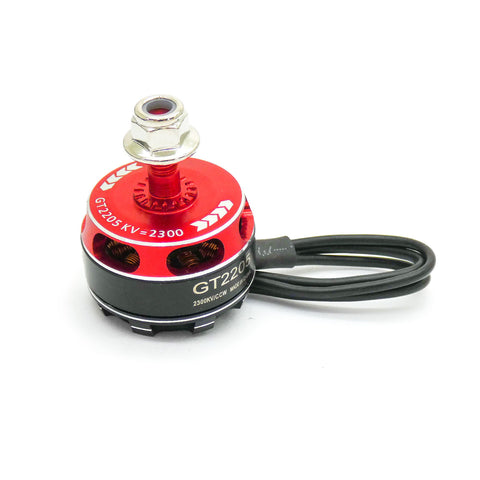

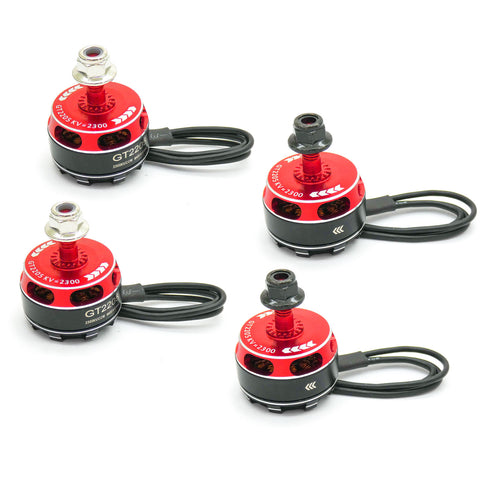

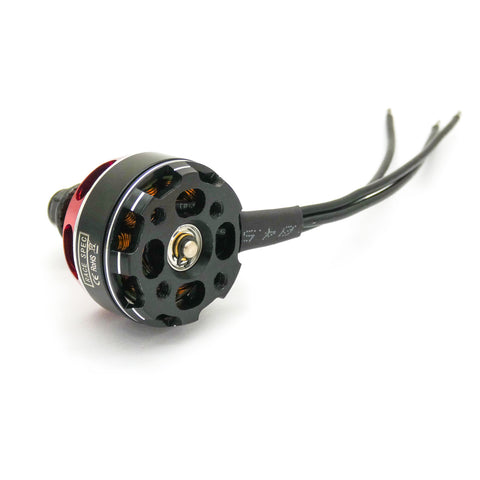

GT2205 Brushless Motor Specifications:

  • RPM/V: 2300KV
  • Height: 31.5mm
  • Width: 27.9mm
  • Shaft diameter: M5
  • Motor mount hole size: M3
  • Weight: 28 grams

Package Contents:

  • 1x ZMR250 Frame Kit
  • 2x GT2205 CW Brushless Motor
  • 2x GT2205 CCW Brushless Motor
  • 1x F411 Noxe V3 Flight Controller
  • 1x EM40 40A 4-in-1 Brushless ESC

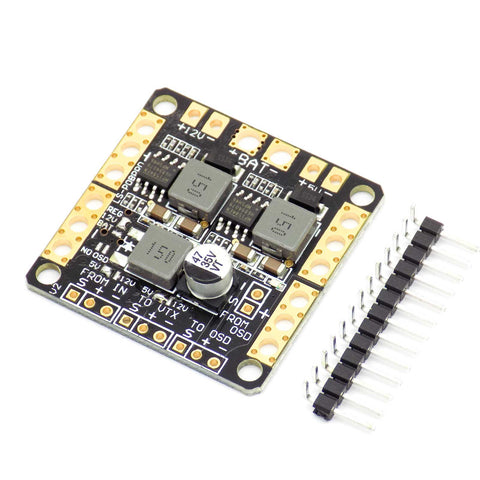

  • 1x 5v 12v Power Distribution Board
  • 1x Power Cable with XT60 Connector

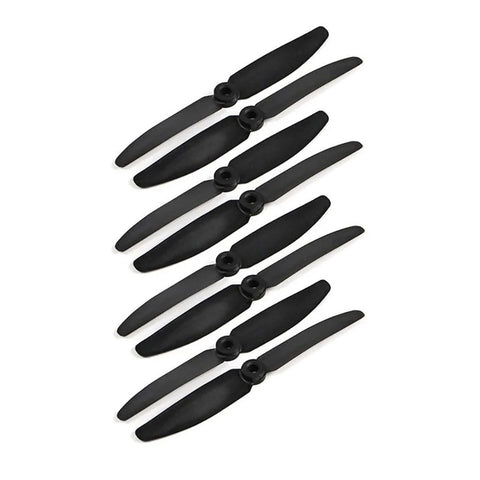

  • 4x 5030 CW Propeller
  • 4x 5030 CCW Propeller



>
