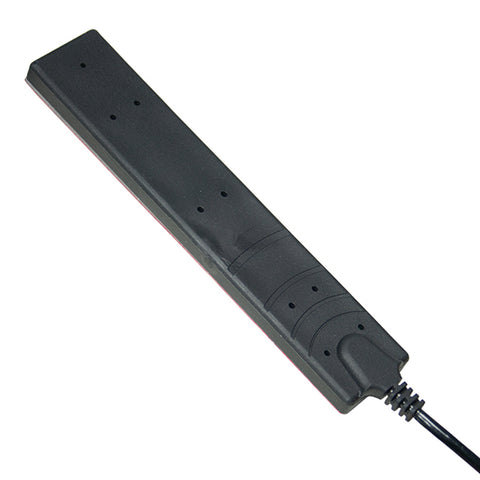

868/915MHz Adhesive Dipole Antenna with 2M Cable (Vertical or Horizontal) (RP-SMA Connector)

Specifications:

• Manufacturer: TE Connectivity
• Product Category: Antennas
• Product Type: IoT Antennas - LPWAN, LoRaWAN, Sigfox, NB-IoT
• Product: Outdoor Antennas
• Type: Passive Antenna
• Minimum Frequency: 863 MHz
• Maximum Frequency: 928 MHz
• Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
• Protocol - WiFi - 802.11: 802.11 ah, LoRaWAN, Sigfox, WiFi HaLow
• Protocol - Sub GHz: RFID, IoT, ISM
• Mechanical Style: Module
• Style: T-Bar
• Gain: 0.6 dBi, 0.5 dBi
• Bandwidth: 10 MHz, 26 MHz
• Impedance: 50 Ohms
• VSWR: 1.9, 1.9
• Power Rating: 10 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 80 C
• Electrical Type: Dipole
• Number of Bands: 2 Band
• Mounting Style: Adhesive Mount
• Termination Style: Connector
• Antenna Connector Type: RP-SMA Male
• Center Frequency: 868 MHz, 915 MHz
• Application: Low Power Wide Area Applications, Remote Control, Monitoring, Sensing, IoT, ISM
• Length: 104 mm
• Width: 17 mm
• Height: 4.2 mm
• IP Rating: IP67
• Cable Type: 2 M RG174/U
• Packaging: Bulk
• Brand: TE Connectivity / Linx Technologies
• Cable Length: 2 m
• Polarization: Linear
