SpeedyFPV X110B 110mm Brushed FPV Drone Kit with Camera, VTx, AIO F4 FC/ESC (Kit/No Receiver)

SpeedyFPV X110B 110mm Brushed FPV Drone Kit with Camera, VTx, AIO F4 FC/ESC (Kit/No Receiver)

Sold Out

Product Type: RTF Drone
Brand: SpeedyFPV
Diameter (mm): 65mm
Features: Brushed Flight Controller
Features: Integrated Video Transmitter
Flight Controller Type: F4
Frame Size: 110mm
Motor Size: 8520
Transmitter Output: 25mW

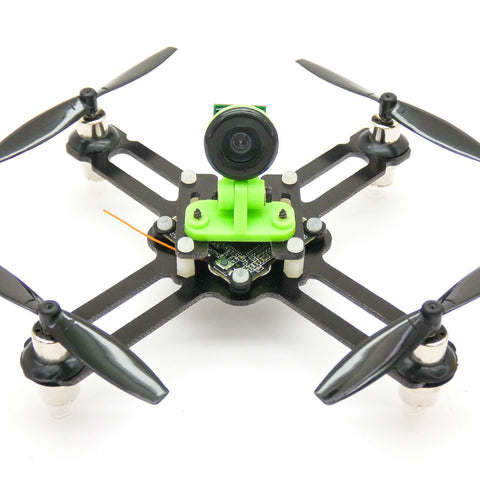

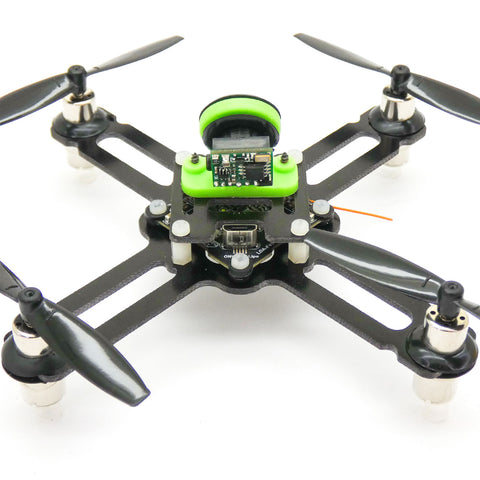

Quality kits from SpeedyFPV include only the best components to provide an out-of-this-world flight experience! Big size 110mm at only 50g assembled (without battery). We've included an extra 4 motors (2xCW, 2xCCW) and 10 pairs of propellers to keep you flying longer for this package!

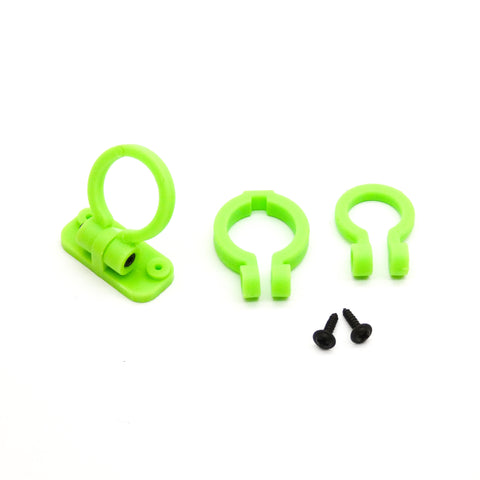

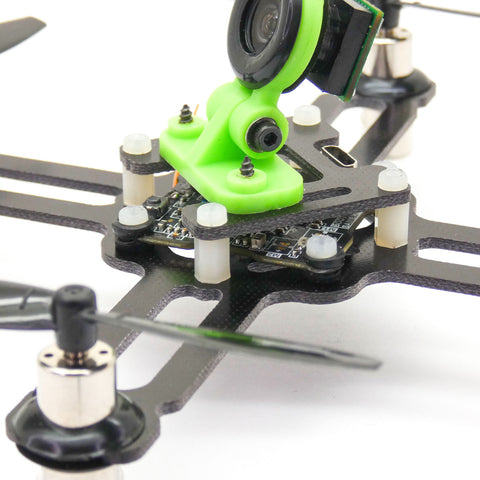

The frame features an integrated and adjustable camera mount to suit many different micro cameras. Durable and crash resistant G10 glass fiber composite plate main frame and top frame provides a lifetime of service.

Bottom plate features a wide slot for included battery strap. Motor height is adjustable and ensures plenty of space between the ground and battery when landing or taking off.

Powerful LDARC AIO F411 flight controller/ESC/video transmitter keeps the build easy to assemble, program, and re-program or adjust in the field. Large and powerful 8520 motors can perform powerful loops at high speeds!

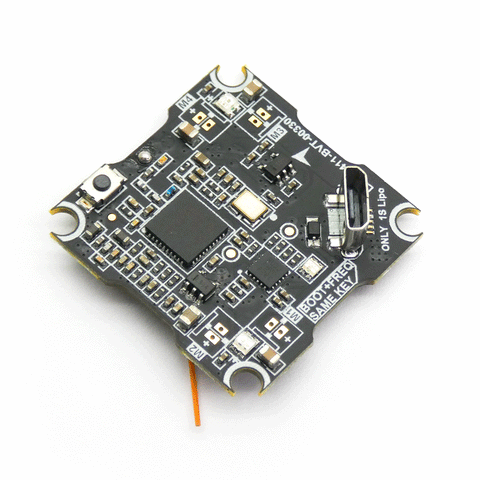

LDARC F411 AIO Flight Controller/ESC/Video Transmitter Board Specifications:

  • Operating Voltage: 4.2V / 1S
  • Main Board: F411 FC/4in1 ESC/VTX
  • ESC Rating: 5.6A/channel, 8A max
  • Target: LDARCF411
  • Weight: 3.7g

SpeedyFPV 8520 Motor Specifications:
  • Rated Voltage: 4.2V
  • No-Load Current: 280mA
  • No-Load Speed: 53000rpm
  • Motor Diameter: 8.5mm
  • Motor Length: 20mm
  • Shaft diameter: 1mm
  • Shaft length: 5mm
  • Weight: 5g
  • Recommend Propeller Length: 65mm

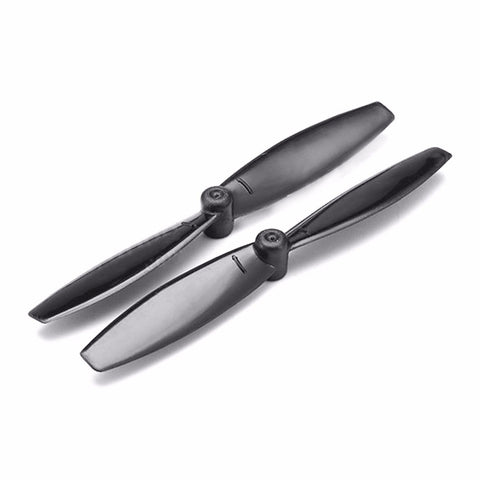

 LDARC 65mm Propellers Specifications:
  • Diameter: 65mm
  • Center hole diameter:1mm
  • Material: ABS
  • Color: Black
  • Quantity: 10 Pairs (20 pieces total)
  • Weight: 0.4g/each

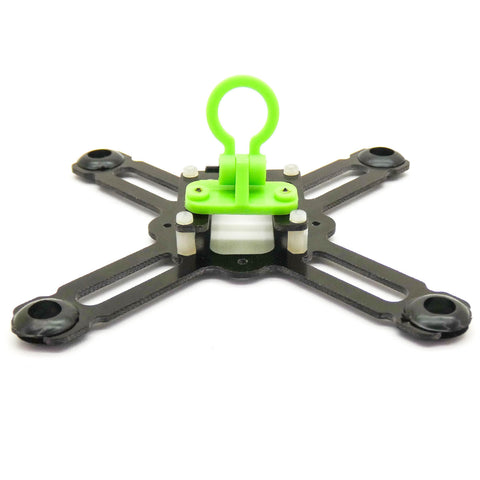

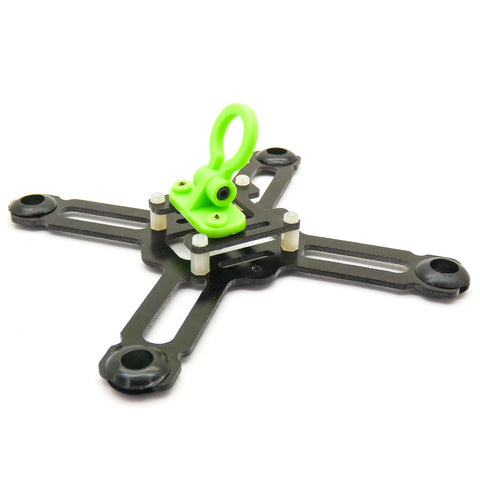

 SpeedyFPV X110B Brushed Frame Kit Specifications:
  • Size: 110mm
  • Configuration: X
  • Material: G10 glass fiber composite
  • Plate Thickness: 1.5mmm
  • Weight: 14g (without camera mount)

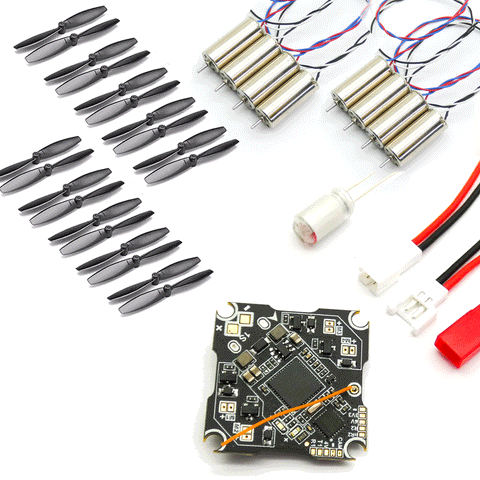

 Package Contents:
  • 1x SpeedyFPV X110B Brushed Drone Frame Kit
  • 1x LDARC F411 AIO Flight Controller/ESC/Video Transmitter
  • 1x Micro 700TVL Camera
  • 4x 8520 53,000rpm Brushed Motor (CW)
  • 4x 8520 53,000rpm Brushed Motor (CCW)
  • 10x 65mm Propeller (CW)
  • 10x 65mm Propeller (CCW)
  • 1x Power Capacitor
  • 3x Power Cable (JST/Molex/Mini-Molex)
  • Motor Protector Shrink Tubing
  • Battery Strap



>
