330mm FPV Drone Kit with 2205 Motors, 30A ESC, F722 Noxe Flight Controller 3-4S

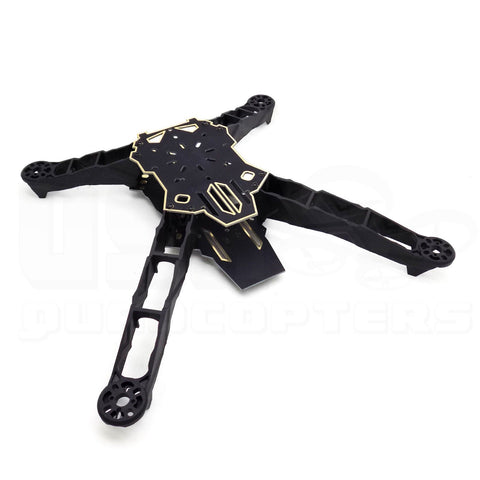

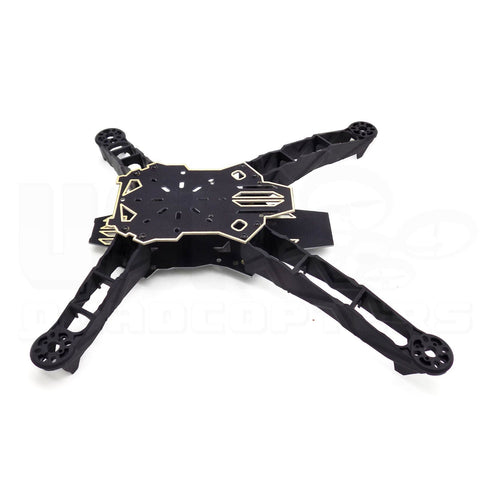

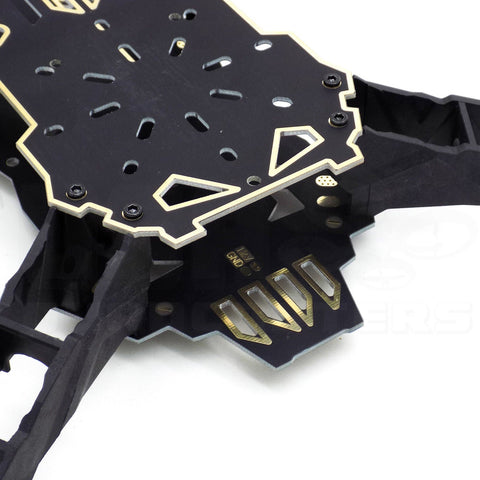

Frame Specifications:

• Wheelbase: 325mm
• Weight: 155g

JHEMCU F722 NOXE Flight Controller Specifications:

• Model: F722 NOXE
• Main Control: STM32F722RE (216MHZ)
• Gyroscope: ICM-42688-P
• Barometer: DPS310
• OSD Chip: AT7456E
• Black Box: 16MB
• LED Programming: supported
• BB Sound: supported
• Input Voltage: 3-6S
• I2C Interface: supported
• BEC: 5V/2.5A
• BEC: 10V/2.0A
• Camera Input: supported
• USART: UART1, UART2, UART3, UART4, UART5, UART6
• Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
• GPS: YES
• Compass: YES
• HD O3: YES
• ESC Signal: Dshot150,Dshot300,Dshot600
• USB: TYPE-C
• Current Port: YES
• Voltage Sensor : YES
• DFU Button: YES
• Weight: 5g
• Flight Control Firmware: Betaflight_ 4.4.2_ JHEF7DUAL. HEX
• Installation Hole Spacing: 20MM * 20MM * 4MM
• Maximum Overall Size: 29MM * 29MM

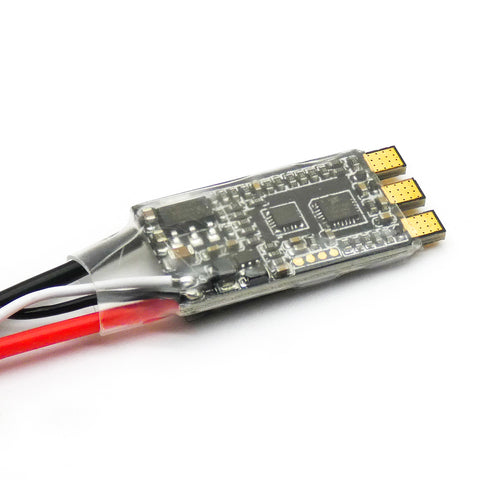

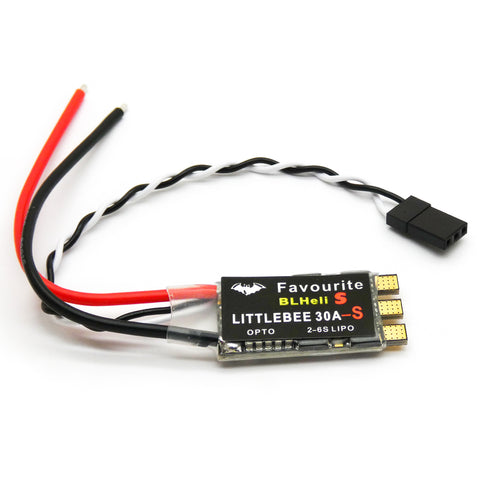

Littlebee 30A ESC Specifications:

• Brand Name: Favourite
• Model: LittleBee 30A-S
• Input Voltage: 2-6S
• Con.Current:30A
• Peak Current(10s):35A
• BEC:NO
• Programming :YES
• Net Weight: 9g
• Size:35x17mm
• Processor: SILABS EFM8BB21F16

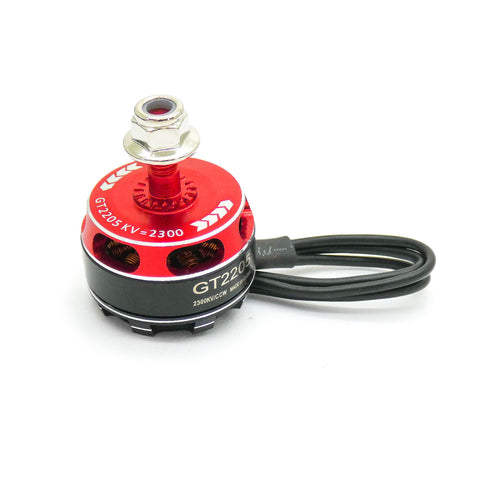

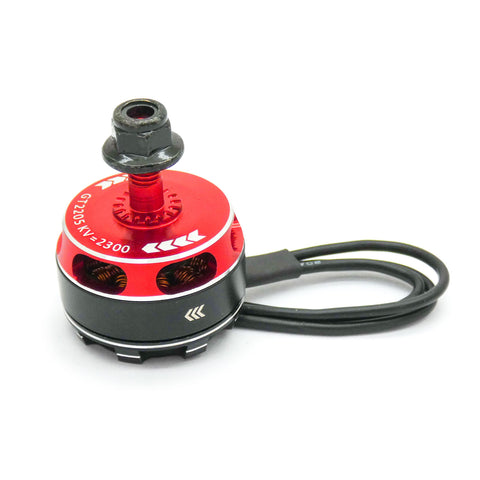

GT2205 Brushless Motor Specifications:

• Item name: GT2205 2300KV Brushless Motor
• RPM/V: 2300KV
• Height: 31.5mm
• Width: 27.9mm
• Shaft diameter: M5
• Motor mount hole size: M3
• Weight: 28 grams
• Battery: 3-4S lipo battery


Propeller Specifications:

• Propeller Diameter: 6 Inches
• Pitch: 4.3
• Blades: 2
• Material: Poly Carbonate
• Weight: 4.7g
• Hub Diameter: 13mm
• Hub Thickness: 6mm
• Shaft Diameter: 5mm

Package Contents:

• 1x Q330 Frame Kit
• 4x GT2205 Brushless Motor
• 1x 5v/12v Power Distribution Board
• 1x LDARC F4 Noxe Flight Controller
• 1x LDARC
• 1x Parts Kit - Flight Controller
• 1x Adapter Kit - Flight Controller
• 4x HQProp 6x4.3 Propeller (CW)
• 4x HQProp 6x4.3 Propeller (CCW)
