380mm FPV Drone Kit 2212 Motors Noxe F722 Flight Controller 30A ESC 3-4S
380mm FPV Drone Kit 2212 Motors Noxe F722 Flight Controller 30A ESC 3-4S
Sold Out

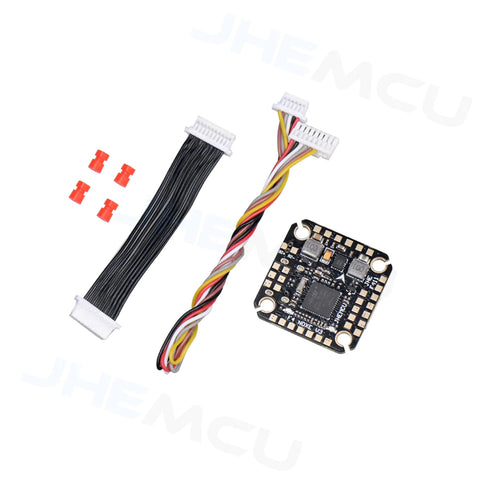

JHEMCU F722 NOXE Flight Controller Specifications:
- Model: F722 NOXE
- Main Control: STM32F722RE (216MHZ)
- Gyroscope: ICM-42688-P
- Barometer: DPS310
- OSD Chip: AT7456E
- Black Box: 16MB
- LED Programming: supported
- BB Sound: supported
- Input Voltage: 3-6S
- I2C Interface: supported
- BEC: 5V/2.5A
- BEC: 10V/2.0A
- Camera Input: supported
- USART: UART1, UART2, UART3, UART4, UART5, UART6
- Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
- GPS: YES
- Compass: YES
- HD O3: YES
- ESC Signal: Dshot150,Dshot300,Dshot600
- USB: TYPE-C
- Current Port: YES
- Voltage Sensor : YES
- DFU Button: YES
- Weight: 5g
- Flight Control Firmware: Betaflight_ 4.4.2_ JHEF7DUAL. HEX
- Installation Hole Spacing: 20MM * 20MM * 4MM
- Maximum Overall Size: 29MM * 29MM

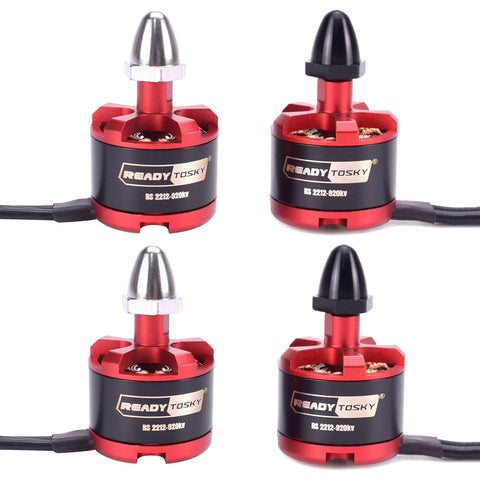

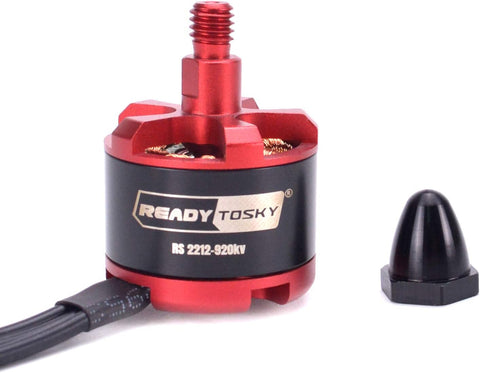

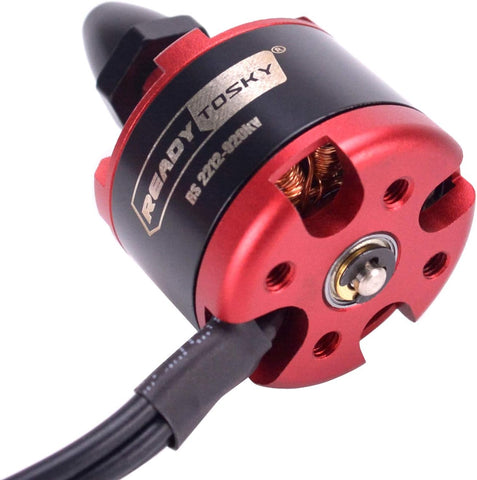

2212 Brushless Motor Specifications:
- Type : 22 x 12mm
- KV: 920kv

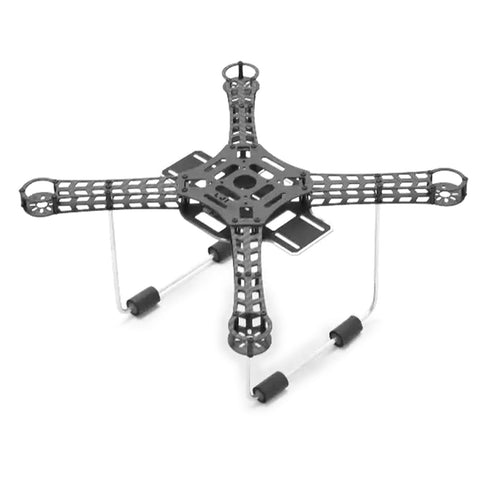

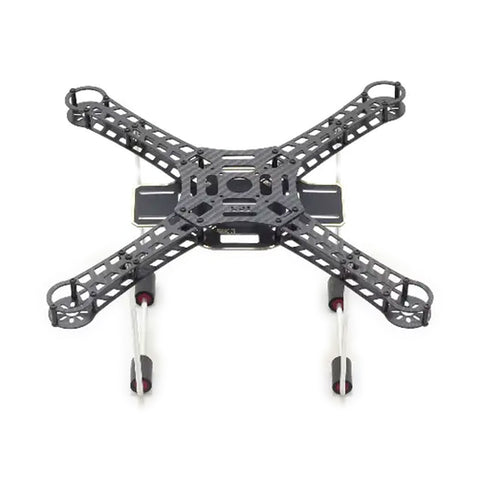

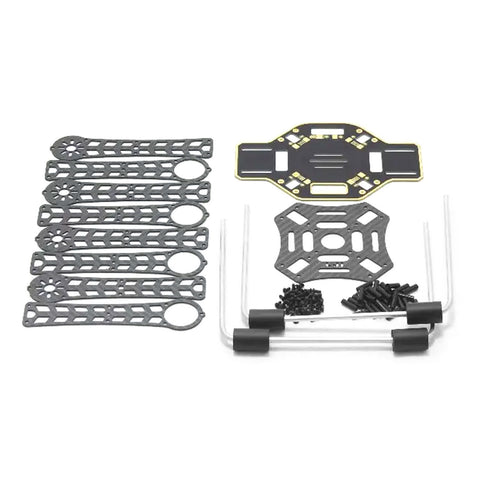

Frame Specifications:
- Material: Carbon fiber
- Length: 310mm
- Wheelbase: 380mm
- Supports up to 10-inch propellers.
- Aluminum landing gear heigth:145mm
- With F450 PCB board as the lower board,1.5mm pure carbon fiber as the upper board,
- 1.5mm pure carbon fiber arms, aluminum pillars

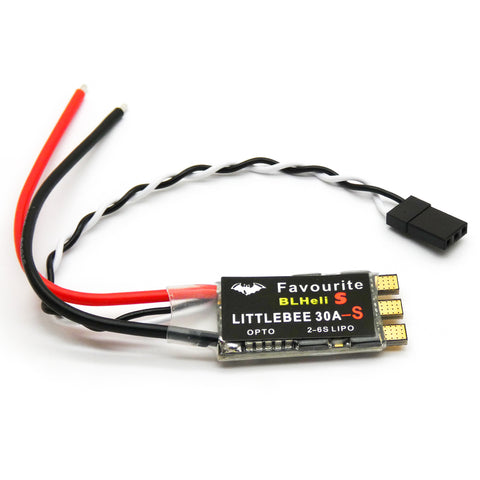

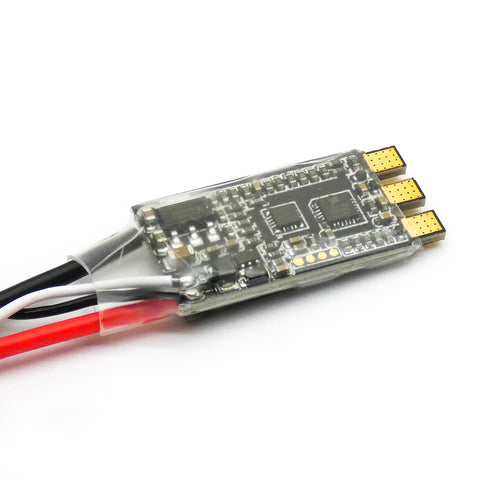

ESC Specifications:
- Brand Name: Favourite
- Model: LittleBee 30A-S
- Input Voltage: 2-6S
- Con.Current:30A
- Peak Current(10s):35A
- BEC:NO
- Programming :YES
- Net Weight: 9g
- Size:35x17mm
- Processor: SILABS EFM8BB21F16

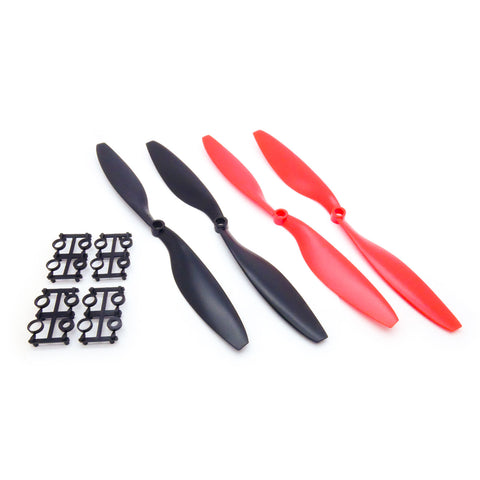

Propeller Specifications:
- Size: 10x4.5 inches
- Quantity: 4 pieces (2x CW, 2x CCW)
- Material: Nylon
- Color: Red / Black Combo
- Sizing Rings: Included
- Recommended Motors: 2212
Package Contents:
- 1x 380mm Carbon Fiber Frame Kit
- 1x F722 Noxe Flight Controller

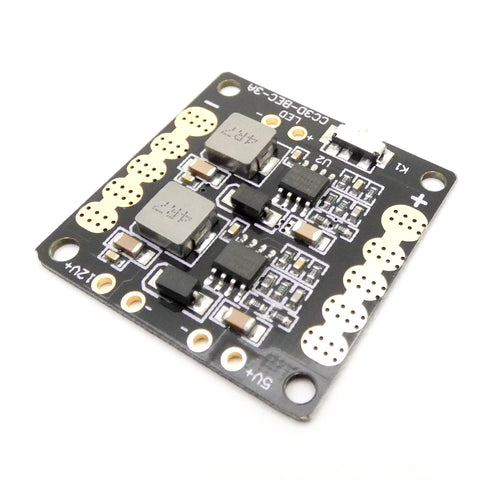

- 1x 5v 12v Power Distribution Board
- 1x Flight Controller Adapter Kit
- 2x 2212 CW Motors
- 2x 2212 CCW Motors
- 4x Littlebee 30A ESC
- 4x 10x4.5 Propeller (CW)
- 4x 10x4.5 Propeller (CCW)
