Q450 Quadcopter Drone Kit Noxe F722 Flight Controller 2212 Motors 30A ESCS 3-4S

Q450 Quadcopter Drone Kit Noxe F722 Flight Controller 2212 Motors 30A ESCS 3-4S

Sold Out

Product Type: Drone Kit
Brand: SpeedyFPV
ESC Output: 30A
Flight Controller: F4
Frame Size: 450mm
Motor Size: 2212

This kit from SpeedyFPV meets the demanding needs of today's FPV racing drones, featuring 30A ESCs, a power distribution system, 2212 motors, and an F722 Noxe flight controller.

Everything you need to build an FPV racing drone drivetrain, this kit is great for beginners and seasoned drone pilots alike. Add FPV components and your choice of the receiver to finish the build!

The lightweight, sleek design paired with powerful ESCs and motors offers excellent performance and handling. This model is sure to excite any flyer with an exceptional thrust-to-weight ratio.

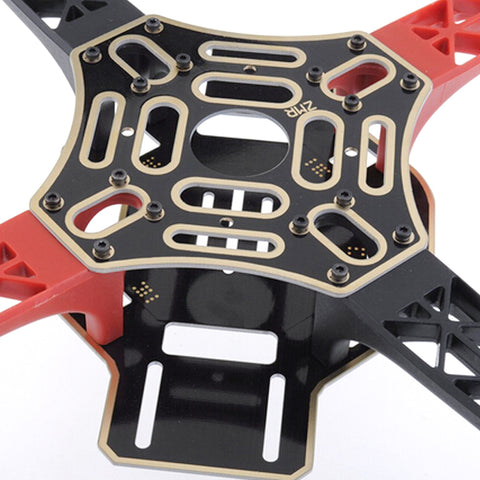

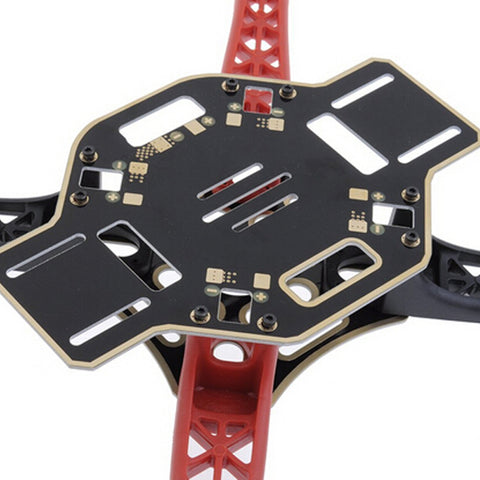

Q450 Frame with Integrated PDB Specifications:

  • Power Distribution: Yes
  • Color: Black / Red
  • Wheelbase: 17.7in/450mm
  • Weight: 248g

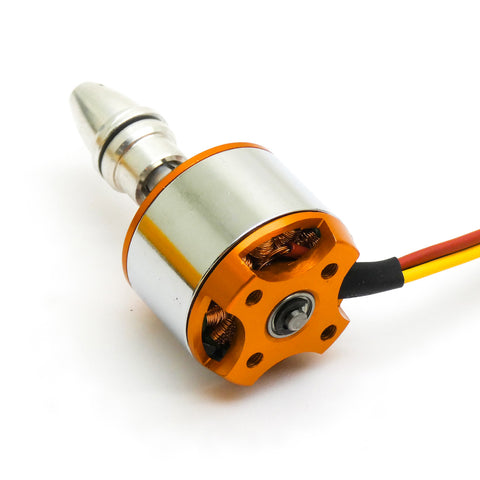

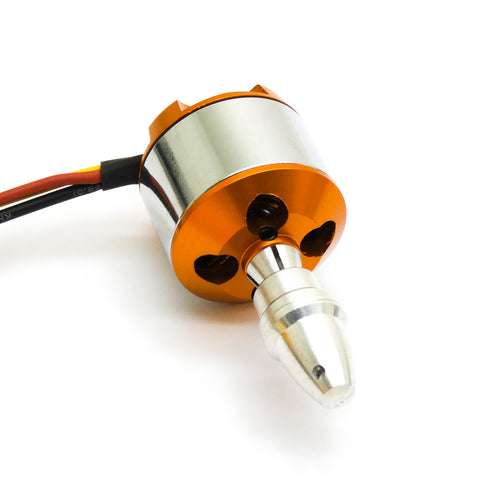

BR2212 1000KV Brushless Motors Specifications:

  • KV: 1000
  • Operating Voltage: 2-4S
  • Weight: 52g
  • Recommended Prop: 1045
  • Load Current (@11.1V): 15A
  • Pull (@11.1V): 885g
  • Efficiency (@11.1V): 5.1 g/w

JHEMCU F722 NOXE Flight Controller Specifications:

  • Model: F722 NOXE
  • Main Control: STM32F722RE (216MHZ)
  • Gyroscope: ICM-42688-P
  • Barometer: DPS310
  • OSD Chip: AT7456E
  • Black Box: 16MB
  • LED Programming: supported
  • BB Sound: supported
  • Input Voltage: 3-6S
  • I2C Interface: supported
  • BEC: 5V/2.5A
  • BEC: 10V/2.0A
  • Camera Input: supported
  • USART: UART1, UART2, UART3, UART4, UART5, UART6
  • Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
  • GPS: YES
  • Compass: YES
  • HD O3: YES
  • ESC Signal: Dshot150,Dshot300,Dshot600
  • USB: TYPE-C
  • Current Port: YES
  • Voltage Sensor : YES
  • DFU Button: YES
  • Weight: 5g
  • Flight Control Firmware: Betaflight_ 4.4.2_ JHEF7DUAL. HEX
  • Installation Hole Spacing: 20MM * 20MM * 4MM
  • Maximum Overall Size: 29MM * 29MM

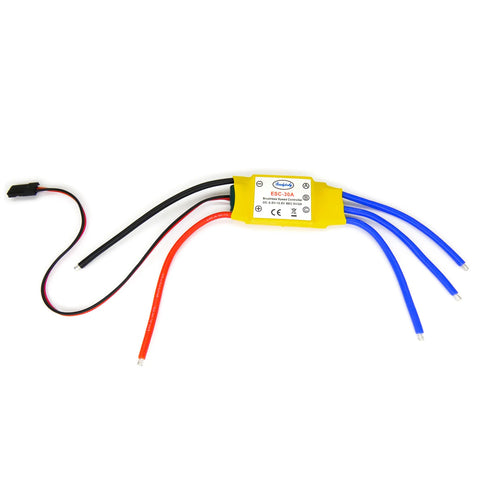

30A ESC with BEC Specifications:

  • Item Name: HW30A ESC
  • Power input: 5.6V - 16.8V (2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery)
  • BEC: 2A
  • Constant current: 30A (40A Burst)
  • Weight: 25g
  • Dimensions: 45 x 24 x 11mm

Package Contents:

  • 1x Q450 Frame Kit
  • 1x Noxe F722 Flight Controller

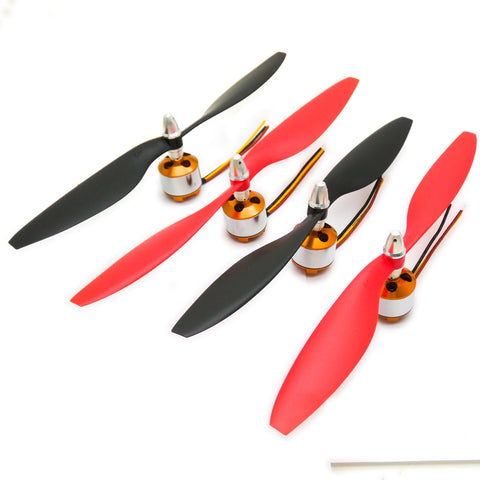

  • 4x 2212 1000KV 3S Brushless Motors
  • 4x 30A Brushless ESCs
  • 4x 10x4.5" Propellers Clockwise
  • 4x 10x4.5" Propellers Counter-Clockwise
  • 1x Power Lead (XT60)



>
