SpeedyFPV XL9 9-Inch 4S Drone Kit XA2212 Motors F405 Flight Controller 45A ESC

SpeedyFPV XL9 9-Inch 4S Drone Kit XA2212 Motors F405 Flight Controller 45A ESC

Added to Cart

Product Type: Drone Kit
Brand: SpeedyFPV
Amps: 45A
Flight Controller: F4
Motor Size: 2212

Go farther and carry more with the XL9 long-range FPV drone kit. Built on the Readytosky TrueX XL9 V2 390mm carbon fiber frame, this setup features the torque-heavy XA2212 980KV motors paired with a JHEMCU 45A 4-in-1 ESC and the Mamba Basic F405 MK2 flight controller for smooth, stable, and responsive power delivery. Designed to haul bigger LiPo packs, HD cameras, or mapping payloads, the XL9 is ready for your next adventure or professional mission.

Whether you are building a long-range cruiser or a payload-capable rig, this combo offers durability, performance, and expandability in one rock-solid package.

Highlights:

  • Go farther, carry more – long-arm XL9 frame ready for heavy payloads
  • High-torque XA2212 980KV motors deliver massive lift and stability
  • Mamba F405 MK2 FC with 6 UARTs and plug-and-play Air Unit port
  • JHEMCU 45A 4-in-1 ESC handles up to 6S for smooth, reliable power
  • Durable 9-inch carbon frame with replaceable 4mm arms
  • Perfect for LiPo packs, HD cameras, or mapping sensors
  • Includes HQProp 9x4.5x3 tri-blade props for efficiency and punch
  • Ready for freestyle, long-range, or utility drone builds

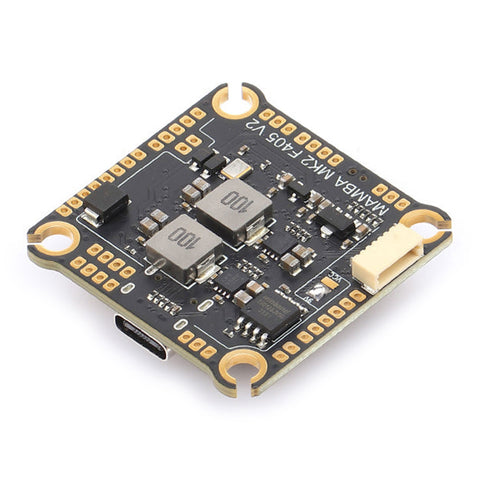

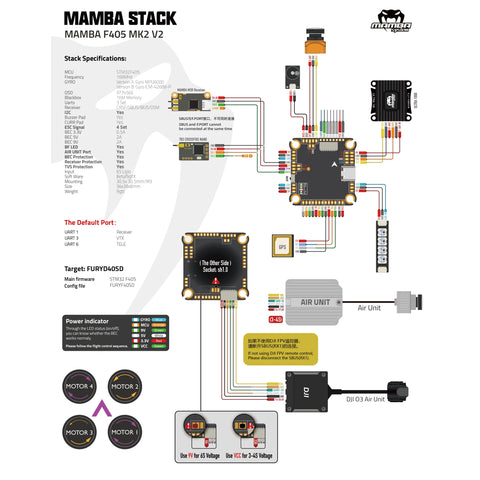

Mamba Basic F405 MK2 FC V2 ICM42688P Gyro Features:

  • STM32F405 MCU with ICM42688P Gyroscope
  • Dual MP9943 Synchronous Rectifying BEC for stable power delivery
  • Plug-and-play Air Unit support with 6P SH1.0 port


Mamba Basic F405 MK2 FC V2 ICM42688P Gyro Specifications:

  • Input Voltage: 3–6S LiPo
  • BEC: 5V/2A and 9V/2A
  • UARTs: 6 total (UART1, 3, and 6 commonly used for RX, VTX, GPS)
  • Firmware Target: FURYF4OSD
  • Dimensions: 30.5 x 30.5mm (Mounting), 4mm holes
  • Weight: 9g

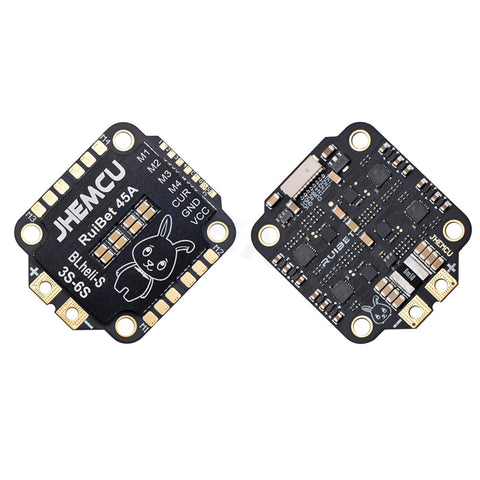

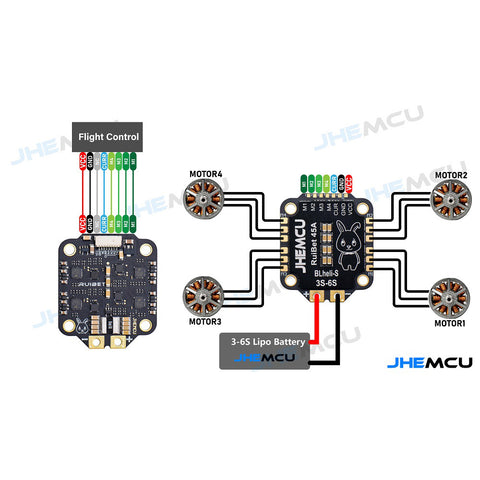

JHEMCU Ruibet 45A 4-in-1 ESC Specifications:

  • Input Voltage: 3-6S (11-27V)
  • Continuous Current: 45A x 4-Channels (55A Burst)
  • BEC: No
  • Current Meter: Integrated
  • Mounting: 30.5x30.5mm (Standard)
  • Dimensions: 39.5*41mm
  • Firmware: BLHELI__S J_H_15_REV 16_7.
  • Weight: 14.5 grams

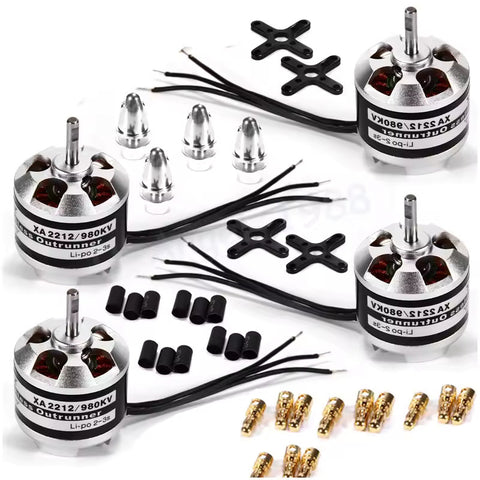

EMAX XA2212 2212 Brushless Motor 2-3S 980KV Specifications:

  • KV Rating: 980KV
  • Structure: 12N14P
  • Rotor Size: 22 x22 x 12mm / 0.87 x 0.87 x 0.47inch
  • Motor Size: 27.9 x 27.9 x 43.16mm / 1.10 x 1.10 x 1.70inch
  • Supporting Voltage: 2-3S
  • Maximum Load Capacity Per Motor: 940g
  • Nut: M5

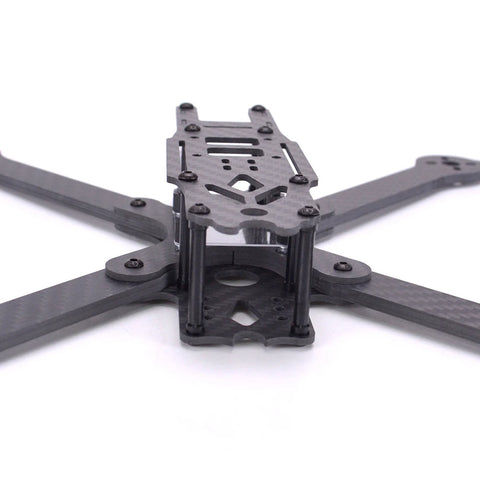

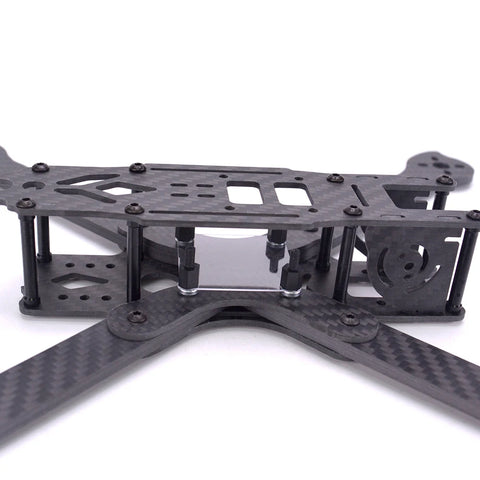

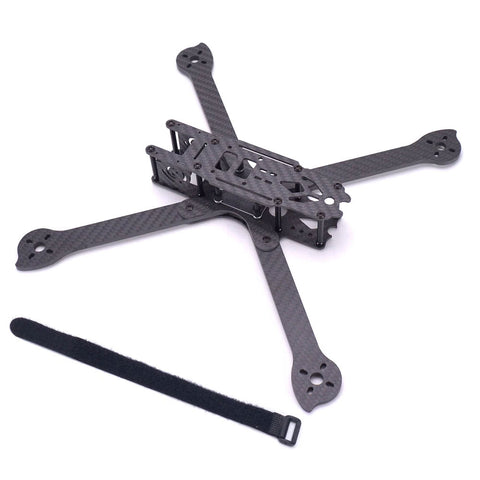

Readytosky TrueX XL9 V2 390mm 9 Inch Carbon Fiber Frame Features:

  • Top-mounted battery configuration optimizes CG for precise flight control
  • True X frame design enhances stability and maneuverability
  • Replaceable 4mm arms and plates ensure durability and longevity
  • High-quality 3K full carbon construction guarantees reliability in extreme conditions
  • 7075 T10 high-quality screw hardware provides added strength and resilience
  • Compact design facilitates agile and responsive flight performance

Readytosky TrueX XL9 V2 390mm 9 Inch Carbon Fiber Frame Specifications:

  • Type: 9" Freestyle frame
  • 4mm arms, 2mm top plate / Bottom plate
  • Motor to Motor Size: 390mm
  • Compatible with 1300-1500mAh lipo batteries

Package includes:

  • 1x Readytosky XL9 9 Inch Carbon Fiber Frame
  • 4x XA2212 980KV motors
  • 1x JHEMCU Ruibet 45A 4-in-1 ESC
  • 1x Diatone Mamba F405 MK2 FC V2 ICM42688P Gyro
  • 8x HQProp 9x4.5x3 3-Blade Propellers

Batteries, RX, VTX, and camera sold separately. Basic soldering required.



>
