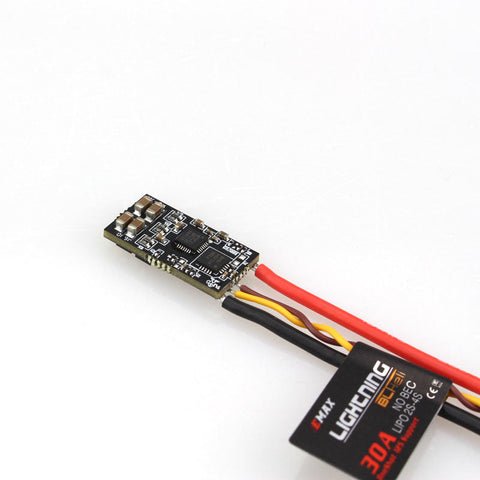

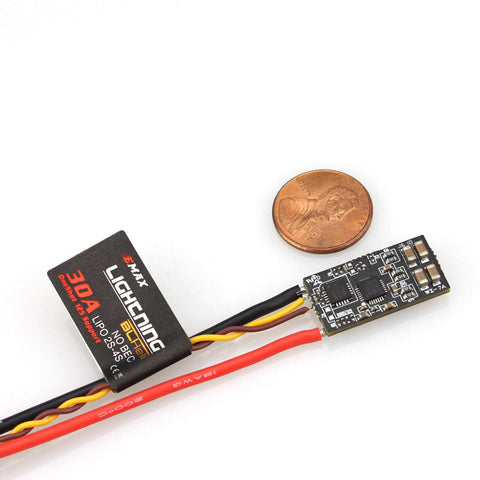

EMAX Lightning 30A ESC F396 MCU 2-4S BLHeli Ultra-Light FPV Racing ESC

Features:

• First-of-its-Kind Synchronous Rectification Design: Boosts efficiency and minimizes heat generation.
• High-Performance F396 MCU: Delivers precise throttle control and faster response times.
• Ultra-Lightweight & Compact: Only 4.78g with wires; small footprint of 24.5 x 12.5 x 5mm.
• Supports Active Braking: Enables rapid deceleration for tighter control during aggressive maneuvers.
• Firmware Upgradable via Signal Wire: Stay up to date with the latest BLHeli firmware.
• Anti-Counterfeit Code: Ensures authentic Emax quality.
• Supports Up to 4S HV (High Voltage): Handles 4.35V per cell for maximum power output.
• Oneshot & Multishot Ready: Compatible with Oneshot125, Oneshot42, and Multishot protocols.
• High Current Burst Rating: Designed to withstand intense FPV racing and freestyle conditions.

Specifications:

• Continuous Current: 30A
• Burst Current: 40A
• Voltage Support: 2S-4S LiPo
• Processor: High-speed F396 MCU
• Weight: 4.78g (with wires)
• Dimensions: 24.5 x 12.5 x 5mm
• Firmware: BLHeli (upgradable via signal wire)
• BEC: No
• Protocols Supported: Oneshot125, Oneshot42, Multishot
• Cooling: High-efficiency MOSFETs for optimized heat dissipation

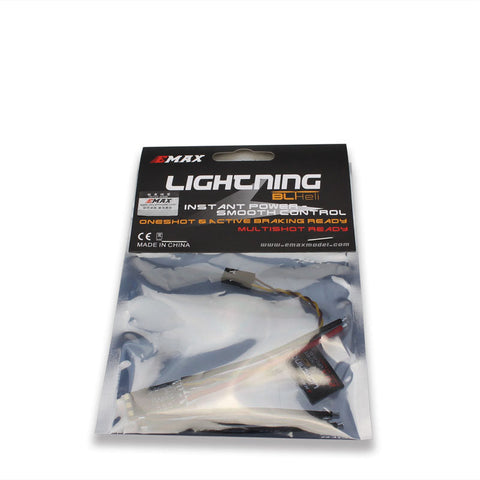

Package Contents:

• 1x Emax Lightning 30A ESC
• 1x Pre-Soldered Signal Cable
• 1x Set of Heat Shrink Tubing
• 1x Mounting Hardware
