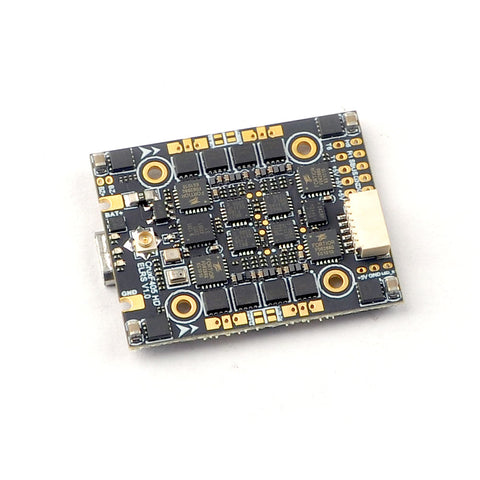

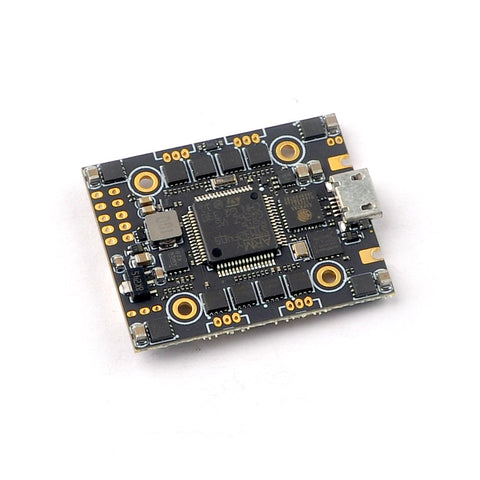

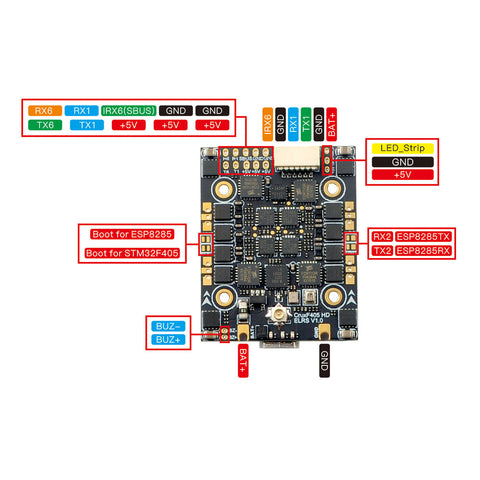

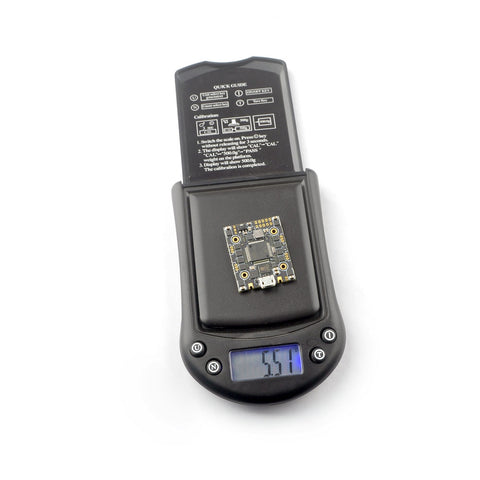

CruxF405HD ELRS AIO 3in1 Flight controller built-in UART 2.4G ELRS and 20A ESC

The CruxF405HD ELRS AIO flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware pre-installed) which could support 2-4s battery. Bigger Mosfet could support high to 20A currents would be better for 2-4S toothpick drone or long range FPV drone. Reserved 6 pin socket for DJI HD equipment plug and play. It’s a great solution of build HD digital FPV drone .

Flight Controller Specifications:

• MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
• GYRO Sensor: ICM42688 (SPI connection)
• Mount hole size: 20mm*20mm
• Power supply: 2~4S battery input (DC 8.7V-17.4V)
• Built-in 20A(each) Blheli_S 4in1 ESC
• Built-in Serial ExpressLRS 2.4G (Default connected to UART2)
• Built-in BMP280 Barometer
• Built-in 8MBp blackbox
• Built-in voltage meter sensor , voltage meter scale 110
• Built-in current meter sensor , current meter scale 470
• Flight controller firmware target: BETAFLIGHTF4

Onboard 4in1 ESC Specifications:

• MCU upgraded to EFM8BB21
• Power supply: 2-4S LiPo/LiPo HV (7v/17v)
• Currents: 20A continuous peak 25A (5 seconds)
• Support BLHeliSuite programmable
• Factory firmware: Bluejay 0.19.2
• Firmware target: F_H_40_48_v0.19.2
• Default protocol: DSHOT150/DSHOT300/DSHOT600

Onboard UART ExpressLRS 2.4GHz Receiver Specifications:

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• RF Frequency: 2.4GHz
• Antenna plug: IPEX
• Telemetry output Power: <12dBm
• Receiver protocol: CRSF
• Default firmware version: ExpressLRS V3.0.1

Binding Procedure Specifications:

• 1) Supply power to the flight controller by plug USB, wait until the red LED on the FC is off, immediately turn off the power, and then repeat again the above steps. When the FC is powered on for the third time, the red LED light will start to double-flash, which means that the Receiver enters the binding mode
• 2) Please make sure your ExpressLRS tx module firmware is v3.x.x. And go to ExpressLRS.lua from “TOOLS” menu of your radio transmitter. Then hit [Bind] to binding with the onboard ExpressLRS receiver. The red LED should blinking slowly first then turn to solid, that means binding was successfully. If the red led keep tri-flash after binding ,please change Model Match tab value from “off” to “on” or from “on” to “off”

Receiver LED Status Specifications:

• Red LED solid means bind successful or RC link established; Red LED double-flash means get into bind mode; Red LED flash slowly means no RC signal input from TX module; Red LED continuous flash fast means ExpressLRS wifi enabled; Red LED tri-flash means model mismatch need to change model match from “off” to “on”.

Package Contents:

• 1x HappyModel CruxF405HD ELRS AIO 3in1 Flight controller built-in UART 2.4G ELRS and 20A ESC
