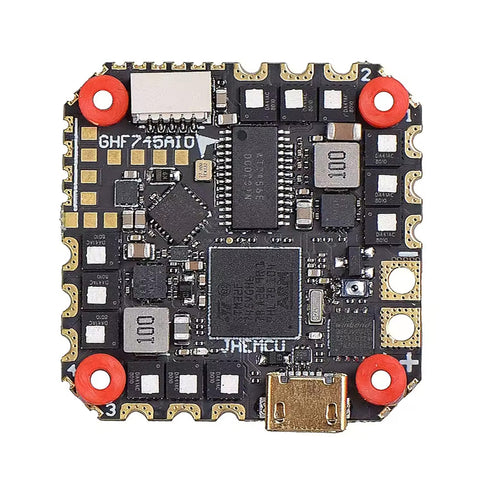

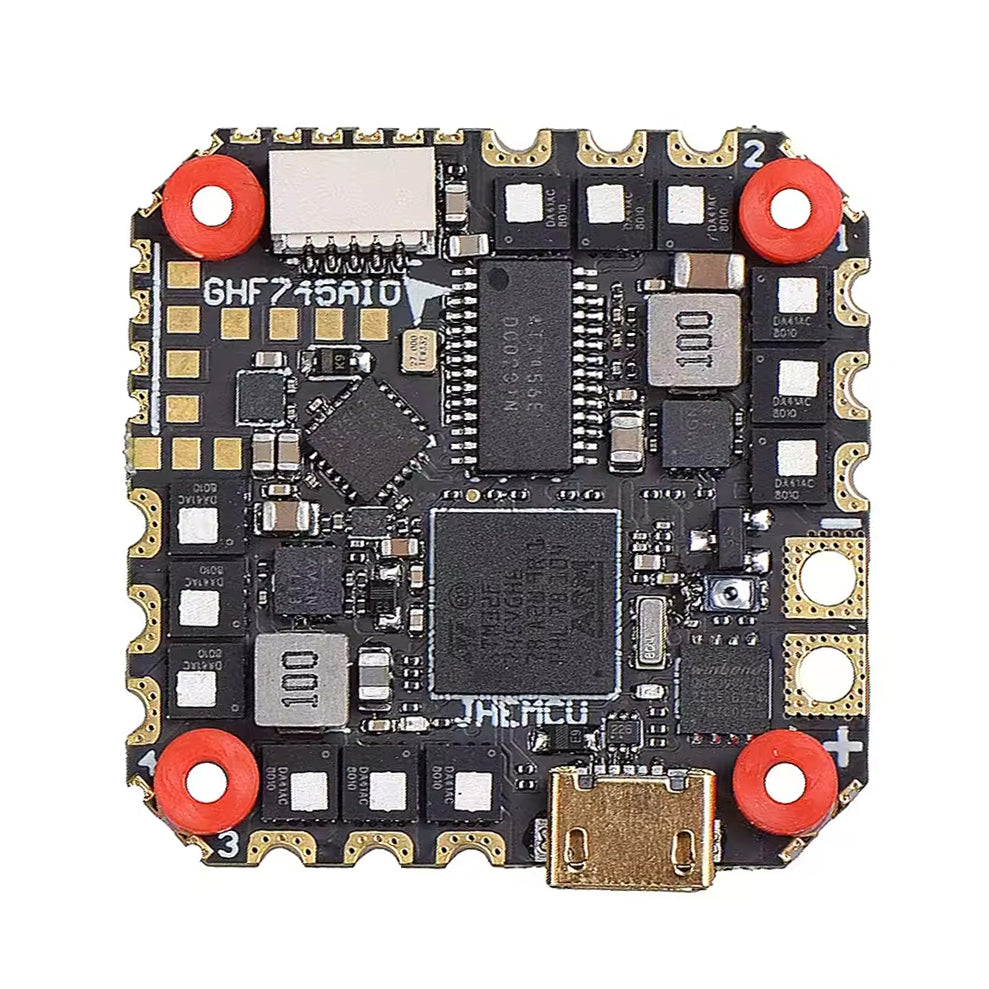

JHEMCU GHF745AIO F745 Flight Controller BLHELI32 G071 40A 4-in-1 ESC 25.5x25.5mm 3-6S

The JHEMCU GHF745AIO is a high-performance all-in-one flight controller and 4-in-1 ESC designed for FPV freestyle and high-power builds. Featuring an STM32F745 MCU paired with the MPU6000 gyro, it delivers stable flight performance, fast processing, and reliable control.

This AIO board integrates dual BECs, onboard OSD, barometer, blackbox memory, and a BLHeli_32 ESC with high-power MOSFETs and built-in TVS protection, making it a compact and robust solution for 3–6S FPV drones.

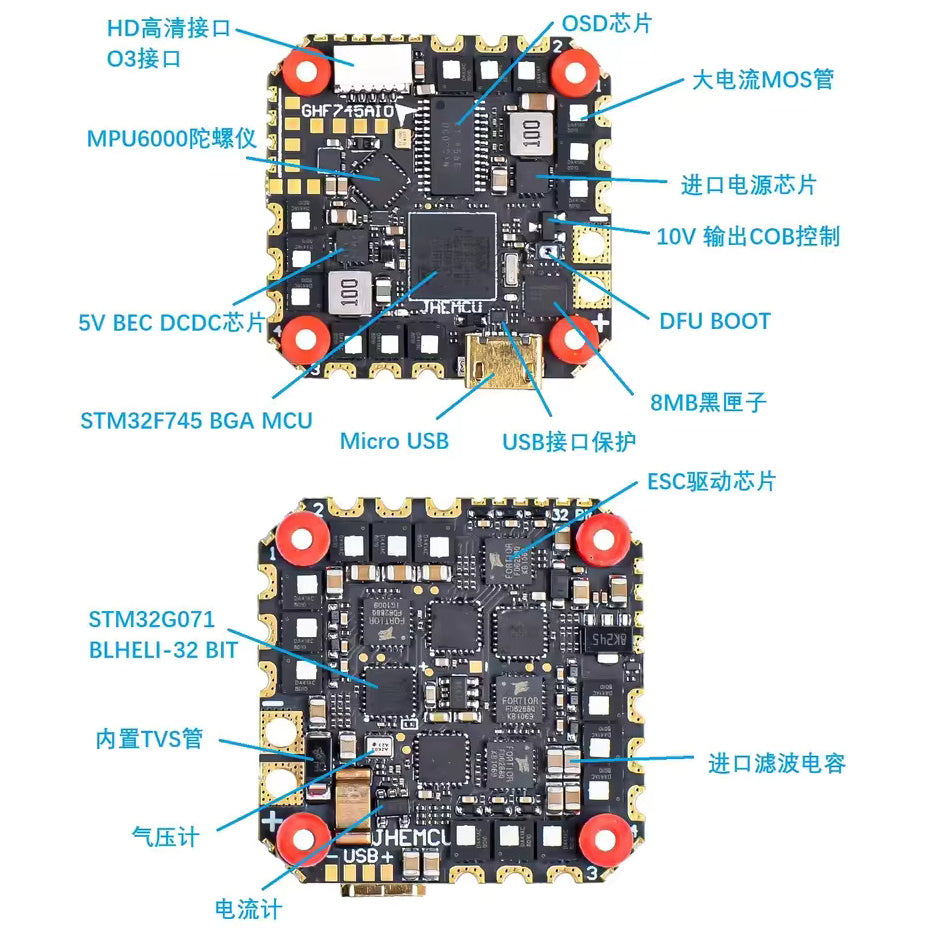

Flight Controller Specifications:

• Brand: JHEMCU
• Model: GHF745AIO
• MCU: STM32F745 (216MHz)
• Gyro / IMU: MPU6000 (Gyro + Accelerometer)
• OSD: AT7456E
• Barometer: Yes
• Blackbox: 8MB onboard flash
• Firmware: Betaflight 4.4.2 (JHEF745 target)
• Input Voltage: 3–6S LiPo (11.5V–26V)
• Mounting Size: 25.5 × 25.5mm (M3)
• Board Size: 33 × 33mm
• Weight: ~7.3g

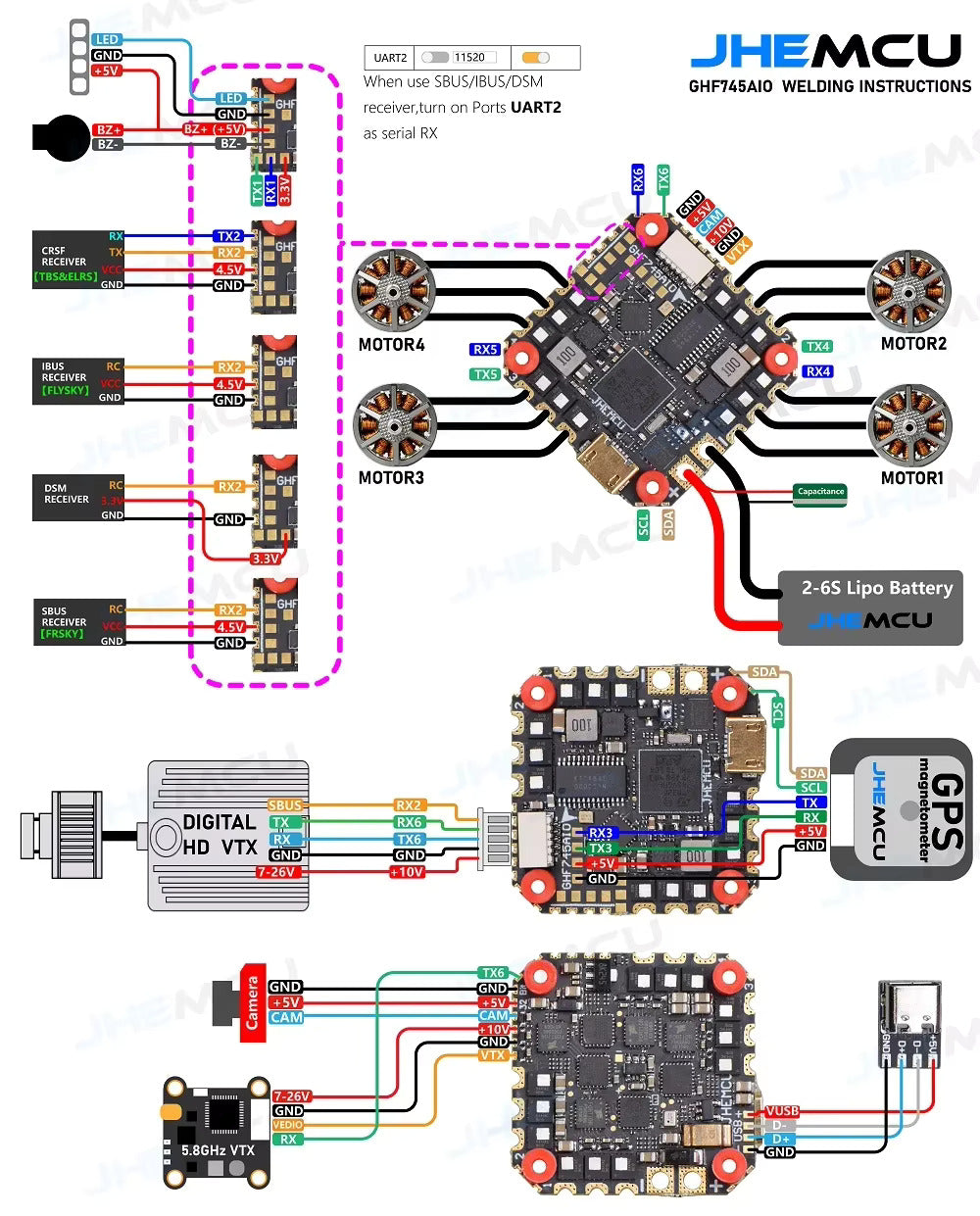

Power & Interfaces:

• 5V BEC: 5V / 2.5A (±0.1V)
• 10V BEC: 10V / 2A (±0.1V)
• UARTs: UART1–UART6

• LED Strip Support: Yes
• Buzzer Output: 5V
• USB Port: Micro USB
• DFU Button: Yes
• Current Sensor: Yes
• Voltage Sensor: Yes
• HD Interface: Yes

Receiver & Protocol Support:

• ELRS (CRSF)
• TBS Crossfire (CRSF)
• SBUS
• IBUS
• DSM2 / DSMX

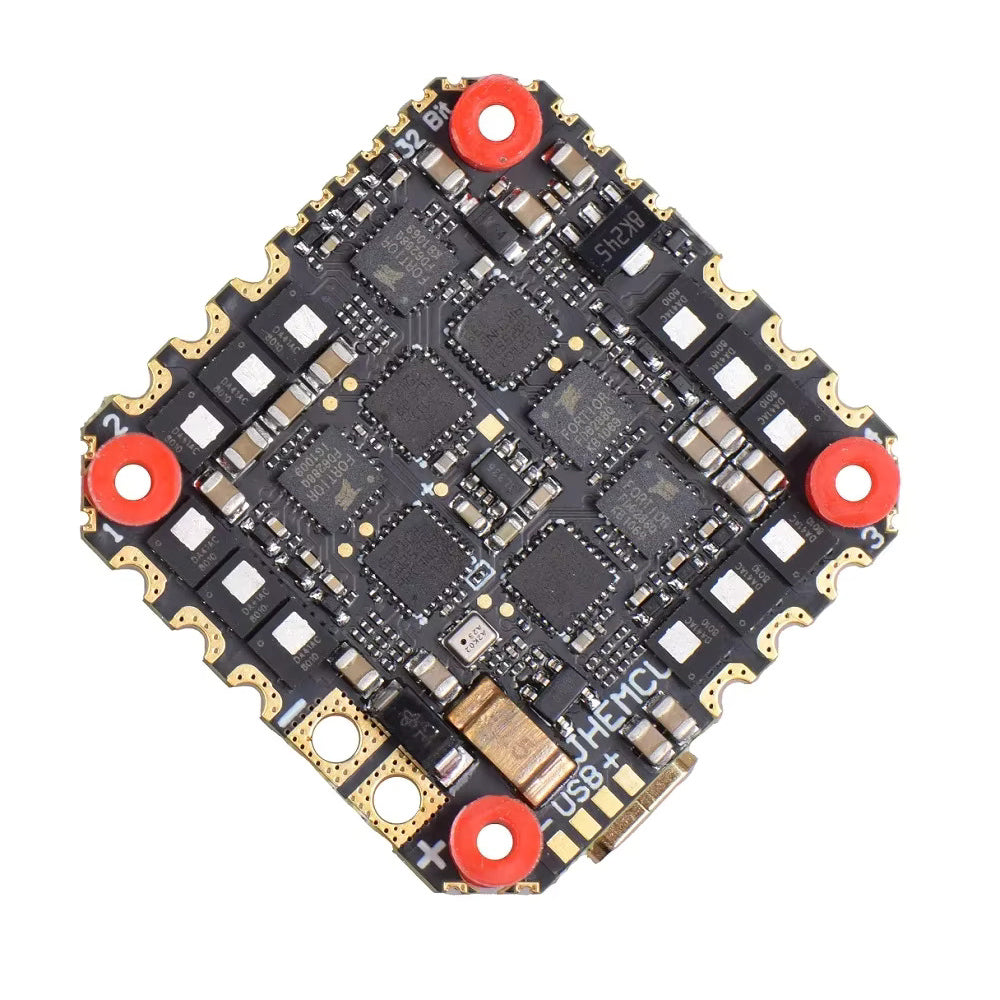

Onboard ESC Specifications:

• ESC MCU: STM32G071
• ESC Firmware: BLHeli_32 (JHEMCU_G071_ESC_Multi_32_9)
• Continuous Current: 40A
• Max / Burst Current: 50A
• ESC Signal Protocols: DShot150 / DShot300 / DShot600
• Built-in TVS Protection: Yes (no external TVS required)

Applications:

• FPV freestyle drones
• High-power 3–6S FPV builds
• Compact AIO drone frames using 25.5mm mounting

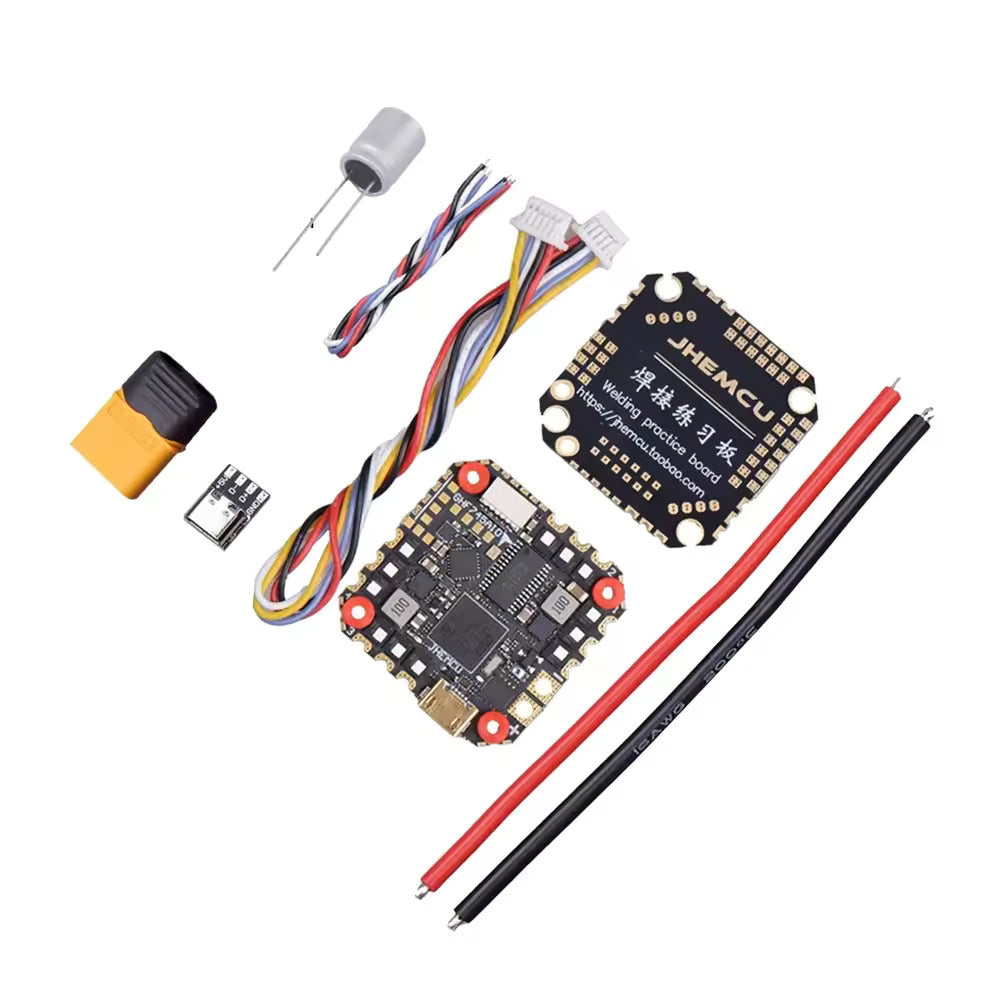

Package Contents:

• 1× JHEMCU GHF745AIO Flight Controller & 4-in-1 ESC
• 1× XT60 power connector
• 4× M2 × 6.5mm vibration-damping grommets
• 2× Power wires (50A / 14AWG)
• 2× Power wires (40A / 16AWG)
• 1× 5P to 6P connecting cable
• 1× 470µF 35V low-ESR capacitor
• 1× USB Type-C adapter board
• 4× 28AWG signal wires
• 1× Welding practice board
