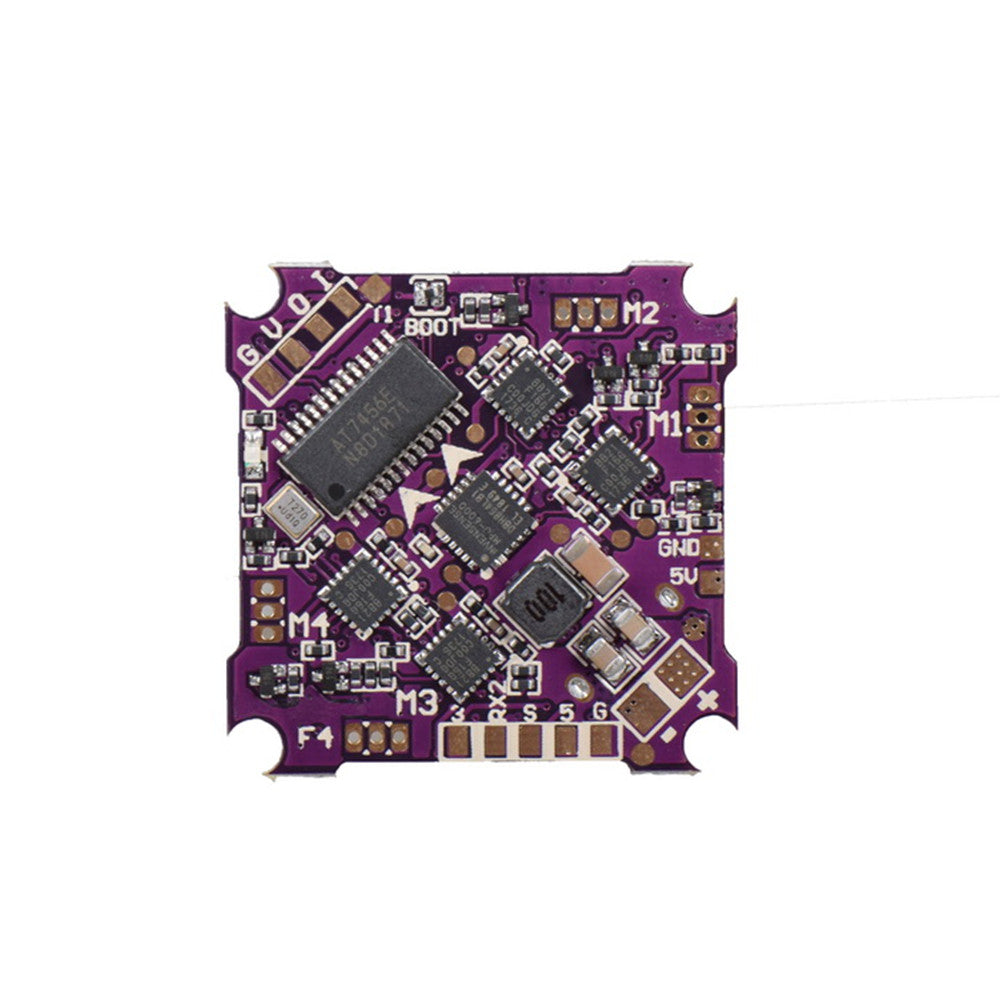

Play F4 Whoop Flight Controller with Integrated 5A 4-in-1 ESC 1-2S Brushless
Play F4 Whoop Flight Controller with Integrated 5A 4-in-1 ESC 1-2S Brushless
Product Type: Flight Controller
Brand: SpeedyFPV
Amps: 5A
BEC: Yes
Configuration: All-In-One
Flight Controller Type: F4
OSD: Yes
Brand: SpeedyFPV
Amps: 5A
BEC: Yes
Configuration: All-In-One
Flight Controller Type: F4
OSD: Yes

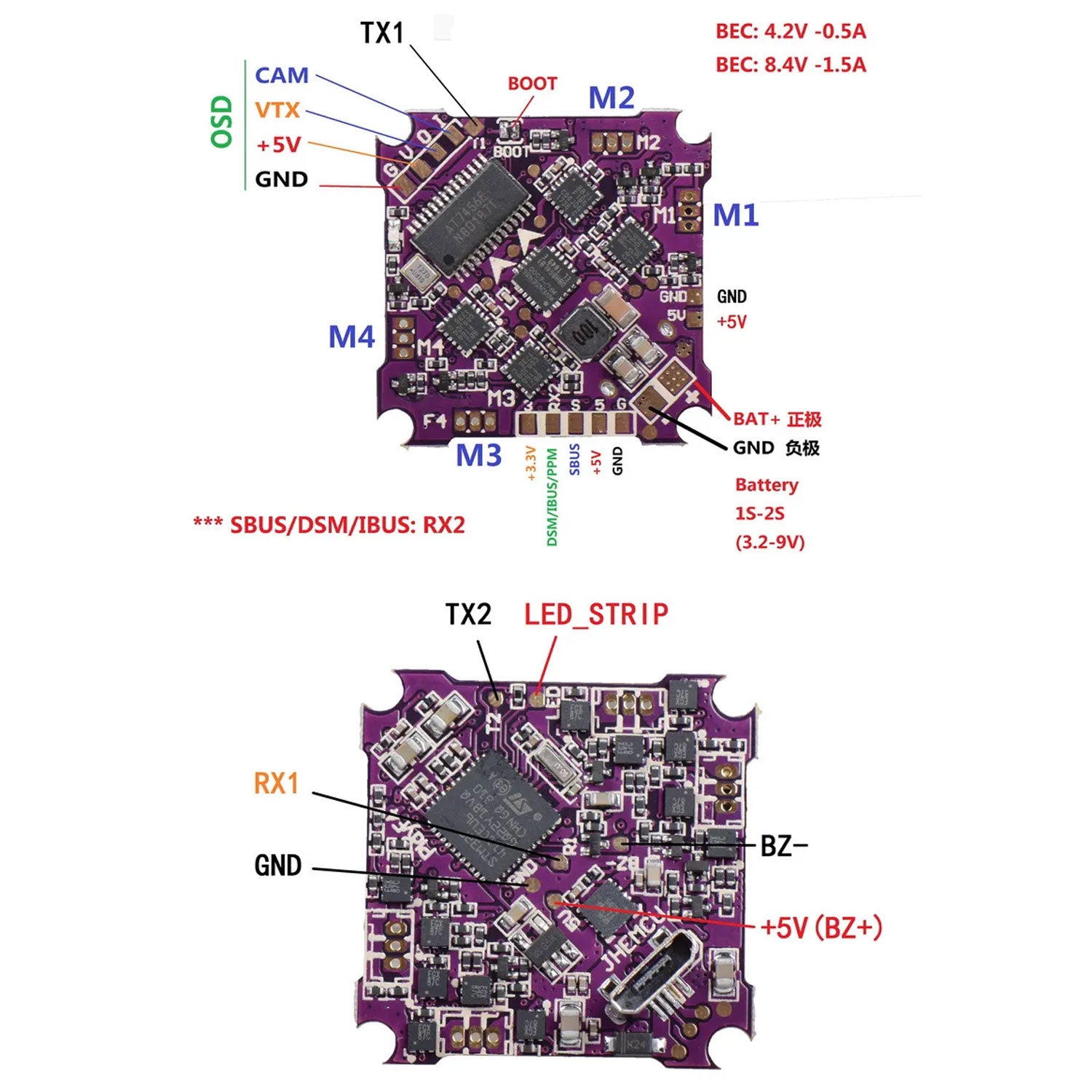

Specifications:

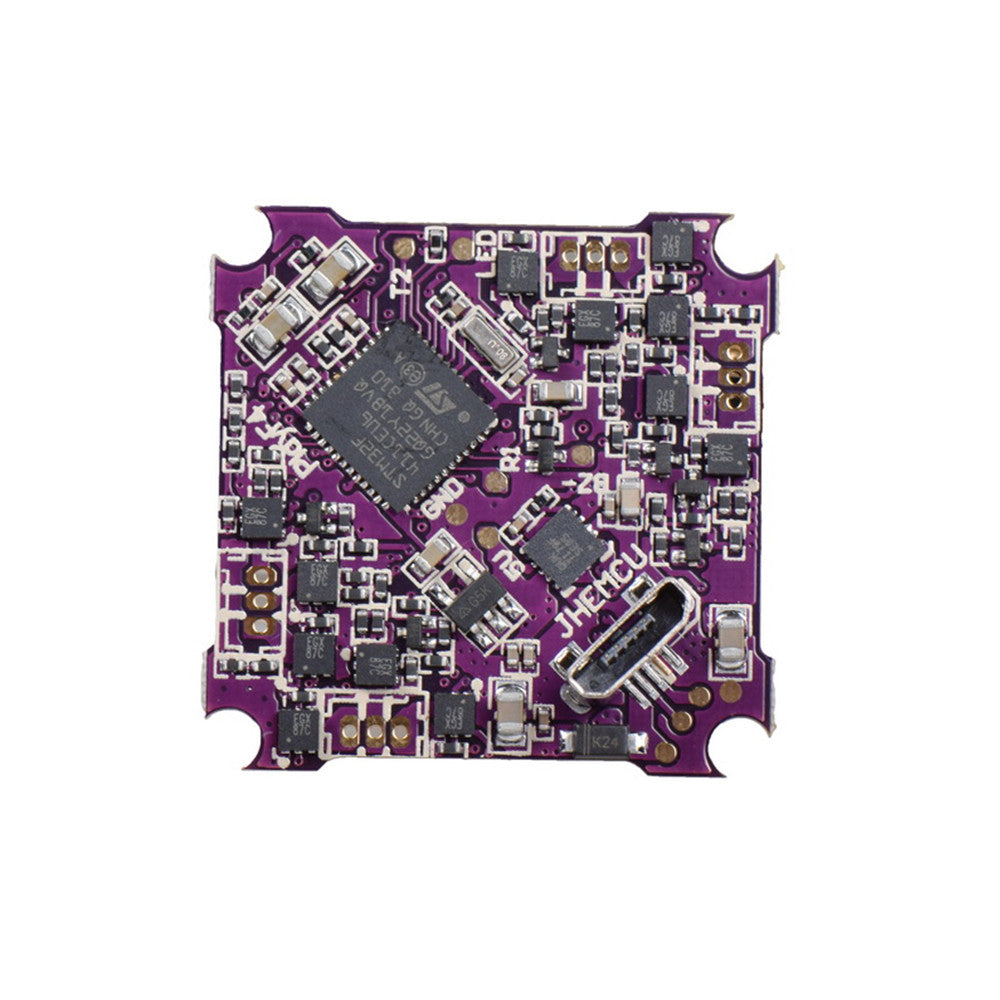

- CPU: STM32F411CEU6
- Sensor: MPU6000 Triaxial accelerometer/ Triaxial Gyroscope ( SPI Connection)
- Input Voltage: 1-2S Lipo
- BEC: 0.5A ( 1S ) ; 1.5A ( 2S )
- Built-in OSD interface
- Support BLHeli Suite ESC programming
- Support Voltage Detection
- Support LED Strip
- Support Smart Audio OSD Control
- Support Buzzer
- Support Compatible PPM, SBUS, IBUS, DSM2/DSMX Receiver
- Input Voltage: 1-2S
- Continuous Current: 5A
- Peak Current: 7A ( 2S)
- Support BLHeliSuite Programmable
- Factory Firmware: S_H_50_REV16_7.HEX
- Support Oneshot125, Multishot, DShot150, DShot300, DShot600, PWM
- Board Size: 28.5×28.5mm
- Screw Hole Spacing: 24.5×24.5mm ( M3)
- Board Weight: 3g

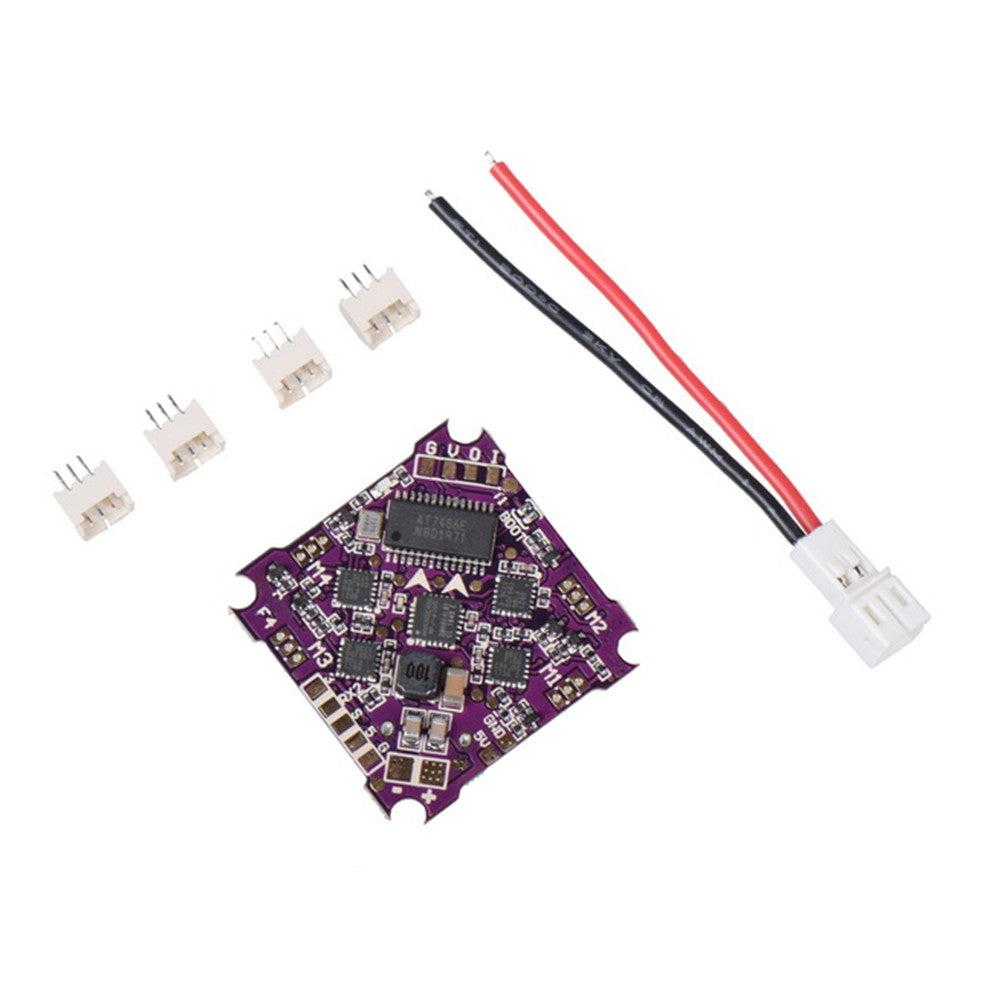

Package Contents:
- 1x JHEMCU F4 Flight Controller Built-in ESC Module
- 1x Power Cable
- 4x 3Px1.25mm Plug Connector
