5.8GHz Diversity FPV System Micro-SD DVR 800mW Video Transmitter 1500TVL Camera

If you're looking to get into FPV, look no further than this kit as it includes all the necessary items to get started!

This kit offers a stand-alone FPV monitor with built in receiver, audio, and internal battery, the video transmitter is designed to mount easily inside your drone, and the system offers crisp, clear and vivid images in daylight, while still being able to view objects without difficulty under low light.

5.8GHz Diversity DVR Monitor Specifications:

• Screen Size: 7"
• Frequency: 5.8G
• Channel: 40CH
• Sensitivity: -95dBm
• Interface : AVIN/AVOUT/DCIN/USB
• Build in 2000mAh 2S LiPo
• Language : English
• Ratio : 16:9
• Power Consumption : ‰¤5W
• Size : 178x118x58mm

Video Transmitter Specifications:

• Item Name: 5.8G 48CH 25/200/600/800mW Adjustable AV Transmitter
• Model: JHEMCU VTX30
• Frequency: 5.8G 48CH
• Transmitting Power: 25mW/200mW/600mW/800mW/OFF
• Power supply: DC 6-25V (2-6S)

Camera Specifications:

• Model: MINI A23 FPV cameras
• Lmage Sensor: 1/3ï¼€¡Mg SUPER HAD II CCD
• Horizotal Resoulution: D1 960H
• Lens: 2.1mm
• Signal System: PAL/NTSC (OSD Internal adjustableï¼€ Degrees
• S/N Ratio: ＞60Db(AGC OFF)
• Electronic Shutter Speed: PAL: 1/50-100.000, NTSC:1/60-100,000
• Auto Gain Control(AGC): LOW/MIDDLE/HIGH
• Back light compensation(BLC): YES
• Min lllumination: 0.001Lux/1.2F
• WDR D-WDR DNR 3DNR Day/Night
• Auto/Color/B*W
• Power: DC 5V-30V
• Net weight: 15g
• Dimensions: 22mm*25mm*28mm

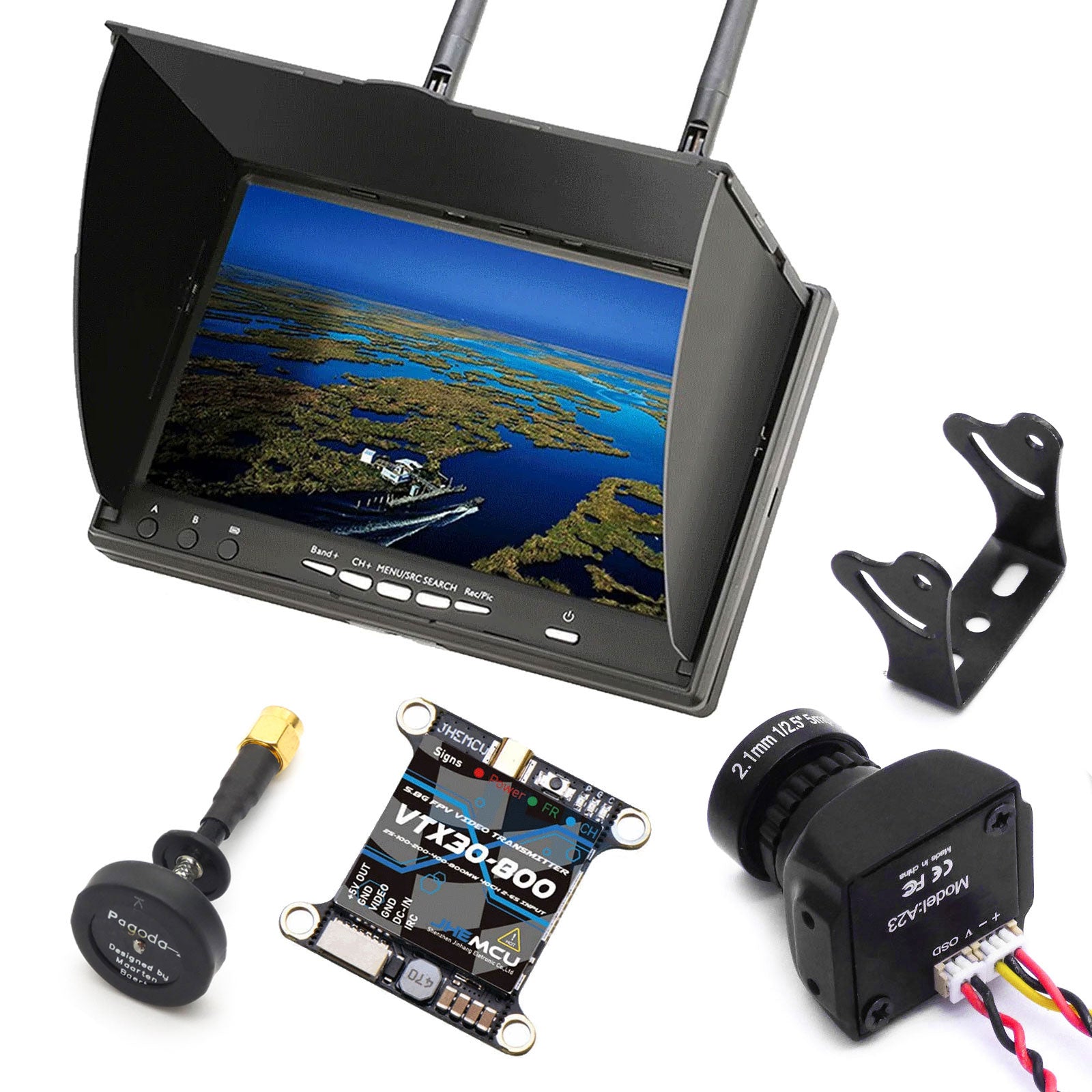

Package Contents:

• 1x 5.8GHz Diversity Antenna DVR FPV Monitor
• 1xA231500TVL Camera
• 1x 5.8GHz 800mW Video Transmitter
• 1x Pagoda Transmitting Antenna
