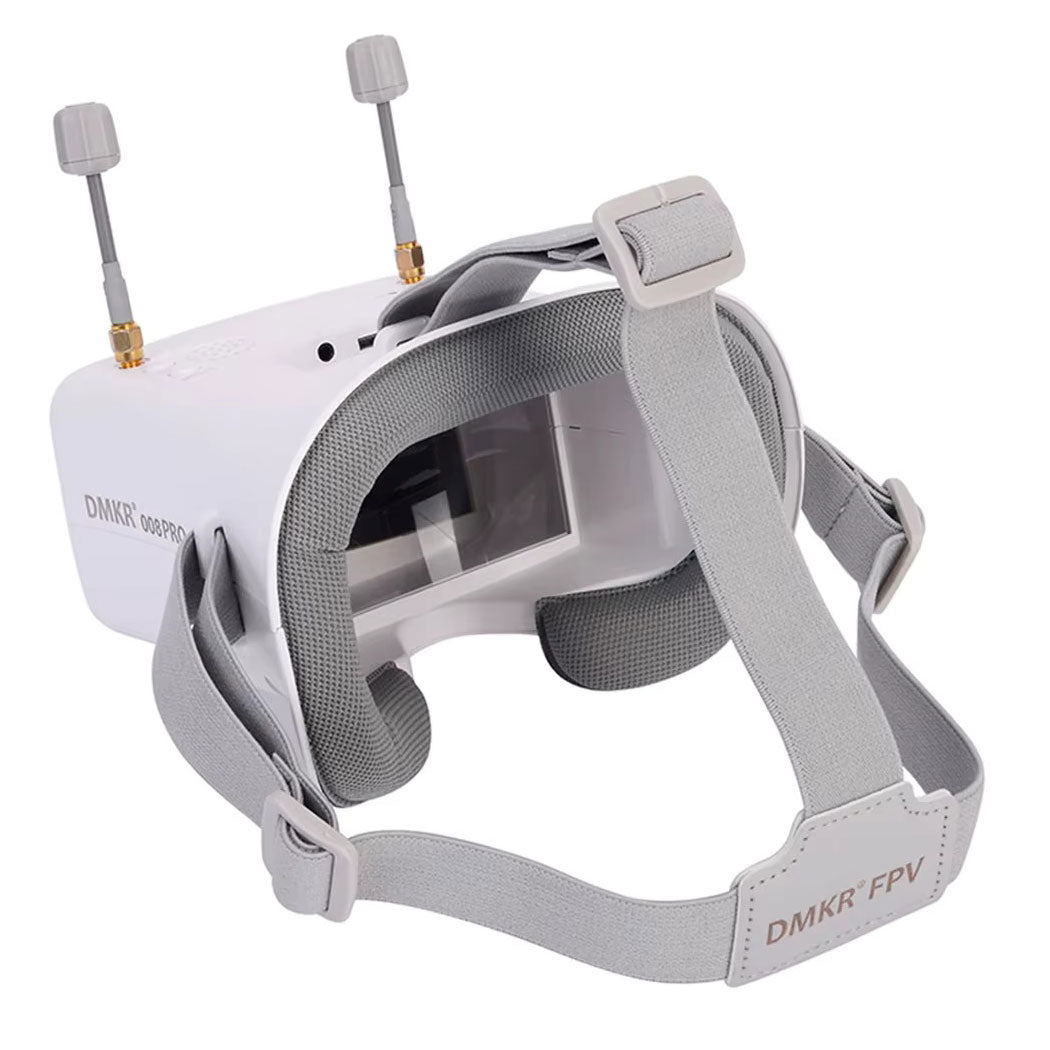

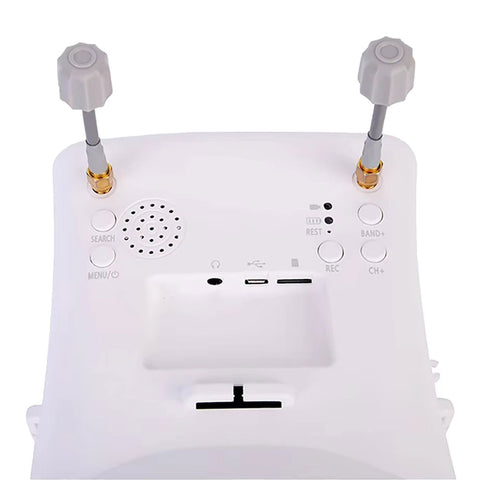

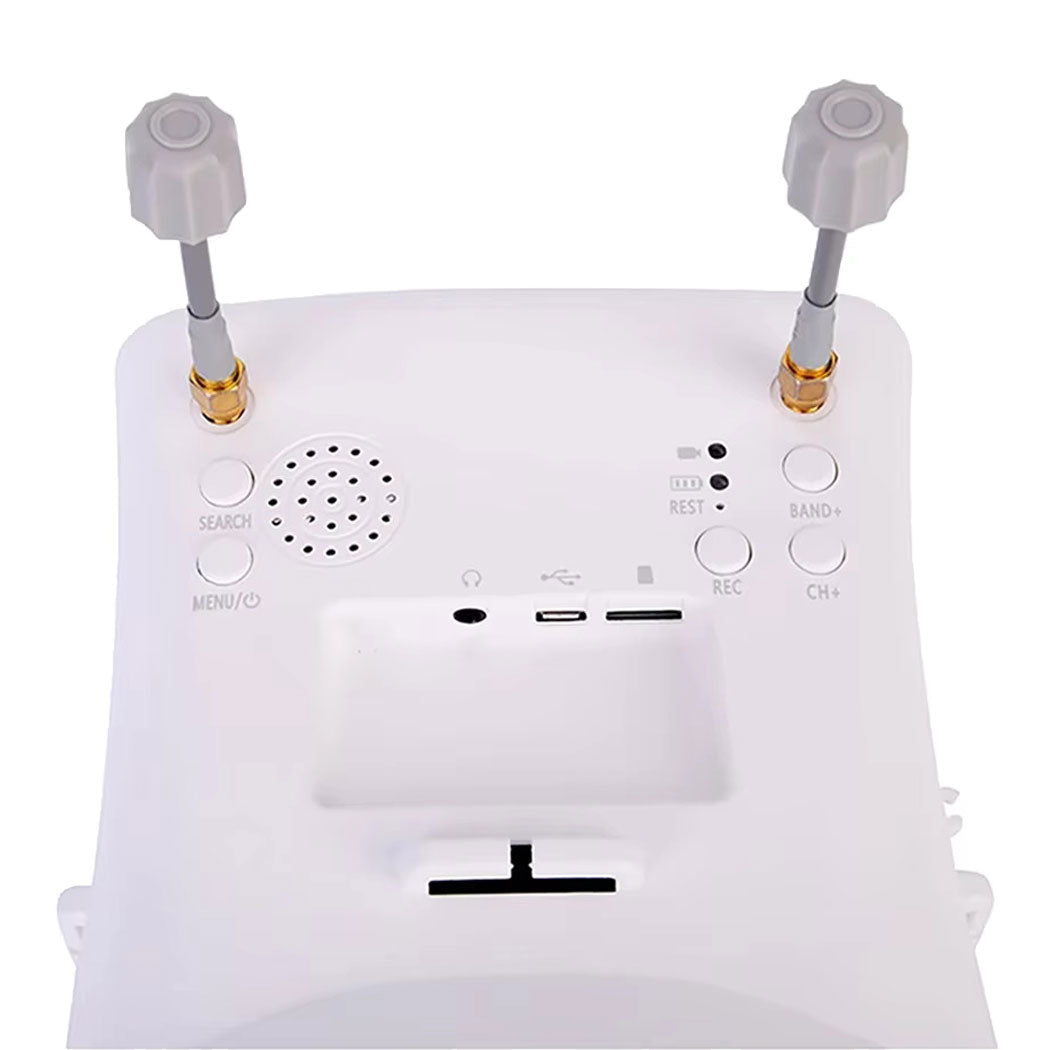

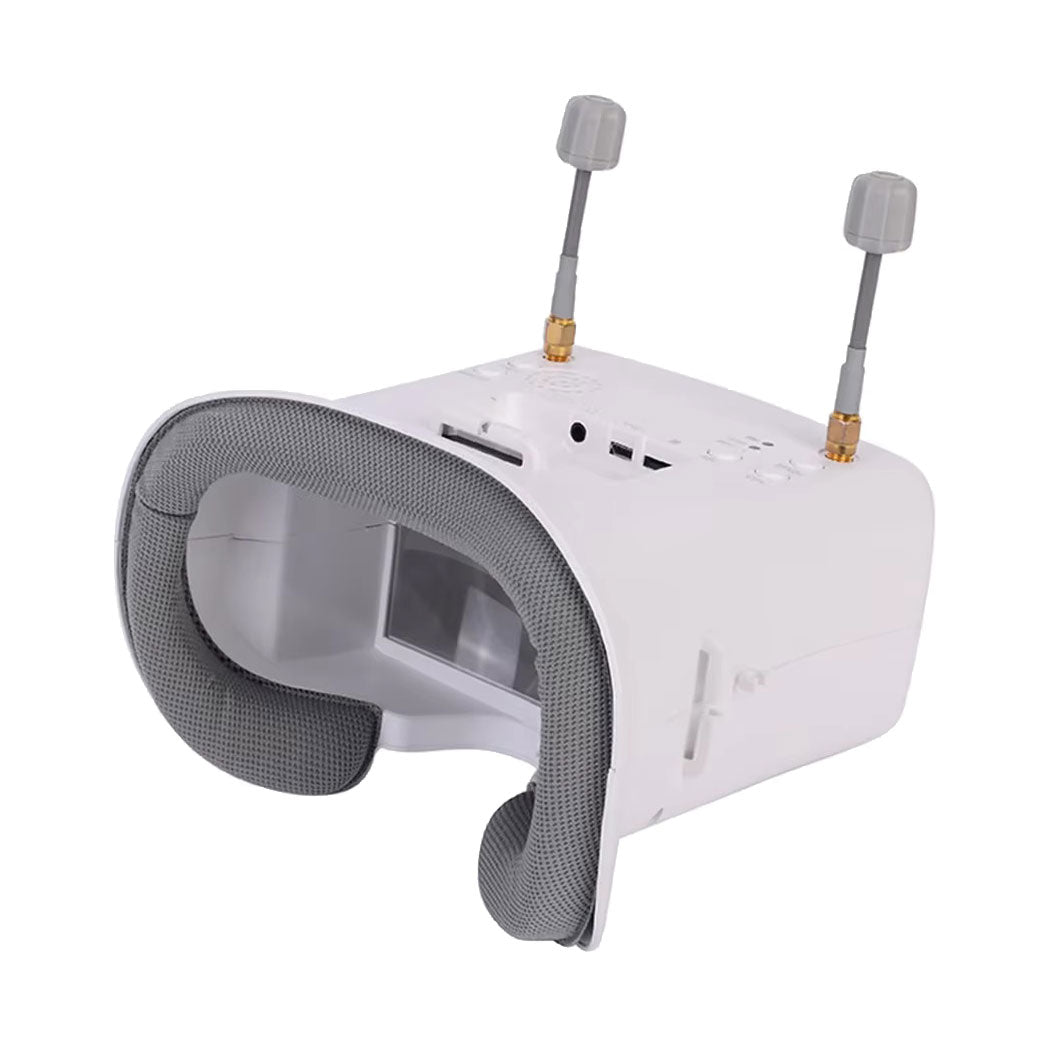

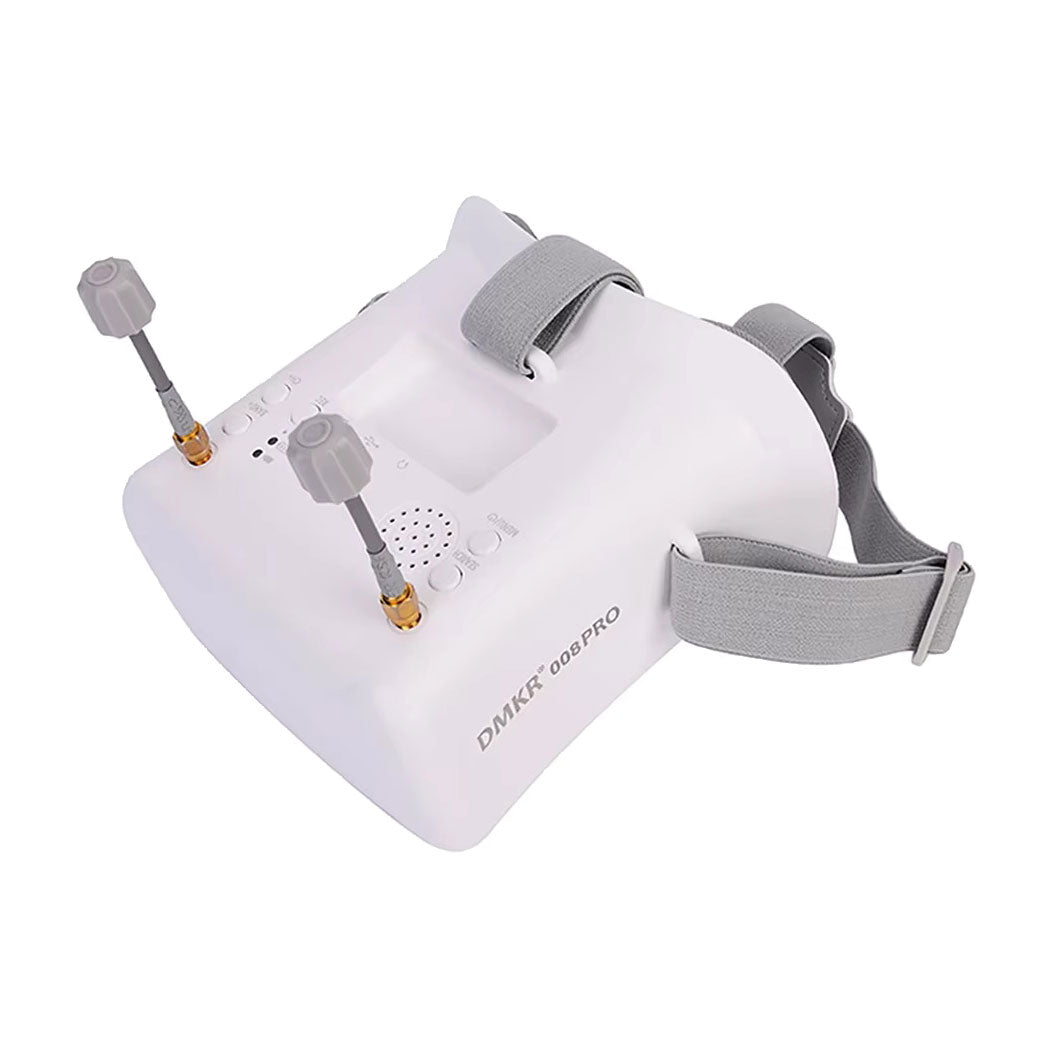

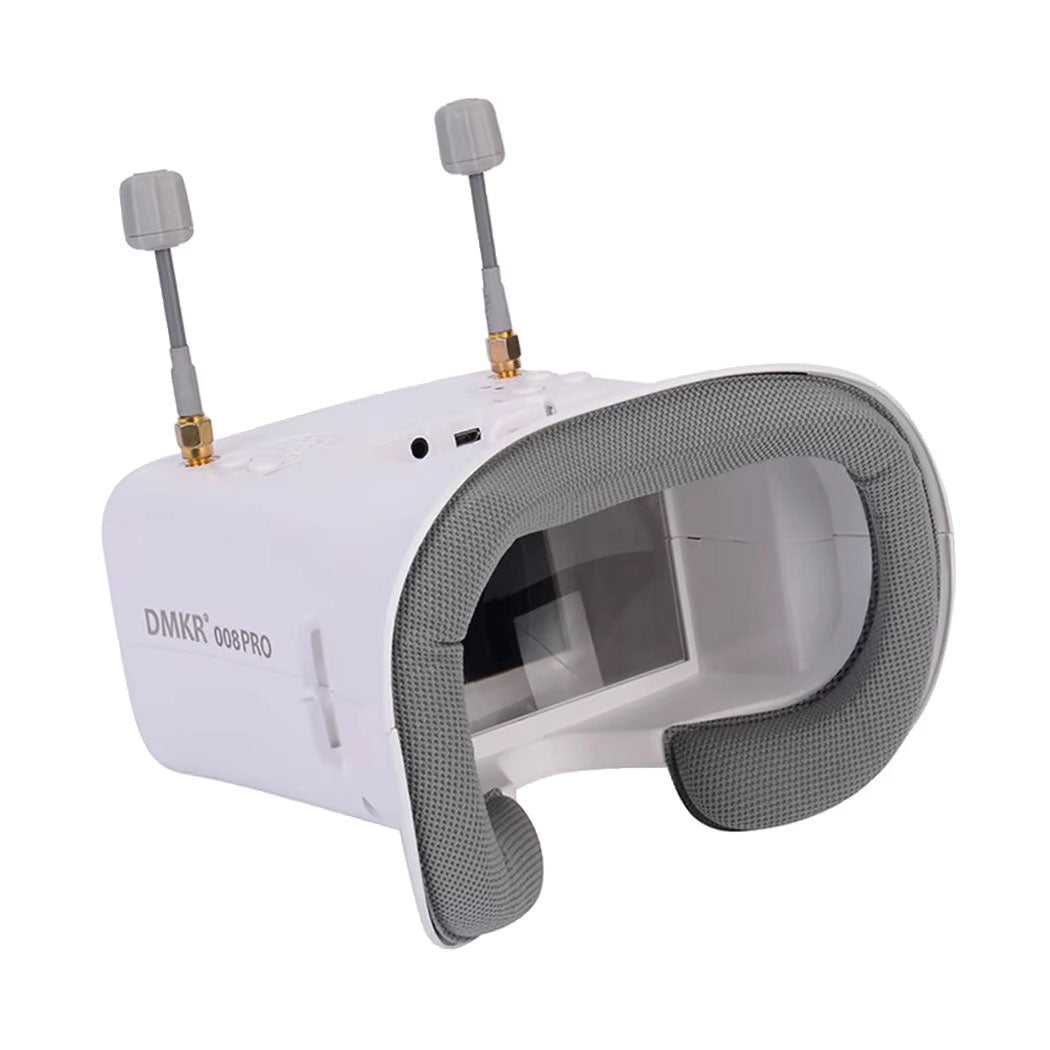

LS-008D 5.8GHz FPV Goggles 4.3" High Resolution Display Diversity Receiver Antennas Carry Case

LS-008D 5.8GHz FPV Goggles 4.3" High Resolution Display Diversity Receiver Antennas Carry Case

Added to Cart

Product Type: FPV Goggles
Brand: SpeedyFPV
Features: Diversity Receiver

Universal Compatibility: The LS-008D FPV Goggle supports an impressive range of frequency bands, including Band A, Band B, Band E, Band F, and Band R, ensuring compatibility with a wide variety of FPV setups and race events.

Built-in DVR and Auto Searching: With a built-in DVR and one-button auto searching feature, this FPV goggle allows you to easily record your flights and seamlessly find the best available channels without hassle, enhancing your FPV experience.

High-Quality Display and Low Latency: The 4.3-inch high-brightness IPS display with an 800x480 resolution offers a clear and immersive viewing experience. Combined with low latency real-time video return, you can enjoy smooth and responsive video transmission during your FPV flights.

Comfortable and Portable Design: Weighing just 300g and featuring a universal USB charging interface, the LS-008D is lightweight and easy to carry around. The 3.7v 2000mAh built-in battery ensures extended flight sessions, while the adjustable headband and comfortable foam padding provide a snug fit for prolonged use.

Band A - 5865 / 5845 / 5825 / 5805 / 5785 / 5765 / 5745 / 5725
Band B - 5733 / 5752 / 5771 / 5790 / 5809 / 5828 / 5847 / 5866
Band E - 5705 / 5685 / 5665 / 5645 / 5885 / 5905 / 5925 / 5945
Band F - 5840 / 5760 / 5780 / 5800 / 5820 / 5840 / 5860 / 5880
Band R - 5658 / 5695 / 5732 / 5769 / 5806 / 5843 / 5880 / 5917

Features:

  • Built-in DVR with simple operation using SD card and on/off button
  • Low power consumption
  • Double antenna reception
  • One-button auto searching
  • 4.3" high brightness display
  • 800x480 resolution
  • 40-channel RaceBand receiver
  • Built-in 3.7v battery for up to 5 hours of use
  • Universal USB charging interface
  • Real-time video return with low latency
  • Supports external video signal input
  • Supports audio signal output for headphone use

 Specifications:
  • Model: LS-008D
  • Screen size: 4.3 inch IPS
  • Resolution: 800x480px
  • Display ratio: 16:9
  • View angle: Full view
  • Brightness: 500cd/m^2
  • Delay: <20ms
  • Lens: 2.8x Fresnel Lense
  • DVR type: VGA/D1/HD
  • Frame rate: 30 frames
  • Compress format: MJPEG
  • Record file format: AVI
  • Power adapter: DC5V/2A (USB)
  • Power consumption (normal/record): 400mA / 620mA
  • Weight: 300g
  • Dimensions: 155x144x113mm
Package Contents:
  • 1x LS-008D 5.8GHz FPV Video Goggles
  • 1x Carrying Case
  • 1x RP-SMA Panel Antenna
  • 1x RP-SMA Circular Polarized Antenna
  • 1x Charging Cable



>
