  • EMAX ECO II Series 3115 Brushless Motor 6-12s (400KV / 500KV / 640kV /

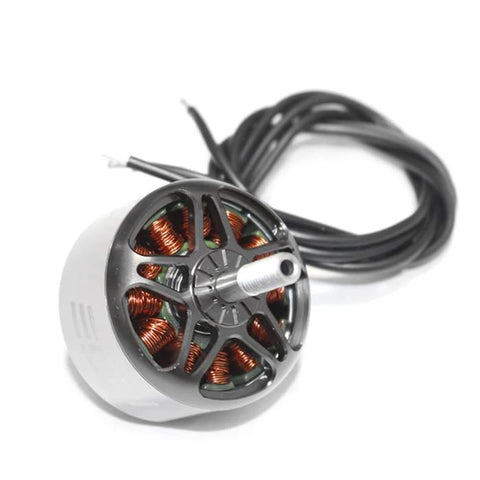

EMAX ECO II Series 3115 Brushless Motor 6-12s (400KV / 500KV / 640kV / 800kV / 900kV)

EMAX ECO II Series 3115 Brushless Motor 6-12s (400KV / 500KV / 640kV / 800kV / 900kV)

Added to Cart

Expand for stock availability ▼

400kV - In Stock
500kV - In Stock
640kV - In Stock
800kV - Out of Stock
900kV - Out of Stock



Product Type: Unknown Type
Brand: SpeedyFPV
KV Rating: 400KV
KV Rating: 500KV
KV Rating: 640KV
KV Rating: 800KV
KV Rating: 900KV
Motor Size: 3115
Voltage: 10S
Voltage: 11S
Voltage: 12S
Voltage: 6S
Voltage: 7S
Voltage: 8S
Voltage: 9S

These motors are designed for high-performance drone applications, offering different KV ratings for various power and efficiency needs. Let me know if you need further customization for a product listing!

Specifications:

  • Motor Dimensions: 37.3 x 48.65mm
  • Framework: 12N14P
  • Bearing Shaft Diameter: 5mm
  • Lead Wire: 18AWG, 270mm
  • Mounting Pattern: 4 x M3 screws, 19mm bolt circle
  • Weight:
  • KV400: 107g (without silicone wire)
  • KV500: 107g (without silicone wire)
  • KV640: 106g (without silicone wire)
  • KV800: 105g (without silicone wire)
  • KV900: 105g (without silicone wire)



  • Test Data KV400 KV500 KV640 KV800 KV900
  • Idle Current (10V) 0.6A 0.8A 1.2A 1.4A 1.7A
  • Internal Resistance 130 ohm 95 ohm 66 ohm 52 ohm 42 ohm
  • Supported Battery Cells 10-12S 8-10S 6-8S 4-6S 4-6S
  • Recommended Propeller 10" 10" 10" 9"-10" 9"-10"
  • Peak Current 41A (12S) 49A (10S) 63A (8S) 68A (6S) 72A (6S)
  • Maximum Power 1970W 1960W 2016W 1700W 2120W


Package Contents:

  • 1x EMAX ECO II Series 3115 Brushless Motor 6-12s



>
