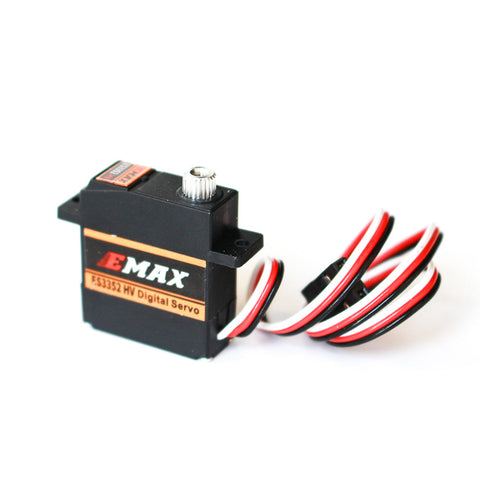

EMAX ES3352 HV 12.4g Mini High Voltage Metal Gear Digital Servo

Ultra-Lightweight and Powerful:
The EMAX ES3352HV is an ultra-lightweight, powerful, and versatile choice of high voltage servo for RC airplanes, fixed-wing applications, and other lightweight projects.

Digital Control and Metal Gear Durability:
This servo features a digital circuit for precise control and fast response times, along with a metal gear train for increased durability under load.

High Voltage Compatibility:
The ES3352HV operates on voltages from 6.0V to 8.4V, allowing you to utilize higher voltage battery packs (2s LiPo compatible) for potentially more power and speed.

Features:

• Digital circuit for precise control
• Metal gear train for durability
• High voltage compatibility (6.0V to 8.4V)
• Wide operating travel (90 Degrees to 125 Degrees)

Specifications:

• Dimensions: 23.3 x 9.45 x 26 mm (0.92 x 0.37 x 1.02 in)
• Weight: 12.4g (0.44 oz)
• Operating Voltage: 6.0V ~ 8.4V (2s LiPo compatible)
• Gear Type: 4x Metal Gears & 1x Plastic Gear
• Control System: PWM
• Operating Travel: 90 DegreesC + 5 DegreesC (when 1000-2000 Degreess)
• Maximum Travel: 125 DegreesC + 8 DegreesC (800-2200 Degreess)
• Neutral Position: 1500 Degreess
• Output Gear Spline: 21T
• Bearings: 2BB

Package Contents:

• 1x Emax ES3352HV Servo
