JHEMCU RP9-RX ELRS Diversity Receiver 868/915MHz with Telemetry Dual Antennas

The JHEMCU ELRS Diversity Receiver is a full-diversity receiver designed for the ExpressLRS system, offering superior range, low latency, and rock-solid signal reliability. Equipped with dual RF chips and two IPEX antennas, it operates on 868/915MHz and is optimized for long-range and freestyle FPV drones. By rotating the two antennas 90° to each other, the system minimizes polarization loss and ensures a stable RC link even in challenging flight conditions.

Compact and lightweight, the ELRS Diversity receiver is the ideal upgrade for pilots looking to push the limits of distance and performance.

Features:

• Full-diversity receiver with two RF chips and two antennas
• Advanced ExpressLRS system for long-range, low-latency control

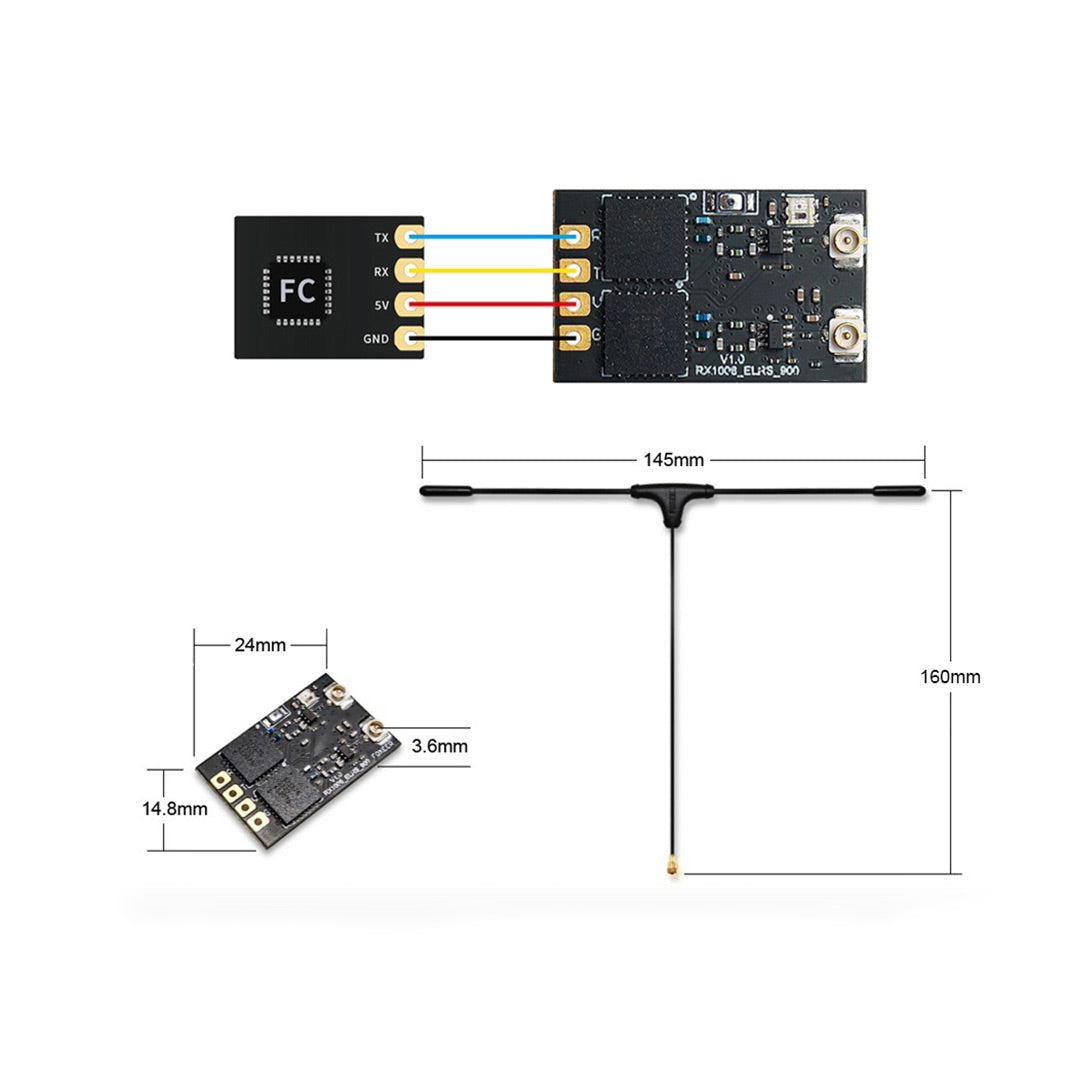

• Compact 24x14.8mm size and lightweight 5.5g design including antennas
• IPEX1 antenna connectors for easy replacement or upgrades
• Ideal for freestyle and long-range FPV builds

Specifications:

• MCU: ESP8285
• RF chip: SX1276
• Antenna connector: IPEX
• Frequency band: 868/915MHz
• Firmware: ELRS V3.3.0
• Telemetry power: 10mW
• Power input: 5V
• Dimensions: 24 x 14.8mm
• Weight: 5.5g (with antennas)

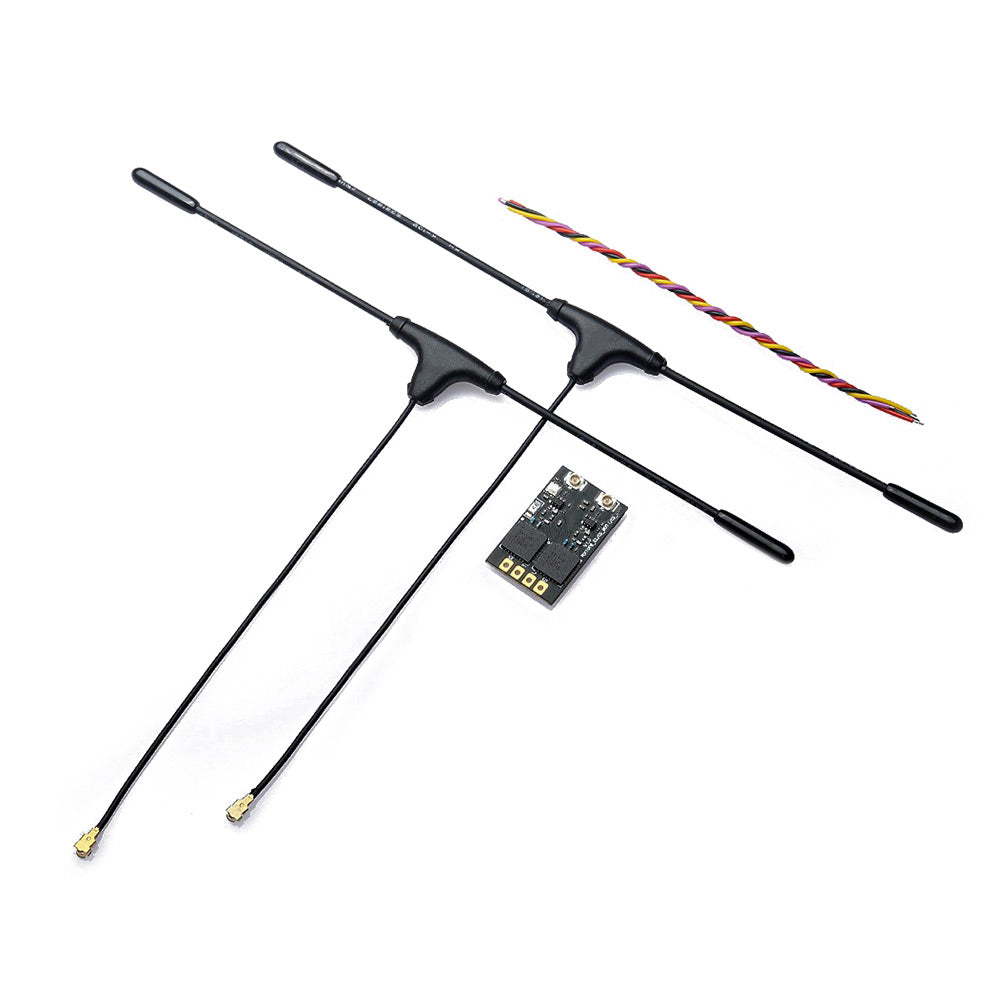

Package Contents:

• 1x JHEMCU ELRS Diversity Receiver
• 2x IPEX Antennas
• 1x Cable
• 1x Heatshrink
