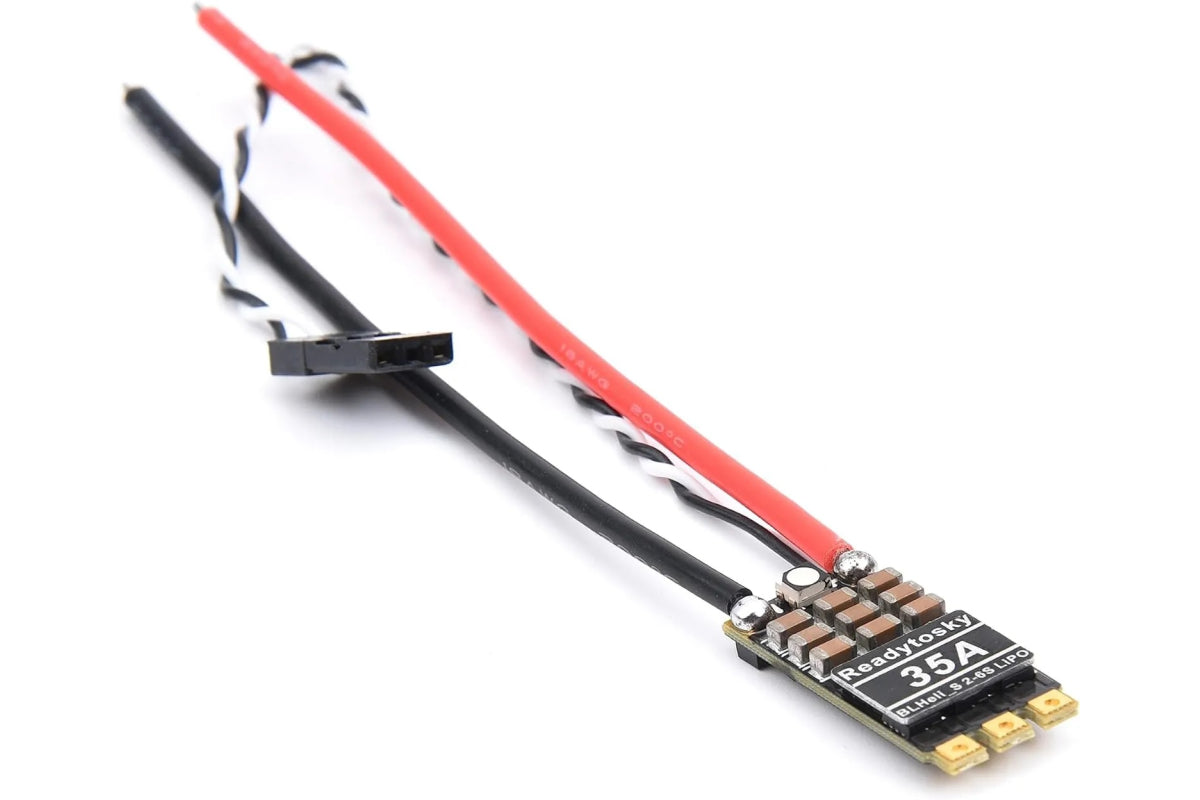

Readytosky 35A 2-6S LiPo Brushless ESC BLHeli_S Electronic Speed Controller

Using the latest EFM8BB21F16G high speed control chip. By default, the hardware for PWM is turned on and the Damped Light hardware for PWM drives the motor. The noise is low and the throttle response is smoother.

The ESC supports BLHeli-S and DShot 150/300/600 digital throttle. It has strong anti-interference ability and fast response capability.

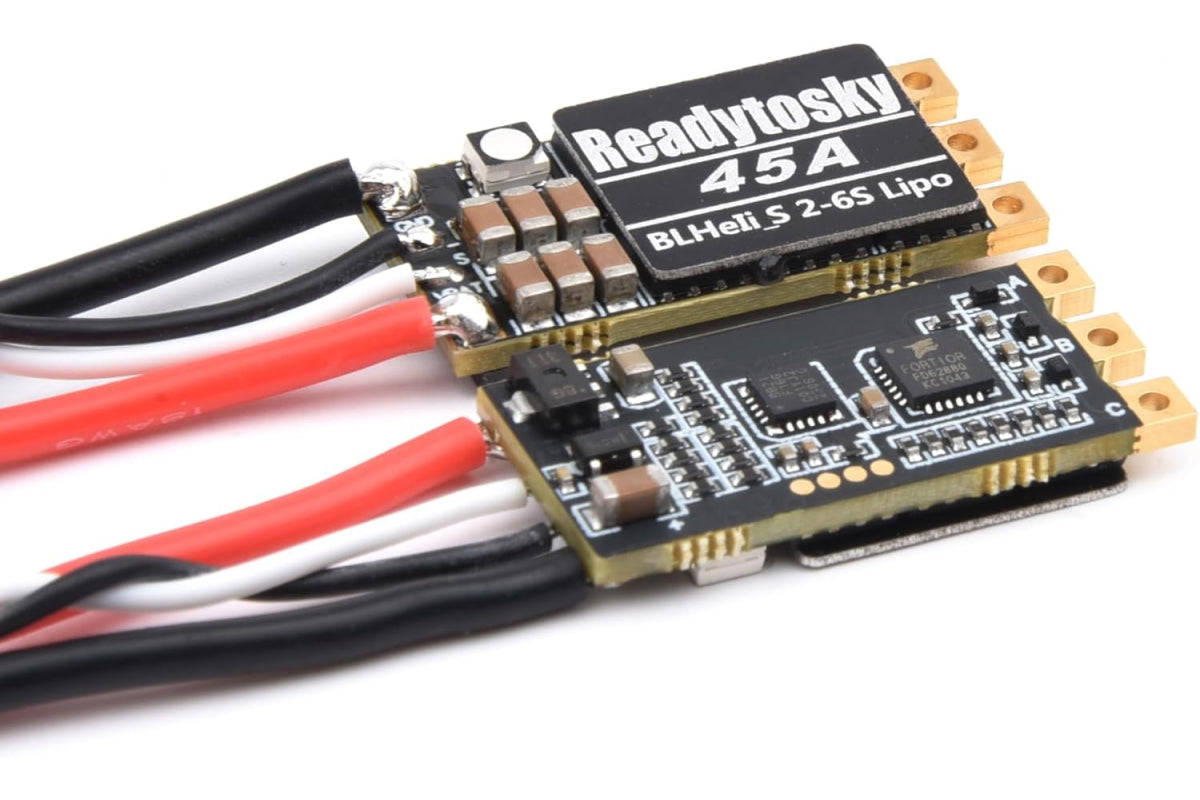

A 6-layer, 3-ounce copper-thick and high-quality for PCB is adopted, and the layered layout of large current and small control signal is adopted to Enhance the anti-interference ability. The gold plating process on for PCB surface can effectively improve the current resistance and heat dissipation ability of ESC.

Integrated for RGB multi-color bright LED night light, night flight is even more dazzling.

Damped Light mode, regenerative braking function, make motor deceleration more sensitive and effective, control more precise; Active continuous current technology, so that the battery recovery power, prolong the duration.

Specifications:

• Designed for FPV Drone RC Helicopter Quadcopter
• Voltage: Support 2-6S power supply
• Working current: 35A: Continuous current 35A, peak 45A/10s
• Support protocols: dshot 125/300/600, oneshot 125
• Power cord length: 18AWG 90mm
• Signal line length: 150 mm

Package Contents:

• 1x Readytosky 35A ESC
