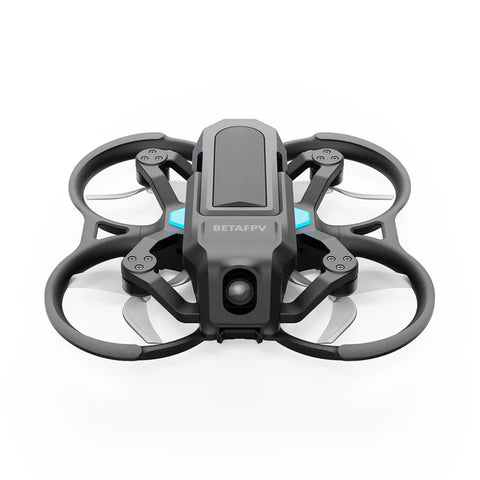

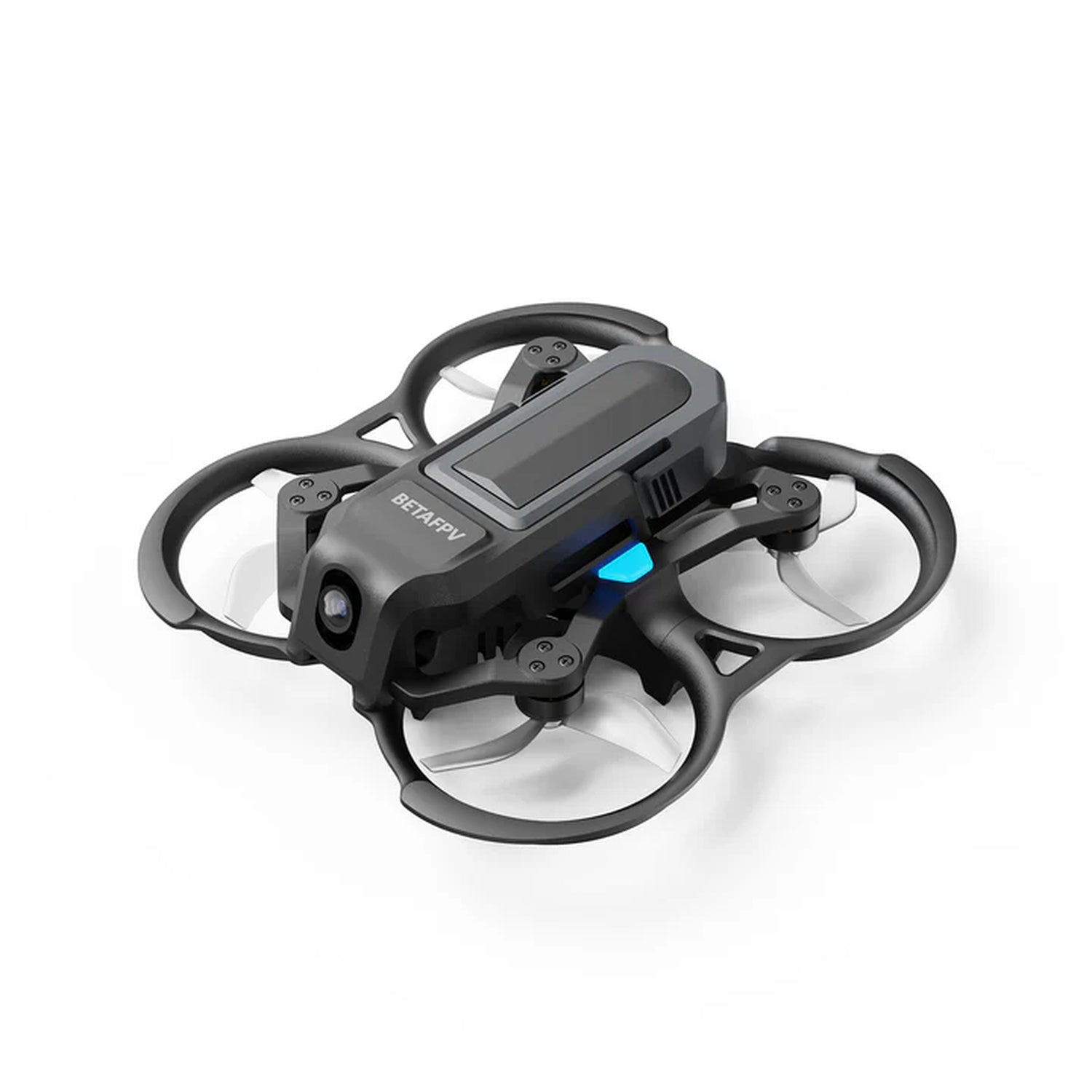

BETAFPV Aguila20 Brushless Quadcopter (Analog Video)

The Aquila20 Brushless Whoop Quadcopter is a 2S brushless whoop platform available in P1 Air Unit HD VTX or analog VTX versions. It supports beginner-friendly assisted flight modes with the option to progress to manual control.

Specifications:

• Model: Aquila20 Brushless Whoop Quadcopter
• VTX Options: P1 Air Unit HD VTX, Analog VTX
• VTX Power & Range (P1 Air Unit HD VTX): 200mW and range above 400m
• VTX Power & Range (Analog VTX): 350mW and range above 200m
• Camera (P1 Air Unit HD VTX): P1 VTX camera (1/2.9" CMOS)
• Camera (Analog VTX): C04 (1/3" CMOS)
• Wheelbase: 100mm
• Flight Controller: Aquila20 V1.0
• Frame: Aquila20 Brushless Whoop Frame
• Motors: 1103|10500KV motors

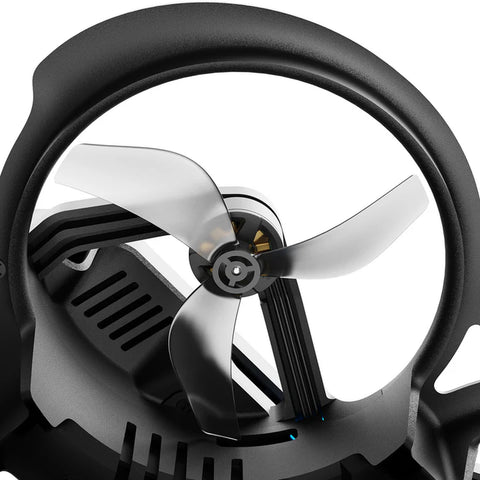

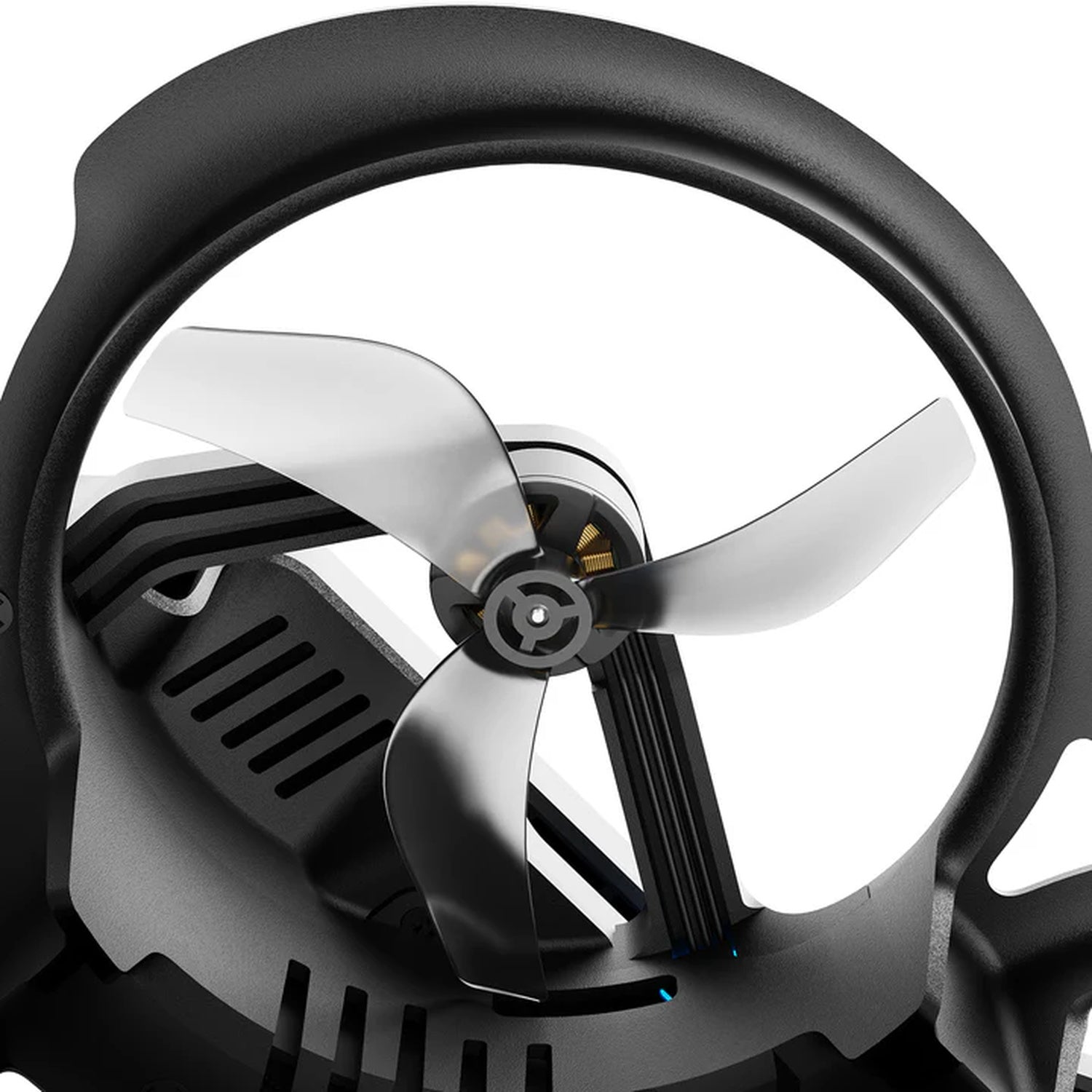

• Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• Battery: Aquila20 Exclusive Battery 2S HV 1100mAh
• Battery Quantity: 2PCS
• Discharge Rate: 15C
• Discharge Power: 8.74Wh
• Rated Voltage: 7.6V
• Battery Weight: 54.5±1.0g
• Charger: 2S HV Battery Charger and Voltage Tester with BT3.0 Connector
• Remote Controller Protocol: ExpressLRS 2.4G V3
• Camera Tilt: 10°-30°
• Flight Modes: N/S/M Mode
• Flight Time: About 10 mins
• Takeoff Weight (P1 Air Unit HD VTX): 127±1.0g

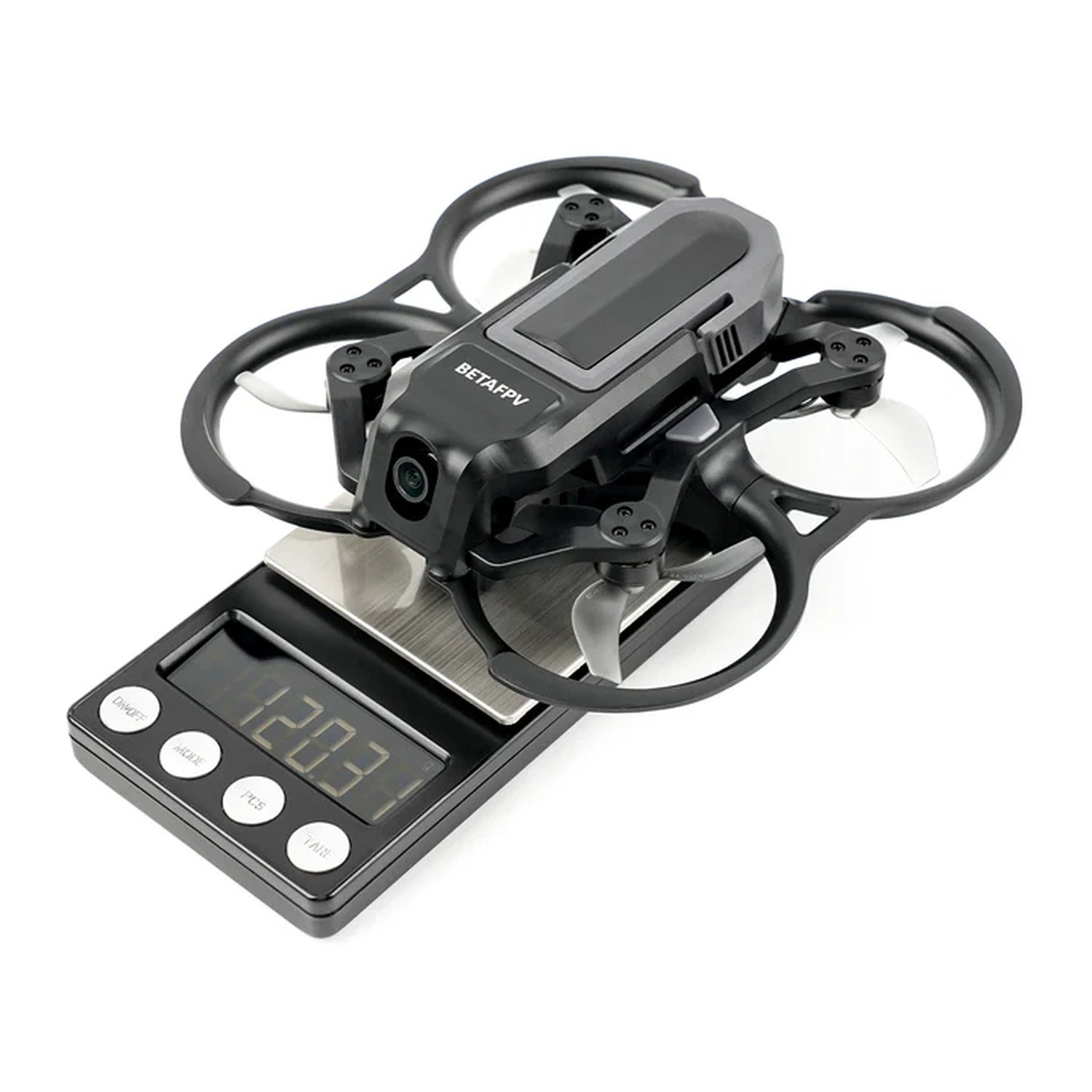

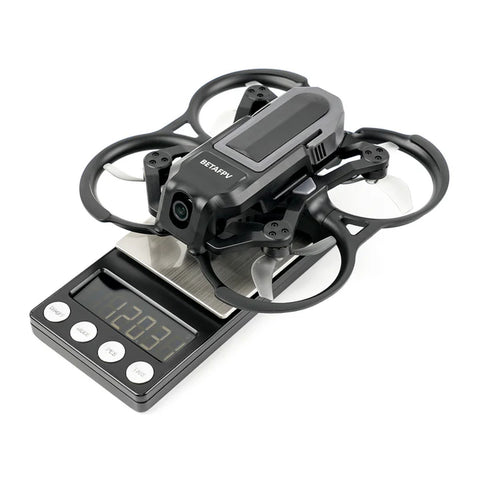

• Takeoff Weight (Analog VTX): 122±1.0g
• Firmware Compatibility Note: Update BETAFPV devices to firmware version V2.0.5 or later for third-party ArtLynk protocol equipment compatibility
• Firmware Compatibility Note: Firmware V2.0.5 is not compatible with any V1 versions (V1.0.36 / V1.0.44)

Package Contents:

• 1x Aquila20 Brushless Whoop Quadcopter (Analog/P1 Air Unit Version)
• 1x Aquila20 Exclusive Battery 2S HV 1100mAh
• 1x 2S HV Battery Charger and Voltage Tester with BT3.0 Connector
• 4x Gemfan 2218 3-Blade Propellers
• 1x Prop Removal Tool
• 1x Cross Screwdriver
• 1x 4Pin Adapter Cable
• 1x USB Type-C Adapter Board
