BetaFPV Aguila20 FPV Kit (Mode 2-Analog)
BetaFPV Aguila20 FPV Kit (Mode 2-Analog)

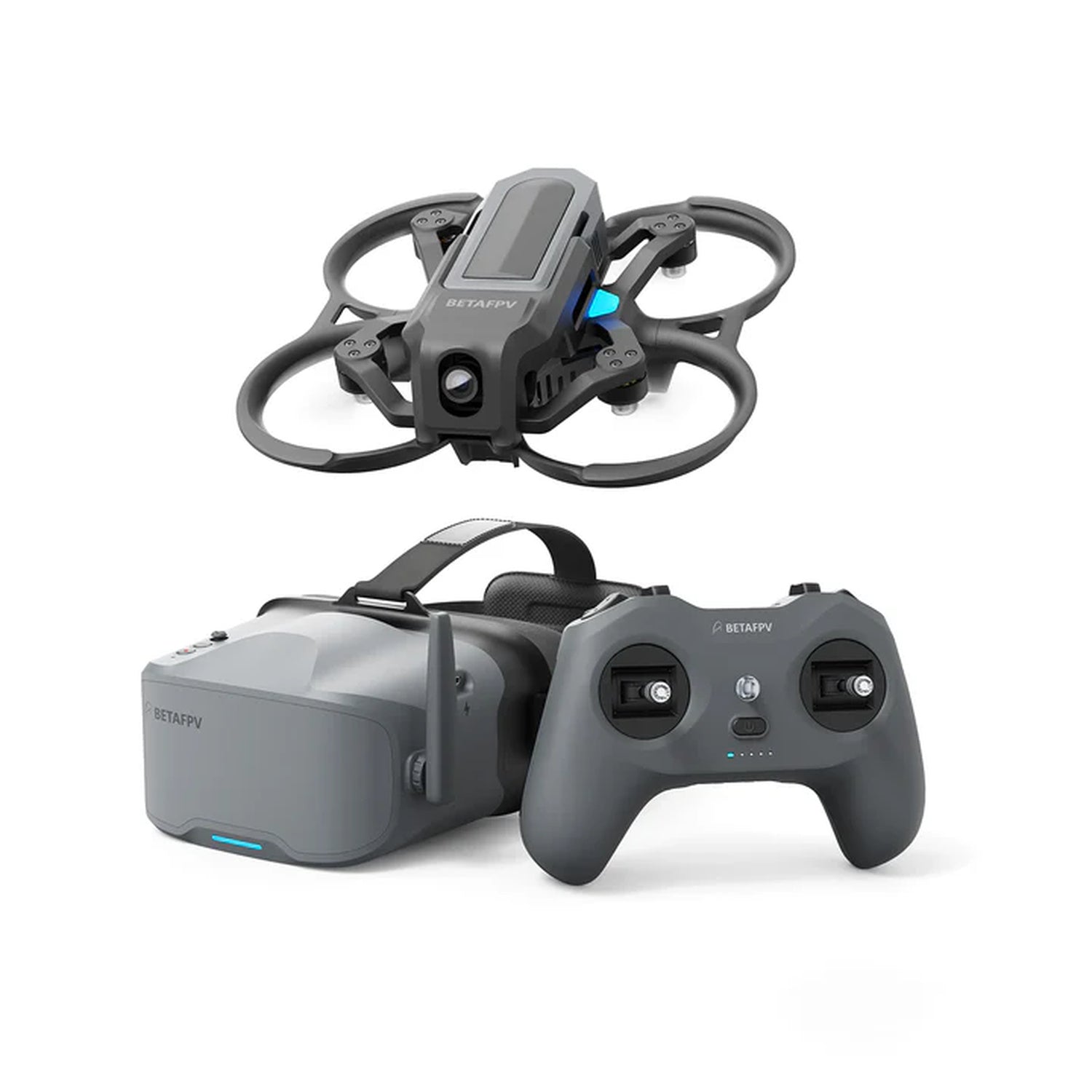

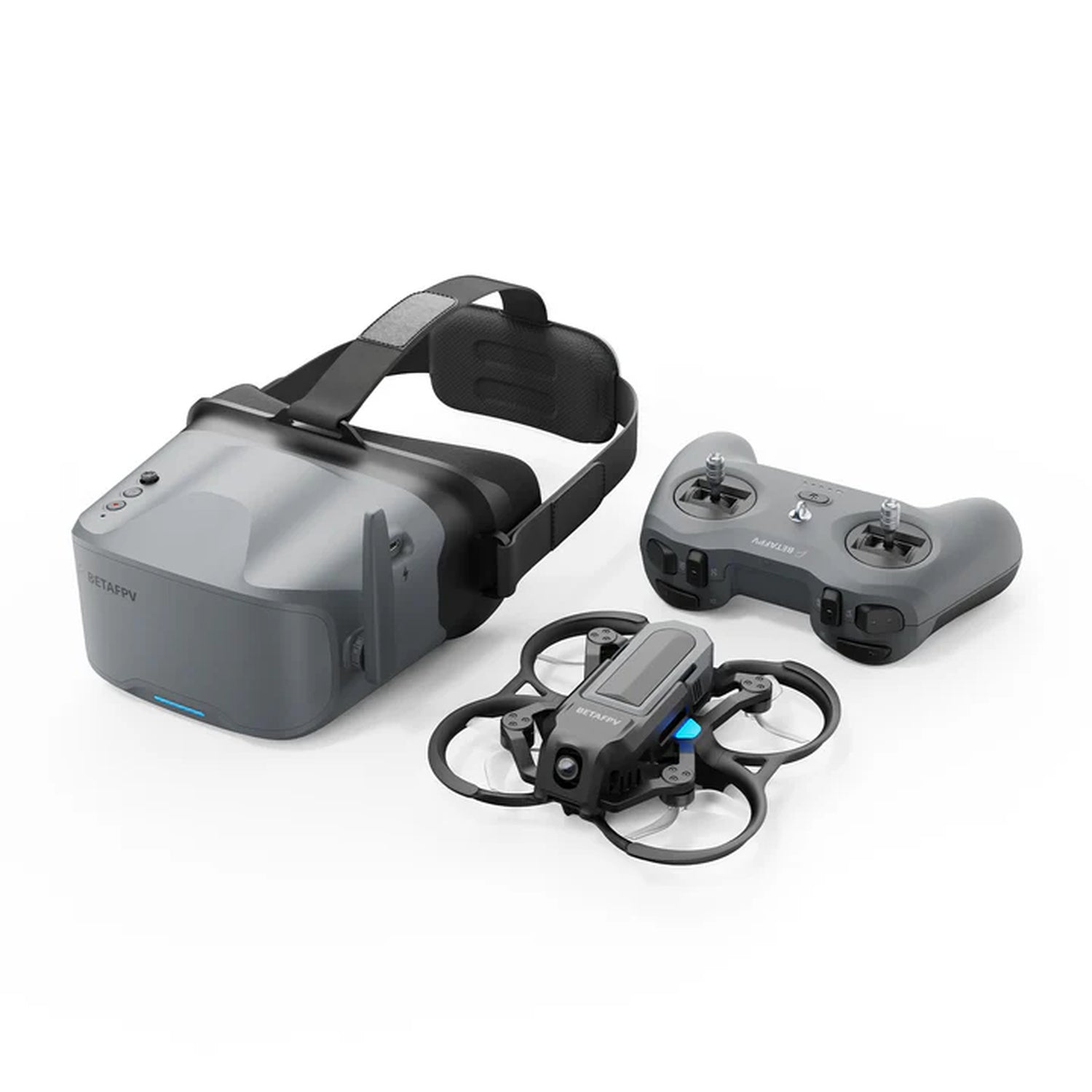

Aquila20 FPV Kit (Analog VTX) includes the Aquila20 quadcopter, VR04 FPV Goggles, and LiteRadio 4 SE Radio Transmitter for an all-in-one FPV setup. It supports N/S/M Mode flight modes and records video directly to the goggles.
Specifications:
- Item: Aquila20 FPV Kit (Analog VTX)
- Quadcopter: Aquila20
- Goggles: VR04 FPV Goggles
- Radio Transmitter: LiteRadio 4 SE Radio Transmitter
- Remote Controller Protocol: ExpressLRS 2.4G V3
- Video Transmission Power and Range: 350mW and range above 200m
- Camera: C04 (1/3" CMOS)
- Camera Tilt: 10°-30°
- Flight Controller: Aquila20 V1.0
- Propellers: Gemfan 2218 3-Blade Propellers
- Motors: 1103|10500KV motors
- Battery: Aquila20 Exclusive Battery 2S HV 1100mAh
- Charger: 2S HV Battery Charger and Voltage Tester with BT3.0 Connector
- Wheelbase: 100mm
- Frame Material: PA
- Flight Modes: N/S/M Mode
- Flight Time: About 10 mins

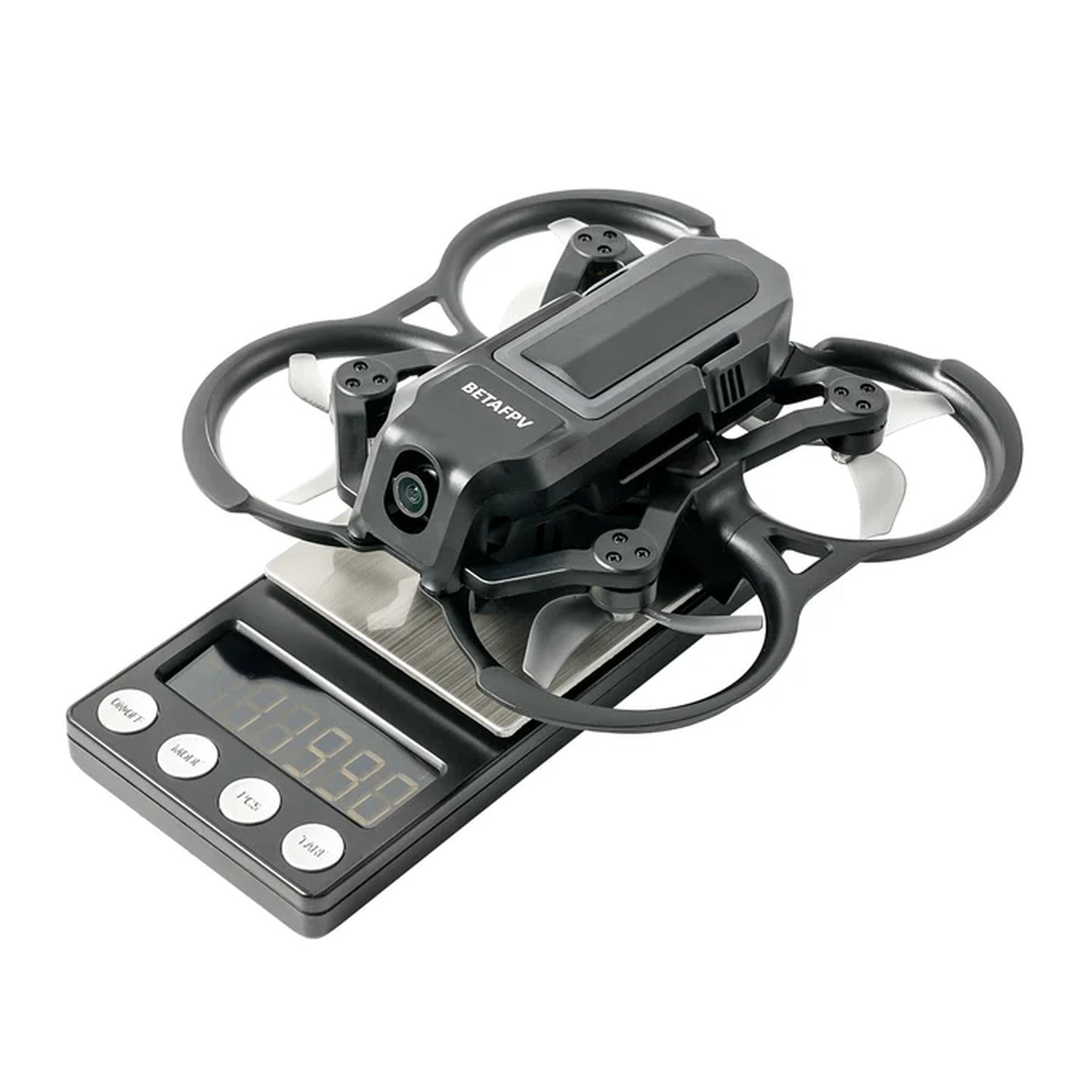

- Takeoff Weight: 122±1.0g
Package Contents:

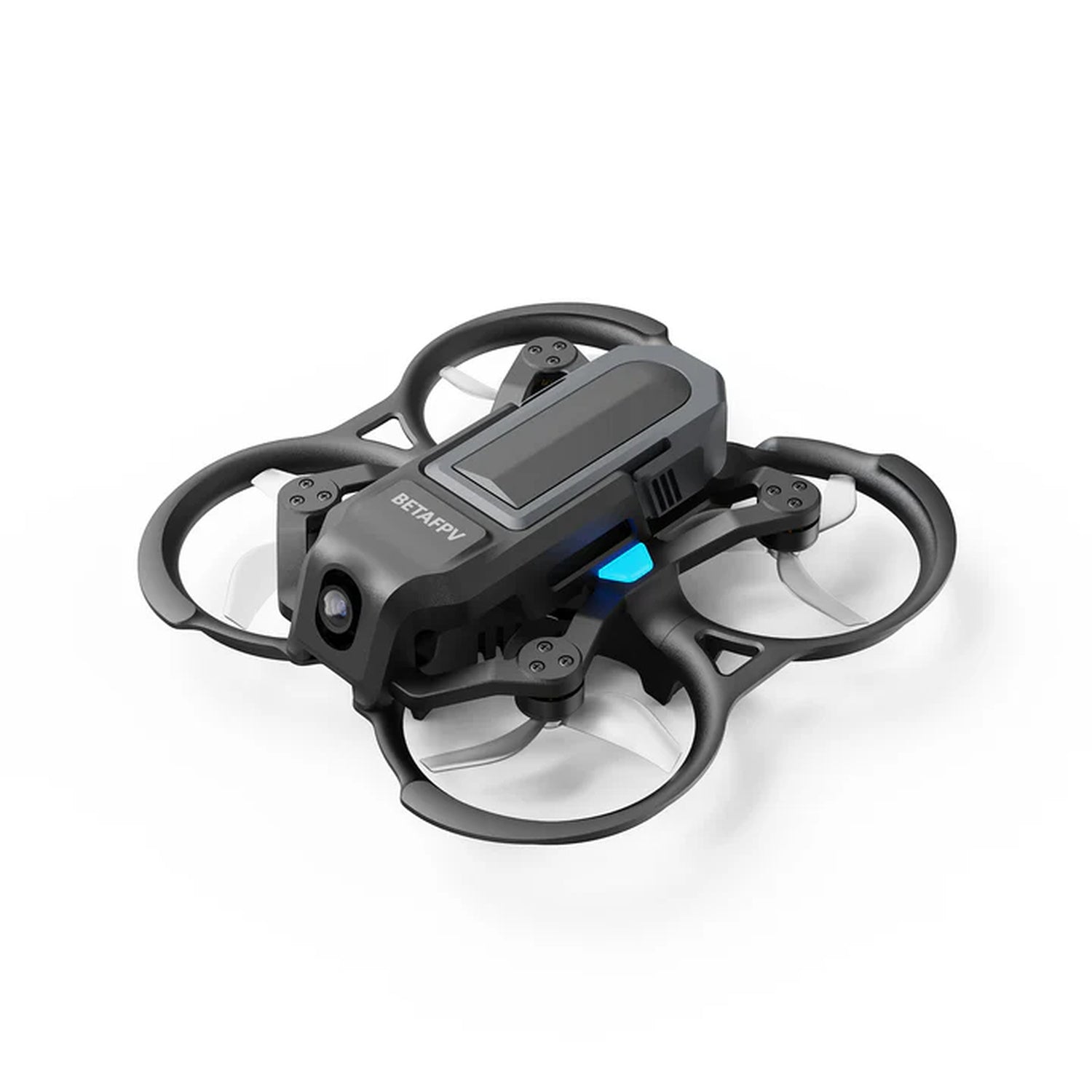

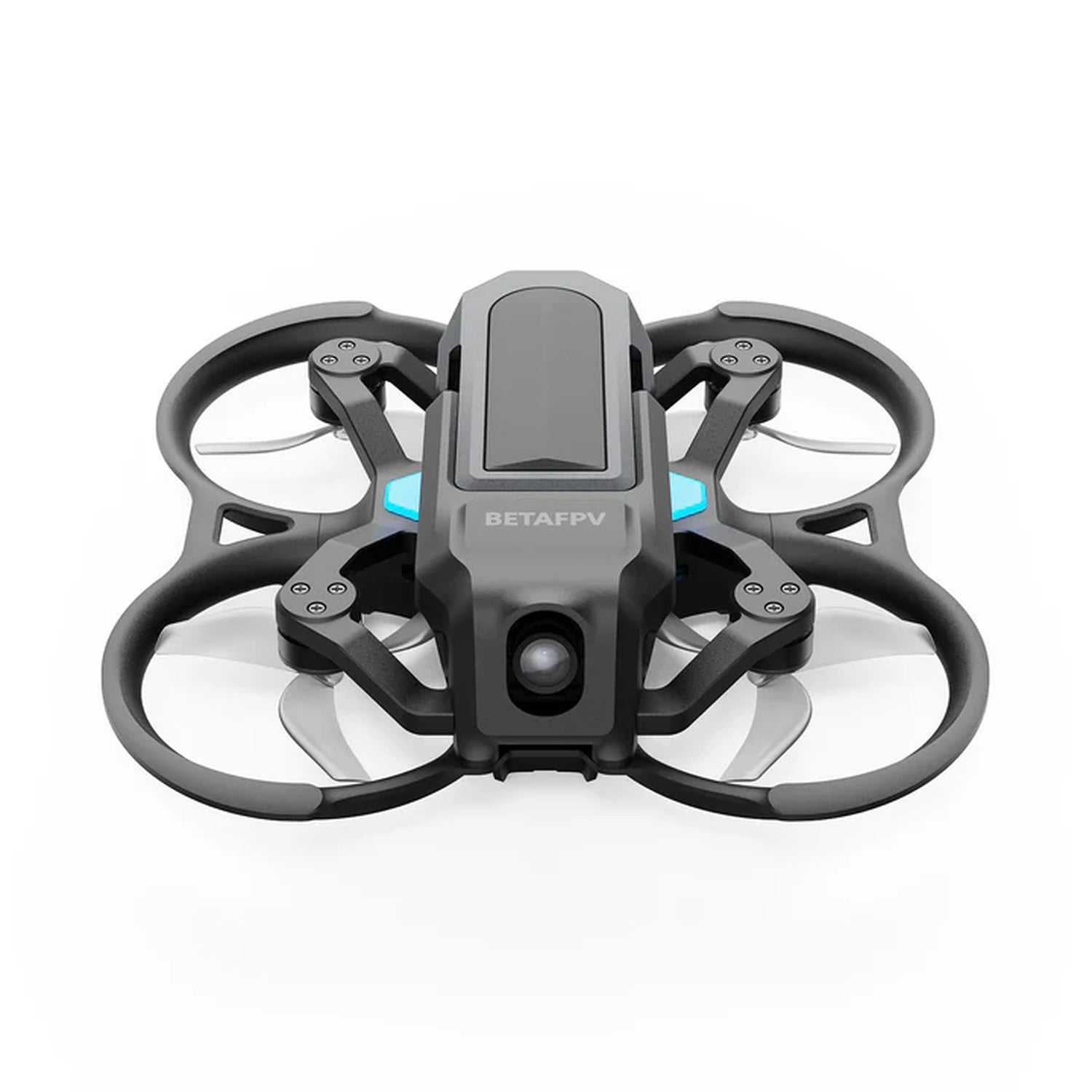

- 1x Aquila20 Brushless Whoop Quadcopter
- 1x LiteRadio 4 SE Radio Transmitter
- 1x VR04 FPV Goggles
- 2x Aquila20 Exclusive Battery 2S HV 1100mAh
- 1x 2S HV Battery Charger and Voltage Tester with BT3.0 Connector
- 1x Gemfan 2218 3-Blade Propellers (4PCS)
- 1x USB-C Cable
- 1x Prop Removal Tool
- 1x Cross Screwdriver
- 1x 4Pin Adapter Cable
- 1x USB Type-C Adapter Board
- 1x Portable Storage Bag
- 1x User Manual
- 1x Quick Start Guide
