EMAX ES3005 HV High Voltage Digital Servo All-Purpose Metal Gear

High Torque and High Performance:
The EMAX ES3005HV is a high-performance digital servo with a metal gear train, designed for RC applications that demand precision control and durability. It's a great choice for RC cars, trucks, robots, and boats.

High-Voltage Compatibility:
It can operate on voltages between 6V and 8.4V (2s LiPo), allowing for more power and speed compared to servos limited to lower voltages.

Digital Circuitry:
The digital circuitry offers precise control and faster response times compared to analog servos.

Features:

• Digital circuitry
• High voltage compatibility (6V to 8.4V)
• Metal gear train
• Ball bearings

Specifications:

• Dimensions: 38.6 x 18.8 x 34.9 mm (1.52 x 0.74 x 1.37 in)
• Weight: 43.2g (1.52oz)
• Operating Voltage: 6V ~ 8.4V (likely 2s LiPo compatible)
• Stall Torque:
• 8kg.cm (111.8 oz-in) at 6V
• 11kg.cm (154.9 oz-in) at 8.4V
• Operating Speed:
• 0.15sec/60 Degrees at 6V
• 0.11sec/60 Degrees at 8.4V
• Running Current:
• 450mA Max at 6V
• 580mA Max at 7.4V
• 650mA Max at 8.4V
• Maximum Current:
• 2.5A Max at 6V
• 3.2A Max at 7.4V
• 3.6A Max at 8.4V
• Idle Current: 9.5mA Max
• Control System: PWM
• Neutral Position: 1500 Degreess
• Output Connector: JR female

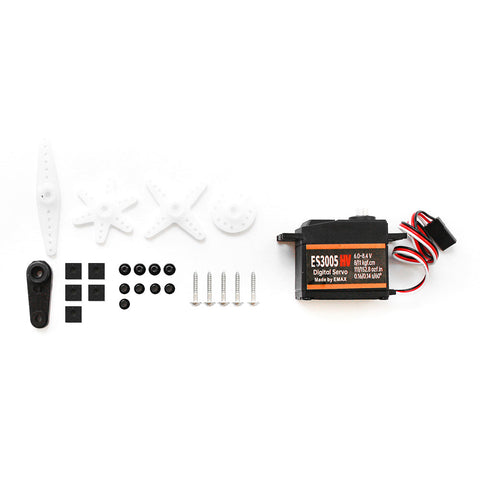

Package Contents:

• 1x Emax ES3005HV High Voltage Servo
