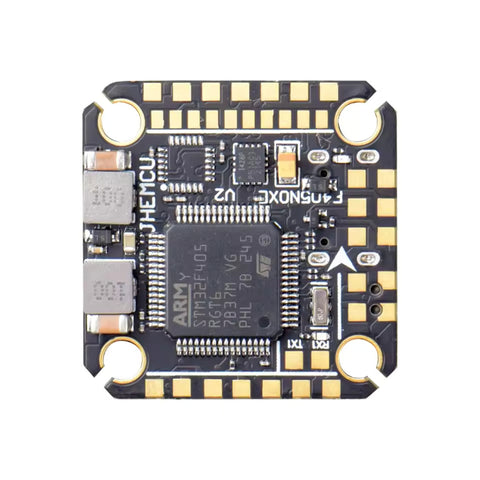

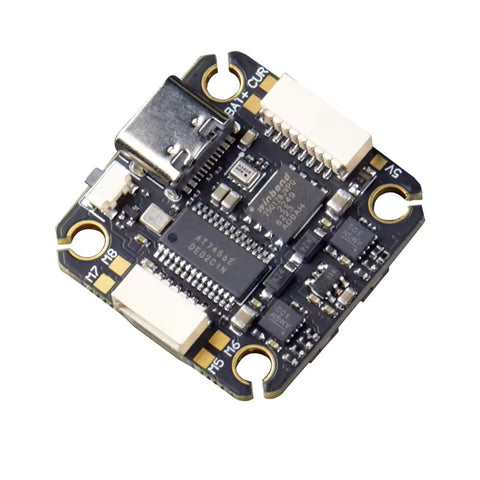

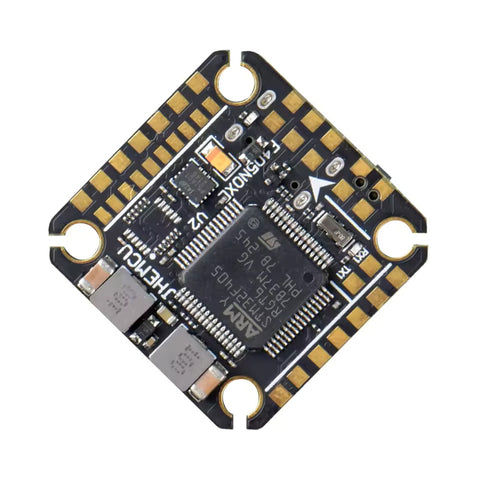

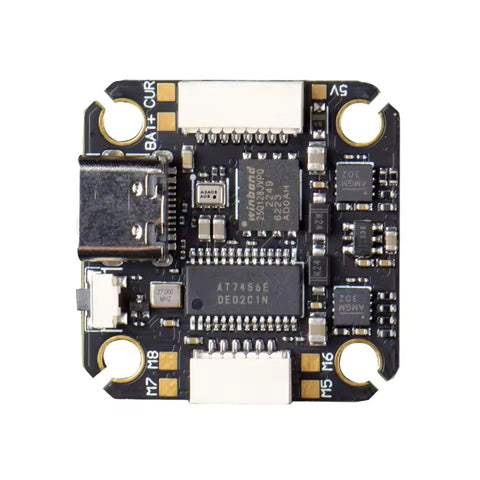

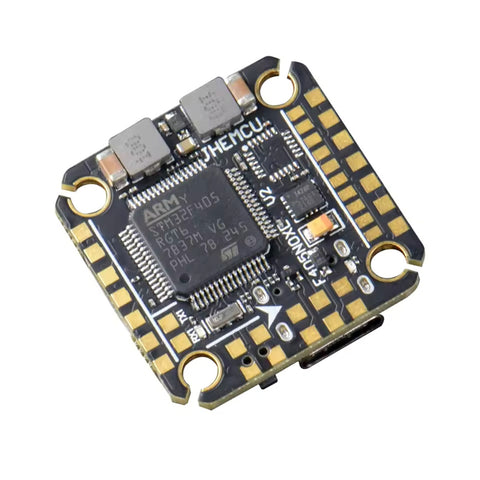

JHMECU Noxe V2 F405 Flight Controller Baro Blackbox OSD Compass
JHMECU Noxe V2 F405 Flight Controller Baro Blackbox OSD Compass
Product Type: Flight Controller
Brand: JHEMCU
BEC: Yes
Configuration: Standalone
CPU: F4
Mounting: 20x20
OSD: Yes
Brand: JHEMCU
BEC: Yes
Configuration: Standalone
CPU: F4
Mounting: 20x20
OSD: Yes
JHEMCU F405 NOXE V2 Flight Controller Baro OSD 16MB BlackBox 5V 10V Dual BEC 20X20mm 3-6S LIPO for FPV Freestyle Drone DIY Parts
Specifications
- MCU: STM32F405/168MHZ
- IMU: ICM-42688-P/Gyro/Accel
- OSD: AT7456E
- Baro: YES
- Blackbox: 16MB
- Input Voltage: 3S-6S(11.5V-26V)
- 5V-BEC: 5V/2.5A ±0.1V
- 10V-BEC: 10V/2A ±0.1V
- Receiver: ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
- GPS Compatible: YES
- Compass: YES
- HD O3: YES
- USART: UART1,UART3,UART4,UART6
- IIC: IIC1
- Led_Strip: YES
- Buzzer: 5V
- ESC Signal: Dshot150,Dshot300,Dshot600
- USB: Micro USB
- Current Port: YES
- Voltage sensor: YES
- DFU button: YES
- FC Firmware: betaflight_4.4.2 JHEF405PRO.HEX
- Size: 27x27mm
- Mounting Hole: 20x20 M3
- Weight: 4.6g

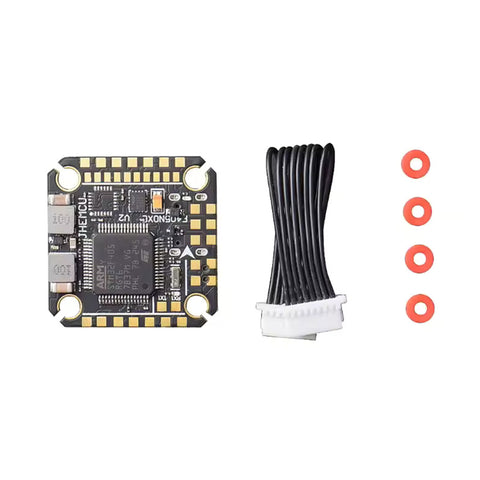

Package Contents:
- 1x JHEMCU F405 NOXE V2 Flight Controller
- 4x M2 Shock Absorbers
- 1x Cable 8Px1.0MM
