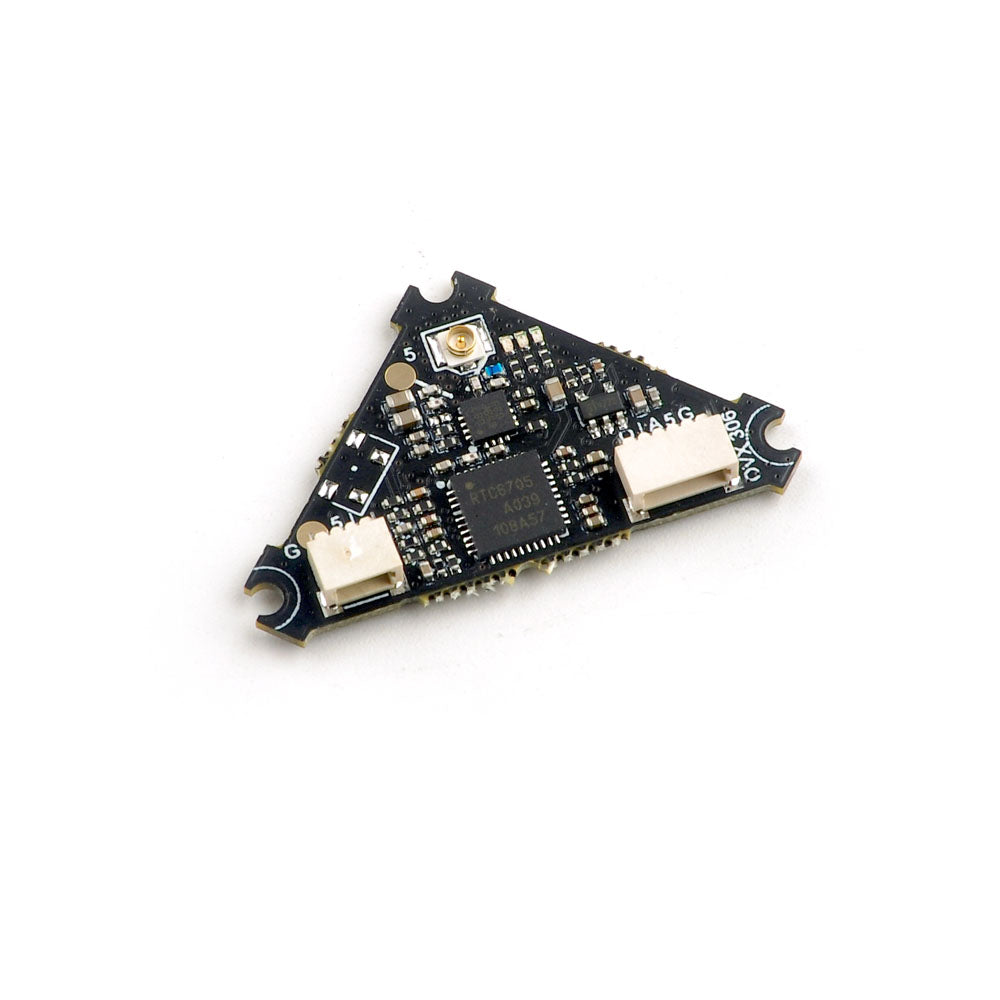

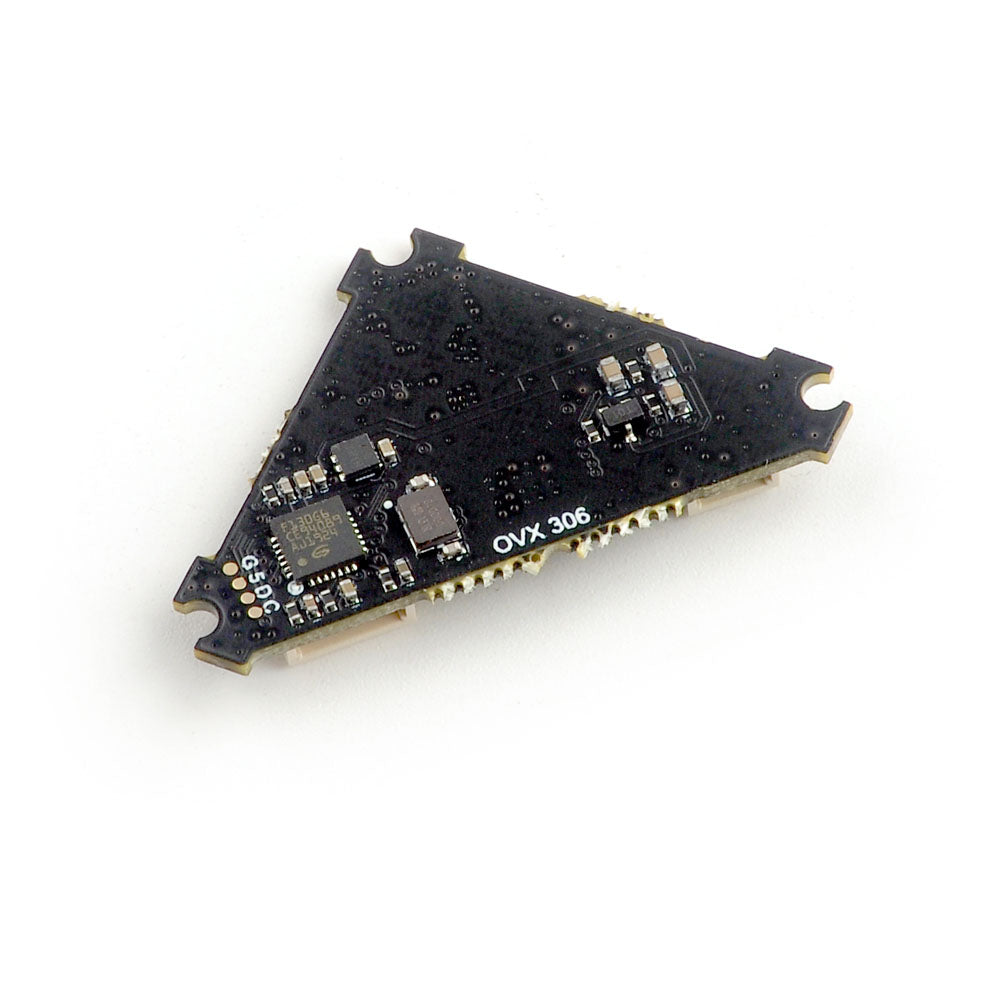

Happymodel OVX306 Video Transmitter 48ch 400mw

Happymodel OVX306 Video Transmitter 48ch 400mw

Added to Cart

Product Type: Video Transmitter
Brand: Happymodel
Mounting: 25.5x25.5
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 25mW
Transmitter Output: 400mW

Happymodel OVX306 VTX are based on the Open source project OpenVTX powered by the EpxressLRS team. The size of the OVX306 tx module is the same size as whoop_vtx and whoop_vtx_hp, and the interface are also exactly the same, which can completely replace whoop_vtx and whoop_vtx_hp.

OpenVTx aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol can be used on the flight controller and on VTx power up the protocol used is automatically detected by OpenVTx.

Features:

  • OpenVTX firmware preload
  • Smartaudio ready
  • Nano size and stable power output


Specifications:

  • Model: OVX306
  • Frequency: 5.8G 48CH
  • Transmitting Power: 0/RCE/25mw/100mw/400mw
  • Power supply: DC 5V
  • Current (5v): <650ma (400mw)
  • Weight: 1.5gram without antenna
  • Center distance of mounting holes:
  • 25.5mmx25.5mm


Package Contents:

  • 1x Happymodel OVX306 Video Transmitter 48ch 400mw

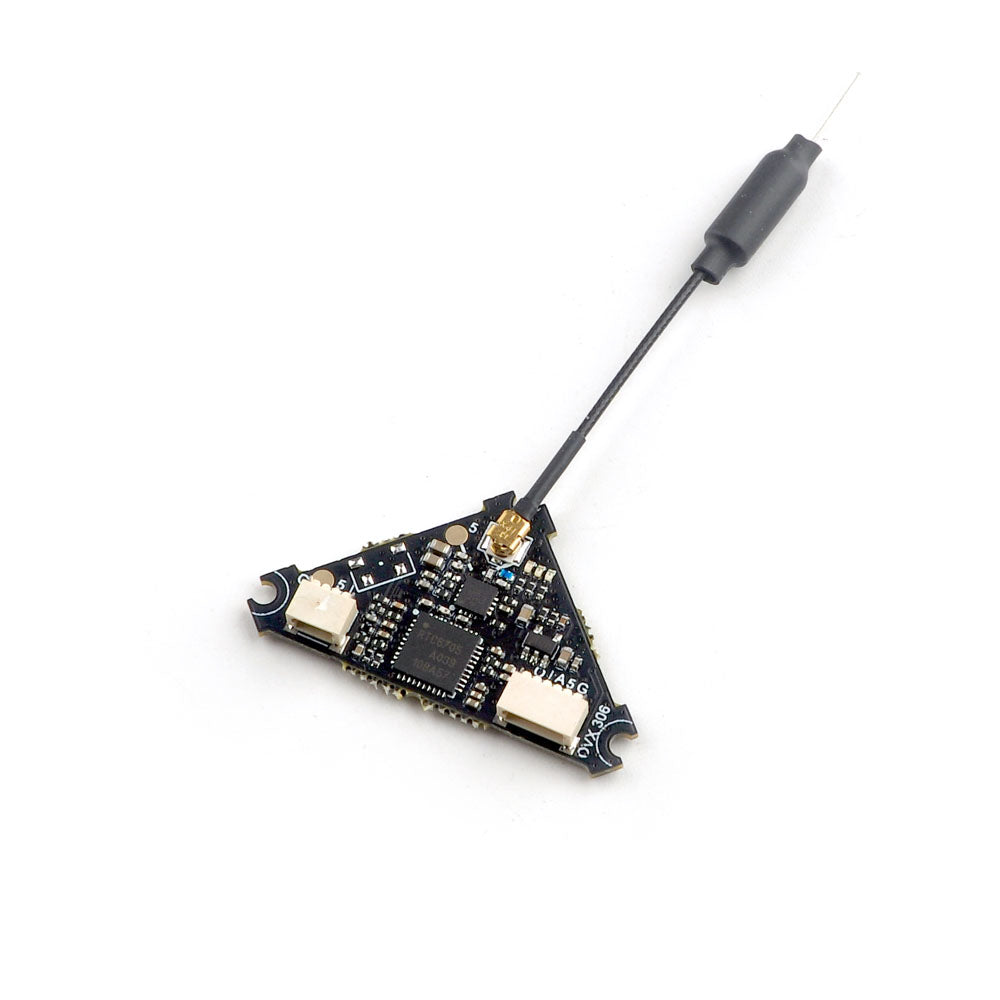

  • 1x Antenna

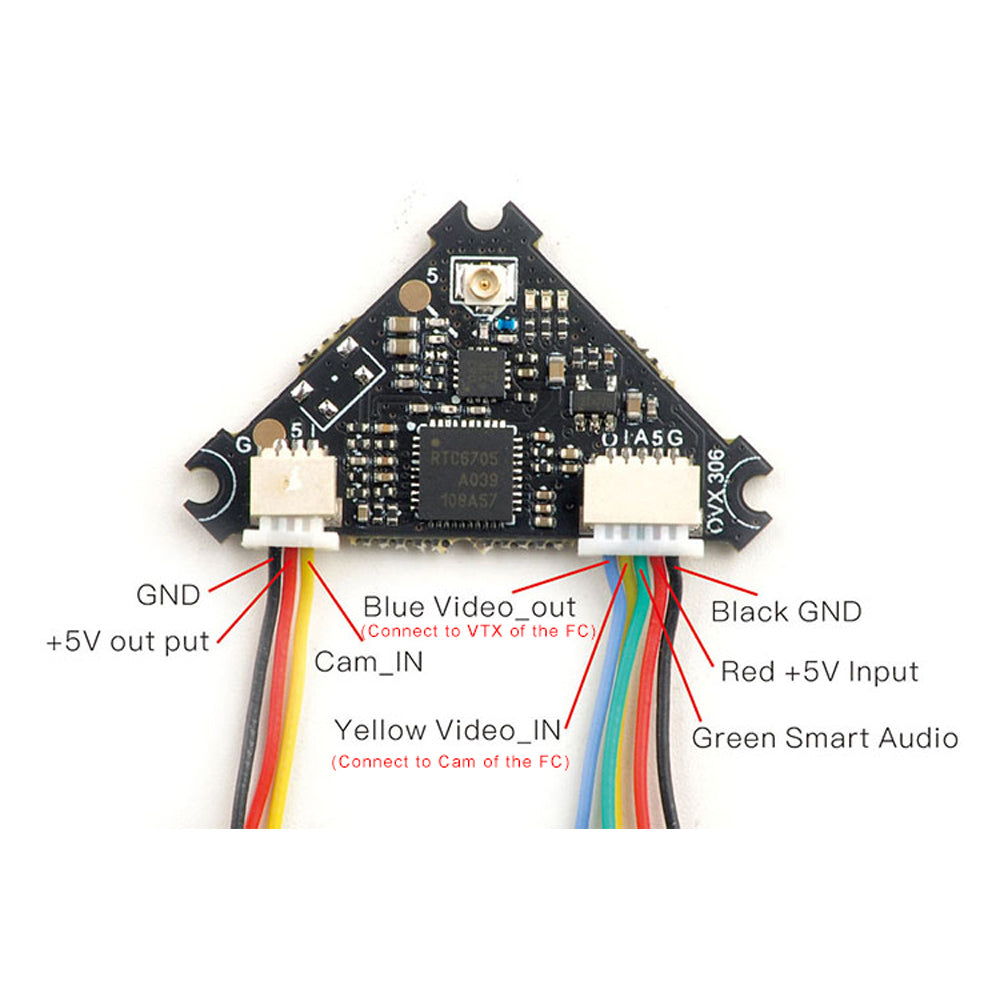

  • 2x Connector Cables



>
