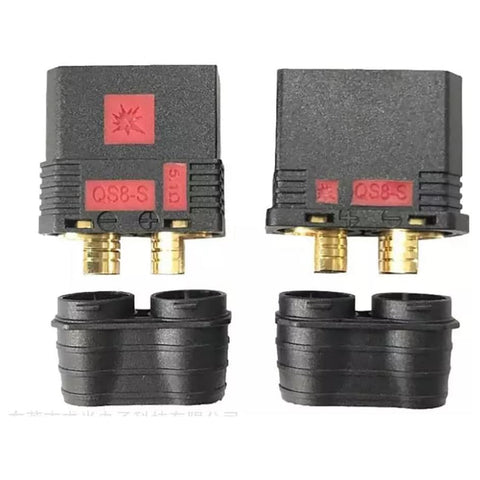

2pcs QS-8 Anti-Spark Power Battery Connector Heavy Duty Plug (1x Male / 1x Female)
High-Power Anti-Spark Battery Connector: The QS8-S heavy-duty anti-spark connector is designed for extreme current RC and power applications where arcing, connector wear, and battery stress must be minimized. The integrated anti-spark system reduces inrush current during connection, protecting ESCs, connectors, and battery terminals.
Built for Large Power Systems: Featuring oversized gold-plated contacts and a rugged nylon-fiber housing, the QS8-S connector is ideal for high-voltage, high-current systems such as large FPV drones, RC cars, plant protection drones, e-bikes, and industrial battery setups. It supports large-gauge wiring and maintains low resistance under heavy load.
Durable & Heat-Resistant Design: The flame-retardant, fiber-reinforced nylon housing provides excellent mechanical strength, electrical insulation, and high temperature resistance. This makes the QS8-S suitable for demanding environments where reliability and safety are critical.
Specifications:
- Product Name: QS8-S Anti-Spark Battery Connector
- Model: QS8-S
- Connector Type: Anti-Spark High-Current Power Connector
- Contacts: Gold-plated copper
- Housing Material: Nylon + fiber (PA)
- Color: Black
- Rated Voltage: DC 500V
- Rated Continuous Current: 110A
- Peak / Instantaneous Current: up to 180A (higher short bursts possible)
- Contact Resistance: ≤0.51 mΩ
- Flame Retardant Rating: UL94 V-0
- Temperature Resistance (housing): up to 200°C
- Operating Temperature: -20°C to 120°C
- Recommended Wire Gauge: 6AWG – 10AWG
Application Areas:
- High-power RC cars and trucks
- Large FPV drones and plant protection drones
- Battery to ESC or controller connections
- Chargers and high-current power systems
- E-bike and custom battery projects
Package Contents:
- 1x QS8-S Male Connector
- 1x QS8-S Female Connector
