185mm 3.5" Folding FPV Quadcopter Kit with 1407 Motors, F4 Flight Controller, 4in1 40A ESC (3-4S) (Kit)

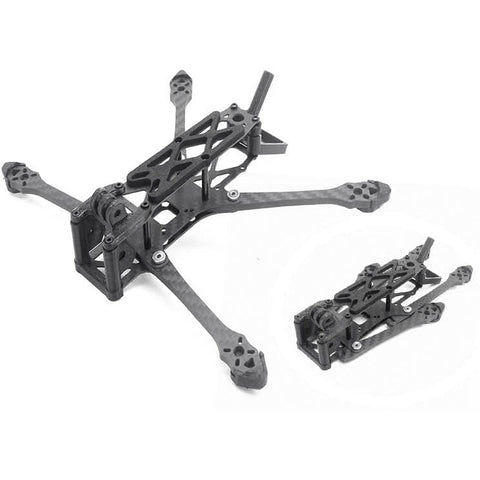

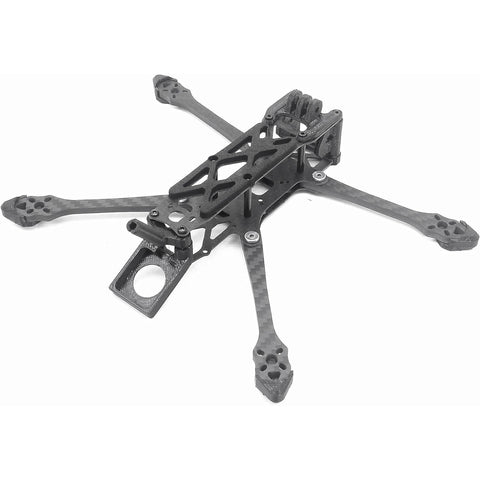

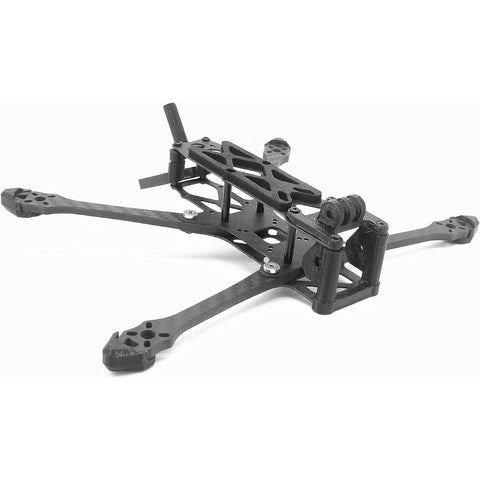

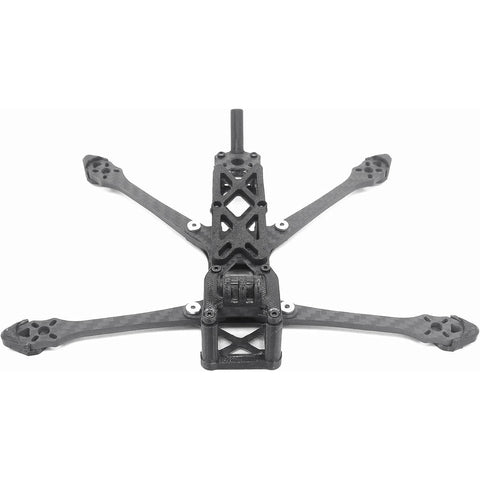

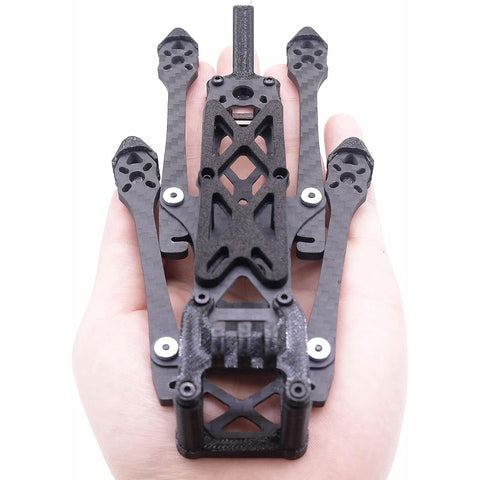

Frame Specifications:

• Wheelbase: 185mm

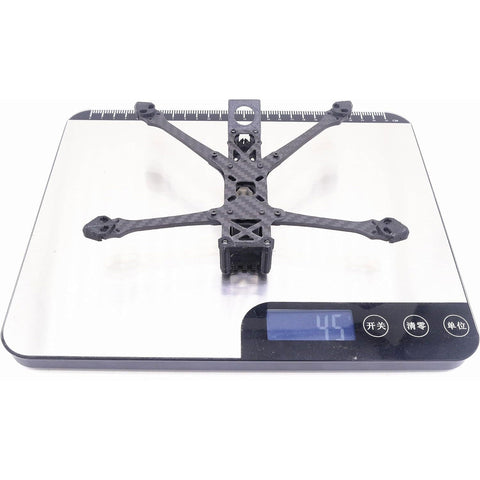

• Weight: Approx. 45g (including prints)
• Thickness: Base plate 1.0mm, top plate 1.0mm, cleat 1.0mm, front lip plate 1.0mm, arm 4.0mm
• Propeller: 4-inch Propeller
• Flight control hole pitch: 1616mm (M2), 2020mm (M2)
• Image transmission hole pitch: 20*20mm (M2)
• Camera mounting width: 14mm, 19mm
• Motor mounting holes: 99mm (M2) and 12mm12mm (M2)
• Battery: 3S/4S 1100mAh

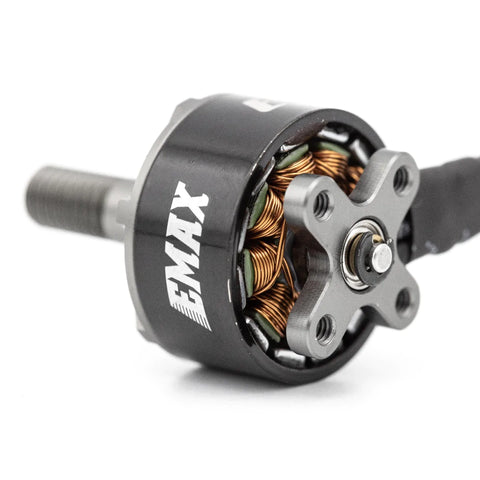

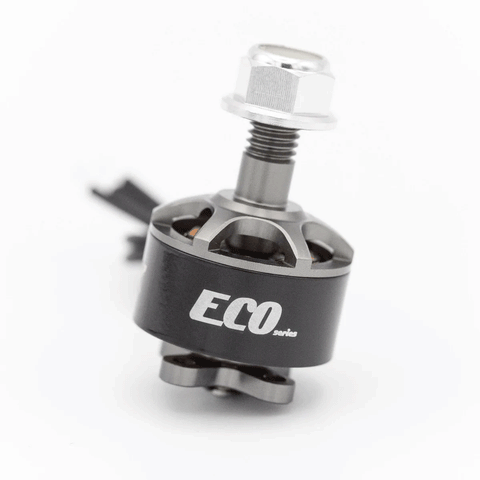

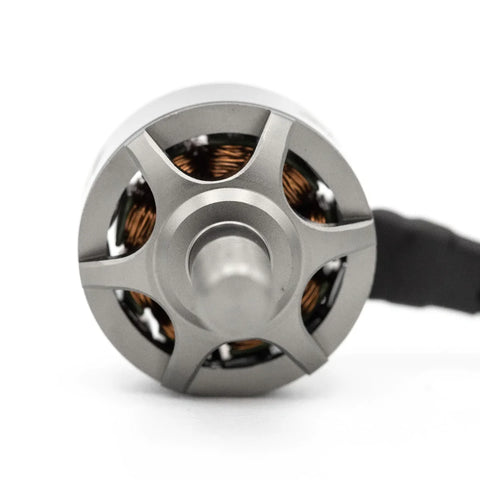

EMAX ECO 1407 Features:

• Precision durable ball-bearings
• Steel shaft for high strength
• Anodizing for finish and corrosion resistance
• 12x12mm hole pattern
• Multi-strand copper windings
• 90mm 26 AWG silicone wire

EMAX ECO 1407 Specifications:

• Framework: 9N12P
• Length: 31.2mm
• Diameter: 18.8mm
• Propeller: 3" - 4"
• Weight: 13.7g (W/O Silicone Wire)
• Prop adapter: M5
• Bearing Shaft: 2mm
• Shaft Thread: CW

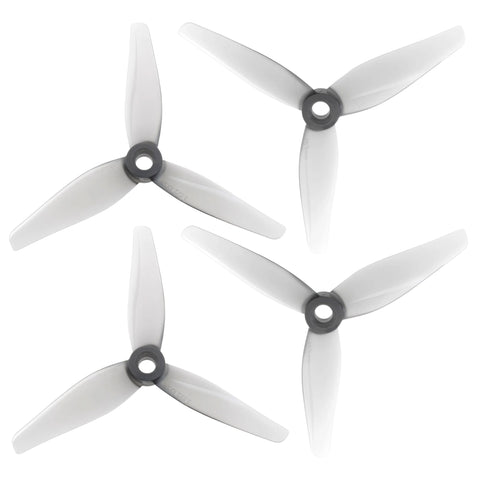

HQProp Propeller Specifications:

• Propeller Diameter: 3.5 inch
• Pitch : 2.8
• Blades : 3
• Material : Poly Carbonate
• Weight : 1.7g
• Hub Diameter : 10.5mm
• Hub Thickness:6mm
• Shaft :5mm

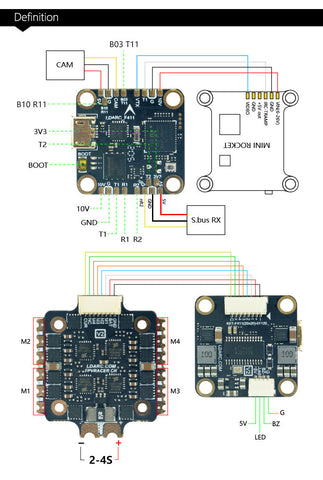

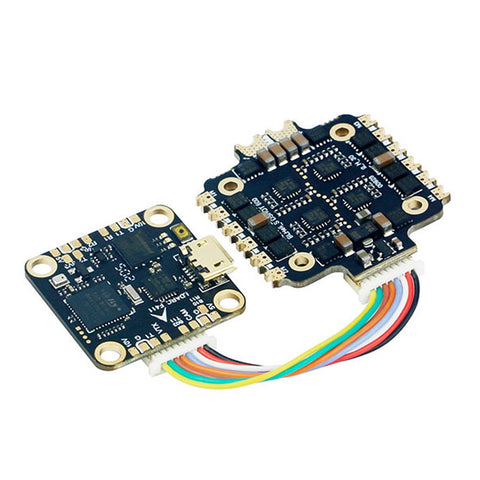

GHF405AIO-ICM Pro Flight Controller and 4in1 ESC Specifications:

• The USB port is installed on the side with a built-in USB ESD chip
• All signal ports add protection buffer components
• Imported originals, stable quality
• Reserved common functional interface pads, 5 UART ports (UART1, UART2, UART3, UART4, ART6).
• Half-hole motor pad, support high current output
• Integrated Betaflight F405 processor flight controller, OSD BEC 5V/2.5A and 10V/2A, support 3-6S battery
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 3S-6S Lipo
• Continuous current: 40A (two models are optional)
• Firmware: Bluejay G_H_30_48k.HEX
• CPU: STM32F405
• Gyro Sensor: ICM42688P
• Size: 33* 33mm (25.5mm mounting hole)
• Firmware version: Betaflight JHE405
• Black box: support
• Barometer: Support
• OSD: Support
• IIC: Support
• UART: support, UART1: receiver, UART6: DJIVTX/IRC/Smart Audio
• BEC: BEC 5V/2.5A and 10V/2A
• DJIVTX: Support, reserved special socket, equipped with plug wire.
• Receiver: SBUS, IBUS, DSM2, DSMX, TBS, etc.
• Support WS2812 programmable LED
• Support buzzer
• Built-in voltage and current sensors
• Weight: 7.1 grams

Package Contents:

• 1x 185mm Folding Frame Kit
• 1x GHF405AIO-ICM Pro
• 1x Flight Controller Hardware Kit
• 1x Flight Controller Adapter Kit
• 4x EMAX 1407 ECO Motor
• 4x HQProp 3.5" Propeller (CW)
• 4x HQProp 3.5" Propeller (CCW)
