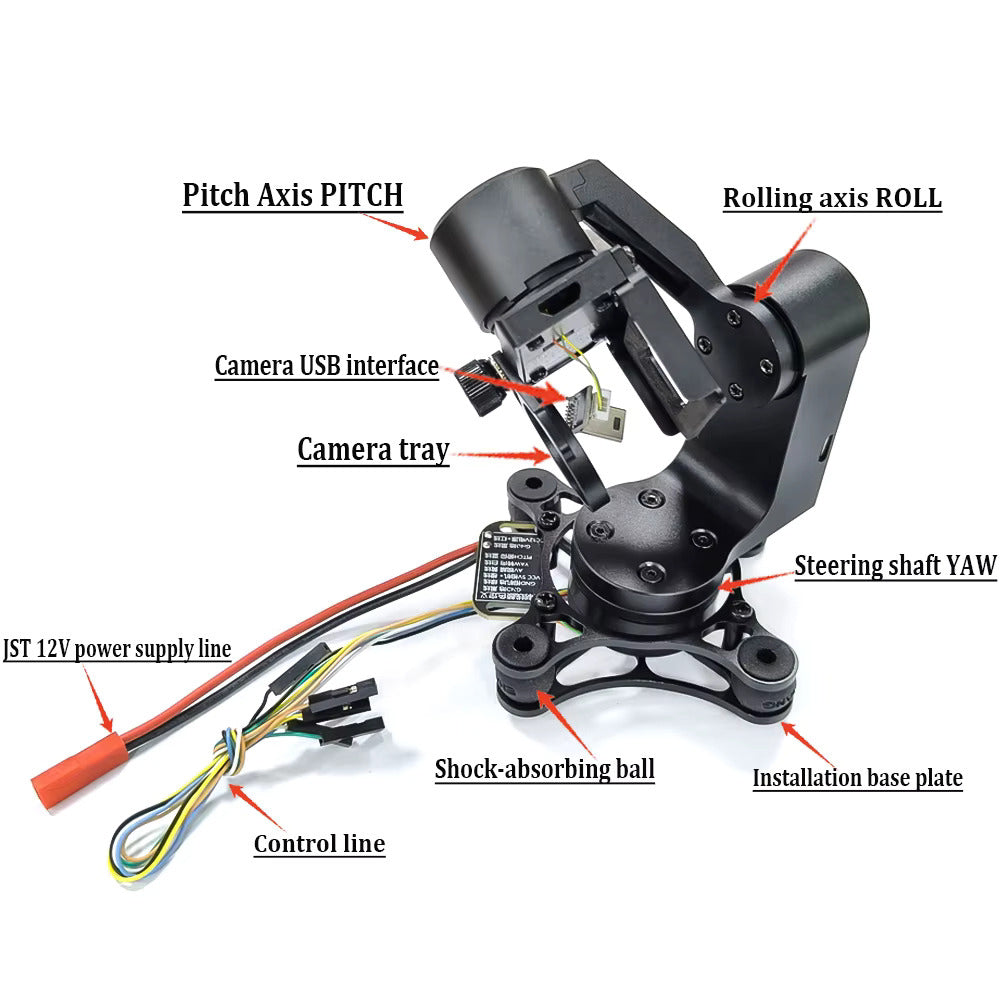

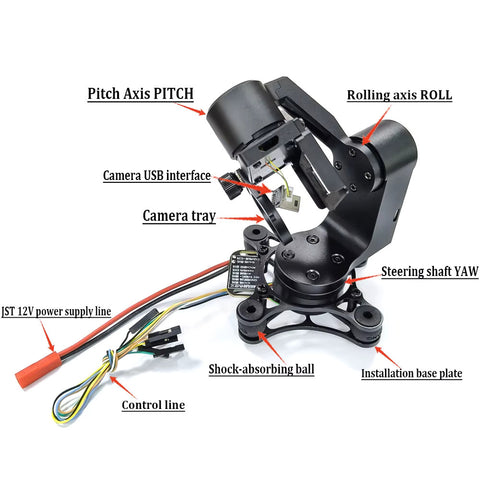

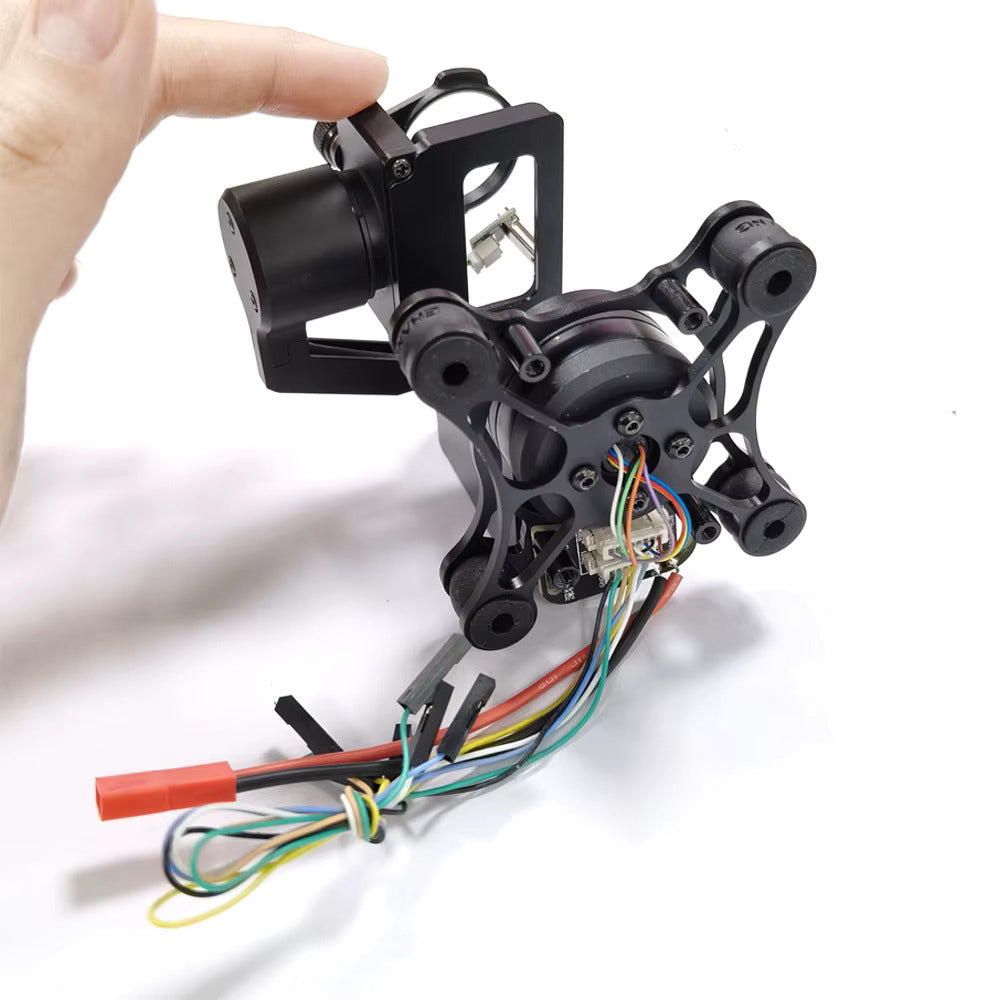

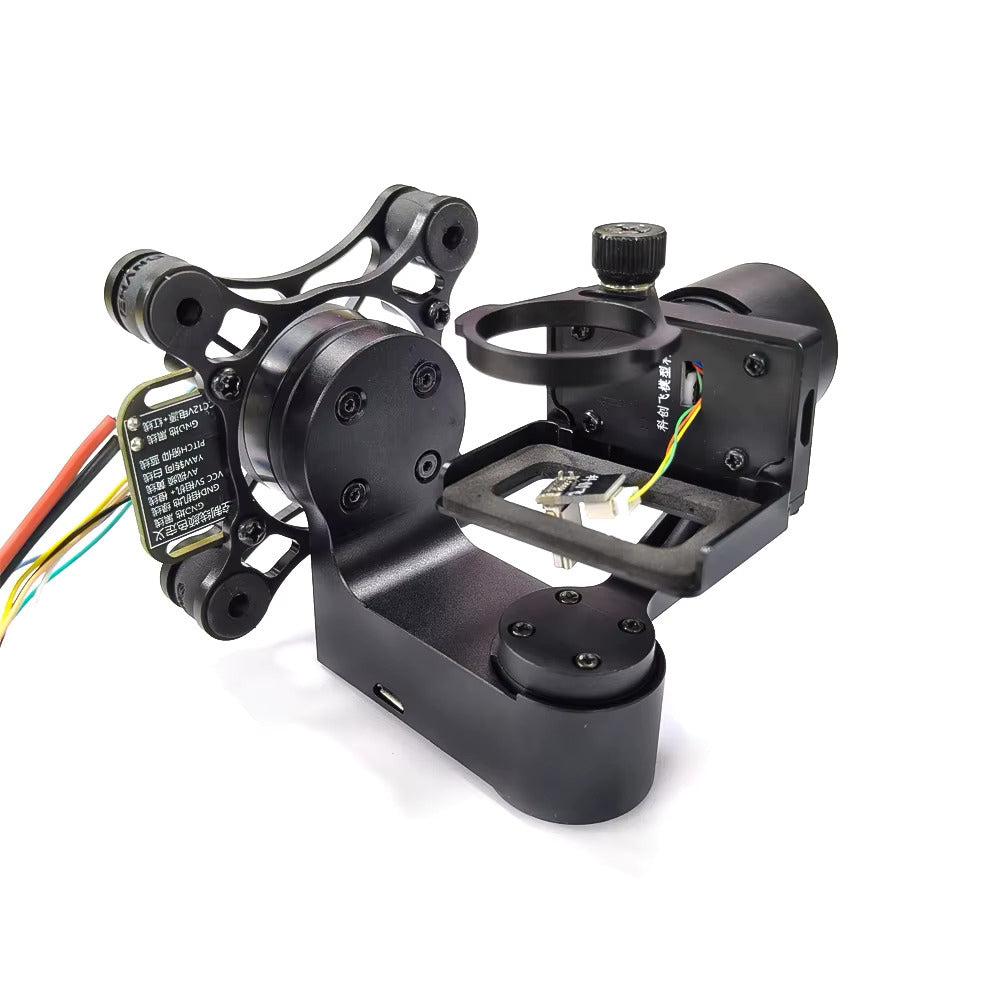

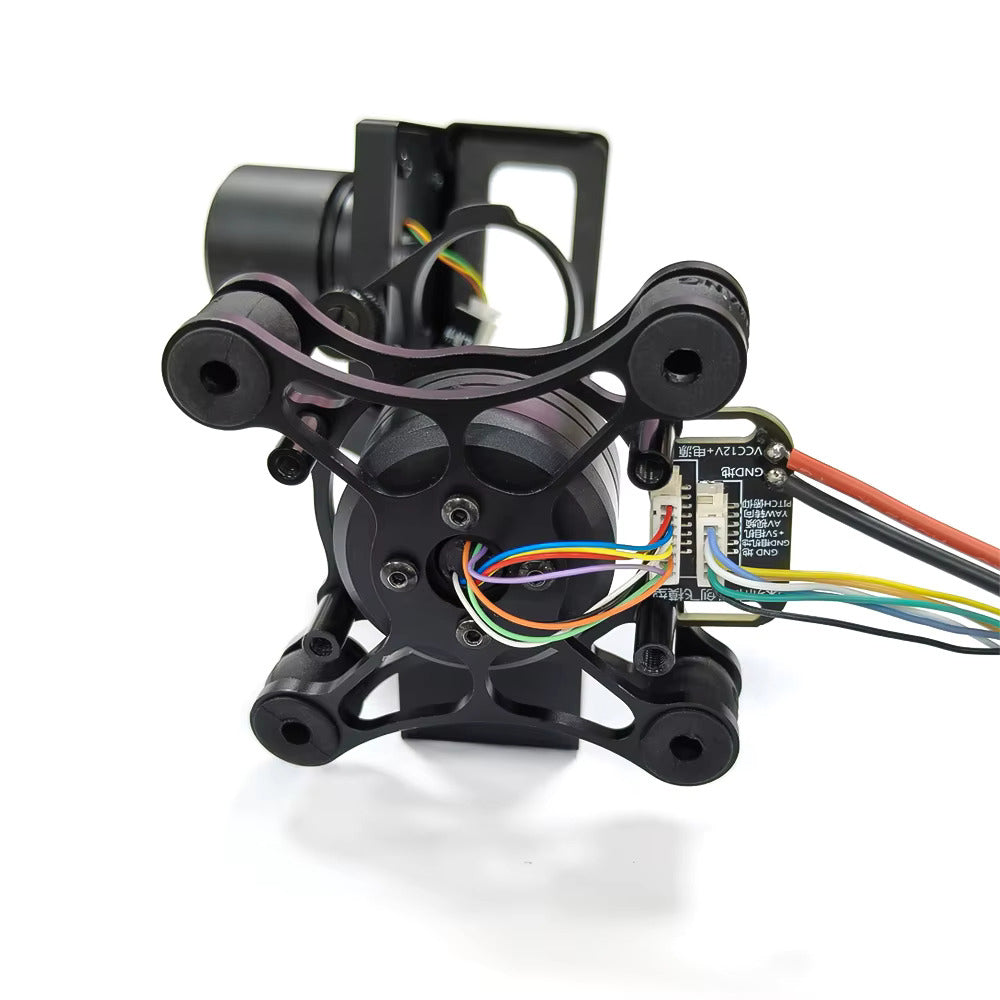

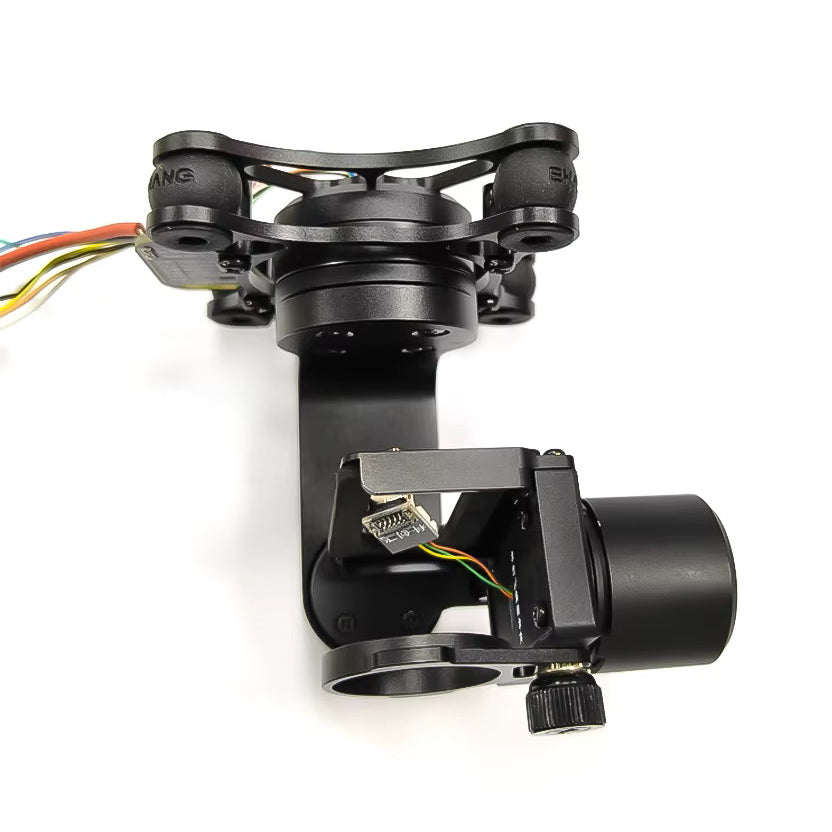

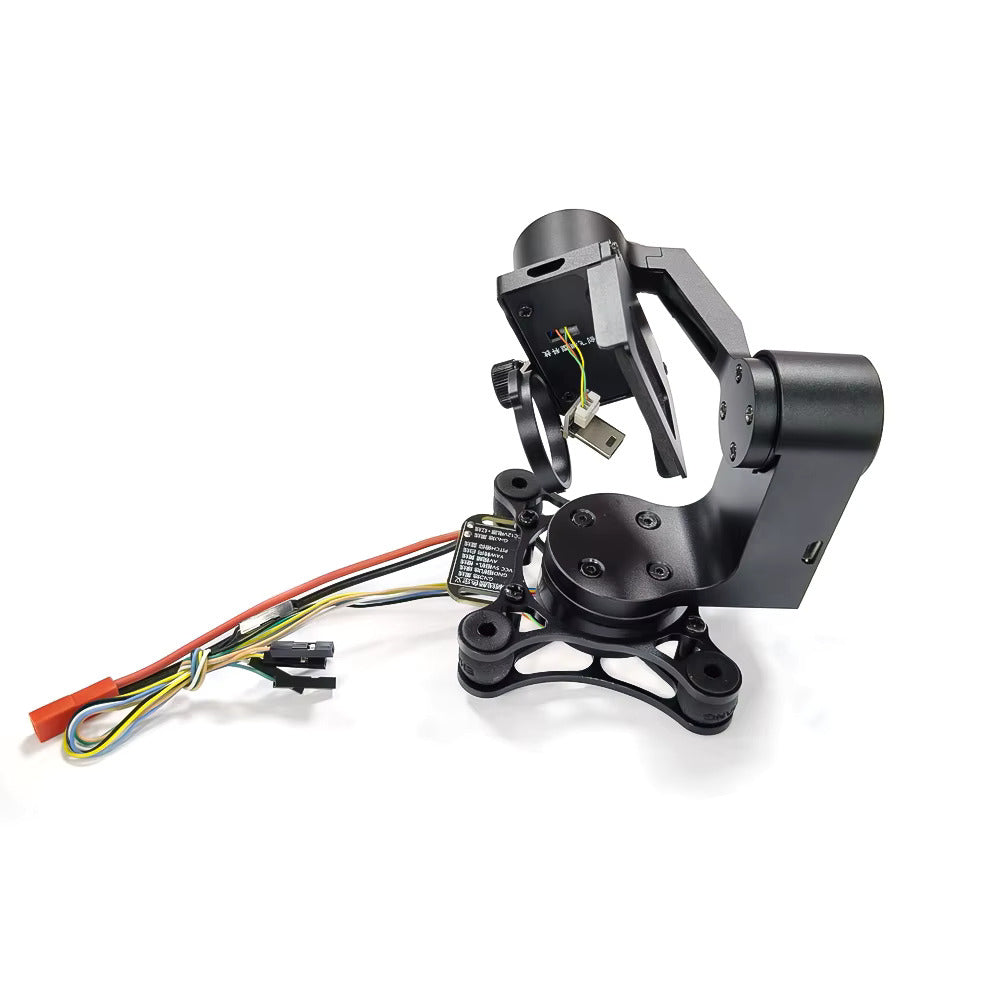

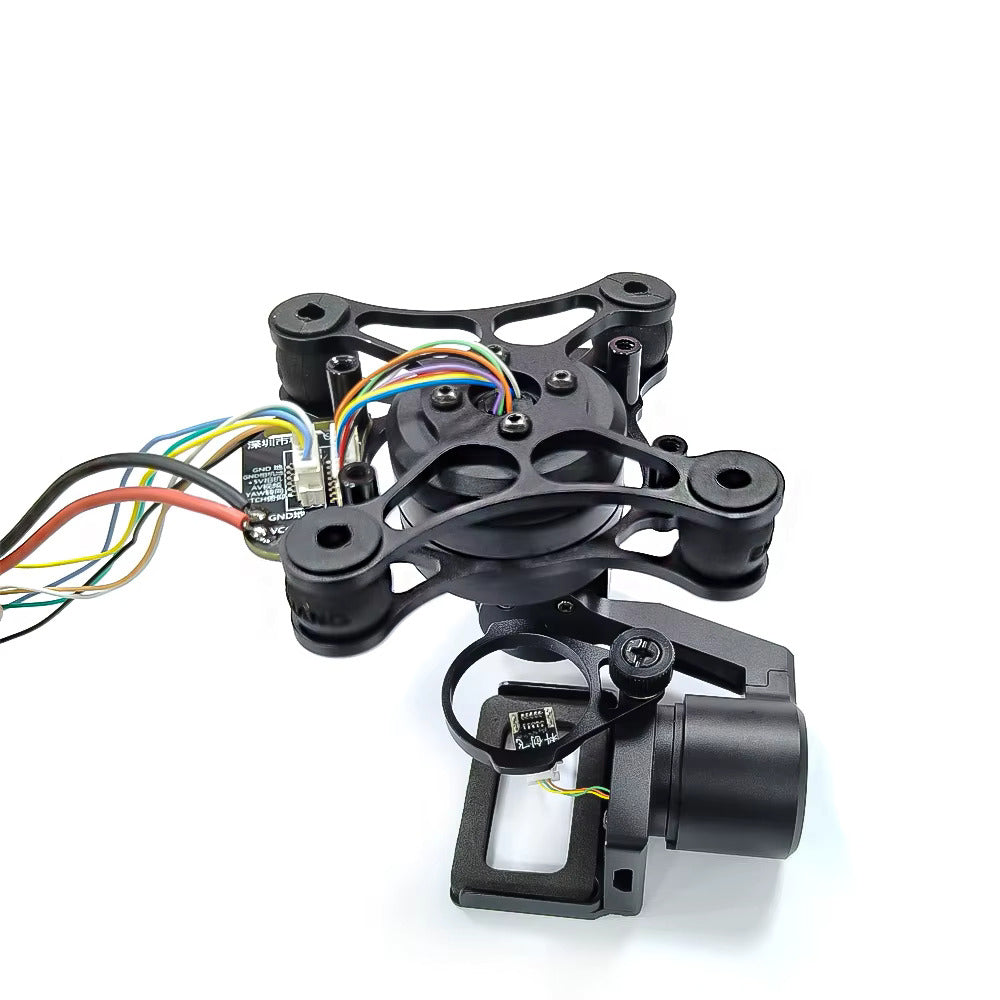

3-Axis Brushless Gimbal with Controller for Small Form Factor Action Camera

This all aluminum alloy three-axis gimbal is specially customized for aerial drones and can be equipped with a motion camera weighing 30-110 grams. The camera has a maximum size of 30 wide, 50 high, and 70 millimeters long, and uses three brushless motors for high-precision and stable gimbal, making it easy for you to achieve ultra stable aerial photography.

The gimbal circuit control system adopts an open source solution, and professionals can adjust the gimbal parameters by installing the CP2102 driver program, connecting it to a USB port, and downloading the SimpleBGC_ GUl_2_40 software package.

Instructions:

• 1. Before powering on the gimbal, please install a camera weighing between 30 and 100 grams. The camera must be securely fixed to the gimbal; otherwise, it will keep shaking.
• 2. Install the camera and adjust the center of gravity to keep the gimbal suspended. Use a 10-16V power supply to power the gimbal, and it will automatically balance in about 5 seconds after being powered on.
• 3. The pitch and turn control of the gimbal is achieved by inserting blue and white DuPont wires into the receiver channel and selecting the corresponding channel. The receiver sends PWM signals to the gimbal. Note that the receiver should also be connected to ground and power.

Specifications:

• Weight: 156g (grams)
• Accuracy: 0.09 °
• Working voltage: DC 10-16V
• Control mode: PWW signal controls yaw and pitch angles
• Balance and stability angle: yaw angle 360 °/pitch angle -90 ° to+45 °
• Supported camera types: sports camera, GoPro3, GoPro4, mountain dog, and other cameras weighing 30-110g.
• Gimbal size: 80 * 80 * 80MM (L * W * H)
• Power connector: JST wire

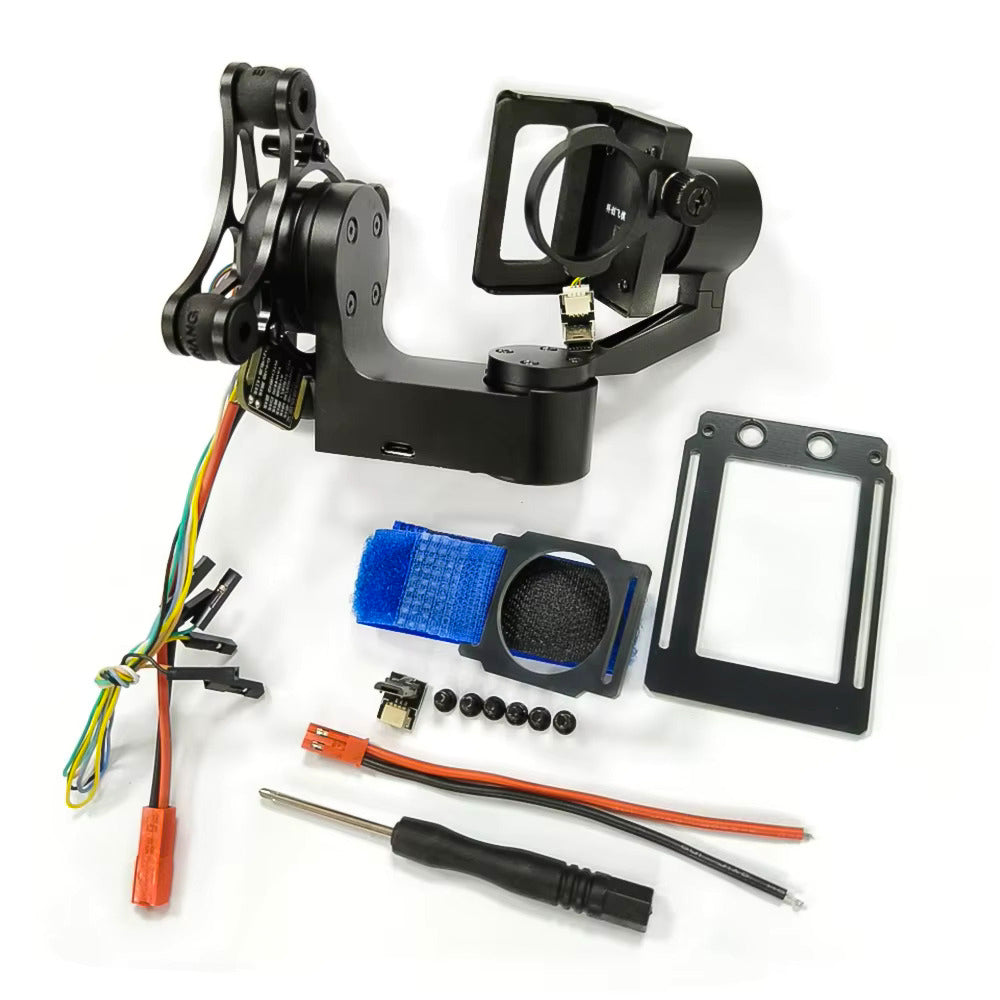

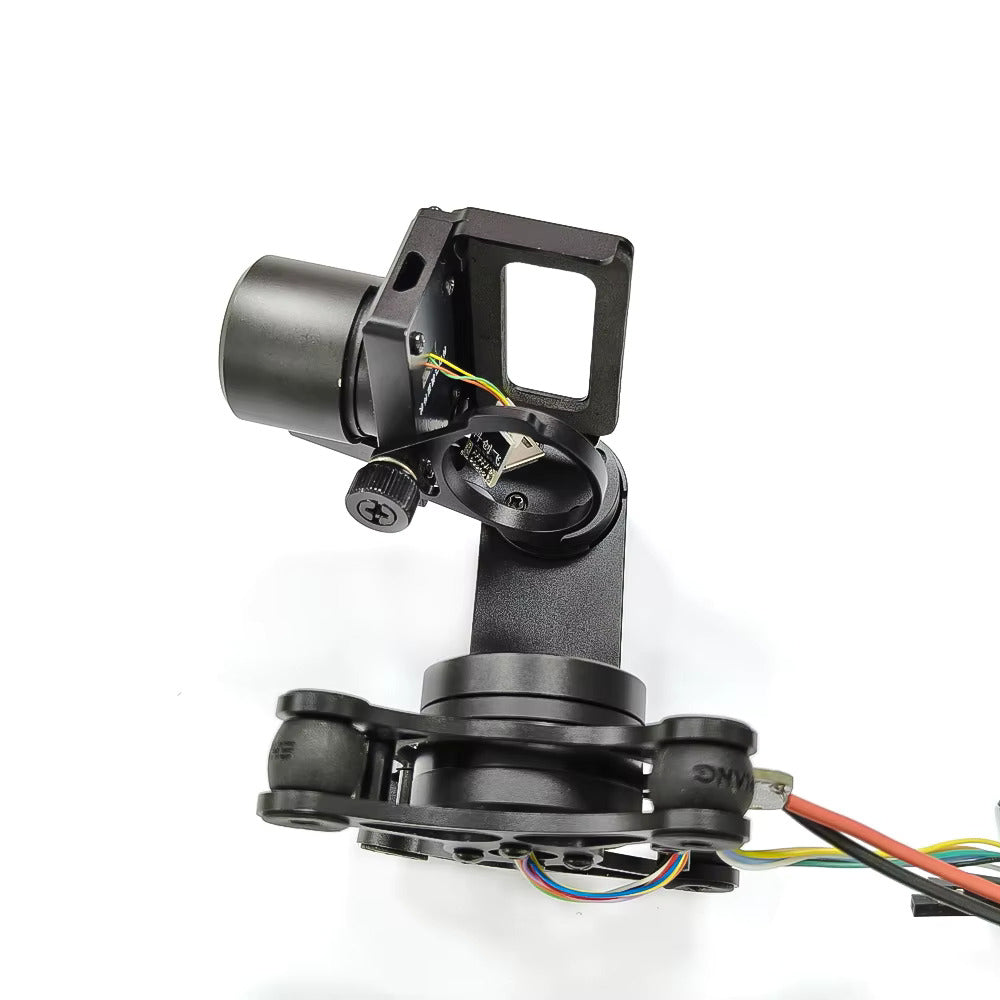

Package Contents:

• 1x 3-Axis Brushless Gimbal
• 1x Control Board
• 1x Camera Mount Holder
• 1x Input Cable
