5.8GHz FPV Kit DVR Diversity Monitor Foxeer Mini Camera 800mW Video Transmitter

5.8GHz FPV Kit DVR Diversity Monitor Foxeer Mini Camera 800mW Video Transmitter

Sold Out

Product Type: FPV System
Brand: SpeedyFPV
Resolution: 1500TVL
Sensor: CMOS
Transmitter Output: Adjustable
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output: 800mW

This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring MicroSD DVR recording, bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a Foxeer Predator Mini V5 1500TVL HD model, designed with the needs of drone pilots and RC enthusiasts in mind, with a powerful reliable transmitter for a perfect match.

5.8GHz Diversity FPV Monitor Specifications:

  • Screen : 7 Inch TFT Screen
  • Frequency : 5.8G
  • Channel : 40CH
  • Sensitivity : -95dBm
  • Interface : AVIN/AVOUT/DCIN/USB
  • Build in 2000mAh 2S LiPo
  • Language : English
  • Ratio : 16:9
  • Power Consumption: ≤5W
  • Size : 178x118x58mm

JHEMCU VTX30-800 5.8GHz Video Transmitter Specifications:

  • Model: VTX30-800
  • Input voltage: 7-26V(2-6S)
  • BEC: 5V
  • Number of channels: 40CH
  • Transmitting power: PIT/25/100/200/400/800mW
  • Interface: MMCX
  • Size: 36x36mm
  • Installation hole distance: 30.5*30.5mm M3
  • Weight: 6.8g
  • Support IRC power and channel adjustment

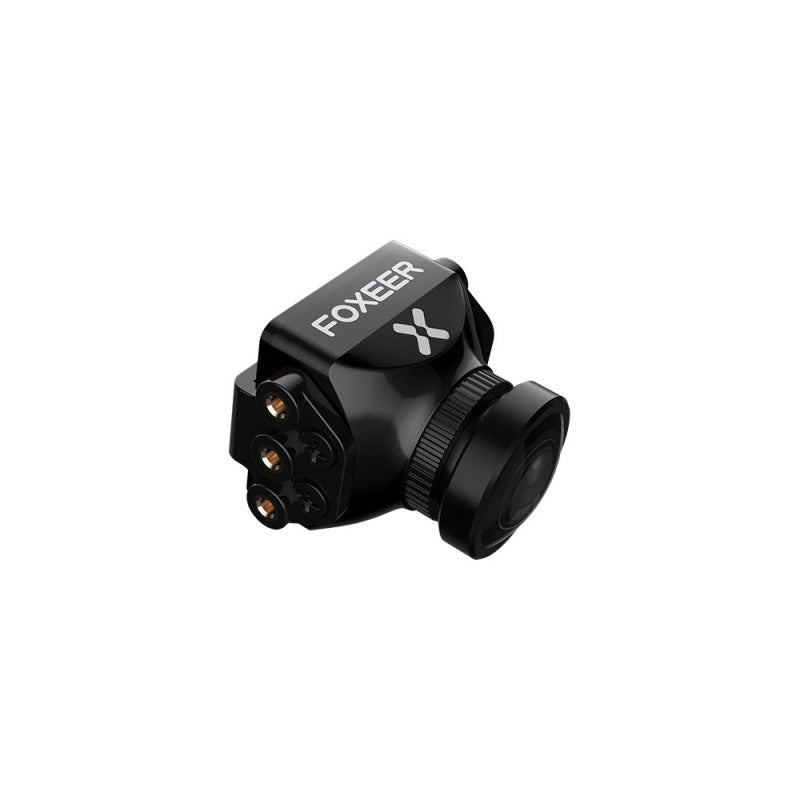

Foxeer T-Rex Mini 1500TVL Camera Specifications:

  • Sensor Type: Sony 1/3" CMOS Sensor
  • Scale: 4:3 (default)/16:9 Switchable
  • TV System: PAL (default)/NTSC Switchable
  • Resolution: 1000TVL
  • Shutter Speed: PAL 1/251/10000 sec; NTSC 1/301/10000 sec
  • Video Output: CVBS Analog Signal
  • FOV:
  • 1.8mm Lens: FOV-H:115°, FOV-D: 150°
  • 2.5mm Lens: FOV-H:105°, FOV-D: 130°
  • Minimum Illumination: 0.01Lux
  • White Balance: Auto
  • DNR: 3DNR/2DNR
  • WDR: Super WDR
  • DAY/NIGHT: Auto/Color/B&W
  • Flight OSD: Voltage/Cam Title/Time/Cross Hair
  • Flip: Supported
  • Mode: DAY/CLOUDY/Night/LED
  • Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
  • Input Voltage: 4.5V~20V
  • Language: ENGLISH/DEUTSCH/FRANCAIS/PYCCKNN/PORTUGUES/ESPANOL/中文
  • Working Temperature: -10°~50°C RH90% MAX
  • Working Humidity: 20~80%
  • Storage Temperature: -20°~70°C
  • Consumption: 50mA±15% @ DC12V; 115mA±15% @ DC5V
  • Dimension: 2222mm; 2822mm (Add Bracket)
  • Weight: 12g (Exclude cable)

Package Contents:

  • 1x 5.8GHz Diversity FPV Monitor w/ Internal Battery
  • Foxeer Predator V5 Mini Full Case 1000TVL
  • 1x JHEMCU VTX30-800 5.8GHz Video Transmitter PIT-800mW 7-26V
  • 1x Transmitting Antenna
  • 2x Receiving Antenna



>
