5.8GHz FPV Kit DVR Diversity Monitor Foxeer CCD Camera 600mW Video Transmitter

This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring MicroSD DVR recording, bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a Foxeer Predator Mini V5 1000TVL CCD HD model, designed with the needs of drone pilots and RC enthusiasts in mind, with a powerful reliable transmitter for a perfect match.

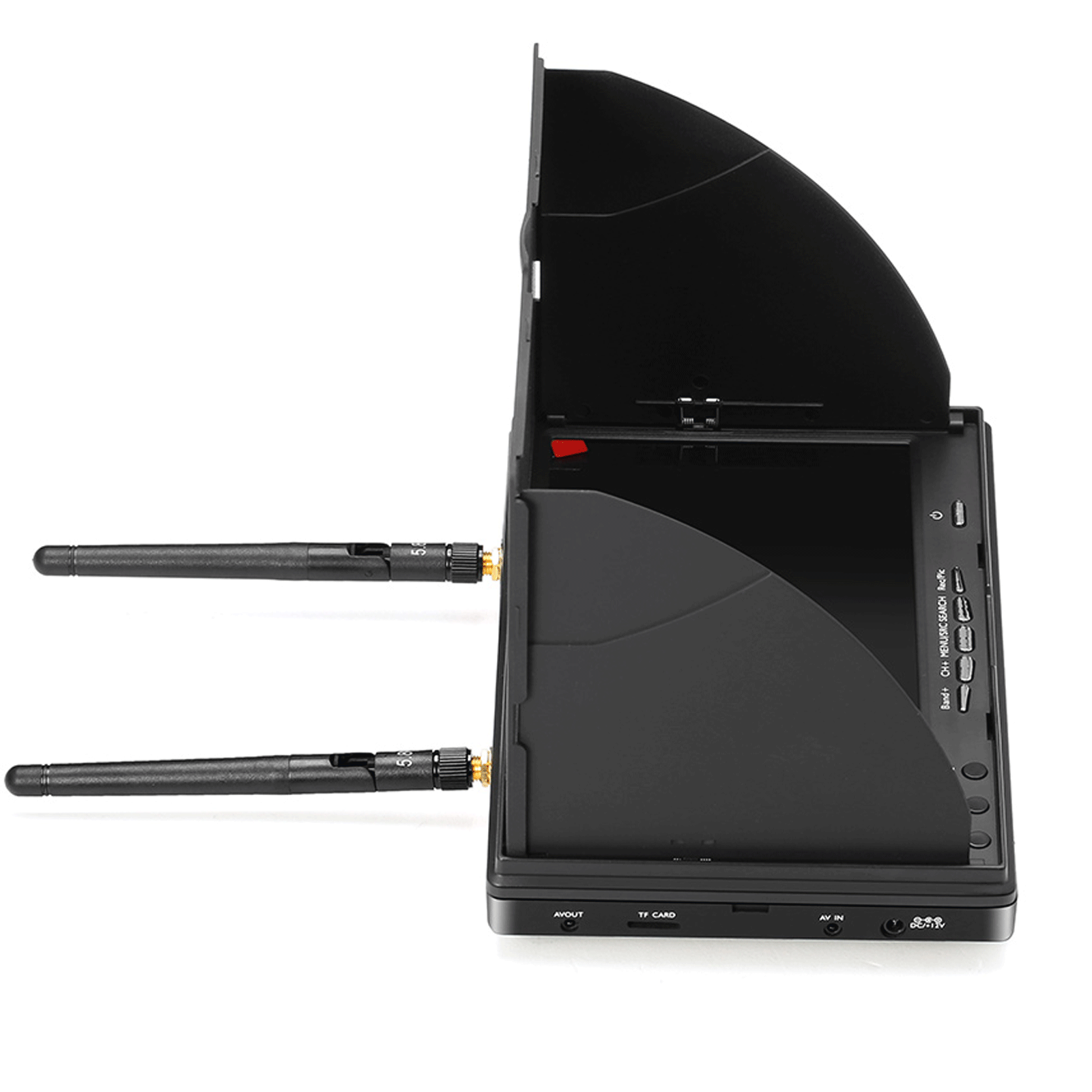

5.8GHz Diversity FPV Monitor Specifications:

• Screen : 7 Inch TFT Screen
• Frequency : 5.8G
• Channel : 40CH
• Sensitivity : -95dBm
• Interface : AVIN/AVOUT/DCIN/USB
• Build in 2000mAh 2S LiPo
• Language : English
• Ratio : 16:9
• Power Consumption: ≤5W
• Size : 178x118x58mm

Video Transmitter Operation:

• Instructions - The image transmission supports the IRC Tram protocol to adjust the channel and power of the image transmission through the OSD and remote control, and also supports the switch of the power and channel through the button of the image transmission.

• Short Press -  Select CH1-8 cyclically, and the number of times the green light flashes represents the number of CHs.

• Long Press - 3 Seconds -  After long press for 3 seconds, the blue light will light up, continue to press and hold to cycle to select the frequency band FR A-B-E-F-R. Corresponding to the blue light flashes 1, 2, 3, 4, 5 times.

• Long Press - 6 Seconds -  After long press for 6 seconds, the red light will light up, continue to press and hold, cycle to select the power 25-100-200-400-600mW, corresponding to the red light flashes 1 time, 2 times, 3 times, 4 times, 5 times.

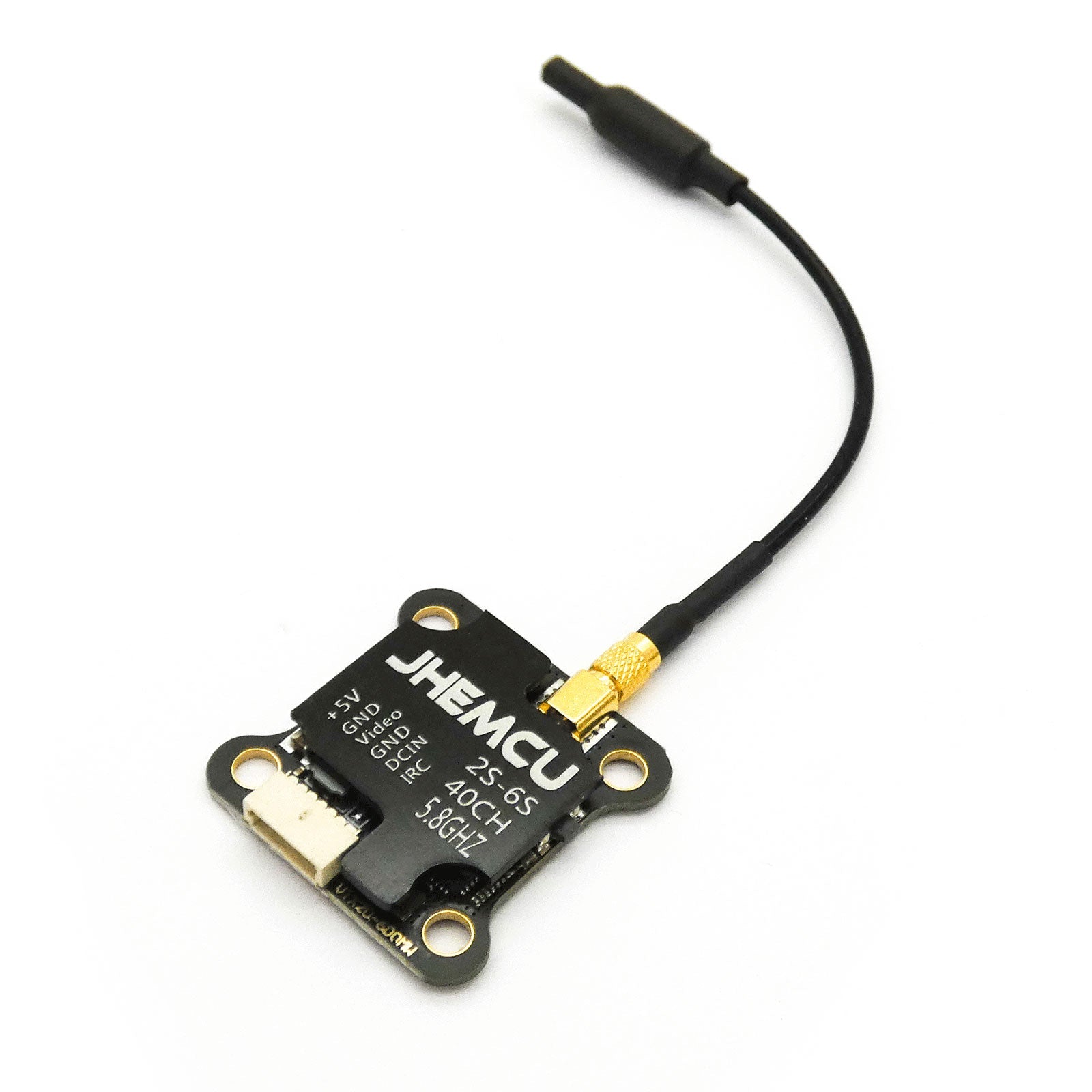

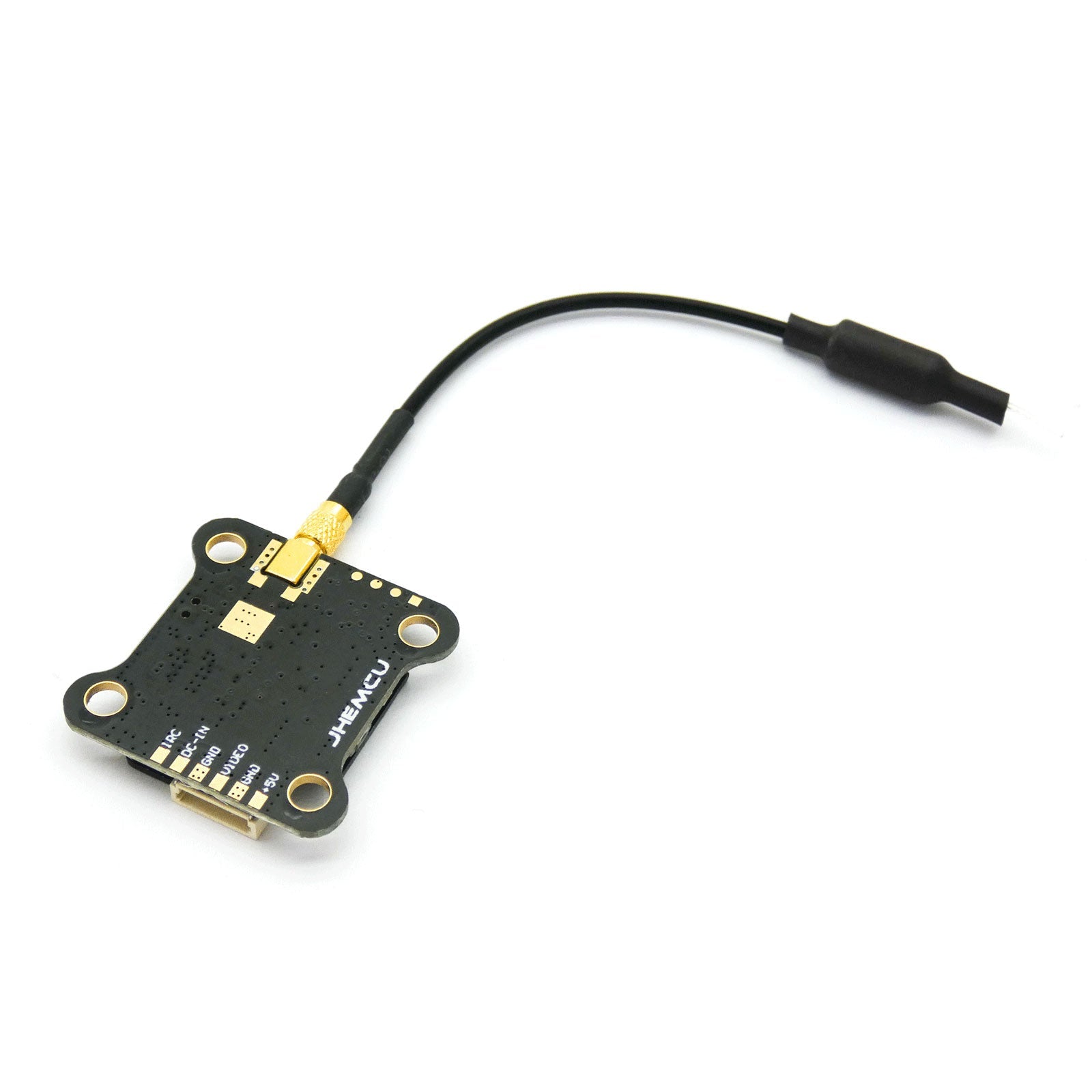

Video Transmitter Specifications:

• Model: VTX20-600
• Input voltage: 7-26V
• Output voltage and current: 5V 1A
• Number of channels: 40CH
• Transmitting power: PIT/25/100/200/400/600mW
• Interface: MMCX
• Control protocol: VTX IRC Tram
• Dimensions: 27x27mm
• Installation hole distance: 20x20mm
• Installation aperture: 3mm
• Weight: 3g

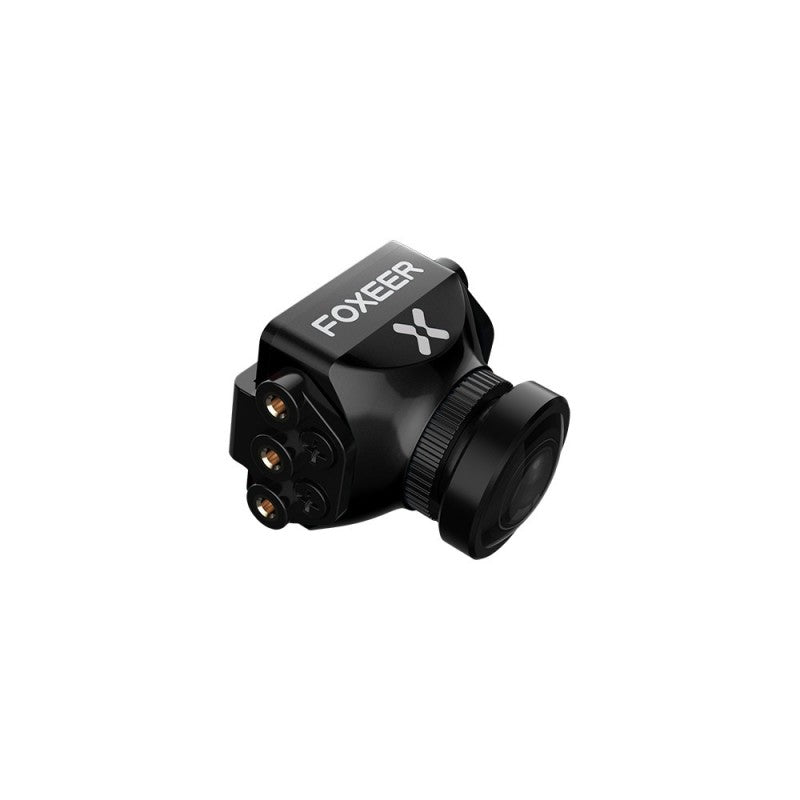

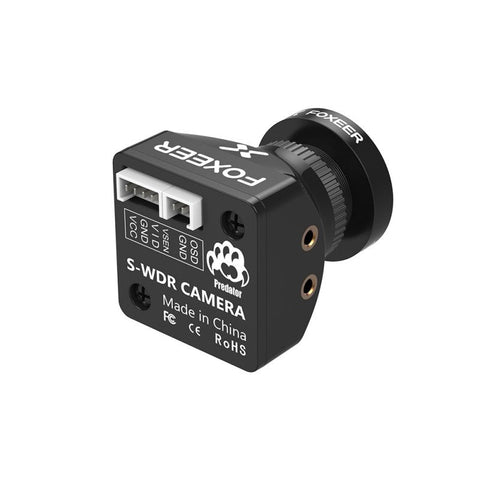

Foxeer Predator Mini V5 Camera Specifications:

• Sensor Type: Sony 1/3" CMOS Sensor
• Scale: 4:3 (default)/16:9 Switchable
• TV System: PAL (default)/NTSC Switchable
• Resolution: 1000TVL
• Shutter Speed: PAL 1/251/10000 sec; NTSC 1/301/10000 sec
• Video Output: CVBS Analog Signal

• 1.8mm Lens: FOV-H:115°, FOV-D: 150°
• 2.5mm Lens: FOV-H:105°, FOV-D: 130°
• Minimum Illumination: 0.01Lux
• White Balance: Auto
• DNR: 3DNR/2DNR
• WDR: Super WDR
• DAY/NIGHT: Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time/Cross Hair
• Flip: Supported
• Mode: DAY/CLOUDY/Night/LED
• Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
• Input Voltage: 4.5V~20V
• Consumption: 50mA±15% @ DC12V; 115mA±15% @ DC5V
• Dimension: 2222mm; 2822mm (Add Bracket)
• Weight: 12g (Exclude cable)

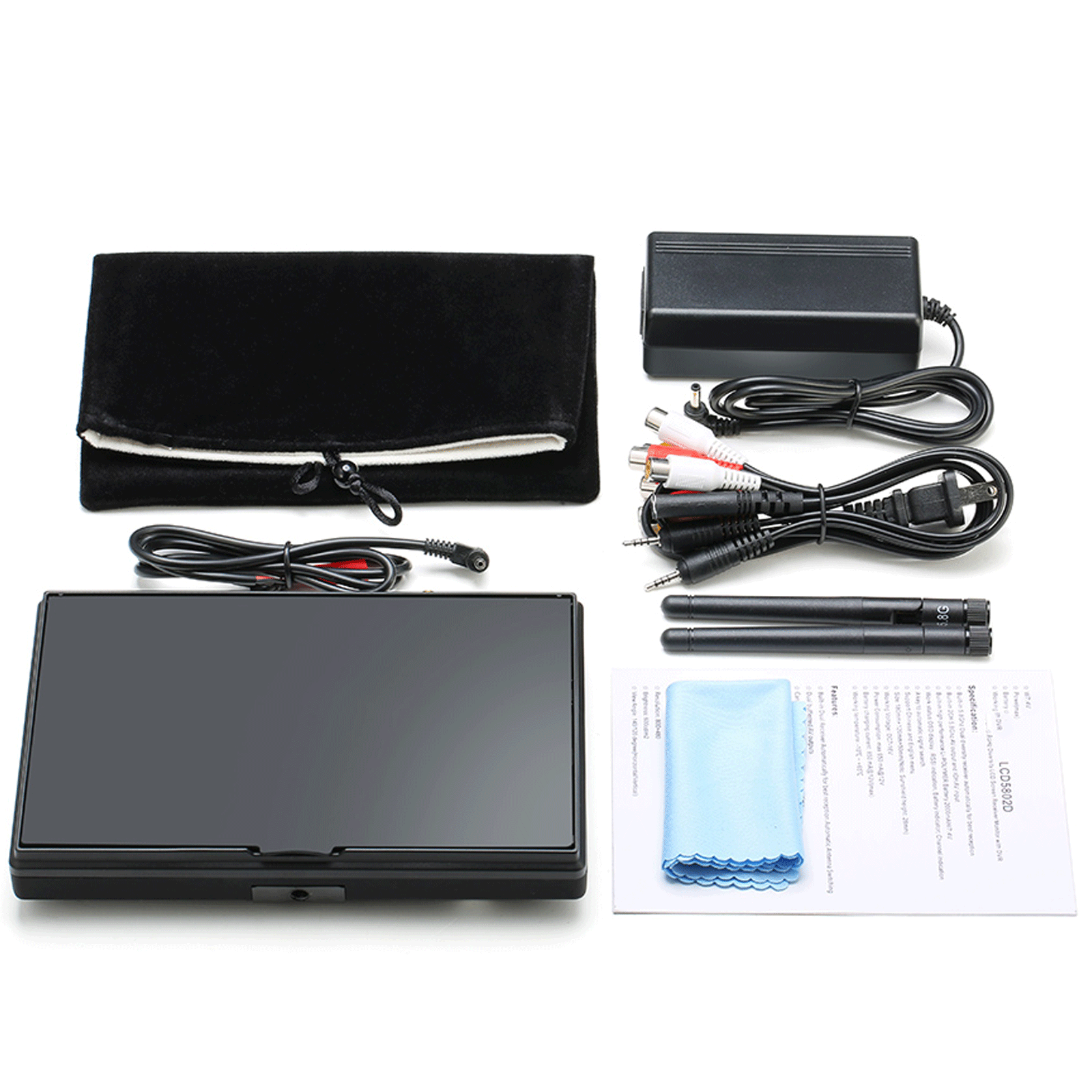

Package Contents:

• 1x 5.8GHz Diversity FPV Monitor w/ Internal Battery
• 1x 5.8GHz 1000mW Video Transmitter
• 1x Transmitting Antenna
• 1x Foxeer Predator V5 Mini CCD 1000TVL Camera
