5.8GHz FPV Kit System Diversity Monitor 1200TVL Camera 1000mW Video Transmitter
5.8GHz FPV Kit System Diversity Monitor 1200TVL Camera 1000mW Video Transmitter
Sold Out
Product Type: FPV System
Brand: SpeedyFPV
Resolution: 1200TVL
Sensor: CCD
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output:1000mW
Brand: SpeedyFPV
Resolution: 1200TVL
Sensor: CCD
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output:1000mW
This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring MicroSD DVR recording, bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a modern mini 1200TVL Sony CCD HD model, designed with the needs of drone pilots and RC enthusiasts in mind, with a powerful reliable transmitter for a perfect match.

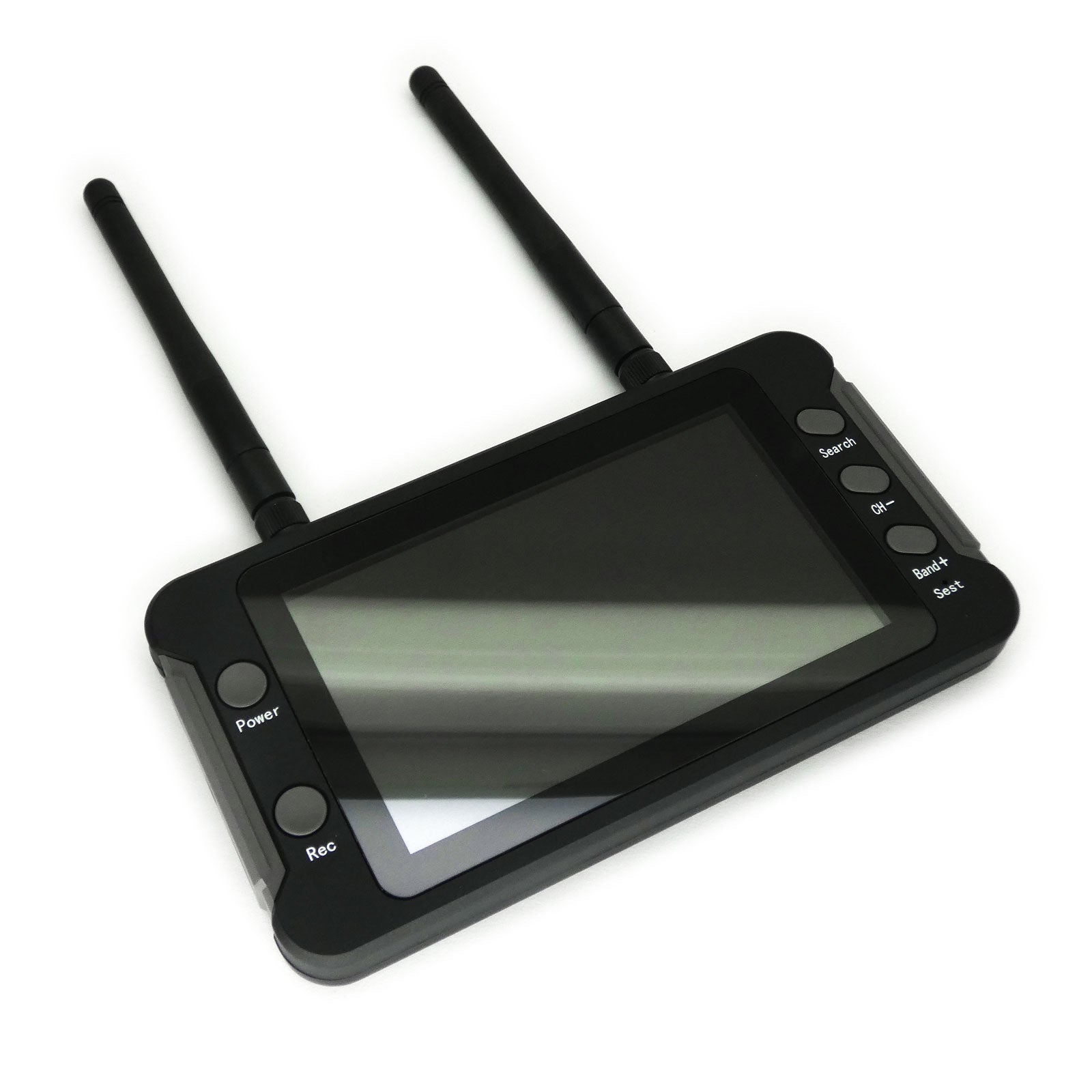

5.8GHz Diversity FPV Monitor Specifications:
- Receiver Frequency: 5.8 GHz
- Dual Antenna Configuration: Diversity Receiver Antennas Supported
- Battery Capacity: Built-in 1200mAh Battery
- Battery Life: Approximately 3 Hours of Continuous Usage

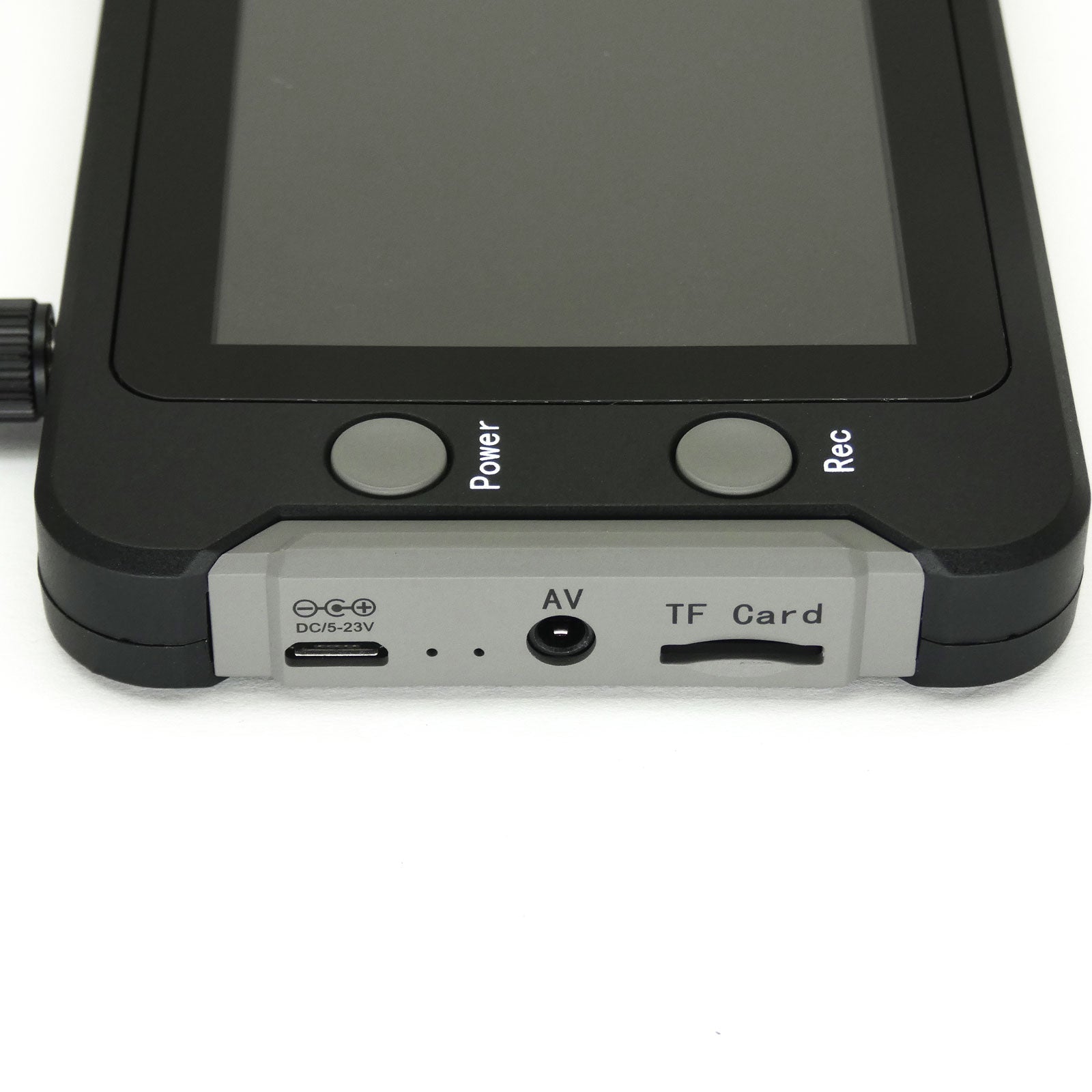

- Voltage Compatibility: Supports Wide Voltage Charging (5-23V)
- Backup Power Sources: Compatible with 5V Mobile Power, 2S (7.4V), and 3S (11.1V) Batteries
- DVR Functionality: Record Video Content On-The-Go
- Display Size: 4.3 Inches
- Display Resolution: 800 x 480
- Aspect Ratio: 16:9 Widescreen
- Screen Type: IPS (In-Plane Switching) Screen
- Anti-Glare Design: Delicate Picture Quality with Reduced Outdoor Reflection
- Automatic Search: One-Click Automatic Frequency Search
- User-Friendly Design: Intuitive Interface for Enjoyable Flying Experience

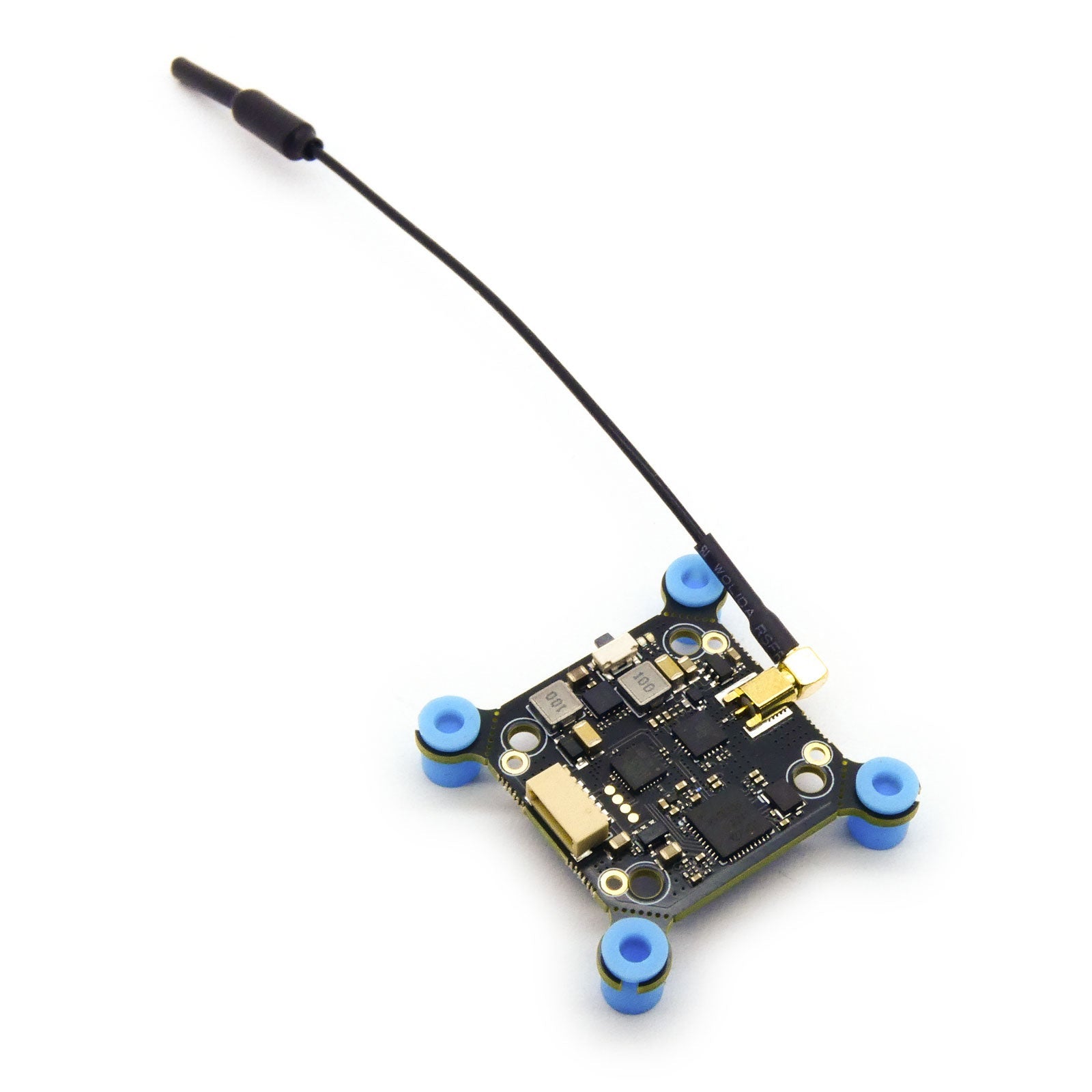

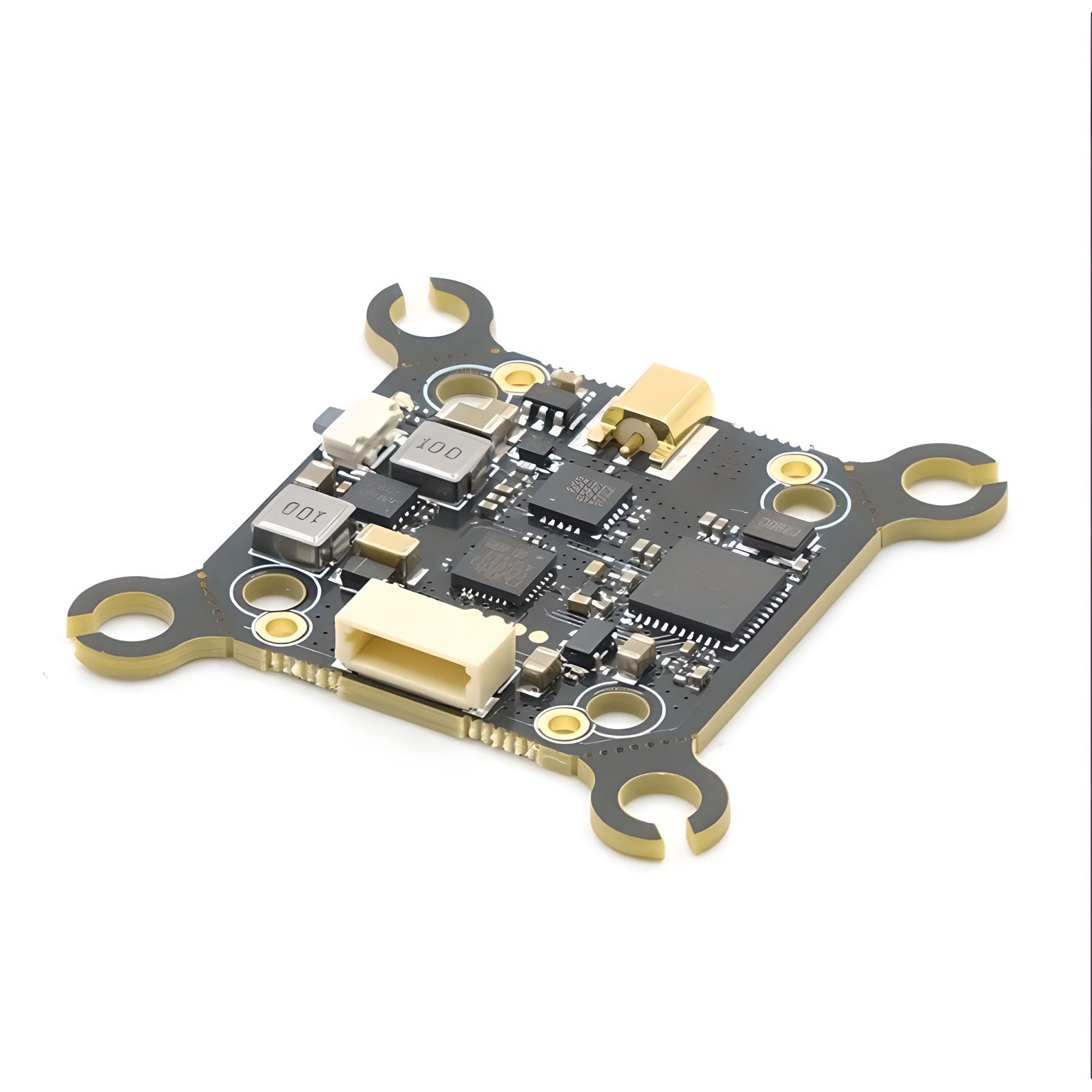

Video Transmitter Specifications:

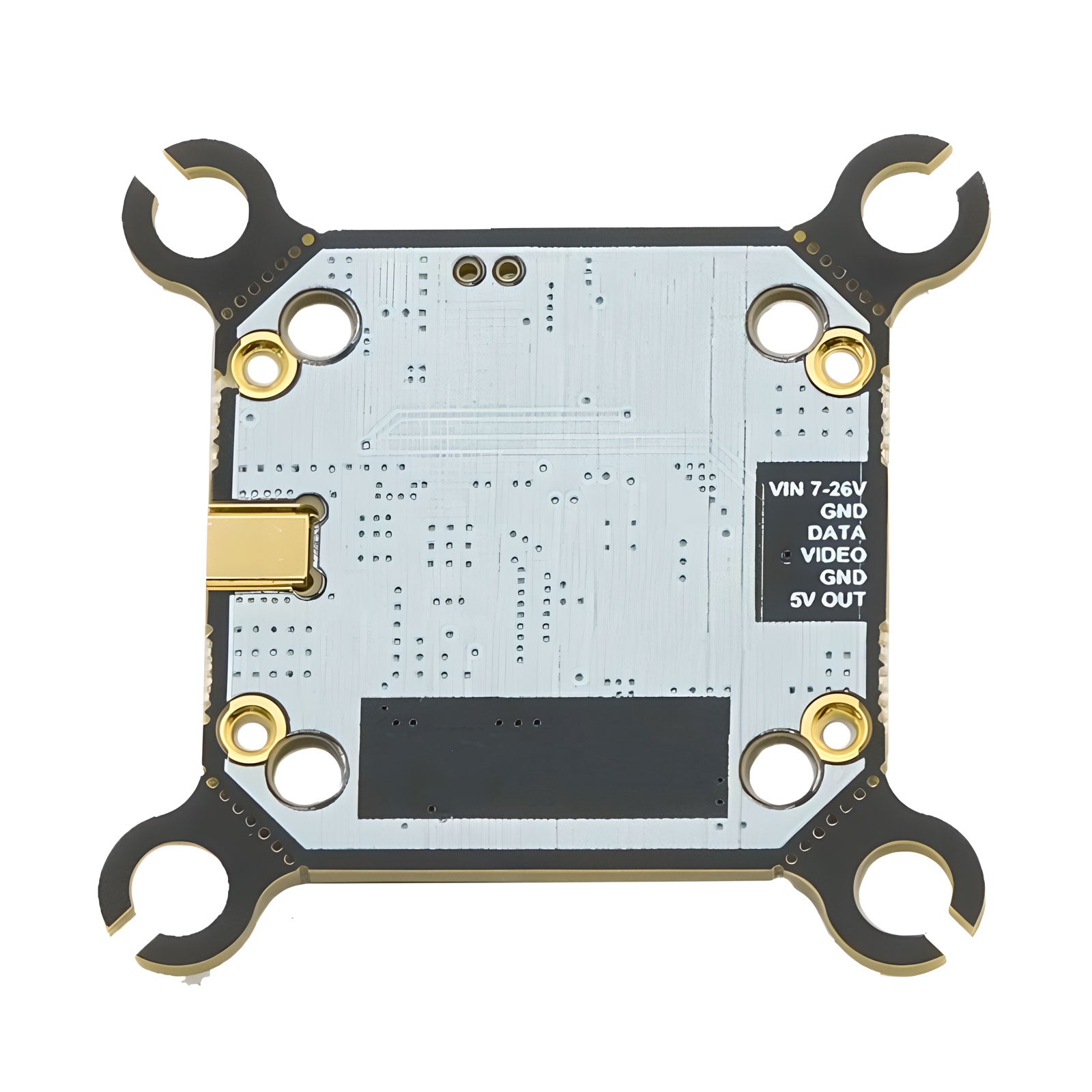

- Input Voltage: 7-26V
- Onboard BEC Output: 5V

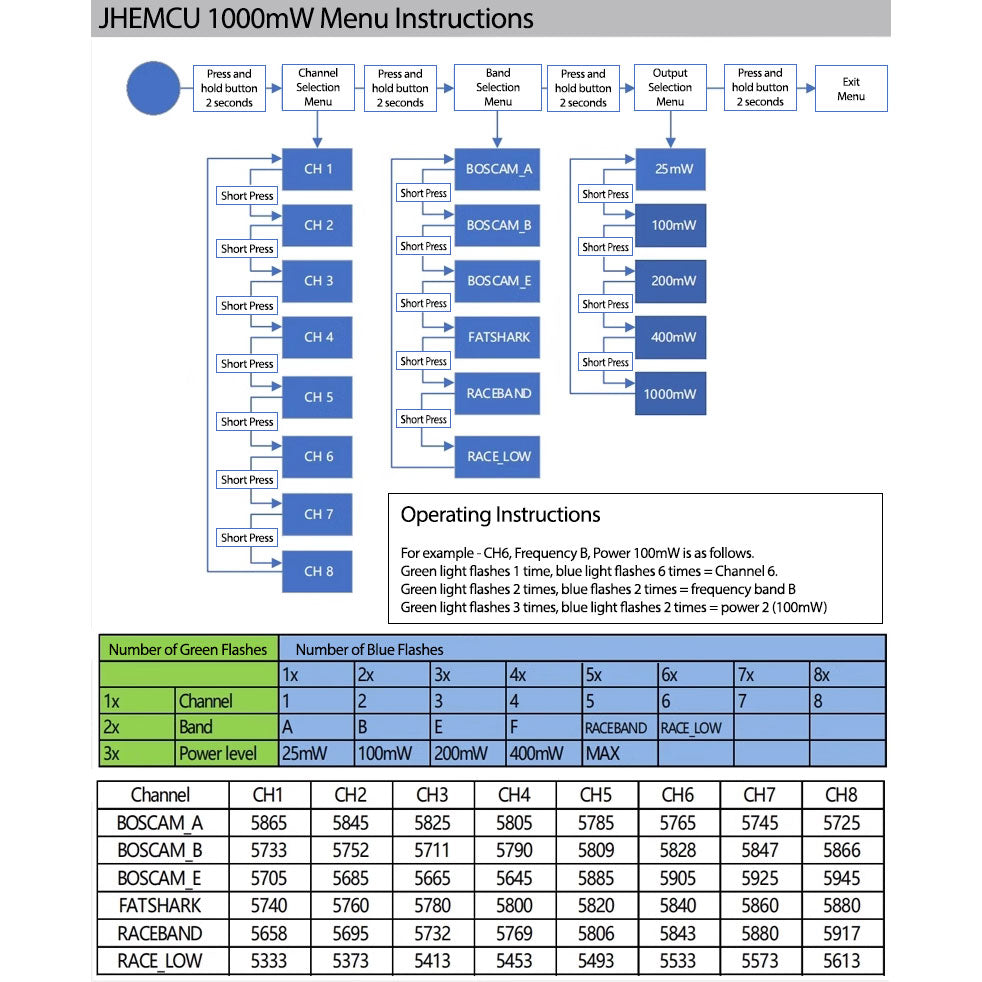

- Number of Transmitting Channels: 48
- Transmitting Power: 25/100/200/400/1000mW
- Video Format: PAL/NTSC
- Control Protocol: TBS SmartAudio
- Antenna Connector: MMCX
- Wiring Method: SH1.0-8P
- Mounting Holes: 20mm & 25.5mm & 30.5mm
- Size: (29mm29mm) & (37.5mm37.5mm)
- Working Temperature: -25°C to 105°C
- Size Can Be Broken: Yes, allowing for customized fitting to various frame sizes.
Aomway 1200TVL Camera Specifications:
- Model: Sony 1200TVL CDD
- Sensor: 1/3" Sony Super HAD CCD
- Picture Elements: PAL (1280H x 1024V) NTSC (1312H x 1069V)
- Resolution: 1200 TVLines 960P
- Video Output: 1.0Vp p (75Ω BNC)
- Signal System: PAL/NTSC
- Min Illumination: 0.01 Lux @(F1.2, AGC On)
- White Balance: Auto
- Gain Control: Auto
- Digital Noise Reduction: 2D/3D
- S/N Ratio: More than 58db
- Voltage Input: 4~5.5V DC
- Power Consumption: 230mA @ 5V
- Operating Temperature: -25~+65° C
- Lens: 2.8mm color
- Dimensions: 26 x 25mm
- Weight: 22g
Package Contents:
- 1x 5.8GHz Diversity FPV Monitor w/ Internal Battery

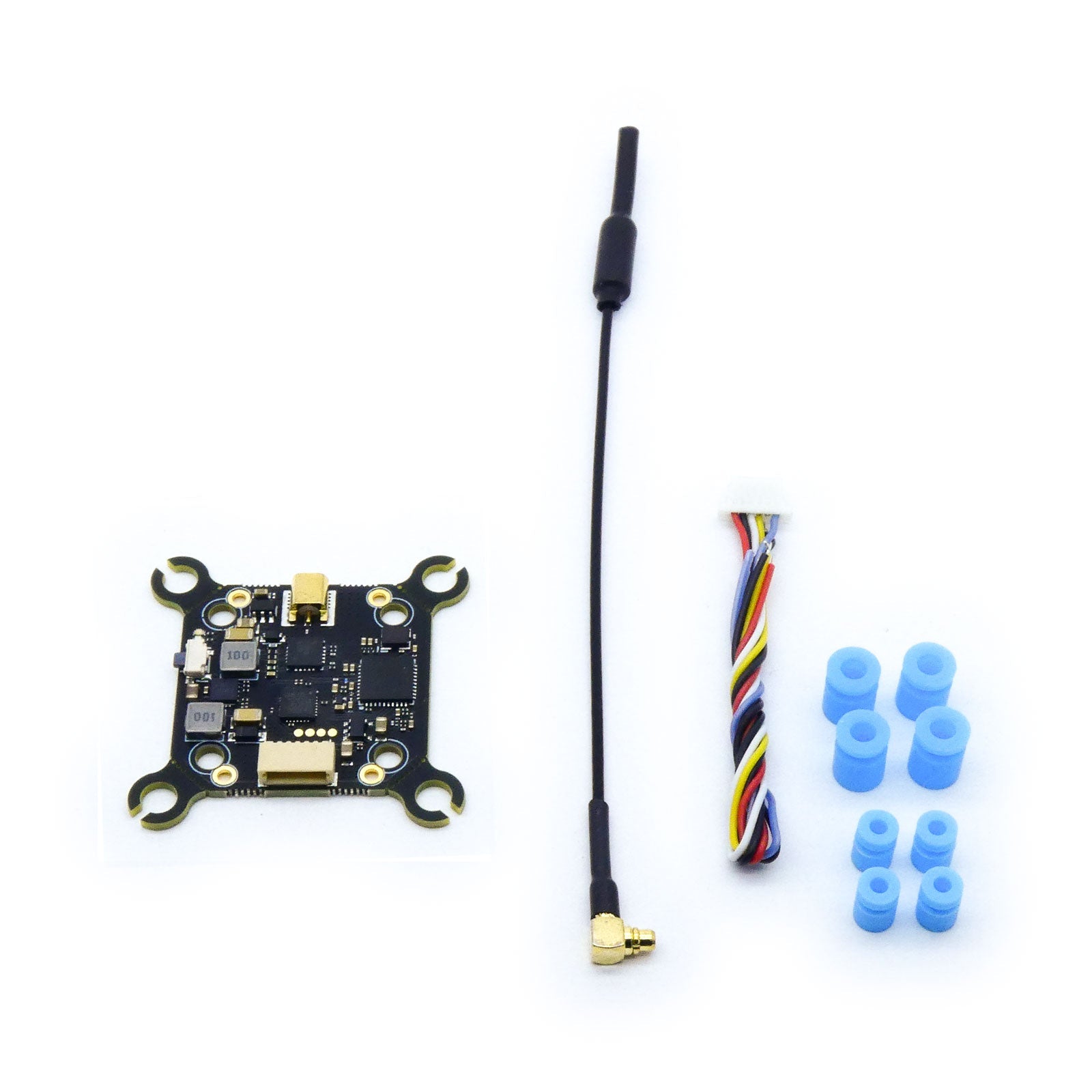

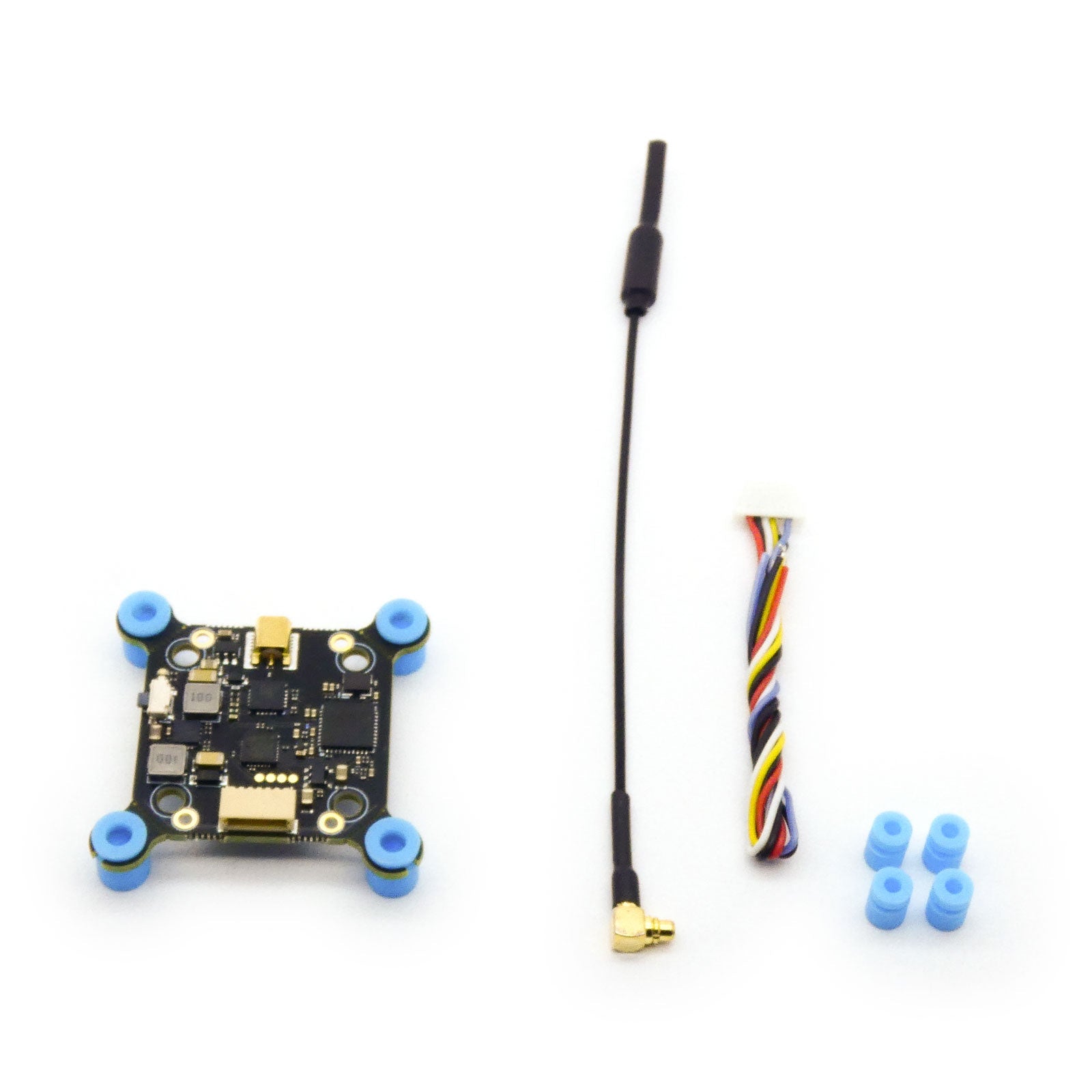

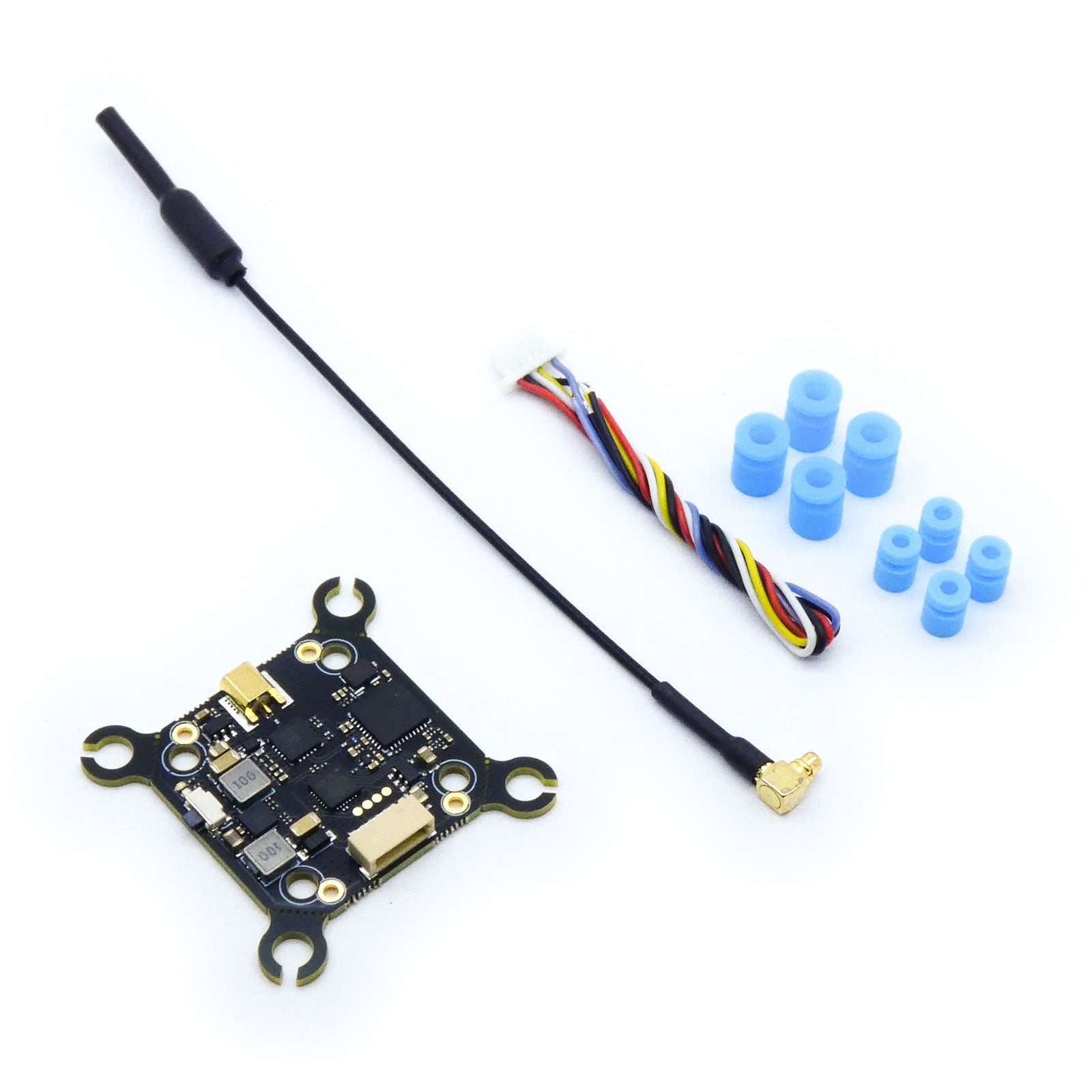

- 1x 5.8GHz 1000mW Video Transmitter
- 1x Transmitting Antenna
- 1x Foxeer Predator V5 Mini CCD 1000TVL Camera
