5.8GHz FPV Kit System Diversity Monitor 1200TVL Camera 800mW Video Transmitter
5.8GHz FPV Kit System Diversity Monitor 1200TVL Camera 800mW Video Transmitter
Product Type: FPV System
Brand: SpeedyFPV
Resolution: 1200TVL
Sensor: CCD
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output: 800mW
Brand: SpeedyFPV
Resolution: 1200TVL
Sensor: CCD
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output: 800mW
This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera and video transmitter is a modern micro 1200TVL Sony CCD HD model, designed with the needs of drone pilots and RC enthusiasts in mind.

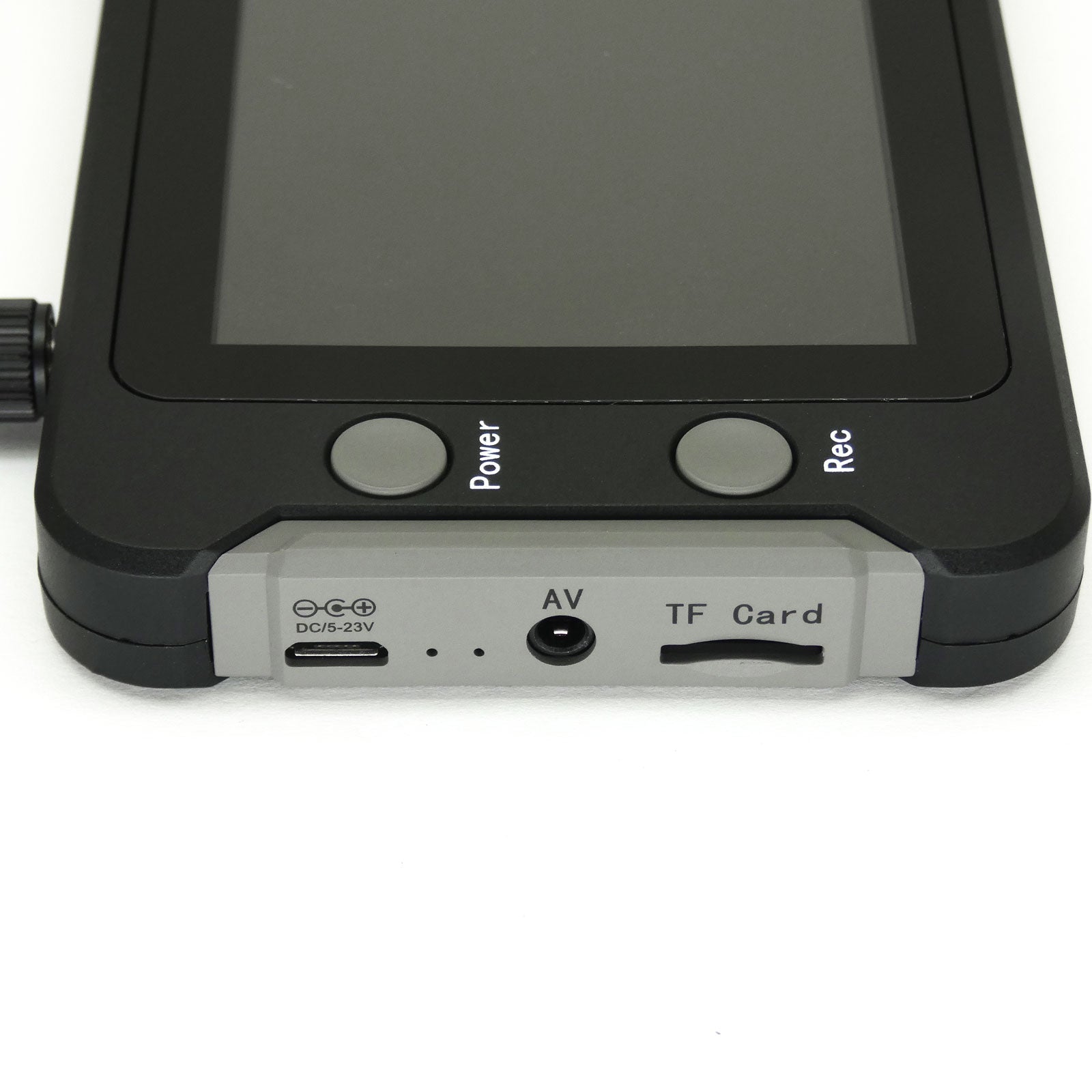

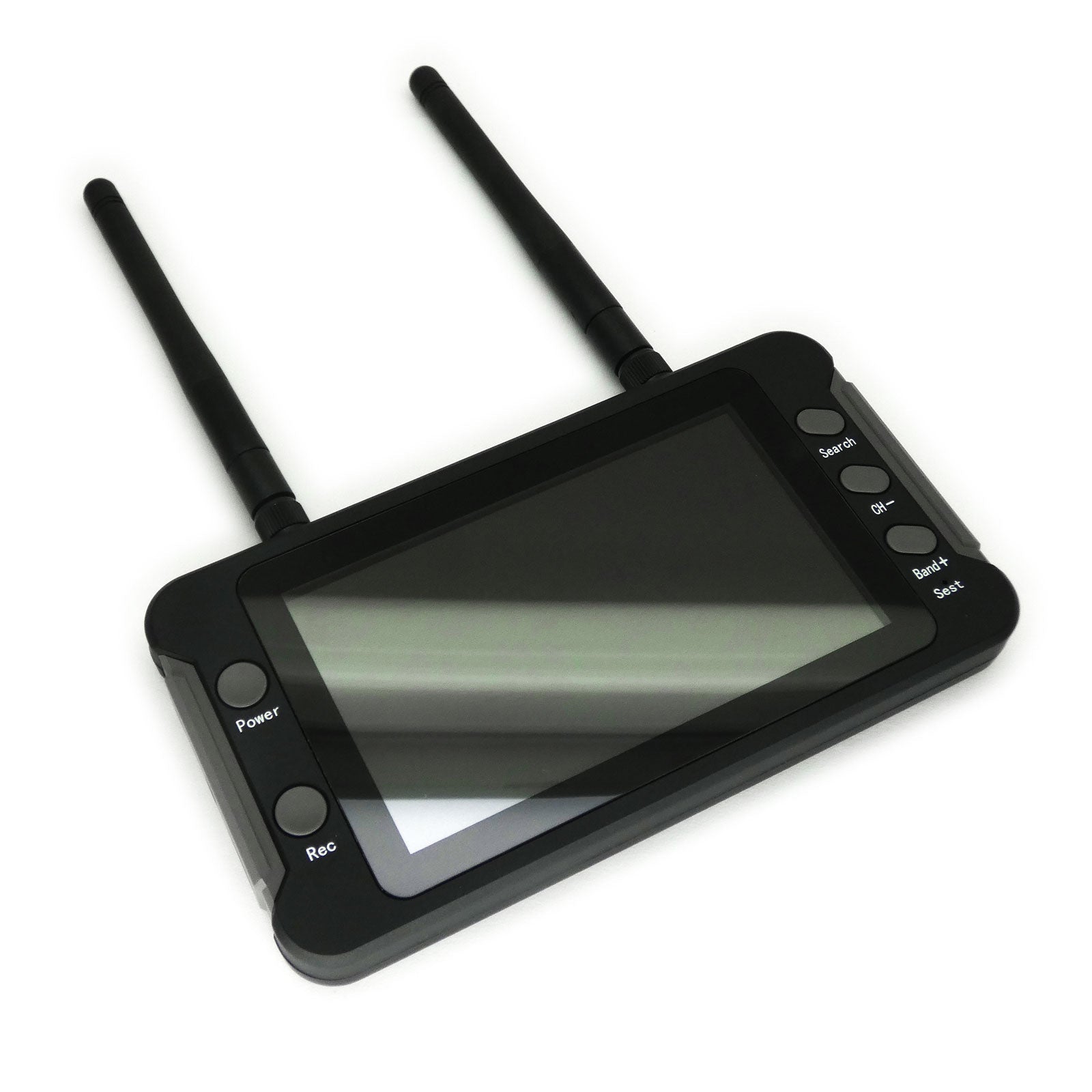

5.8GHz Diversity FPV Monitor Specifications:
- Receiver Frequency: 5.8 GHz
- Dual Antenna Configuration: Diversity Receiver Antennas Supported
- Battery Capacity: Built-in 1200mAh Battery
- Battery Life: Approximately 3 Hours of Continuous Usage
- Voltage Compatibility: Supports Wide Voltage Charging (5-23V)
- Backup Power Sources: Compatible with 5V Mobile Power, 2S (7.4V), and 3S (11.1V) Batteries
- DVR Functionality: Record Video Content On-The-Go
- Display Size: 4.3 Inches
- Display Resolution: 800 x 480
- Aspect Ratio: 16:9 Widescreen
- Screen Type: IPS (In-Plane Switching) Screen
- Anti-Glare Design: Delicate Picture Quality with Reduced Outdoor Reflection
- Automatic Search: One-Click Automatic Frequency Search
- User-Friendly Design: Intuitive Interface for Enjoyable Flying Experience

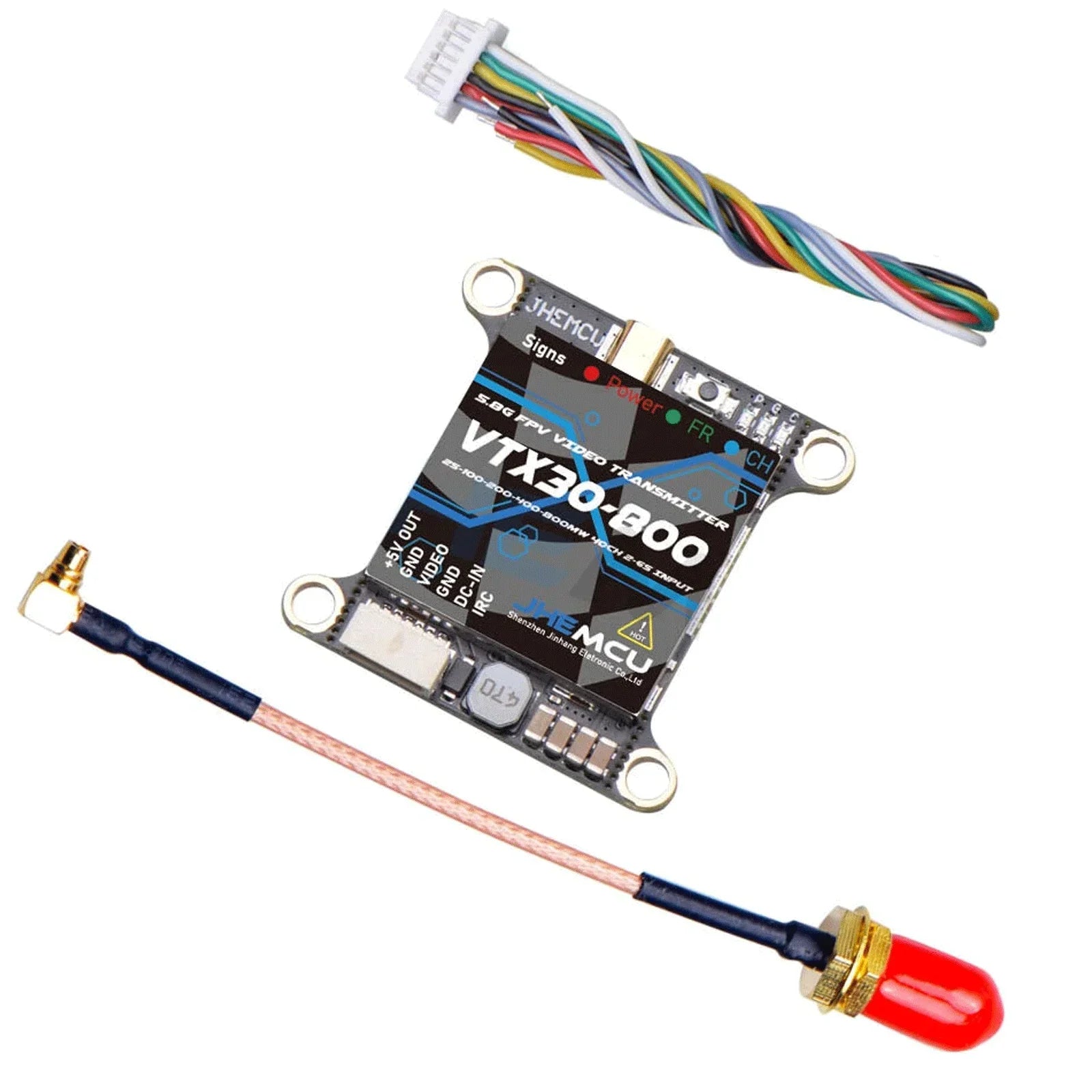

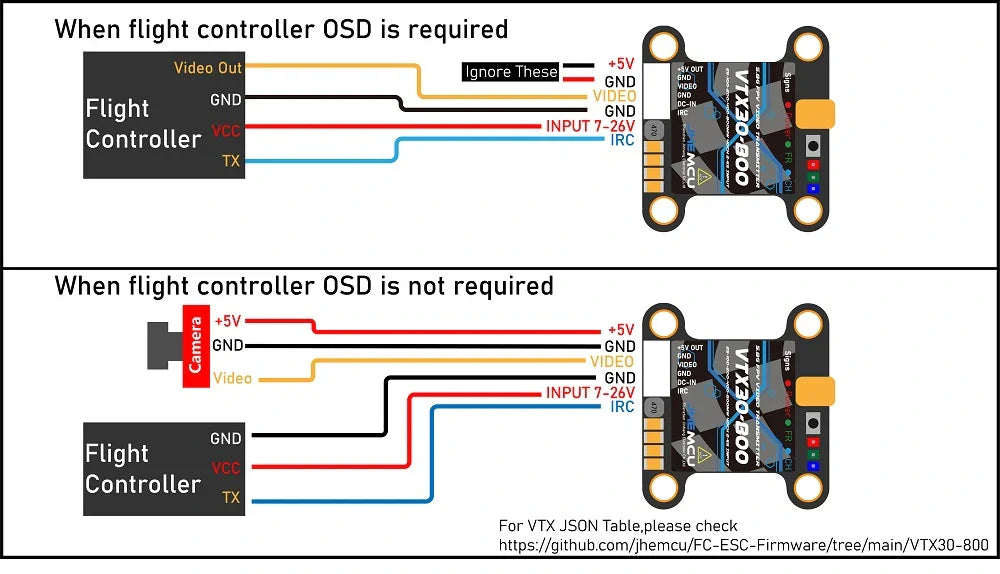

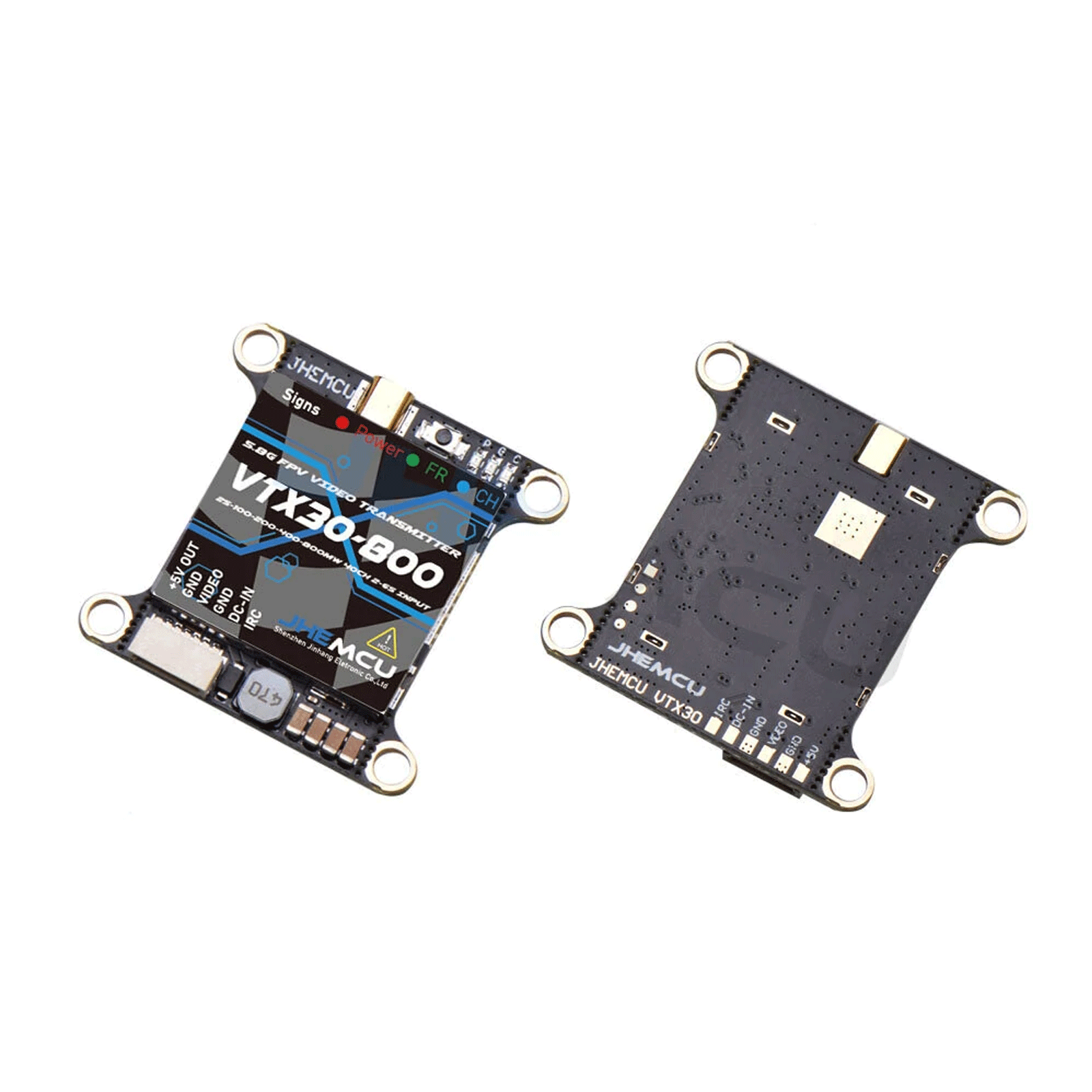

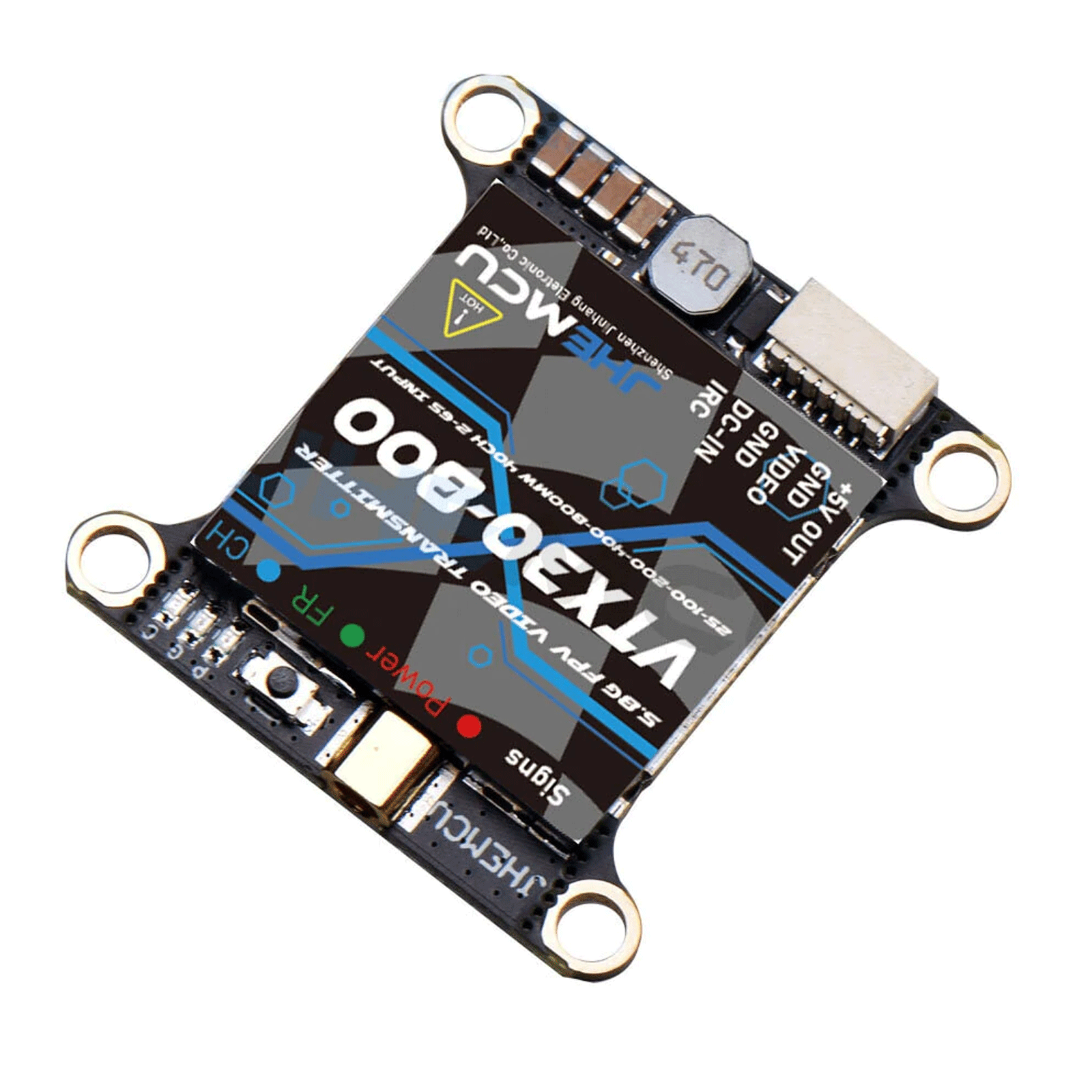

Video Transmitter Specifications:
- Frequency: 5.8G 48CH
- Transmitting Power: 25mW/200mW/600mW/OFF
- Power supply: DC 6-25V (2-6S)
- Supply current12V: 140mA@25mW /250mA@200mW /300mA@600mW
- Power output: DC 5V (800mA max)
- Antenna impedance: 50 ohm

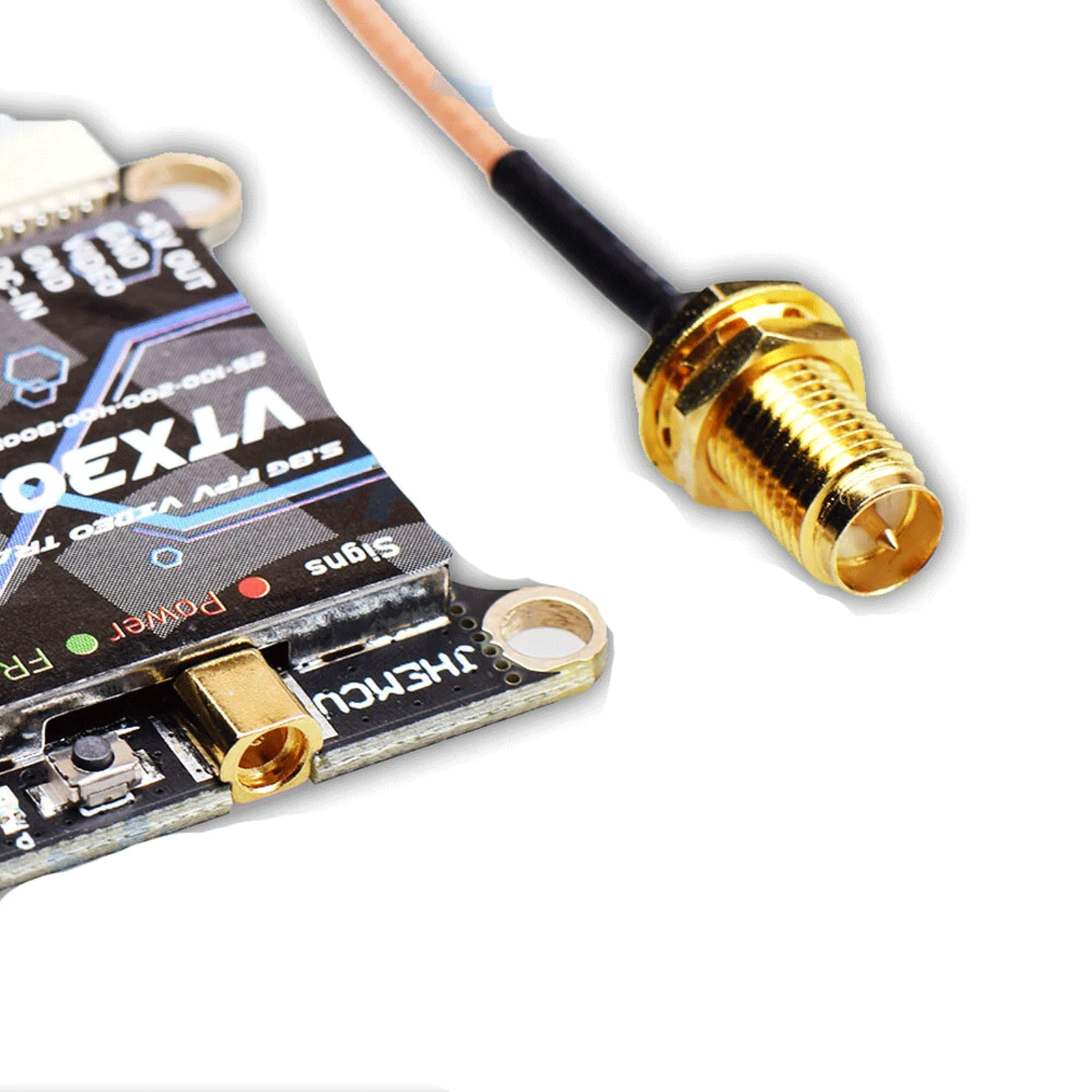

- Antenna connector: MMCX Female( RP-SMA Male Pigtail)
- Weight: 8 g
- Dimension: 36*36*7.65 mm
- Mounting Hole: 30.5mmx30.5mm

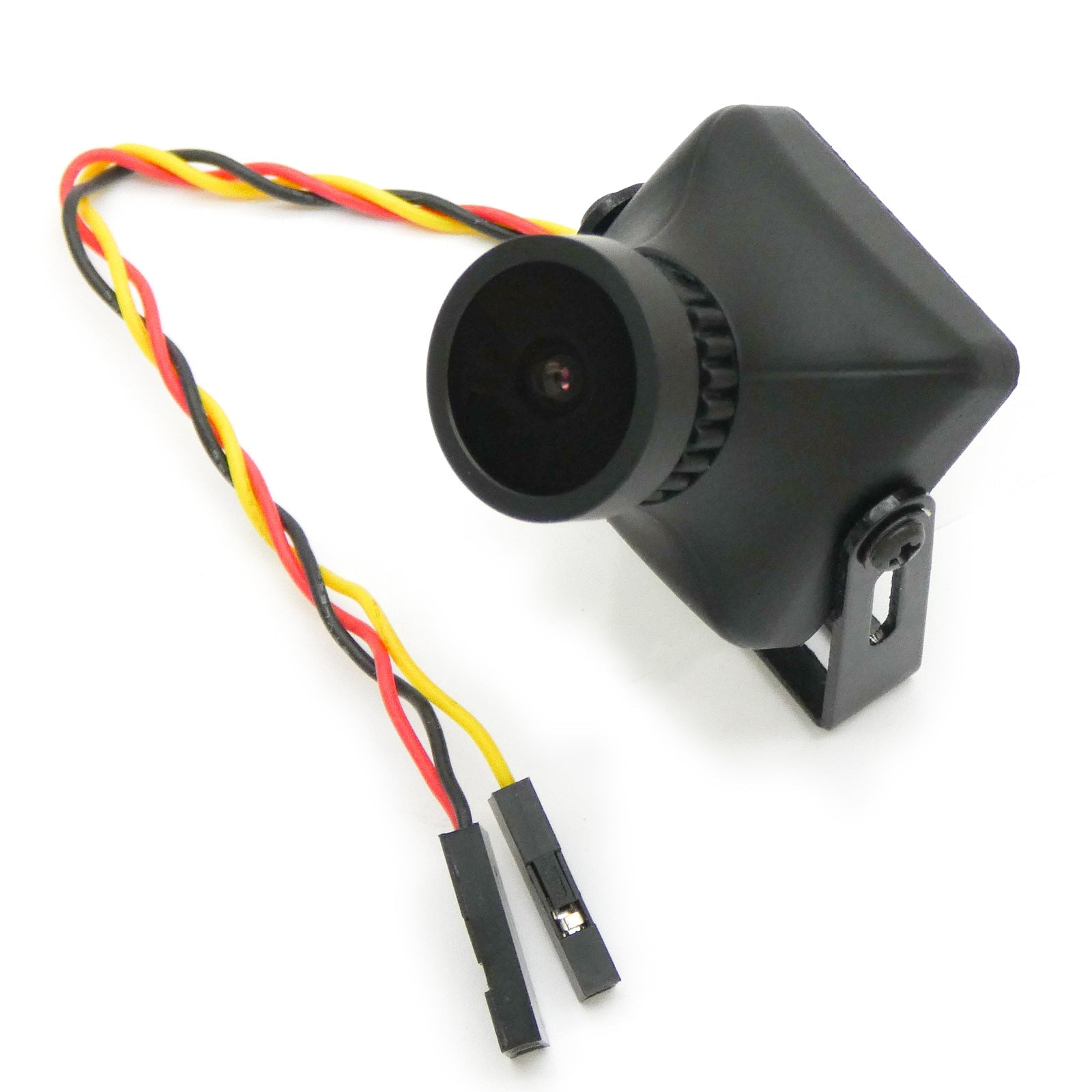

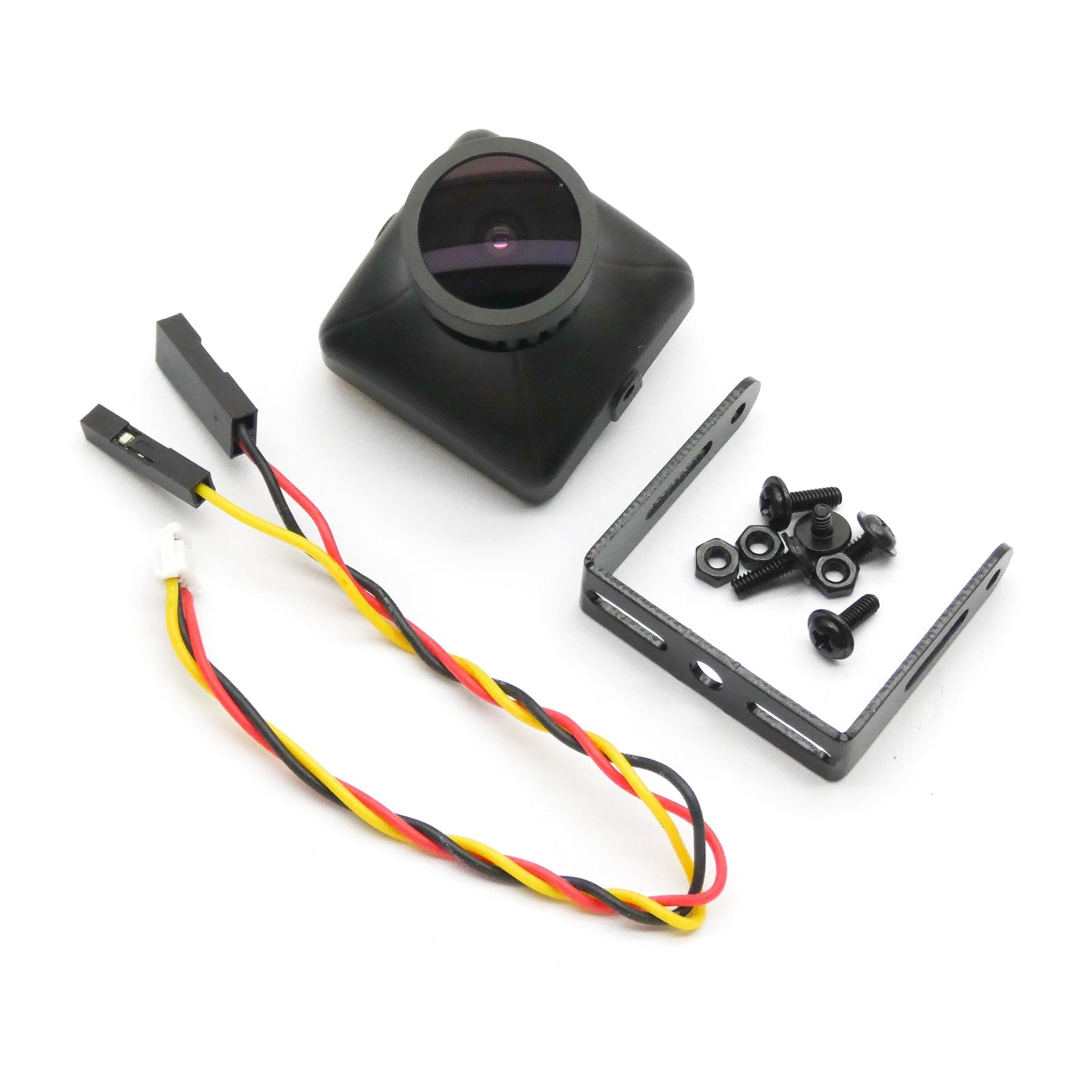

Aomway 1200TVL Camera Specifications:
- Model: Sony 1200TVL CDD
- Sensor: 1/3" Sony Super HAD CCD
- Picture Elements: PAL (1280H x 1024V) NTSC (1312H x 1069V)
- Resolution: 1200 TVLines 960P
- Video Output: 1.0Vp p (75Ω BNC)
- Signal System: PAL/NTSC
- Min Illumination: 0.01 Lux @(F1.2, AGC On)
- White Balance: Auto
- Gain Control: Auto
- Digital Noise Reduction: 2D/3D
- S/N Ratio: More than 58db
- Voltage Input: 4~5.5V DC
- Power Consumption: 230mA @ 5V
- Operating Temperature: -25~+65° C
- Lens: 2.8mm color
- Dimensions: 26 x 25mm
- Weight: 22g
Package Contents:
- 1x 5.8GHz Diversity FPV Monitor w/ Internal Battery
- 1x 5.8GHz 800mW Video Transmitter

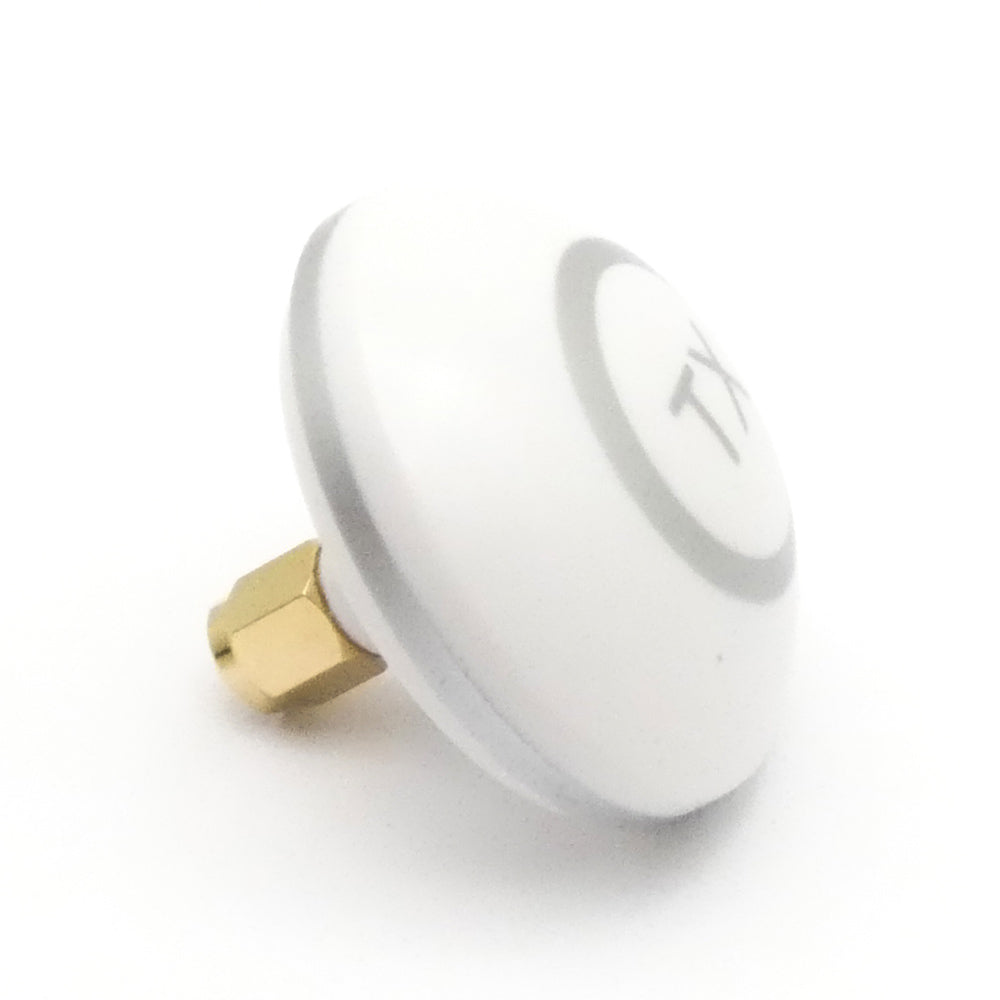

- 1x Circular Polarized Transmitting Antenna
- 1x Circular Polarized Receiving Antenna
- 2x Dipole Receiving Antennas
- 1x Aomway Sony CCD 1200TVL Camera
