5.8GHz FPV Kit System Diversity Monitor 1500TVL Camera 800mW Video Transmitter
5.8GHz FPV Kit System Diversity Monitor 1500TVL Camera 800mW Video Transmitter
Product Type: FPV System
Brand: SpeedyFPV
Resolution: 1200TVL
Sensor: CCD
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output: 800mW
Brand: SpeedyFPV
Resolution: 1200TVL
Sensor: CCD
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output: 800mW
This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera and video transmitteris a modern micro 1200TVL Sony CCD HD model, designed with the needs of drone pilots and RC enthusiasts in mind.
5.8GHz Diversity FPV Monitor Specifications:
- Built-in Function: DVR, Diversity Receiver, Built-in Battery
- Screen : 7 Inch TFT Screen
- Frequency : 5.8G
- Channel : 40CH
- Sensitivity : -95dBm
- Interface : AVIN/AVOUT/DCIN/USB
- Build in 2000mAh 2S LiPo
- Language : English
- Ratio : 16:9
- Power Consumption :ã ‰¤5W
- Size : 178x118x58mm
Video Transmitter Specifications:
- Frequency: 5.8G 48CH
- Transmitting Power: 25mW/200mW/600mW/OFF
- Power supply: DC 6-25V (2-6S)
- Supply current12V: 140mA@25mW /250mA@200mW /300mA@600mW
- Power output: DC 5V (800mA max)
- Antenna impedance: 50 ohm
- Antenna connector: MMCX Female( RP-SMA Male Pigtail)
- Weight: 8 g
- Dimension: 36*36*7.65 mm
- Mounting Hole: 30.5mmx30.5mm

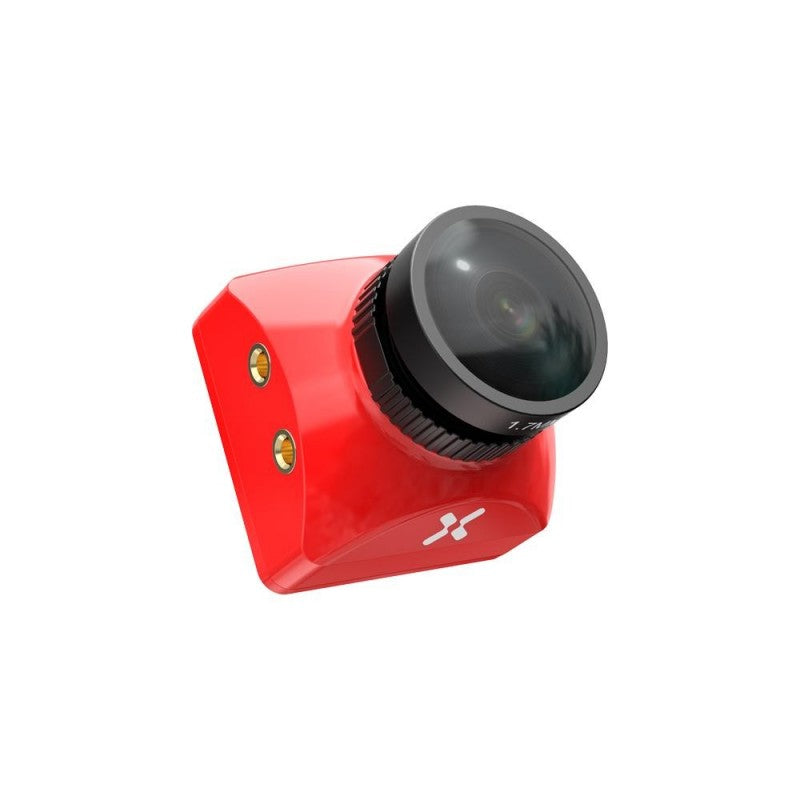

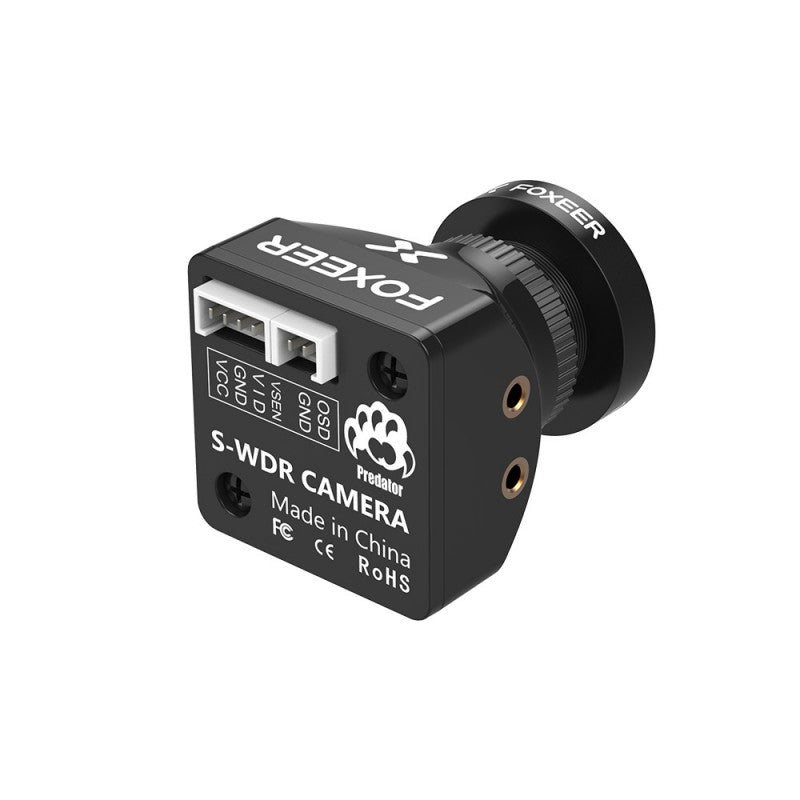

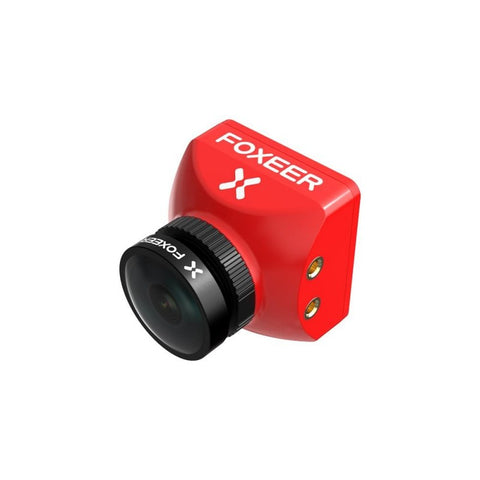

Foxeer Toothless 2 Mini 1200TVL FPV Camera Specifications:
- Sensor Type: Sony 1/2"" CMOS Sensor
- Scale: 4:3/16:9 Switchable
- TV System: PAL/NTSC Switchable
- Resolution: 1200TVL
- Lens: 1.7mm
- FOV:
- 4:3 WIDE: FOV-H: 145 Degrees FOV-D:180 Degrees
- 4:3 NARROW: FOV-H: 125 Degrees FOV-D:160 Degrees
- 16:9: FOV-H: 145 Degrees FOV-D:165 Degrees
- Shutter Speed: PAL 1/251/10000 sec; NTSC 1/301/10000 sec
- Video Output: CVBS Analog Signal
- Minimum Illumination: 0.0001Lux
- White Balance: Auto
- DNR: 3DNR
- WDR: 100dB
- DAY/NIGHT: EXT/Auto/Color/B&W
- Flight OSD: Voltage/Cam Title/Time
- Input Voltage: 5V~16V
- Working Temperature: -10 Degrees~50 DegreesC RH90% MAX
- Working Humidity: 20~80%
- Storage Temperature: -20 Degrees~70 DegreesC
- Consumption: 80mA±15% @ DC12V; 170mA±15% @ DC5V
- Dimension: 2222mm; 2822mm (Add Bracket)
- Weight: 9.7g (Exclude cable)

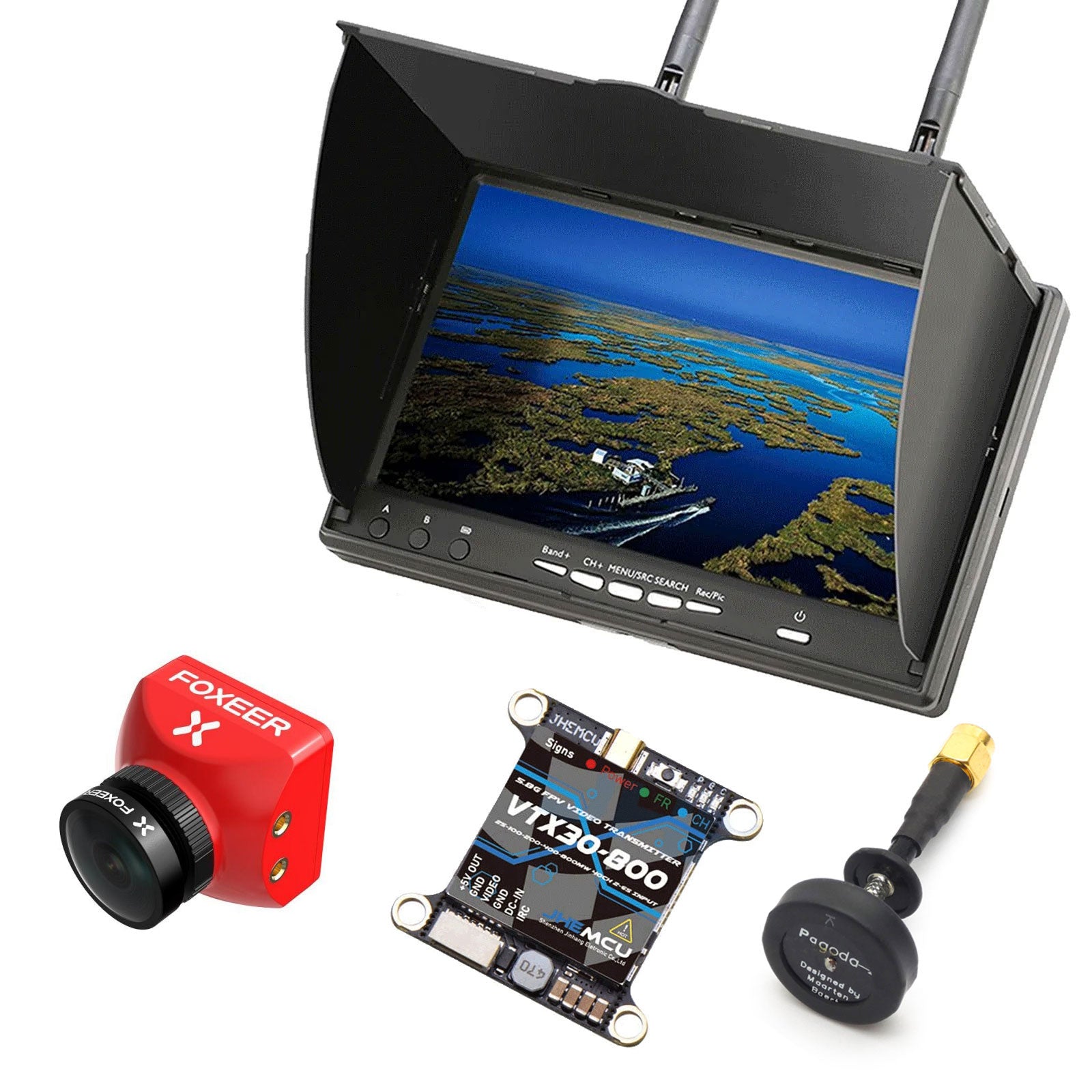

Package Contents:
- 1x 5.8GHz Diversity FPV Monitor w/ Internal Battery
- 1x 5.8GHz 800mW Video Transmitter
- 1x Pagoda Transmitting Antenna
- 1x Foxeer Toothless 2 Mini 1200TVL Camera
