5.8GHz FPV Kit System Diversity Monitor Foxeer HD Camera 600mW Video Transmitter
5.8GHz FPV Kit System Diversity Monitor Foxeer HD Camera 600mW Video Transmitter
Product Type: FPV System
Brand: SpeedyFPV
Resolution: 1200TVL
Sensor: CMOS
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output: 600mW
Brand: SpeedyFPV
Resolution: 1200TVL
Sensor: CMOS
Transmitter Output: Adjustable
Transmitter Output: 0.1mW
Transmitter Output: 100mW
Transmitter Output: 200mW
Transmitter Output: 25mW
Transmitter Output: 400mW
Transmitter Output: 600mW
This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring MicroSD DVR recording, bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a modern Foxeer Cat 3 Mini model, designed with the needs of drone pilots and RC enthusiasts in mind, paired with a powerful reliable transmitter for a perfect match.

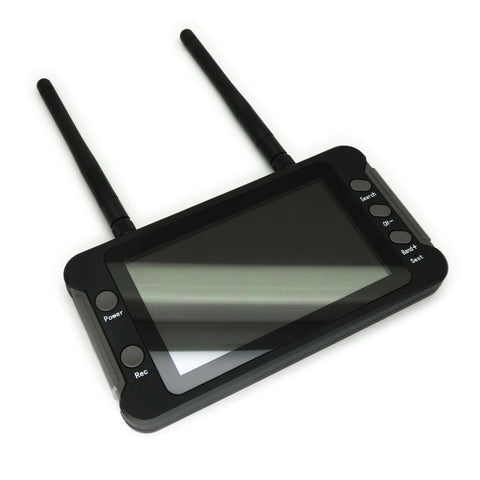

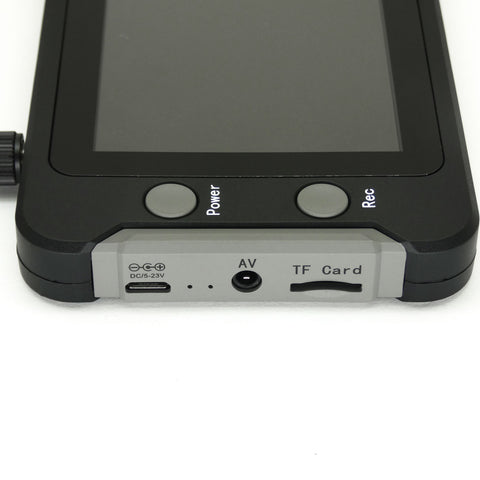

5.8GHz Diversity FPV Monitor Specifications:
- Receiver Frequency: 5.8 GHz
- Dual Antenna Configuration: Diversity Receiver Antennas Supported
- Battery Capacity: Built-in 1200mAh Battery
- Battery Life: Approximately 3 Hours of Continuous Usage
- Voltage Compatibility: Supports Wide Voltage Charging (5-23V)
- Backup Power Sources: Compatible with 5V Mobile Power, 2S (7.4V), and 3S (11.1V) Batteries
- DVR Functionality: Record Video Content On-The-Go
- Display Size: 4.3 Inches
- Display Resolution: 800 x 480
- Aspect Ratio: 16:9 Widescreen
- Screen Type: IPS (In-Plane Switching) Screen
- Anti-Glare Design: Delicate Picture Quality with Reduced Outdoor Reflection
- Automatic Search: One-Click Automatic Frequency Search
- User-Friendly Design: Intuitive Interface for Enjoyable Flying Experience
VTX20-600 5.8GHz Video Transmitter Operation:
-
Instructions - The image transmission supports the IRC Tram protocol to adjust the channel and power of the image transmission through the OSD and remote control, and also supports the switch of the power and channel through the button of the image transmission.
-
Short Press - Select CH1-8 cyclically, and the number of times the green light flashes represents the number of CHs.
-
Long Press - 3 Seconds - After long press for 3 seconds, the blue light will light up, continue to press and hold to cycle to select the frequency band FR A-B-E-F-R. Corresponding to the blue light flashes 1, 2, 3, 4, 5 times.
- Long Press - 6 Seconds - After long press for 6 seconds, the red light will light up, continue to press and hold, cycle to select the power 25-100-200-400-600mW, corresponding to the red light flashes 1 time, 2 times, 3 times, 4 times, 5 times.

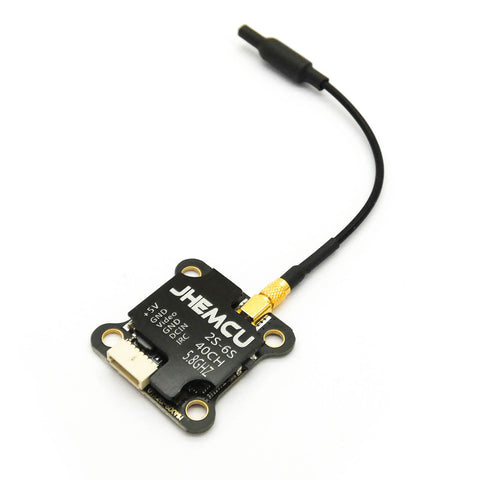

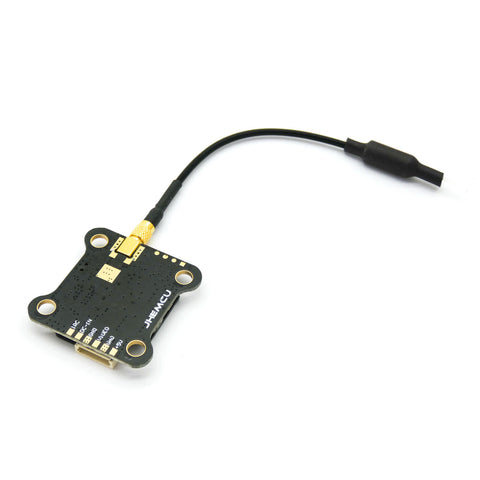

VTX20-600 5.8GHz Video Transmitter Specifications:
- Input voltage: 7-26V
- Output voltage and current: 5V 1A
- Number of channels: 40CH
- Transmitting power: PIT/25/100/200/400/600mW
- Interface: MMCX
- Control protocol: VTX IRC Tram
- Dimensions: 27x27mm
- Installation hole distance: 20x20mm
- Installation aperture: 3mm
- Weight: 3g

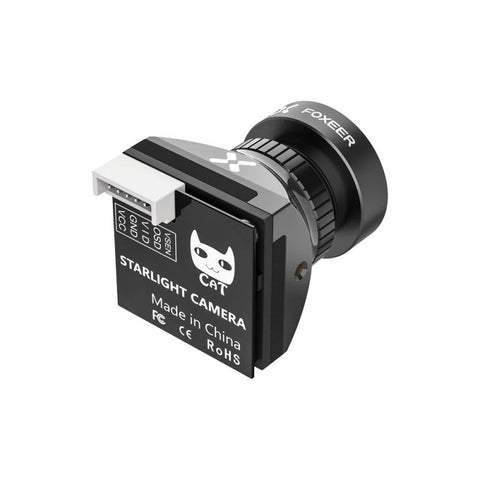

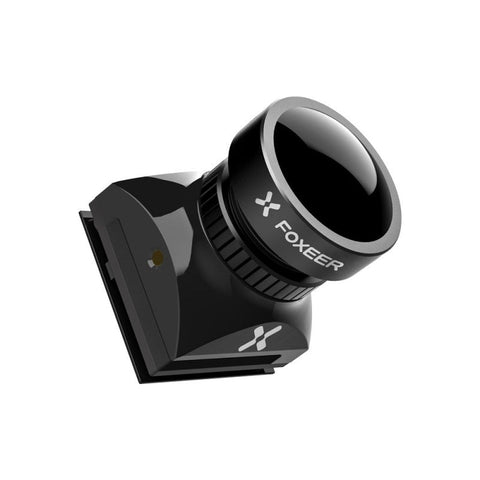

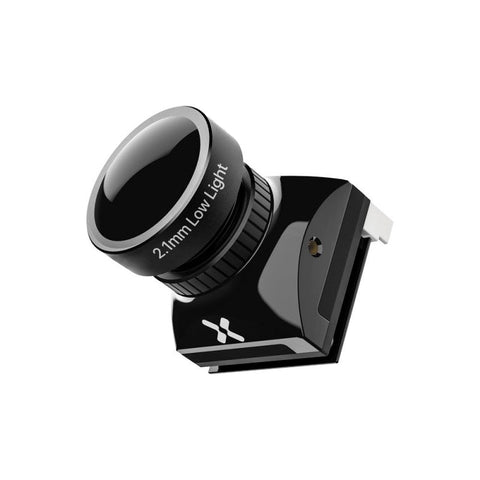

Foxeer Micro Cat 3 1200TVL Camera Specifications:
- Sensor Type Sony 1/3" CMOS Sensor
- Scale 4:3(Default)/16:9 Switchable
- Tv System PAL(Default)/NTSC Switchable
- Resolution 1200TVL
- Lens M12 2.1mm Low Light Lens
- FOV 4:3 FOV-H: 100° FOV-D:125°
- 16:9 FOV-H: 100° FOV-D:115°
- Shutter Speed PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
- Video Output CVBS Analog Signal
- Minimum Illumination 0.00001Lux
- White Balance Auto
- DNR 3DNR
- WDR 100dB
- DAY/NIGHT EXT/Auto/Color/B&W
- Flight OSD Voltage/Cam Title/Time
- Input Voltage 4.6V~20V
- Language ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
- Working Temperature -10°~50°C RH90% MAX
- Working Humidity 20~80%
- Storage Temperature -20°~70°C
- Consumption 95mA±15% @ DC12V
- Dimension 19*19mm
- Weight 10.7g (Excludes cable)
Package Contents:
- 1x 5.8GHz FPV Diversity DVR Monitor w/ Internal Battery
- 1x 5.8GHz 1000mW Video Transmitter
- 1x Transmitting Antenna
- 1x Runcam Nano 2 700TVL Camera
