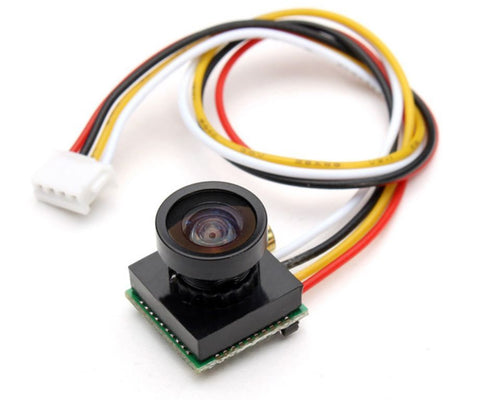

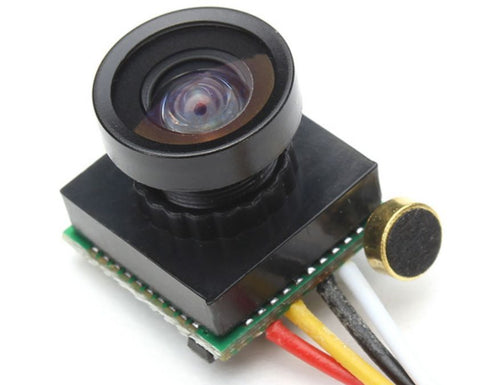

600TVL Micro FPV Camera 1.8mm 170 Degree Lens with Microphone NTSC/PAL (3g)
600TVL Micro FPV Camera 1.8mm 170 Degree Lens with Microphone NTSC/PAL (3g)
Weighing in at only 3 grams, this is an excellent option for your smaller FPV quadcopter video system.
Specifications:
Package Contents:
Specifications:
- Resolution: 600TVL
- Camera Dimensions: 12.5mm * 12.5mm * 17mm
- Illumination: 0.5LUX
- Format: NTSC
- Power supply range: 3.7-5V ONLY
- Audio Lens: Wide-angle 1.8mm (170 degree)
- Image sensor:1/4 CMOS image sensor
- Sensitive area: 3.5964mm x 2.7084mm
- 648 pixels (horizontal) x 488 (vertical) 648 (horizontal) x 488 (vertical)
- Scanning Frequency Horizontal: 15.625KHz
- Vertical: 50Hz
- level: 15.7343KHz
- Vertical: 60Hz
- Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
- SNR 48dB (AGC OFF)
- Minimum illumination : 0.1 Lux / F1.2
- Composite video signal :1.0Vp-p 75 ohm
- Standard Lens :1.8 mm
- Specifications PCB: 20mm*20mm
- Power: DC5V ± 10% 70mA ± 10%
- Operating temperature :-10 Degrees C ~ 60 Degrees C RH95% Max
Package Contents:
- 1 x 700TVL Wide-Angle Micro Lens Camera
